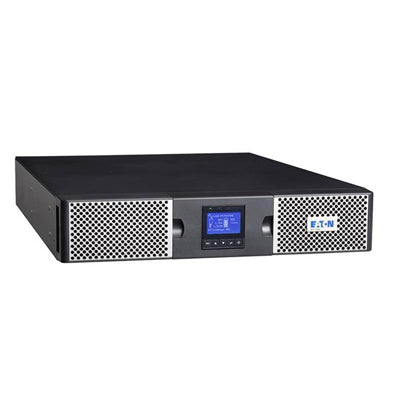

EATON 9PX 2000VA / 1800W 2U RACK/TOWER.
EATON 9PX 2000VA / 1800W 2U RACK/TOWER.
EATON

EATON 9PX 2000VA / 1800W 2U RACK/TOWER.

SKU: 9PX2000IRTAU ● In Stock
$3,589.70
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

Eaton 9PX 2000VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included)

Specifications

Technical Specifications

Topology On-line double conversion with Power Factor Correction (PFC) system
Configuration Rack/Tower
Part Number 9PX2000iRTAU
Rating (VA/Watts) 2000/1800
Dimensions (H x W x D, mm) 86.5 x 440 x605
Weight (kg) 27.4
Connection (1) IEC-320-C14
Input Voltage Range 176-276V without derating (up to 100-276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Nominal Voltage 200/208/220/230/240V
Output Receptacles (6) IEC-320-C13(2) Aust. 10A
Remotely controlled sockets 2 Groups: (2) Aust. 10A & (2) IEC C13 10A
Efficiency (Normal Mode) Up to 93% in online mode (Up to 98% in Hi-efficiency mode)
Output Frequency 50/60 Hz autoselect, frequency converter mode
Battery Management ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Extended Battery Capability EBM (2U)
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
