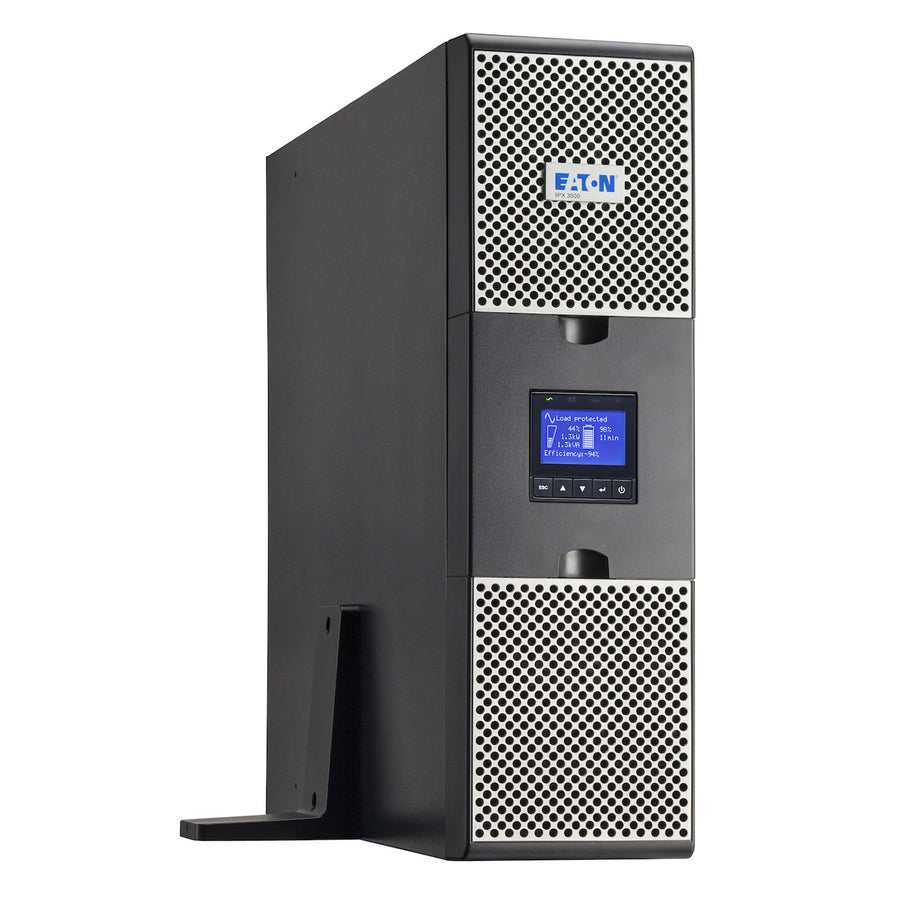

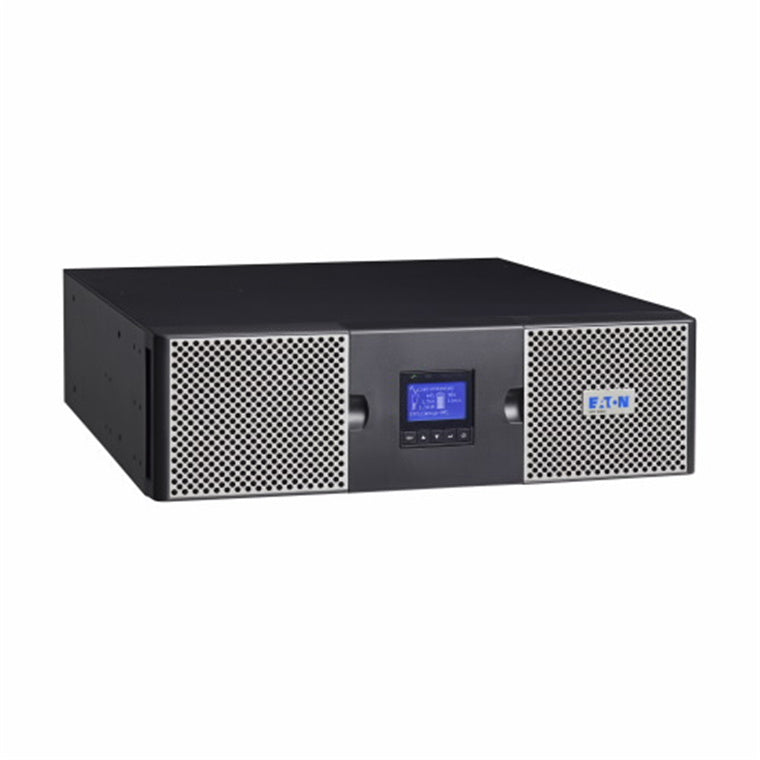

Eaton 9PX 2200VA 3U Rack/Tower 16Amp In
Features
Eaton 9PX 2200VA 2200W 10 Outlet Online Double Conversion 3RU Rack/Tower UPS
The Eaton 9PX UPS provides advanced protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection and being the first in its class to provide Unity power factor (VA=W).
Features:
- 9PX is the first UPS in its class to provide Unity power factor (VA=W).
- Energy Star qualified, the 9PX provides the highest efficiency level to reduce energy and cooling costs.
- Double conversion topology. The Eaton 9PX constantly monitors power conditions and regulates voltage and frequency.
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- The graphical LCD display provides clear information on the UPS's status and measurements on a single screen
- 9PX can meter energy consumption right down to the managed outlet groups.
- The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as standard on HotSwap version) for easy replacement of the UPS.
Specifications
Technical Specifications
| General: | Topology: On-line double conversion with Power Factor Correction (PFC) systemConfiguration: Rack/TowerRating (VA/Watts): 2200/2200Connection: 1 x IEC-320-C20Input Voltage Range: 176-276V without derating (up to 100-276V with derating)Output Receptacles: 8x IEC-320-C13, 2x IEC-320-C19Frequency: 50/60 Hz autoselectionFrequency Range: 40-70 Hz |
|---|---|
| Battery: | Nominal Voltage: 200/208/220/230/240VBattery Management: ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery unitsExtended Battery Capability: EBM (3U) |
| Communications: | Communication Ports: 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relayCommunications Card Slots: 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
| Environmental and Standards: | Audible Noise: 40dBOperating Temperature: 0 to 40CSafety Markings: IEC/EN 62040-1, UL 1778, CSA 22.3EMC Markings: IEC/EN 62040 -2 , FCC Class B, CISPR22 Class BApprovals: CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star |
| Dimensions and Weight: | Dimensions (H x W x D): 130mm x 440mm x 485mmWeight: 24.5kg |
| Brand | EATON |
|---|---|
| Product Type | Networking > Racks & Cabinets |
| Weight | 31.5 kg |
