EATON

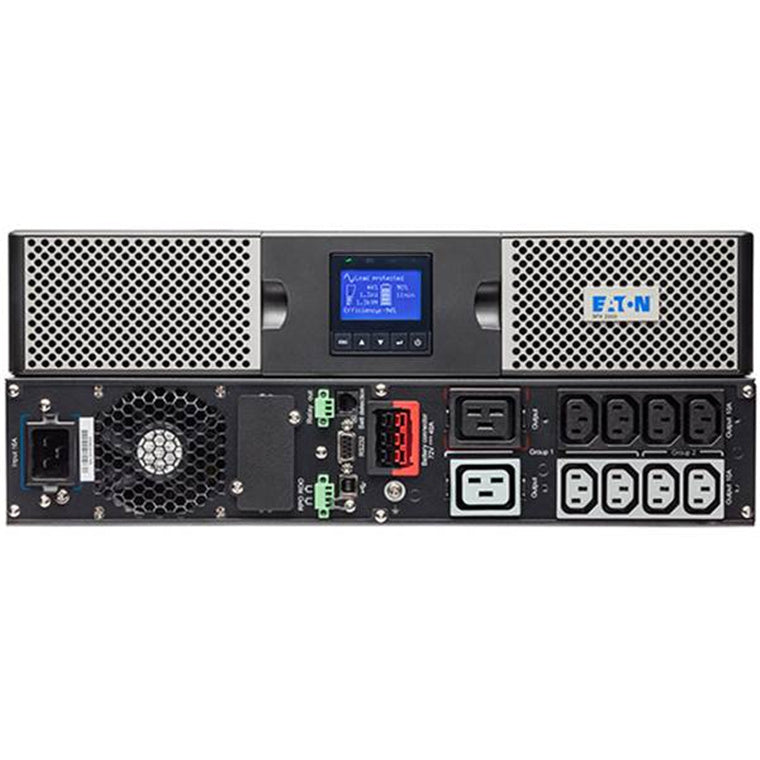

Eaton 9PX 3000VA 2U Rack/Tower 16Amp In
$8,081.63
Free shipping over $299
Genuine product
7-day returns
Features
Eaton 9PX 3000VA 2U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)
Specifications
Technical Specifications
| Topology | On-line double conversion with Power Factor Correction (PFC) system |
|---|---|
| Configuration | Rack/Tower |
| Part Number | 9PX3000IRT2U |
| Rating (VA/Watts) | 3000/3000 |
| Dimensions (H x W x D, mm) | 86.5 x 440 x 605 |
| Weight (kg) | 27.6 |
| Rail Kit Included | Yes |
| Connection | (1) IEC-320-C20 |
| Input Voltage Range | 176-276V without derating (up to 100-276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Nominal Voltage | 200/208/220/230/240V |
| Outlets | (8) IEC-320-C13(2) IEC-320-C19 |
| Efficiency (Normal Mode) | Up to 94% in online mode (Up to 98% in Hi-efficiency mode) |
| Output Frequency | 50/60 Hz autoselect, frequency converter mode |
| Runtime (Full load) | 3 min |
| Runtime (Half load) | 10 min |
| Battery Management | ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Extended Battery Capability | EBM (2U) |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards. |
| Audible Noise | 40dB |
| Operating Temperature | 0 to 40°C |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.10 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B |
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star |
| Brand | EATON |
|---|---|
| Product Type | Networking > Racks & Cabinets |
| Weight | 35.1 kg |
