EATON

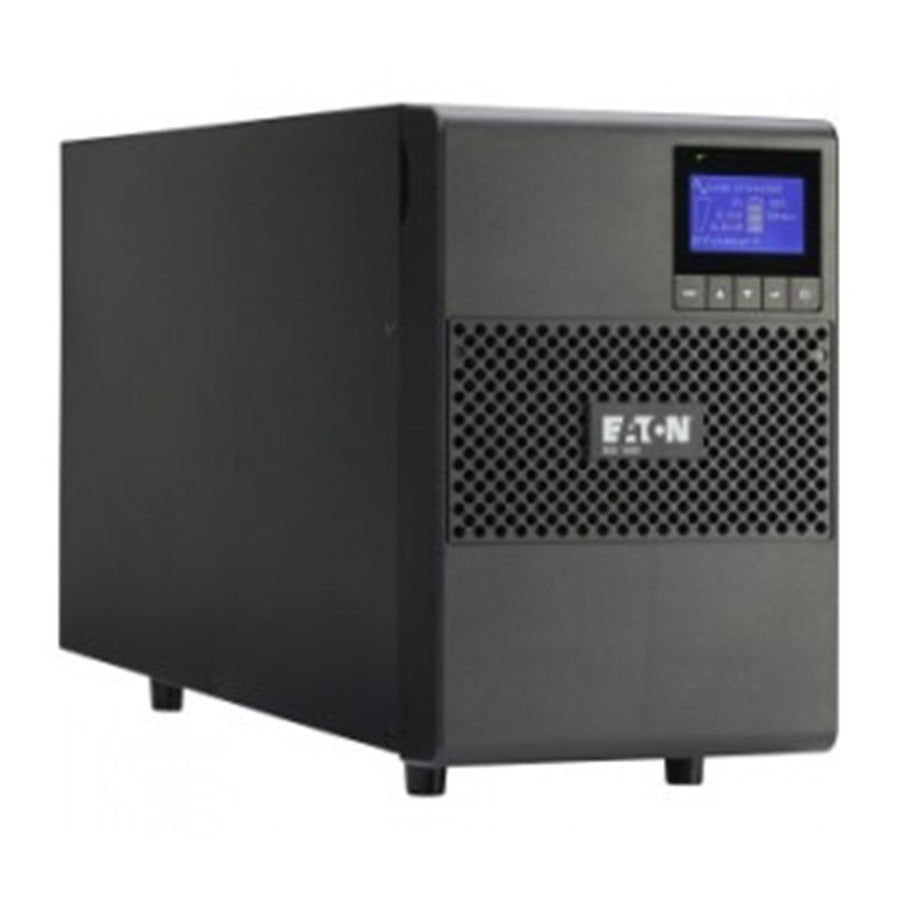

Eaton 9SX 2000VA/1800W On Line Tower UPS
$4,238.99
$4,325.28incl. GST
Delivery estimate shown at checkout
Support from our New Zealand team
See return policy for eligibility
Features
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower or rack format
Specifications
Technical Specifications
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
|---|---|
| Configuration | Tower |
| Part Number | 9SX2000I-AU |
| Rating (VA/Watts) | 2000/1800 |
| Dimensions (H x W x D, mm) | 346 x 214 x 412 |
| Connection | (1) IEC-320-C14 |
| Input Voltage Range | 200-276V without derating (up to 140-276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Output Receptacles | (1) IEC-320-C19(5) Aust. 10A |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
| Audible Noise | <45dB |
| Operating Temperature | 0 to 40°C continuous |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B |
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM |
| Brand | EATON |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 33.2 kg |
| Warranty |
|---|
