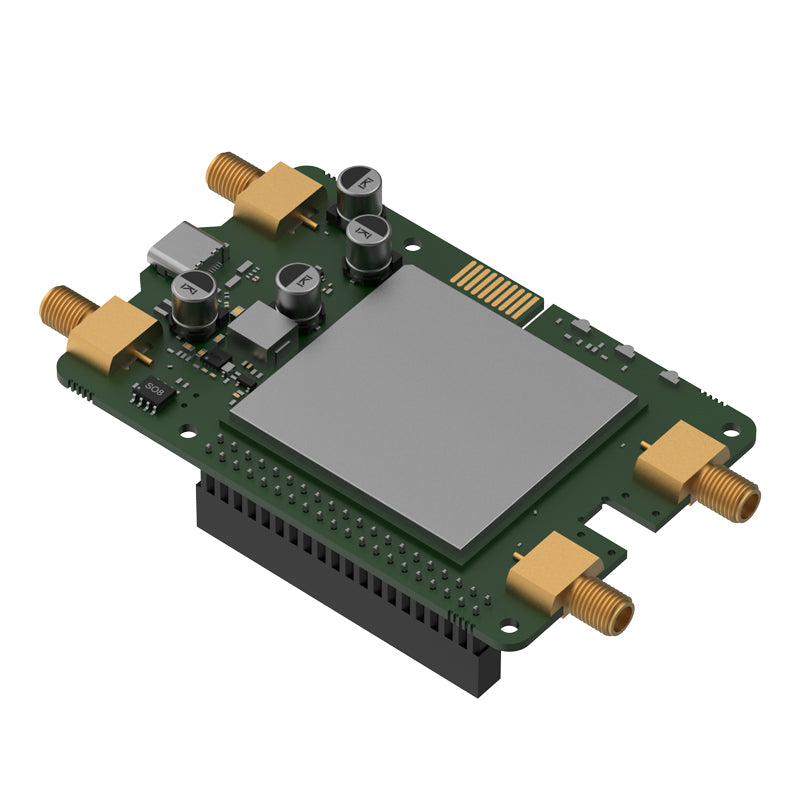

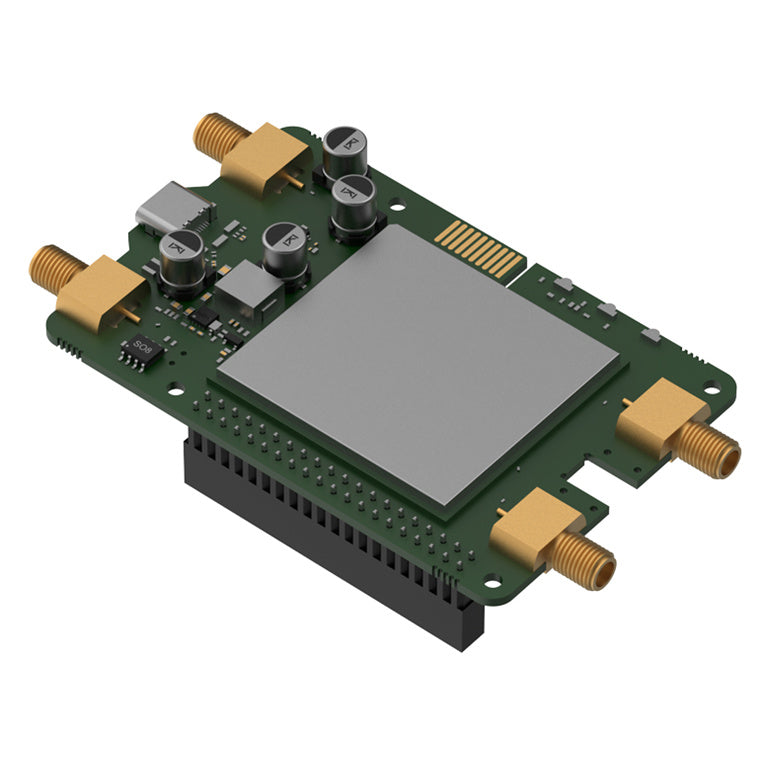

EBD050 - Teltonika EBD050 PI-Compatible 5G Cellular Modem
Features
The Teltonika EBD050 CALYX embedded Raspberry Pi HAT+ is purpose-built to provide seamless mobile internet to your embedded systems. Available in three variants - 4G Cat 4, 5G Redcap, and full-fledged 5G - CALYX provides cellular connection to your Raspberry Pi 4 or 5 wherever Wi-Fi or Ethernet are unavailable or unreliable. CALYX mounts directly on top of your SBC computer, saving space and ensuring clean integration. Equipped with features like GPIO modem control and PCM audio support, CALYX offers compact and feature-rich cellular expansion for integrators and developers.
- Optimal form factor to mount seamlessly on Raspberry Pi 4/5
- GPIO modem control to Wake, reset, and manage the modem via Pi pins
- PCM enhanced audio to Enable clean, low-latency audio transfer
Specifications
Technical Specifications
| Mobile module | 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE Cat 19 up to 1.6 Gbps DL/ 200 Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps |
|---|---|
| 3GPP Release | Release 16 |
| Frequencies | 5G NR(SA/NSA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32, B71; 4G (LTE-TDD): B38, B40, B41, B42, B43 |
| USB Data rate | USB 3.0 - Calyx 5G / EBD050 |
| 40-pin GPIO header PWR_KEY | Modem turn on/off. Digital Input, 0 - 3.3 V logic level, active High, to activate use pulse (≥500 ms) |
| Modem wakeup | Digital Input, 0 - 3.3 V logic level, active Low - Calyx 5G / EBD050 |
| Power | USB type C - 5 VDCOn a 40-pin header/USB power |
| 40-pin GPIO header | On a 40-pin header, 5 VDC and 3.3 VDC |
| Status LEDs | 1 x Power, NET IND, NET STAT |
| SIM | 1 x SIM slot (Nano SIM - 4FF), push-pull |
| USB | USB Type-C receptacle |
| Antennas | Calyx 5G / EBD050 - 4 x SMA for Mobile |
| Weight | 57 g |
| Mounting options | WIth included mounting kit |
| Dimensions (W x H x D) | 56 x 23.11 x 100.8 mm |
| Operating temperature | -40 °C to 75 °C |
| Regulatory | CE, UKCA, EAC, UCRF, FCC, ISED (IC), RCM, CB, WEEE |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 1.2 kg |
