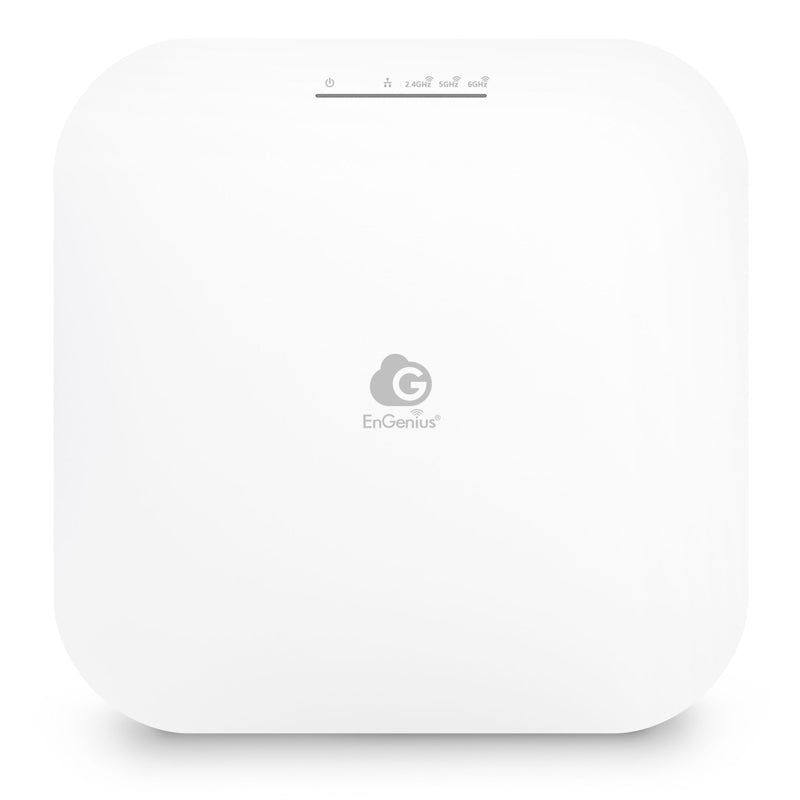

ECW516L - EnGenius ECW516L Cloud Managed WiFi 7 Access Point
Features
The EnGenius Cloud Managed ECW516L is a sleekly designed Wi-Fi 7 tri-band 2x3x3 access point that supports up to 13.7 gigabits speeds using 2.4 GHz, 5 GHz, and 6 GHz band. With Wi-Fi 7 standards, the ECW516L supports 320 MHz channels, 2 MU-MIMO, 4096-QAM, Multi-Link Operation, and Multi-RU puncturing. These features enhance reliability and performance by using multiple bands, minimizing interference, and reducing latency. The ECW516L wireless AP will provide up to 1,200 sq. ft. of Wi-Fi coverage and can support up to 200 connected wireless devices in small to medium businesses. The single 2.5 GbE PoE+ Ethernet port ensures gigabit performance and facilitates easy mounting and placement in enterprise environments.
- Wi-Fi 7 delivers stunning gigabit performance
- Provides Wi-Fi coverage for up to 1,200 sq. ft. and supports up to 200 connected devices
- Smooth streaming and video conferencing with unmatched speeds up-to 13.7 Gbps
- Take advantage of Wi-Fi 7's seamless connectivity for all your legacy devices
- Experience faster throughput and installation flexibility with up-to 100 meters away with the 2.5 GbE PoE+ Port
- Protect your Wi-Fi with the latest WPA3 enterprise and WPA3 for top-notch security
- Easily manage all your AP's with EnGenius Cloud and a user-friendly mobile AP from anywhere
- Quick network setup and management with simple device registration and remote monitoring
- Sleek and modern ceiling-mount design with LED lights, seamlessly blending into any environment
- Simple mounting and Kensington lock to ensure a hassle-free and secure installation process
- Best for Restaurants and Cafés, Boutique Stores, Bars, Repair Shops, Law Firms Dentist Office, Urgent Care, etc.
Note: Must be Powered over Ethernet, does not include AC Adapters.
Specifications
Technical Specifications
| Standards | IEEE 802.11be on 2.4 GHzIEEE 802.11be on 5 GHzIEEE 802.11be on 6 GHzBackward compatible with 802.11a/b/g/n/ac/axIEEE 802.3 u/ab |
|---|---|
| Physical Interfaces | 1 x 2.5GE Port (PoE+)1 x DC Jack1 x Reset Button |
| LED indicators | 1 x Power1 x LAN1 x 2.4 GHz1 x 5 GHz1 x 6GHz |
| Power Source | Power-over-Ethernet: 802.3at Input12VDC /2A Power Adapter |
| Maximum Power Consumption | 20.7W |
| Operating Frequency | Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz |
| Operation Modes | Managed mode: AP, AP Mesh, Mesh |
| Frequency Radio | 2.4 GHz: 2400 MHz ~ 2482 MHz5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz,5725 MHz ~ 5850 MHz6GHz: 5925-7125MHz |
| Transmit Power | Up to 22 dBm on 2.4 GHzUp to 22 dBm on 5 GHzUp to 22 dBm on 6 GHz(Maximum power is limited by regulatory domain) |
| Radio Chains | 2 x 2:23 x 3:3 |
| SU-MIMO | Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.Three(3) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3x3 wireless device under the 5GHz radio.Three(3) spatial stream Single User (SU) MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3x3 wireless device under the 6GHz radio. |
| MU-MIMO | Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.Three(3) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3x3 wireless device under the 5GHz radio simultaneously.Three(3) spatial stream MU-MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3x3 wireless device under the 6GHz radio simultaneously. |
| Supported Data Rates | 802.11be:2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 4)5 GHz: Max 4,300 (MCS0 to MCS11, NSS = 1 to 4)6 GHZ: Max 8,700 (MCS0 to MCS13, NSS = 1 to 4)802.11ax:2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)5 GHz: 18 to 1,800 (MCS0 to MCS11, NSS = 1 to 4)6 GHZ: 18 to 3,600 (MCS0 to MCS13, NSS = 1 to 4)802.11b: 1, 2, 5.5, 11802.11a/g: 6, 9, 12, 18, 36, 48, 54802.11n: 6.5 to 600 (MCS0 to MCS31)802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4) |
| Supported Radio Technologies | 802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization | 802.11be supports extreme high efficiency (EHT) -EHT 20/40/80/160/320 MHz802.11ax supports high efficiency throughput (HE) -HE 20/40/80/160 MHz802.11ac supports very high throughput (VHT) -VHT 20/40/80 MHz802.11n supports high throughput (HT) -HT 20/40 MHz802.11n supports high throughput under the 2.4GHz radio -HT40 MHz (256-QAM)802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation | 802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM802.11b: BPSK, QPSK, CCK |
| Max Concurrent User | 128 per radio |
| Client Balancing | Yes |
| Auto Channel Selection | Yes |
| Multiple BSSID | 8 SSIDs on both 2.4GHz and 5GHz bands |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN TaggingCross-Band VLAN Pass-ThroughManagement VLAN |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) | Compliance With IEEE 802.11e StandardWMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Fast Roaming | 802.11r/k |
| Wireless Security | WPA2-PSKWPA3-PSKHide SSID in BeaconsWireless STA (Client) Connected ListClient IsolationClient Access Control |
| Interface | IPv4, IPv6 |
| Local Web Access | Supports HTTP or HTTPS |
| Temperature Range | Operating: 32°F~104°F (0°C~40°C)Storage: -40°F~176°F (-40°C~80°C) |
| Humidity (non-condensing) | Operating: 90% or lessStorage: 90% or less |
| Dimensions | 205 x 205 x 33 mm |
| Regulatory Compliance | FCCCEICUKCAUK PSTIAU |
| Brand | EnGenius |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 1.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
