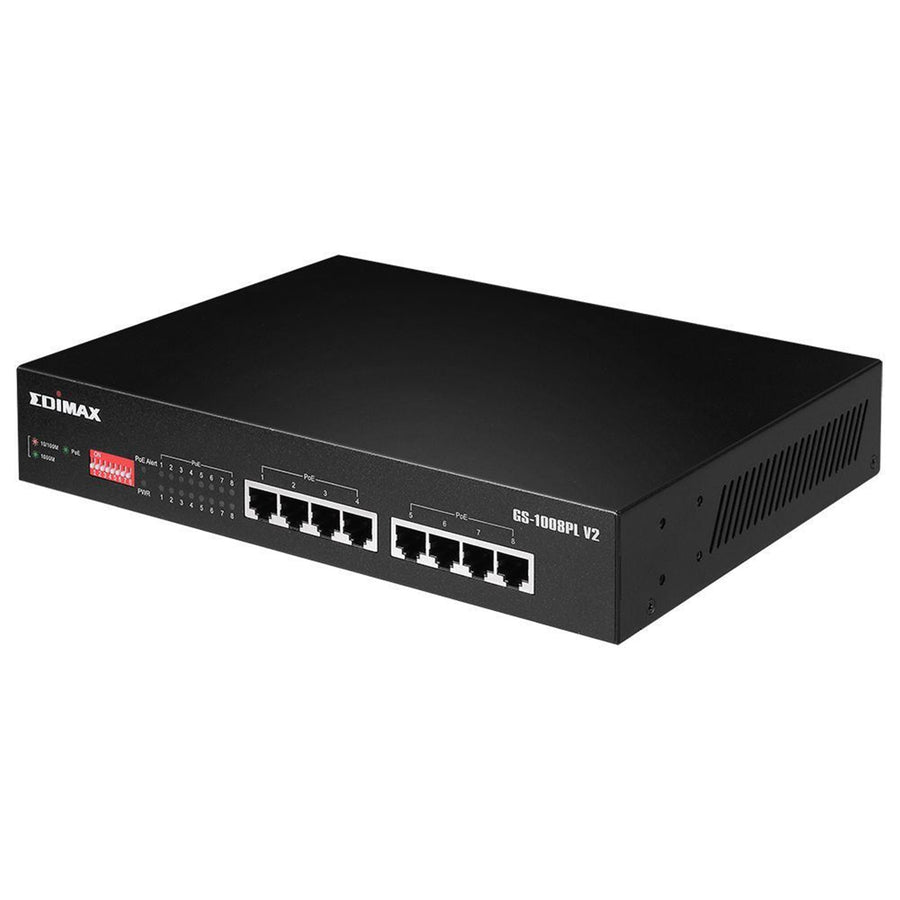

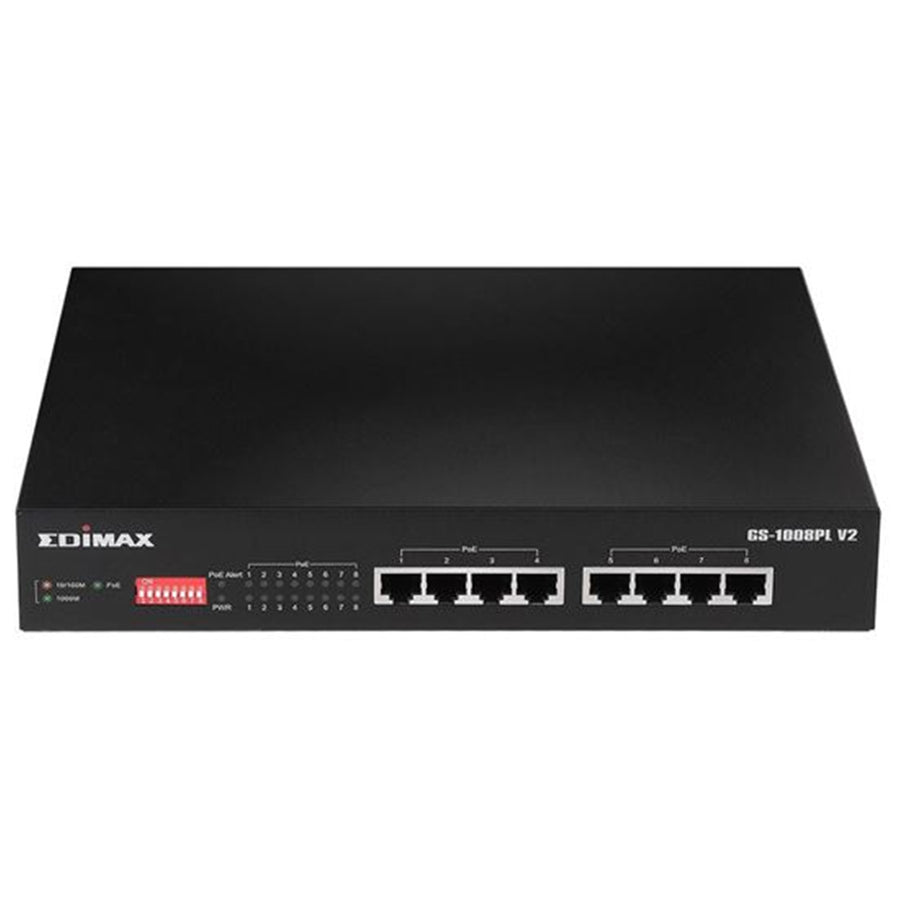

EDIMAX GS-1008PLV2 - 8 Port Gigabit PoE+ Long Range Unmanaged Switch w/ DIP Switch Function
Features
Edimax 8 Port Gigabit
EDIMAX 8 Port Gigabit PoE+ Long Range Unmanaged Switch with DIP Switch Function. Supports up to 30W Per PoE Port (Total Power Budget: 70W). Port-based VLAN. Long Range up to 200m at 10Mbps.
- Gigabit High-Speed PoE+: Equipped with 8 Gigabit PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 70W)

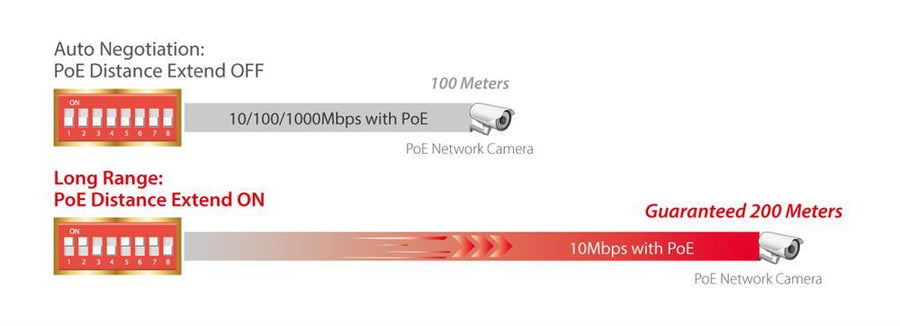

- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated from each other to prevent multicast or broadcast storms

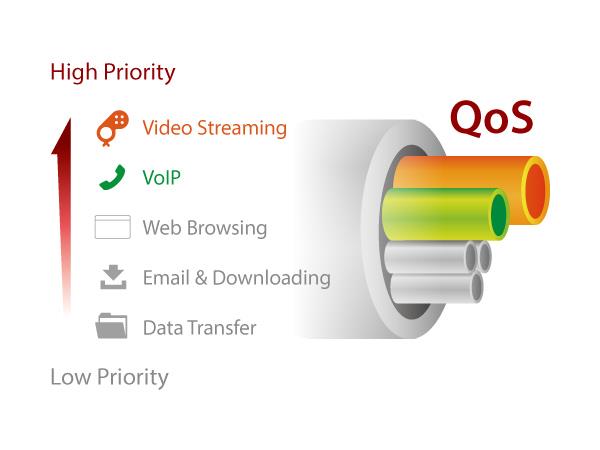

- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto-detect PoE and non-PoE devices to avoid being damaged by incorrect power sending
- Power Backfeed Protection: Equipped with power back feed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment and Energy Efficient
- Fanless, Compact, Rack-Mount, Durable Metal Casing
Specifications
Technical Specifications
| Ports | 8x RJ-45 10/100/1000Base-T PoE+ ports |
|---|---|
| Transmission Method | Store and forward |
| LED Indicators | Power: Green LEDLNK/ACT: Green LED (Port 1 - Port 8)PoE: Green LED (Port 1 - Port 8)PoE Alert: Green LED (PoE overload alarm) |
| DIP Switch | PoE Extend, VLAN, QoS |
| Power Input | 100V~240V AC, 50~60Hz, internal power supply |
| Total Power Supply | 80W |
| Mounting | Desktop / Rack-mount |
| Housing | Metal |
| Fan | Fanless |
| Dimensions | 265 (W) x 184 (D) x 44 (H) mm |
| Weight | 1609g |
| Switching Capacity | 16Gbps |
| MAC Address | 4K |
| Buffer Memory | 1.5Mb |
| Jumbo Frames | 9K (Bytes) |
| Filtering / Forwarding Rates | 1000Mbps port - 1488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Standard | IEEE 802.3afIEEE 802.3at |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 70W |
| Long Range | DIP switch ON to support PoE with long-range to 200 meters at 10Mbps |
| Backfeed Protection | Built-in per port |
| Standards | IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast Ethernet?IEEE802.3ab 1000BASE-TIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3x Full-duplex and flow controlIEEE 802.3az Energy-efficient Ethernet |
| Temperature | Operating: 0°C~40°CStorage: -40°C~70°C |
| Humidity: (Non-condensing) | Operating: 10% ~ 90%Storage: 5°C ~ 90% |
| Certifications | FCC, CE, LVD |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 5.306 kg |
| Warranty |
|---|
