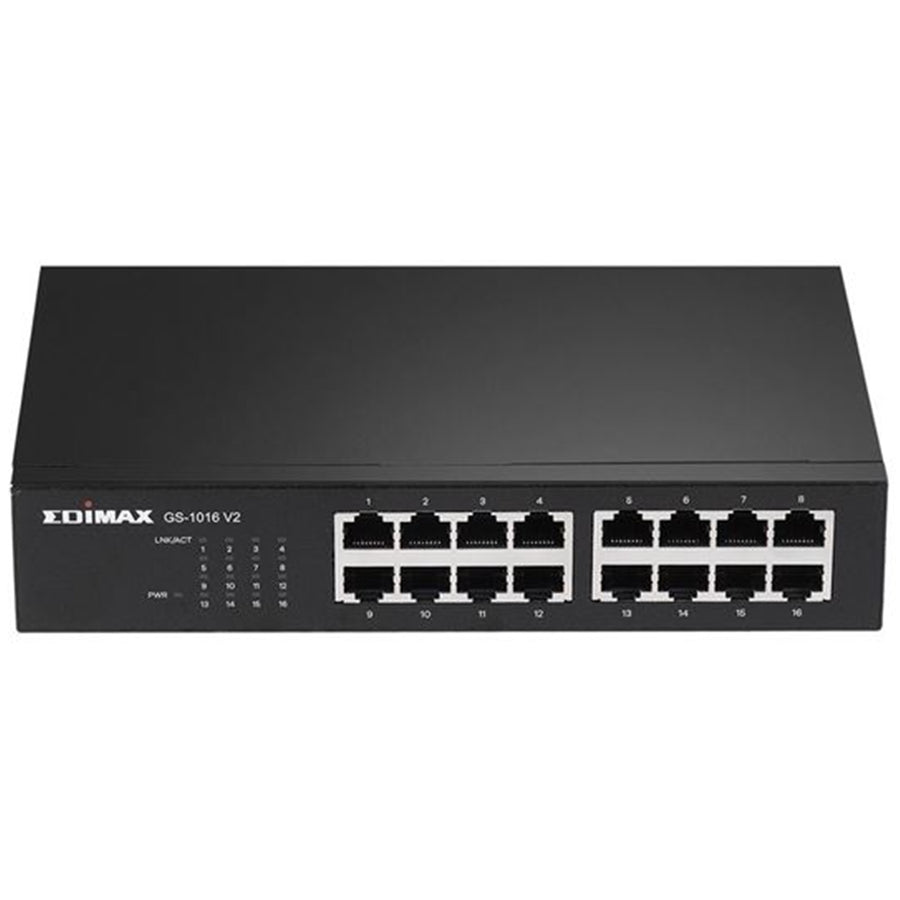

EDIMAX GS-1016V2 - 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch
Features
EDIMAX 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. High-Speed Networking and Jumbo Frames. Designed for Medium / Large Network Environments. Includes Rack -mount Brackets.
Gigabit High Speed
Equipped 16 Gigabit Ethernet ports with full-duplex and 10K jumbo frames support
QoS for Improved Traffic
Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
High Performance & Reliable Connection
Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
Energy Efficient & Power Saving
Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
Plug-and-Play & Flexible Deployment
No software or configuration required and designed for desktop, wall-mounted or rack-mounted flexible deployment
Specifications
Technical Specifications
| Ports | 16 x RJ-45 10/100/1000Base-T ports |
|---|---|
| Transmission Method | Store and forward |
| LED Indicator | Per-port: Link/ActPer unit: Power |
| Power Input | 100V~240V AC, 50~60Hz, internal power supply |
| Mounting | Desktop / wall-mount / rack-mount (rack-mount kit included) |
| Housing | Metal |
| Fan | Fanless |
| Dimension | 215(W) x 42(H) x 133(D) mm |
| Weight | 0.85kg |
| Switching Capacity | 32Gbps |
| MAC Address | 8K |
| Buffer Memory | 4.1Mb |
| Jumbo Frame | 10K (Bytes) |
| Filtering / Forwarding Rates | Max. 23.8Mpps1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3p QoS (Quality of Service)IEEE 802.3x Full-duplex and flow controlIEEE 802.3az Energy-efficient Ethernet |
| Environmental Condition | Operating Temperature: 32~104°F (0~40°C)Storage Temperature: -40~158°F (-40~70°C)Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 5~90% (NonCondensing) |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 9.342 kg |
| Warranty |
|---|
