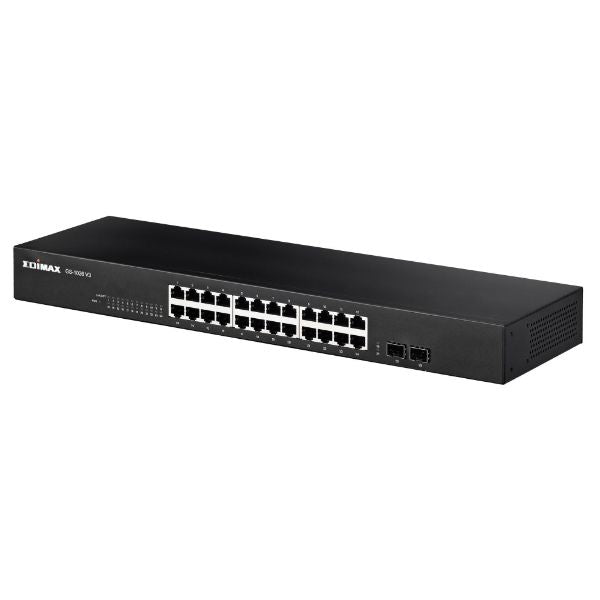

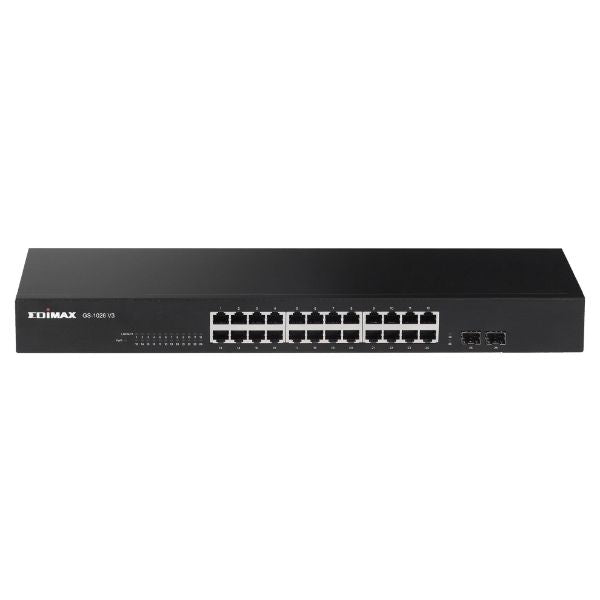

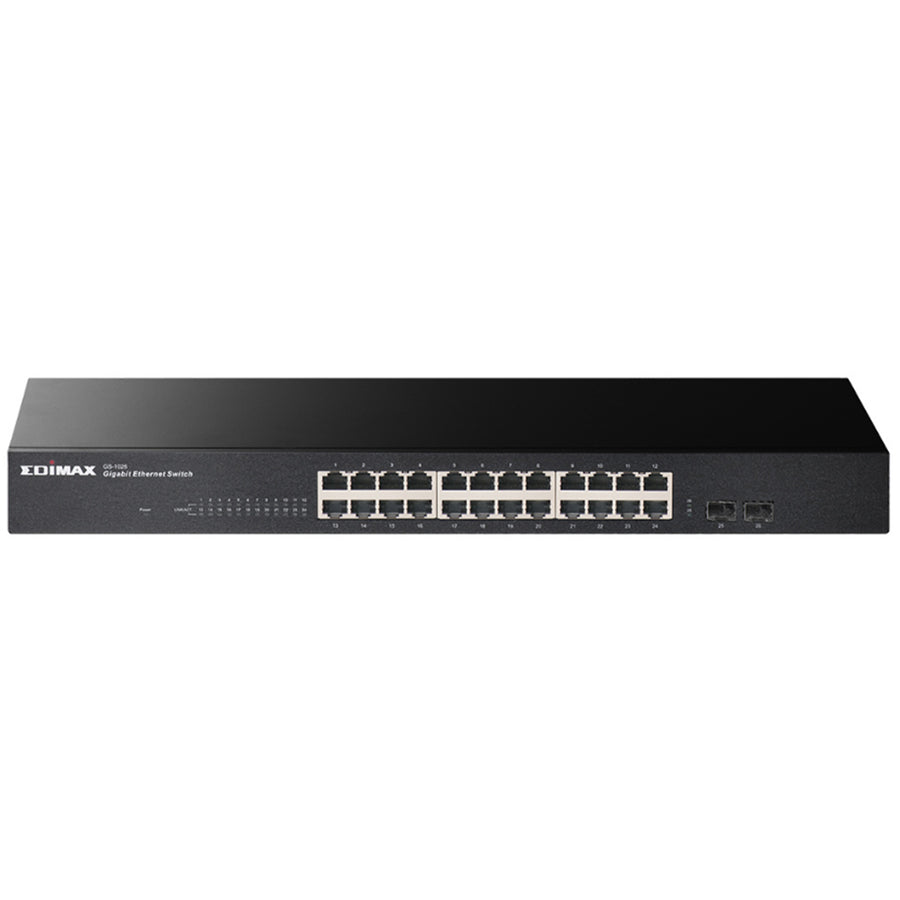

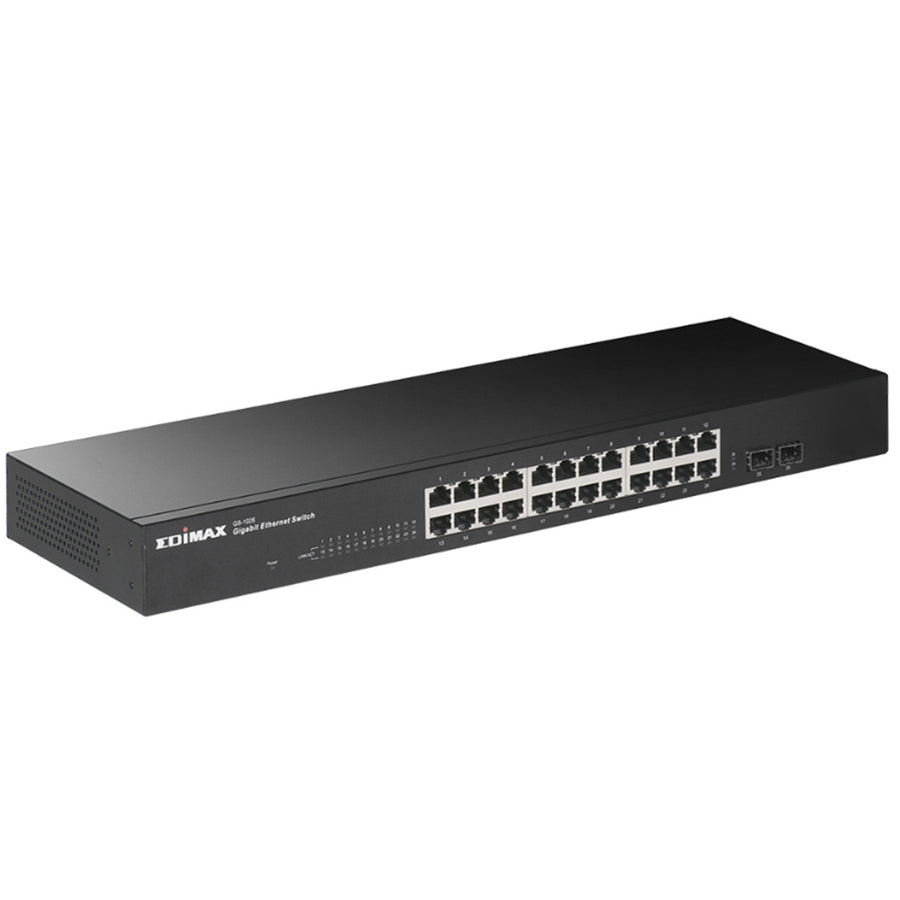

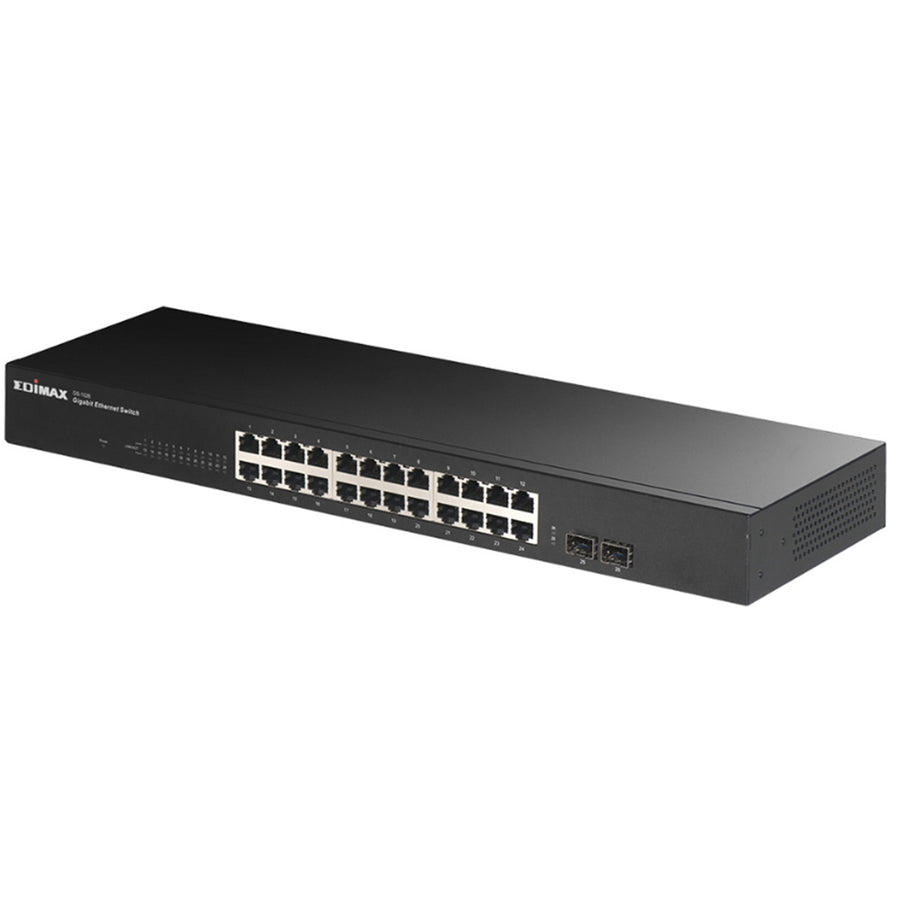

EDIMAX GS-1026V3 - 24 Port Gigabit Rack-Mount Unmanaged Switch 2 SFP Ports
Features
EDIMAX 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports. High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets.
Features:
- Gigabit High Speed & Long Distance SFP Uplinks: Equipped 24 Gigabit Ethernet ports and 2 SFP ports/uplinks featuring full-duplex and 10KB jumbo frames for high-speed networks
- QoS for Improved Traffic: Supports IEEE802.1p QoS for ensuring priority for video and voice traffic
- High Performance & Reliable Connection: Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
- Energy Efficient & Power Saving: Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
- Plug-and-Play & Flexible Deployment: No software or configuration required and designed for desktop or rack-mounted flexible deployment
Efficiently Upgrade or Expand Networks with High-Performance Gigabit Speed
For Home, Small Office and Enterprise
Gigabit High-Speed Network
Delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.

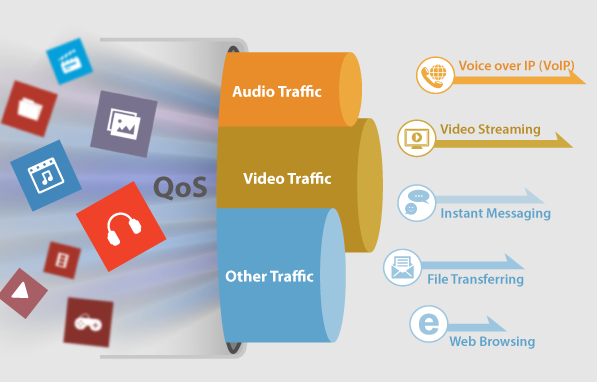

Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.
High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.

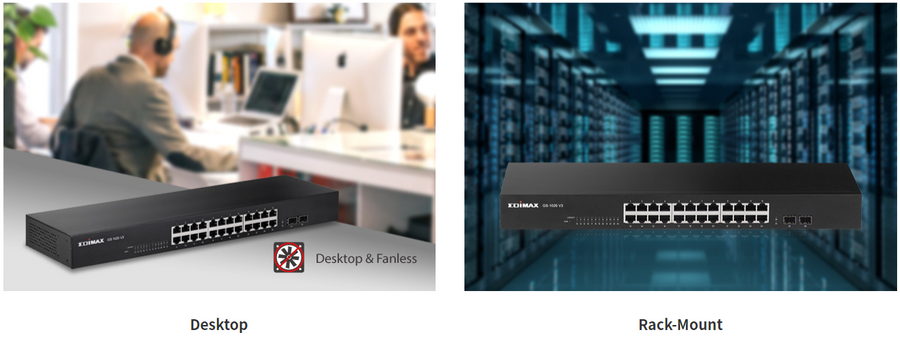

Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop or rack-mount for flexible deployment.
Specifications
Technical Specifications
| Ports | 24 x RJ-45 10/100/1000Base-T ports2 x SFP ports |
|---|---|
| Transmission Method | Store and forward |
| LED Indicator | Per port: Link/ActPer unit: Power |
| Power Input | 100-240V AC, 50-60Hz, internal power supply |
| Mounting | Desktop / rack-mount (rack-mount kit included) |
| Housing | Metal |
| Fan | Fanless |
| Dimension | 441(W) x 44(H) x 131(D) mm |
| Weight | 1.83kg |
| Switching Capacity | 52Gbps |
| MAC Address | 8K |
| Buffer Memory | 4.1Mb |
| Jumbo Frame | 10K (Bytes) |
| Filtering / Forwarding Rates | Max. 38.6Mpps1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit Ethernet?IEEE 802.3z 1000BaseSX/LXIEEE 802.3p QoS (Quality of Service)IEEE 802.3x Full-duplex and flow controlIEEE 802.3az Energy efficient Etherent |
| Environmental Condition | Operating Temperature: 32~104°F (0~40°C)Storage Temperature: -40~158°F (-40~70°C)Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 5~90% (NonCondensing) |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 6.485 kg |
| Warranty |
|---|
