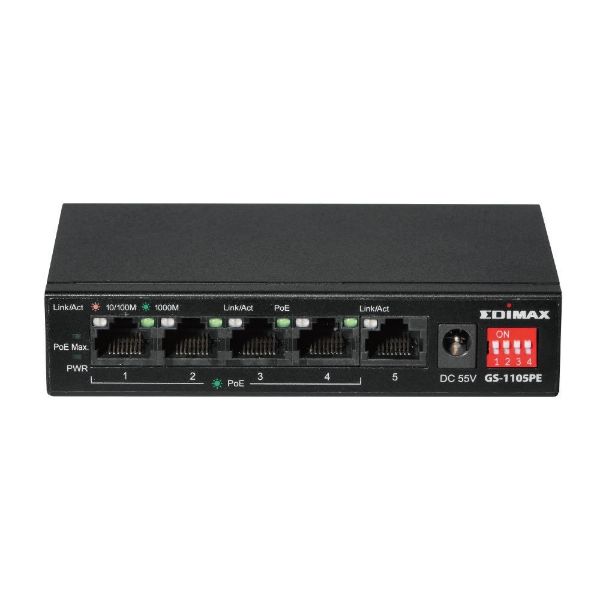

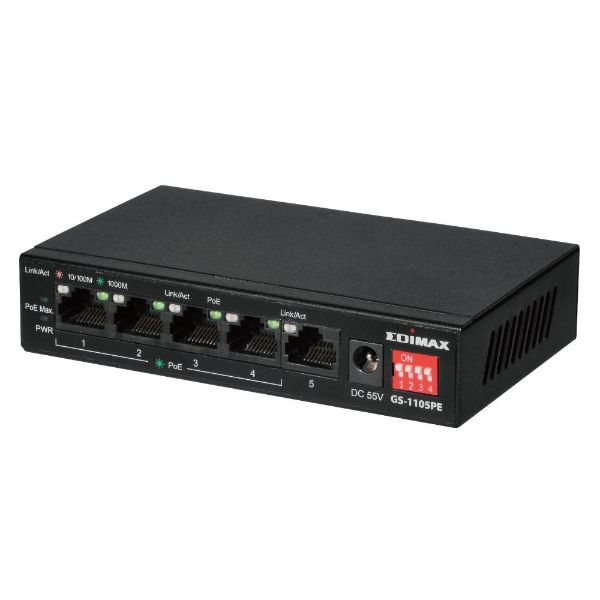

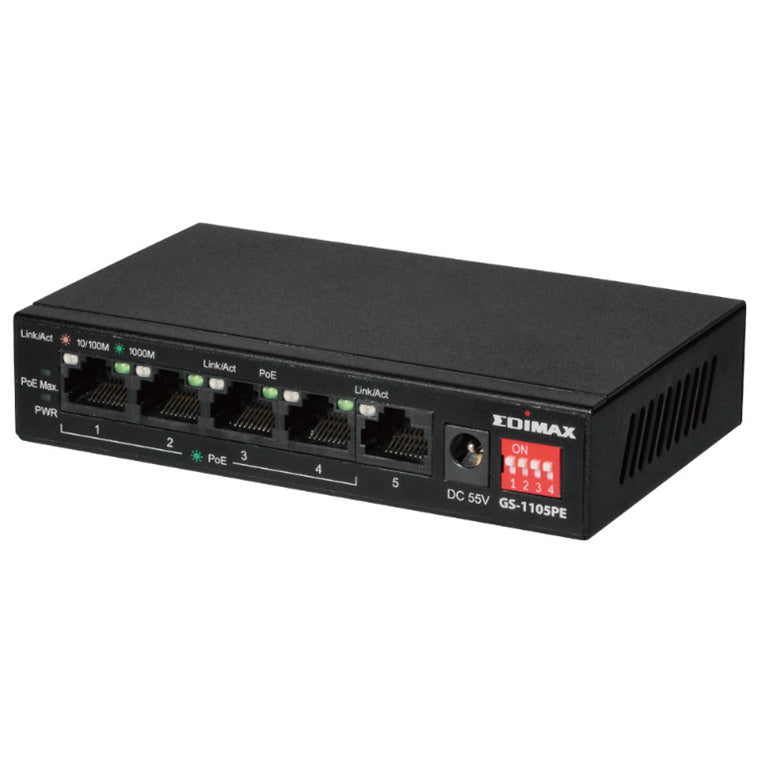

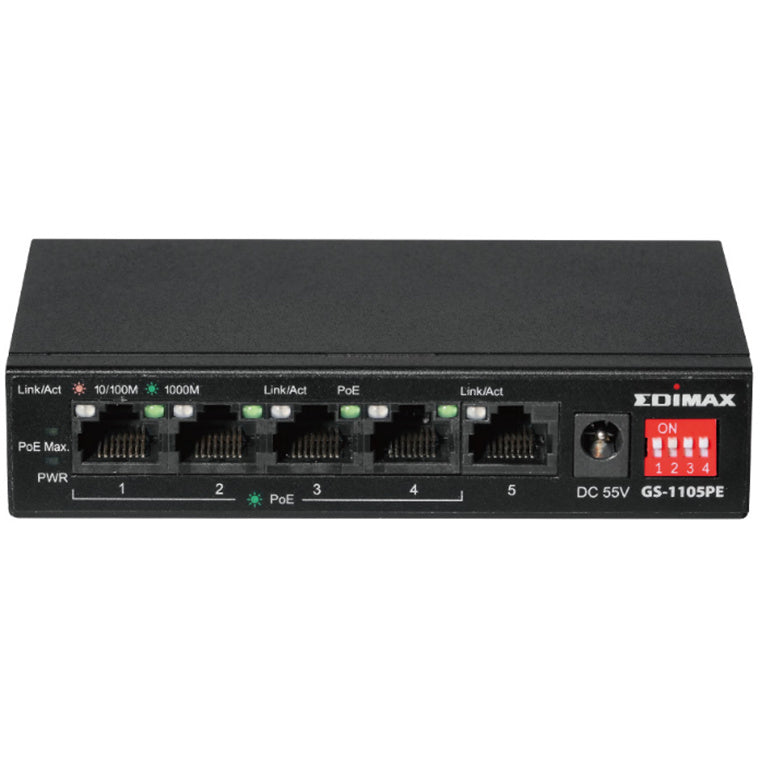

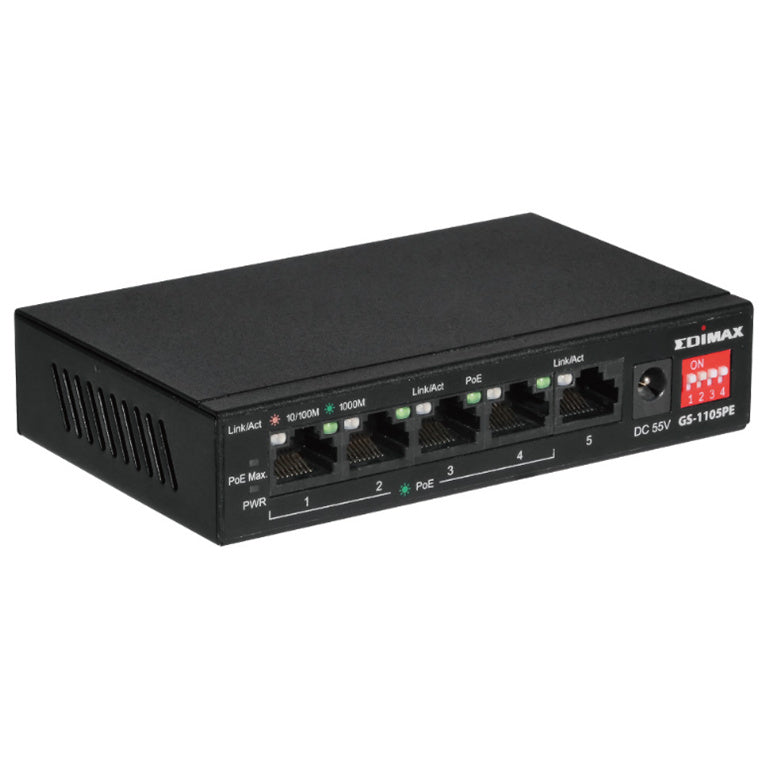

EDIMAX GS-1105PE - 5 Port 10/100/1000 Gigabit Ethernet w/ 4x PoE+ Ports & DIP Switch
Features
The Edimax GS-1105PE is a Long Range 5-Port Gigabit PoE+ Switch designed for using at home, or small and medium sized network environments. With 4 DIP switches, the PoE port can be manually set for ON-OFF control to extend the PoE delivery distance to 200 meters or further, and also support port-based VLAN and QoS functions.
It easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernetenabled devices such as computers, printers and network attached storage (NAS). The device's compact size, fanless and wall-mount metal casing design make it an ideal solution for expanding home and small business networks.
- Gigabit High Speed PoE+: Equipped with 5 Gigabit ports, including 4 PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 60W)
- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated ports to prevent multicast or broadcast storms
- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid damage by incorrect power sending
- Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment & Energy Efficient
- Quiet Fanless, Compact, Durable Metal Casing
Specifications
Technical Specifications
| Ports | 4 x RJ-45 10/100/1000Base-T PoE+ Ports1 x RJ-45 10/100/1000Base-T Ports |
|---|---|
| LED Indicators | PoE Max.: PoE Power Budget AlertPWR: System Power StatusLink/Act: Connection and Transmission Status (Left LED, Port 1-5)PoE: PoE Status (Right LED, Port 1-4) |
| DIP Switch | PoE Extend, VLAN, QoS |
| Power Input | External Power Supply (DC 55V/1.3A) |
| Towal Power Supply | 72W |

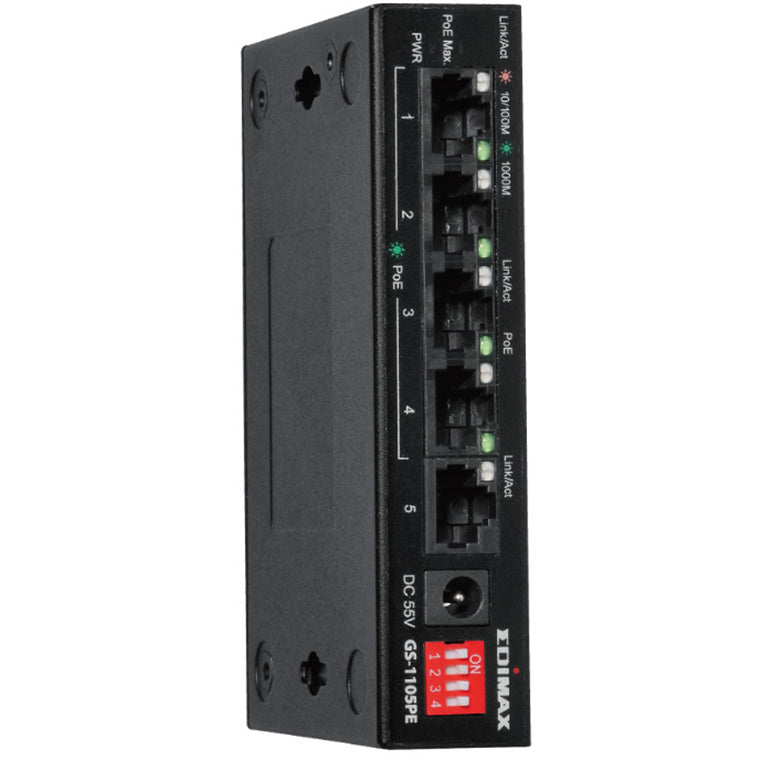

| Mounting | Desktop / Wall-mount |
| Housing | Metal |
| Fan | Fanless |
| Dimensions | 121(W) x 75(D) x 26(H) mm(4.76 (W) x 2.95 (D) x 1.02 (H) inches) |
| Weight | 240g (0.53lb) |
| Switching Capacity / Backplane | 10Gbps |
| Forwarding Rates | Max. 7.44Mpps |
| MAC Address Table | 2K |
| Jumbo Frames | 9KB |
| Packet Buffer | 1Mb |
| Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| PoE Power Budget | 60W |
| Long Range | DIP switch ON to support PoE with long range to 200 meters at 10Mbps |
| Backfeed Protection | Built-in |
| Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet (PoE+)IEEE 802.3x Full-duplex and flow controlIEEE 802.1p Quality of Service (QoS)IEEE 802.1Q Virtual LANs (VLANs)IEEE 802.3az Energy Efficient Ethernet |
| Environmental Condition | Tempertatue:Operating: 0 ~ 40? (32~104°F)Storage: -40 ~ 70? (-40~158°F)Humidity:Operating: 10 ~ 90% (Non-condensing)Storage: 5 ~ 90% (Non-condensing) |
| Certifications | FCC, CE, LVD, BSMI |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 4.816 kg |
