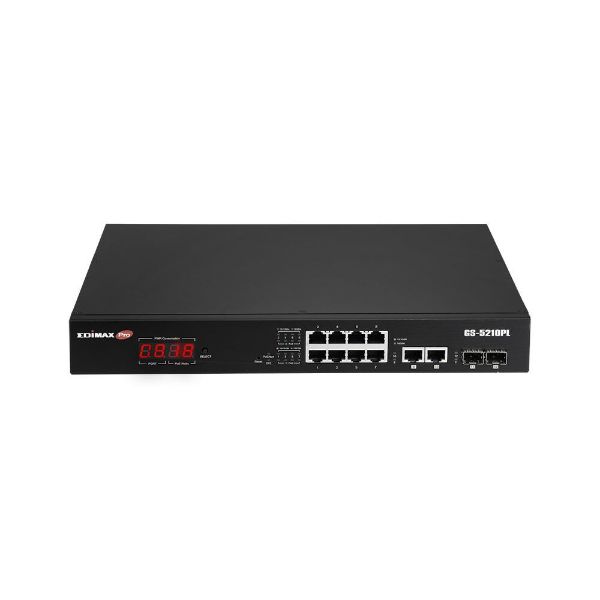

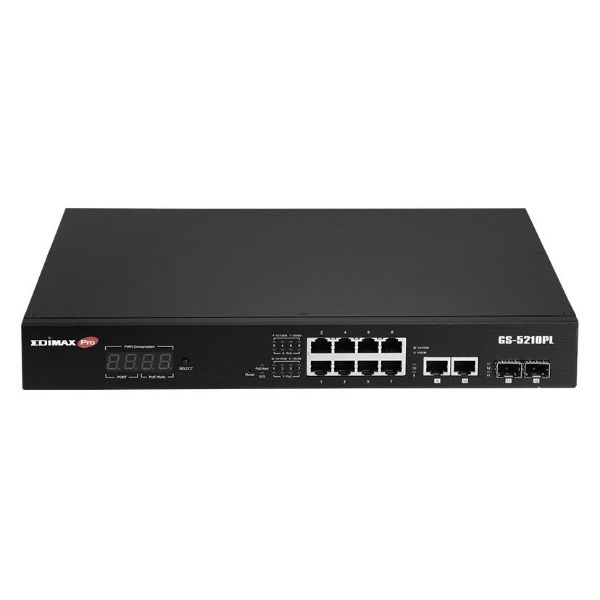

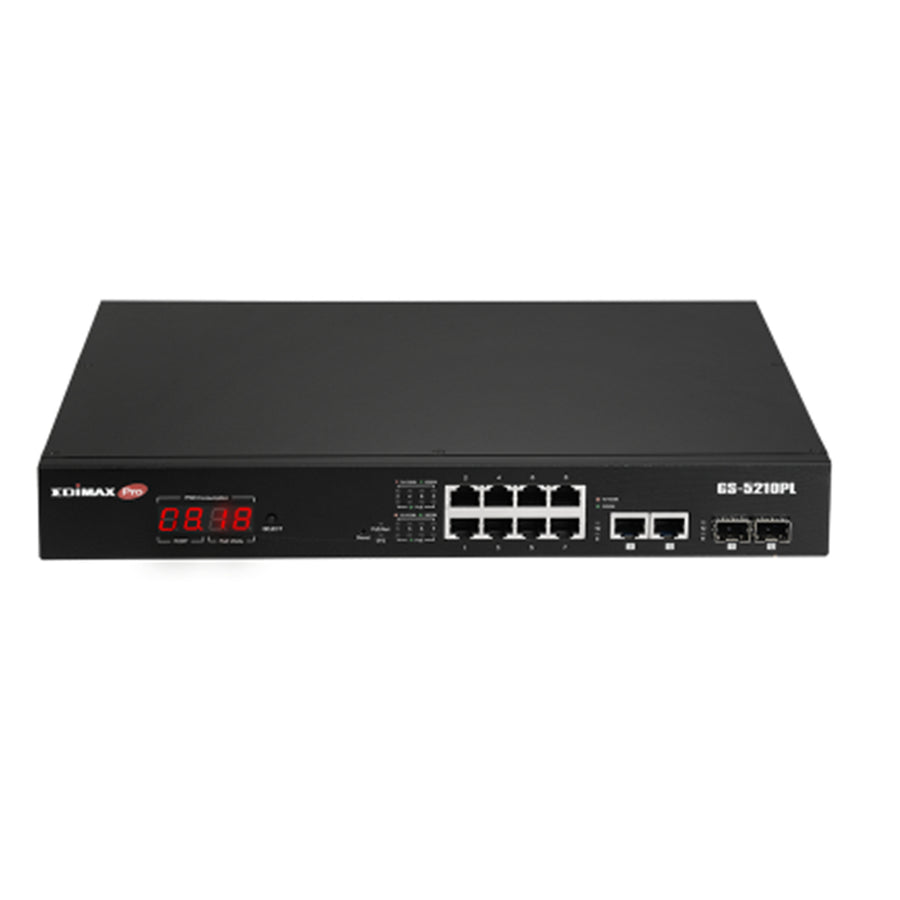

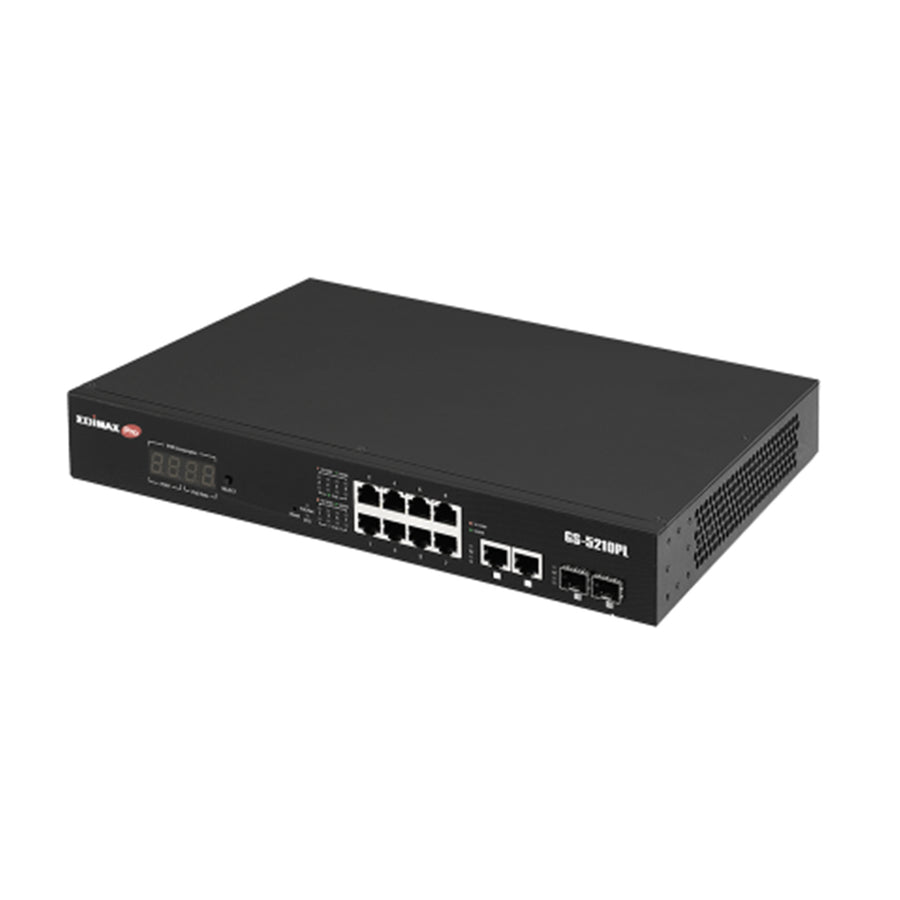

EDIMAX GS-5210PL - 12 Port Surveillance Long Range Gigabit PoE+ Web Smart Switch
Features
Surveillance VLAN 12-Port Gigabit PoE+ Long Range Web Smart Switch with 2 Gigabit RJ45 Ports and 2 SFP Ports
GS-5210PL
- Supports ONVIF standard which is compatible with working ONVIF compliant Profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
- Guaranteed PoE long distance to 200 meters.
- PoE powered devices (PD) alive check to enhance the reliability of the network. If a PD fails to respond, the GS-5210PL will reboot the PD.
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 110W) for powering PoE-enabled devices.
- Dual-firmware image for robust failover mechanisms. It can activate the backup firmware right away while the current one faces problems.
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality.
- 4-digit LED display showing total PoE power, available power, and power consumption.
- Auto-detection of powered devices (PD) and power consumption levels.
- Power backfeed protection to avoid damaging the PoE ports.
- DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring
Specifications
Technical Specifications
| Ports | 10 x RJ45 10/100/1000Base-T Gigabit ports2 x SFP uplinks |
|---|---|
| Transmission Method | Store and forward |
| Buttons | Reset button |
| LED Indicators | Per Port: Link/Act, PoE: Act/Status, Per Unit: Power |
| Power Input | 100-240V AC, 50-60 Hz, internal power supplyTotal Power Budget 110W |
| Dimensions (L x W x H) | 330 × 230 × 44 mm |
| Weight | 2.3kg |
| Switching Capacity | 24Gbps |
| Forwarding Rate | 17.8Mpps (64-byte package size) |
| MAC Address | 8K |
| Jumbo Frames | 9K Bytes |
| Filtering / Forwarding Rates | 1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| Management | PoE status, PoE on/off, PoE PD alive check, per port priority setting |
| PoE Long Range | Guaranteed PoE long range to 200 meters at 10Mbps |
| Power Backfeed Protection | Built-in |
| Quality of Service (QoS) | Rate limiting on packets sent and received by an interfaceEight queues on each portWRR, SP, WRR+SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityRate limiting in each queue and traffic shaping on ports |
| Class of Service (CoS) | IEEE 802.1p class of service (SPQ, WRR)Port-based CoSIP TOS precedence802.1p VLAN Information based CoSDSCP based CoSTCP/UDP Based CoS |
| Spanning Tree | IEEE 802.1d Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| VLAN | Up to 200 VLANs and 4096 VLAN IDs802.1Q tag-based VLANPort-based VLANSurveillance VLANVoice VLANMAC VLANGVRP |
| IPV6 | IPv6 over Ethernet (RFC 2464)Dual-stack (RFC 4213)ICMPv6 (RFC 4884)Neighbor discovery (RFC 4861)Auto configurationStatic IPv6 address and prefix lengthStatic IPv6 default gatewayIPv6 duplicate address detection |
| Port Trunking | IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups |
| IGMP Snooping | IGMP v1/v2/v3 snooping |
| Port Mirroring | Port mirroring both on ingress and egress traffic |
| Security | RADIUSAAAManagement AccessAuthentication ManagerPort SecurityProtected PortStorm ControlDoSDynamic ARP InspectionDHCP SnoopingIP Source Guard |
| Management | User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBSyslog: Support event log, alarm log and security log |
| Temperature | Operating: 0 ~ 50?Storage: -40 ~ 70? |
| Humidity (Non-condensing) | Operating: 10 ~ 90%Storage: 10 ~ 90% |
| Standards | IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.3z 1000BaseSX/LXIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet (PoE+)IEEE 802.3x Full-duplex and flow controlIEEE 802.1p Quality of Service (QoS)IEEE 802.1x Port-based Network Access Control(PNAC)IEEE 802.1Q Virtual LANs VLANsIEEE 802.1d Spanning Tree Protocol(STP)IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)IEEE 802.3ad Link Aggregation Control Protocol (LACP)IEEE 802.3az Energy Efficient Ethernet |
| Certifications | FCC Class A, CE, ONVIF Compliant |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 7.937 kg |
| Warranty |
|---|
