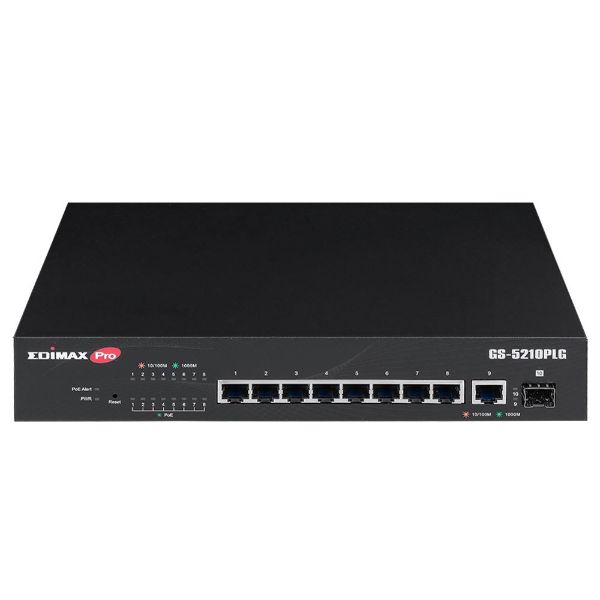

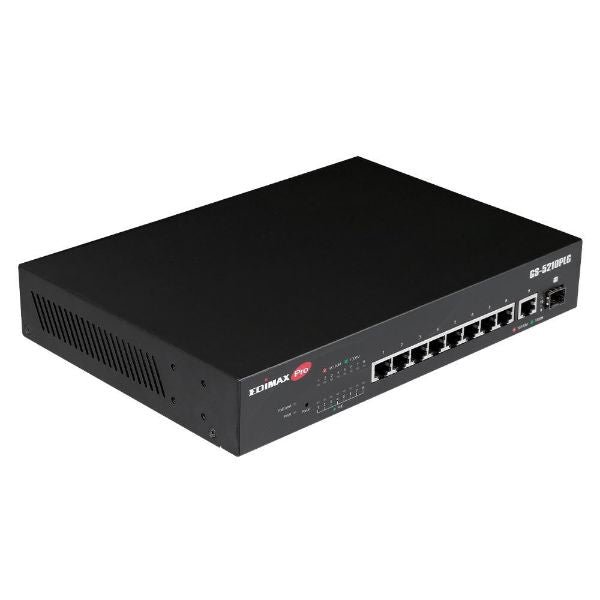

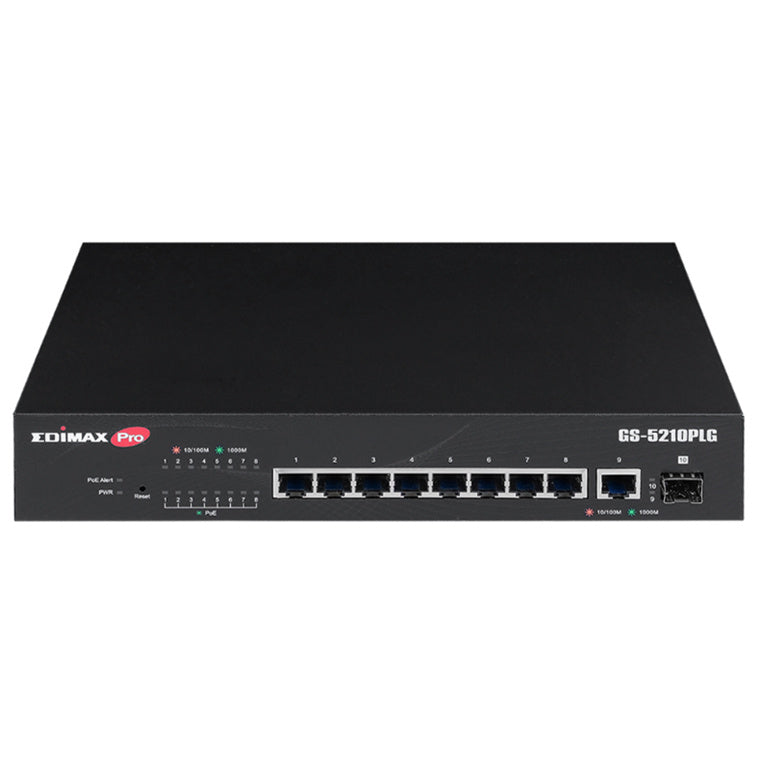

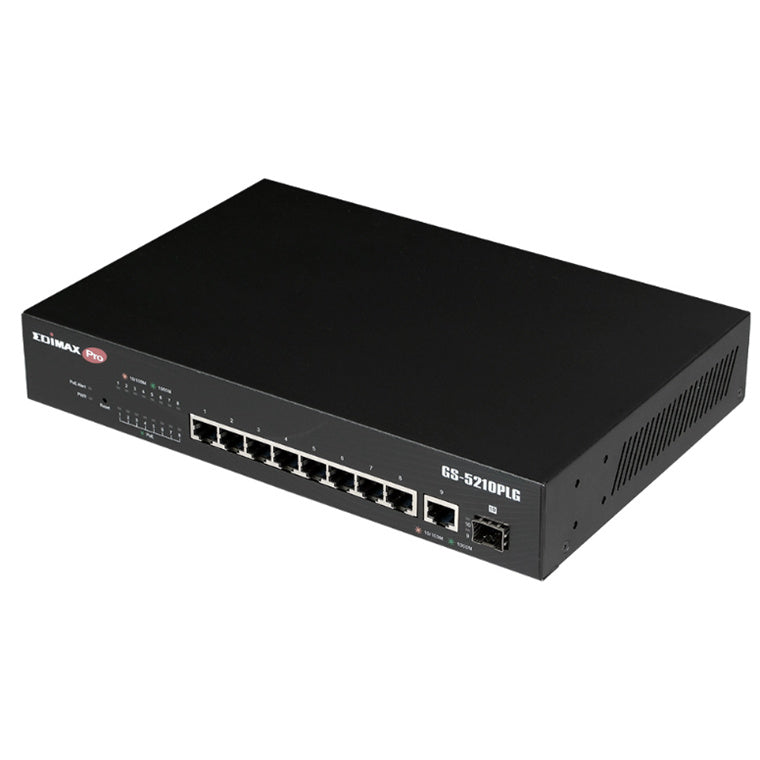

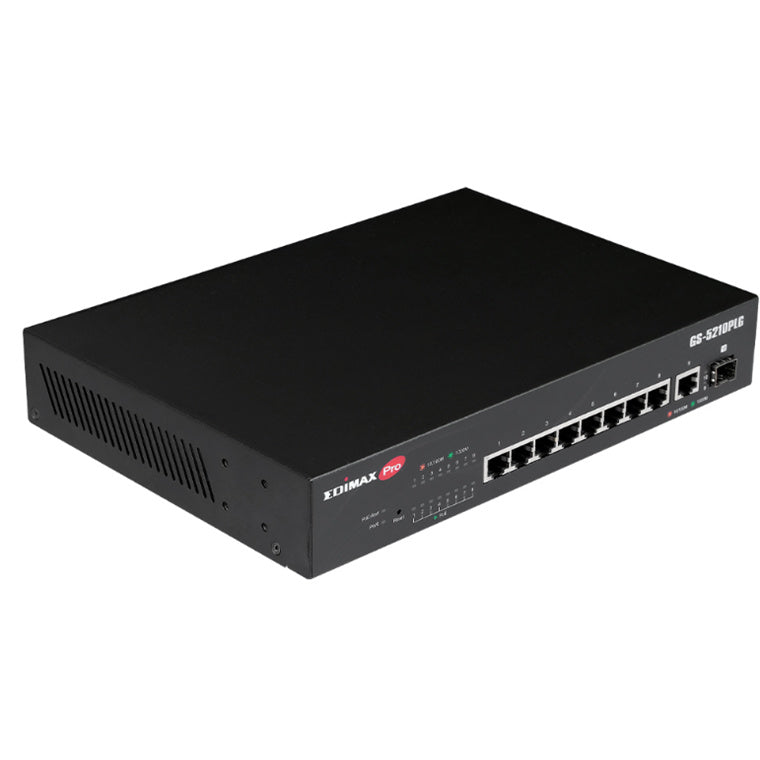

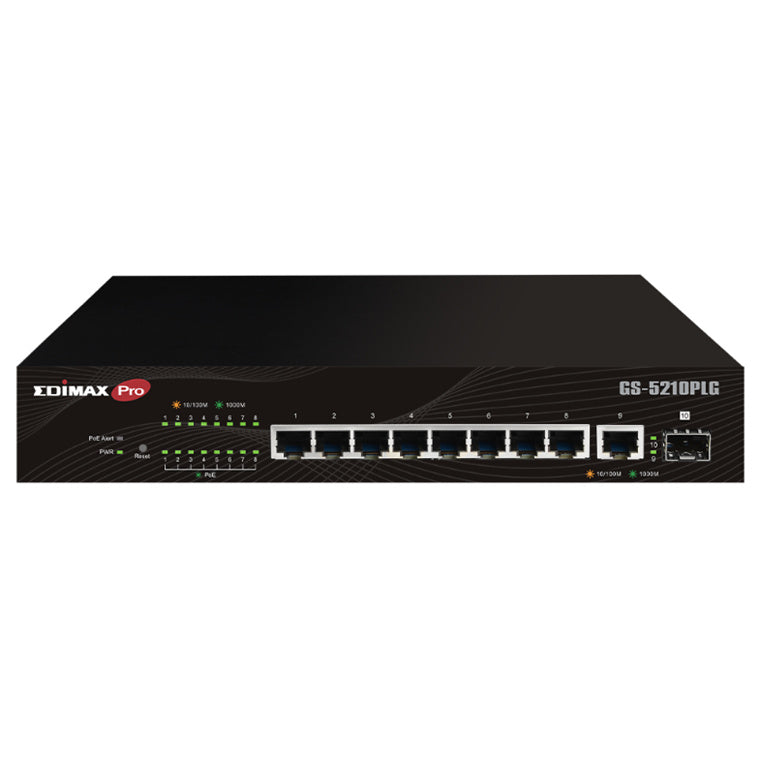

EDIMAX GS-5210PLG - 10 Port Gigabit PoE+ Web Smart Switch 1 SFP Ports
Features
Edimax 10-Port Gigabit Long Range PoE+ Web Smart Switch with 1 SFP Port
- 8 Gigabit Ethernet PoE+ ports, 1 RJ45 Gigabit uplink port and 1 Gigabit SFP uplink port
- IEEE 802.3af/at PoE/PoE+ compliant to simplify deployment and installation
- Supports PoE+ up to 30W per port (total power budget: 100W) for powering PoE-enabled devices
- Guaranteed PoE long distance to 200 meters
- Auto-detection of powered devices (PD) and power consumption levels
- Auto fault-detection on over/under current & voltage
- Power backfeed protection to avoid damaging the PoE ports
- Supports 20 Gbps switching capacity, 14.88Mpps forwarding rate, 4K MAC address table and 9KB jumbo frame
- Supports QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control and more
- Rack-mount design, rack-mount kit included

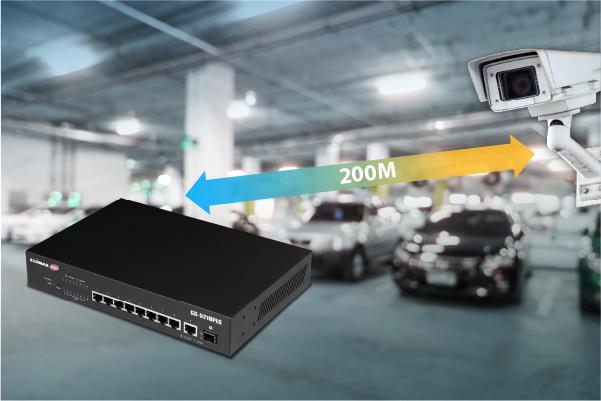

PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance applications.

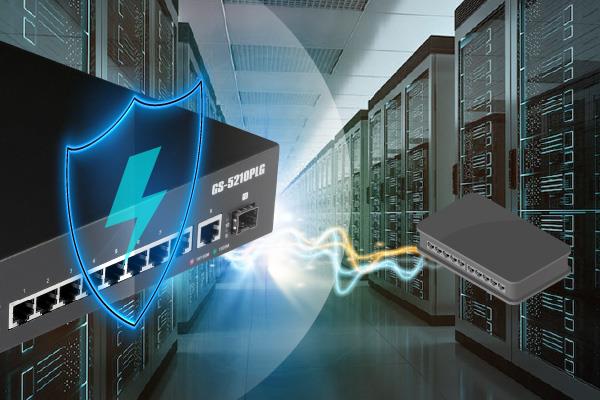

PoE Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damage done from the connected non-standard PSEs (Power Sourcing Equipments) to the switch.

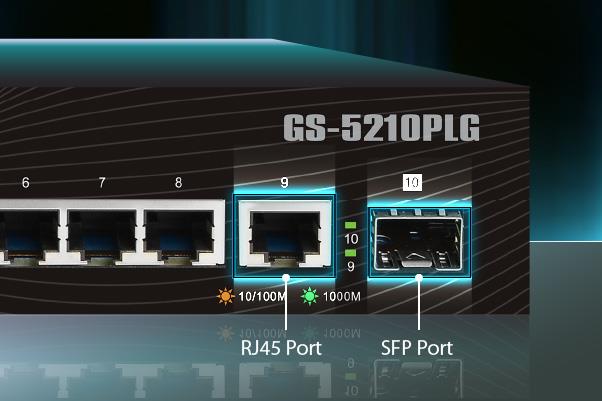

Flexible RJ45 and Fiber Uplinks
Equiped with 1 RJ45 and 1 SFP fiber-optic uplinking capability, allows the switch to be flexibly deployed in multiple physical locations, such as branches, retail, or remote workgroup environments for larger network connections.

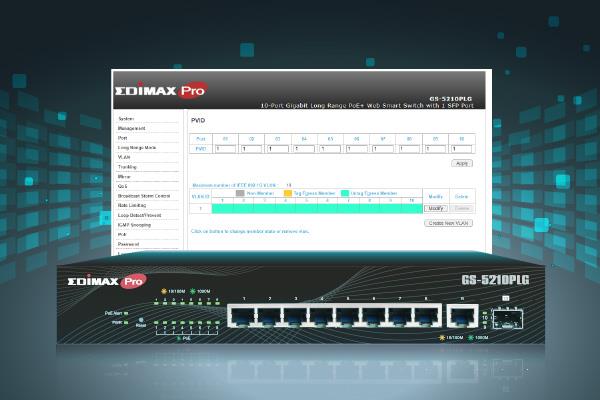

Intuitive and Powerful Smart Tool
The intuitive web-based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.

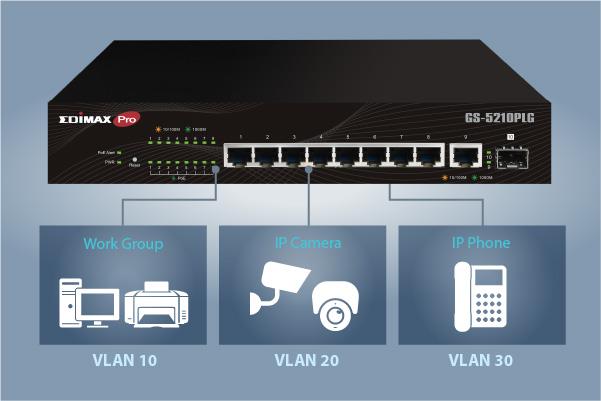

VLAN Support
Helps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guests users.

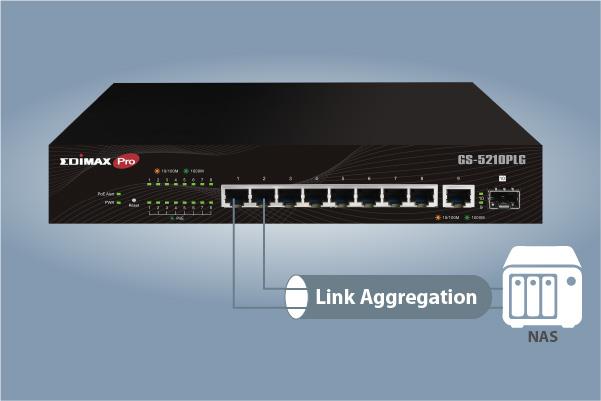

Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.

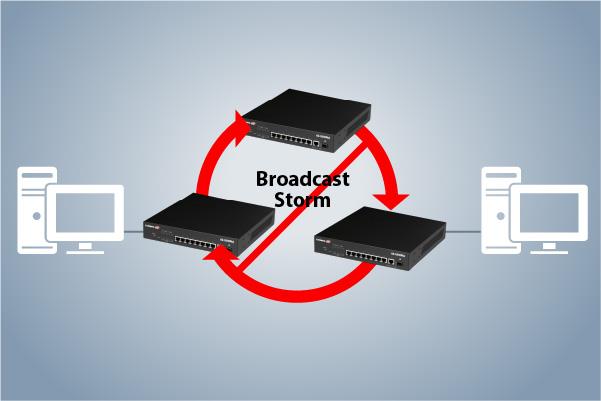

Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.

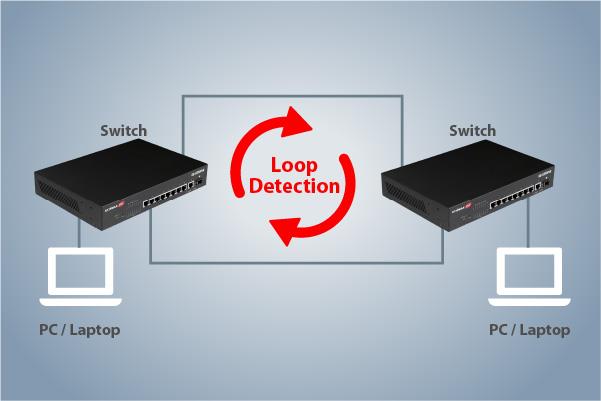

Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.

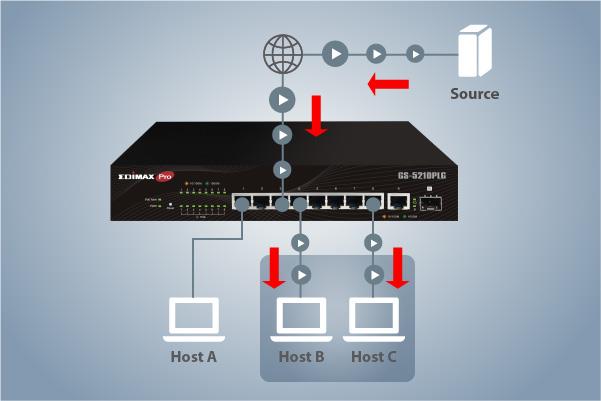

IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.

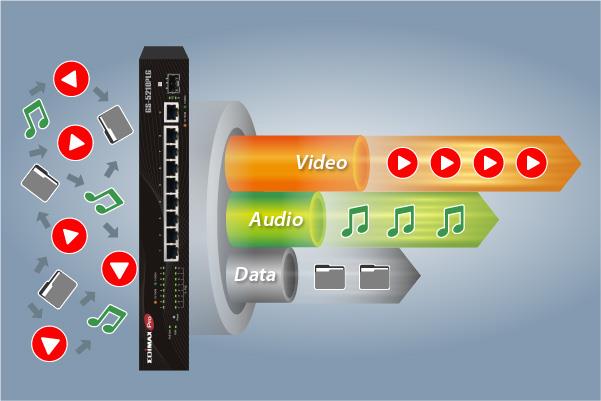

QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
Technical Specifications
| Ports | 8 x RJ45 PoE+ 10/100/1000Base-T Gigabit port1 x RJ45 10/100/1000Base-T Gigabit uplink port1 x SFP 1000Base-X Gigabit uplink port |
|---|---|
| Buttons | Reset button |
| LED Indicators | Per Port: Link/Act, PoE: Act/Status, Per Unit: Power, PoE Alert |

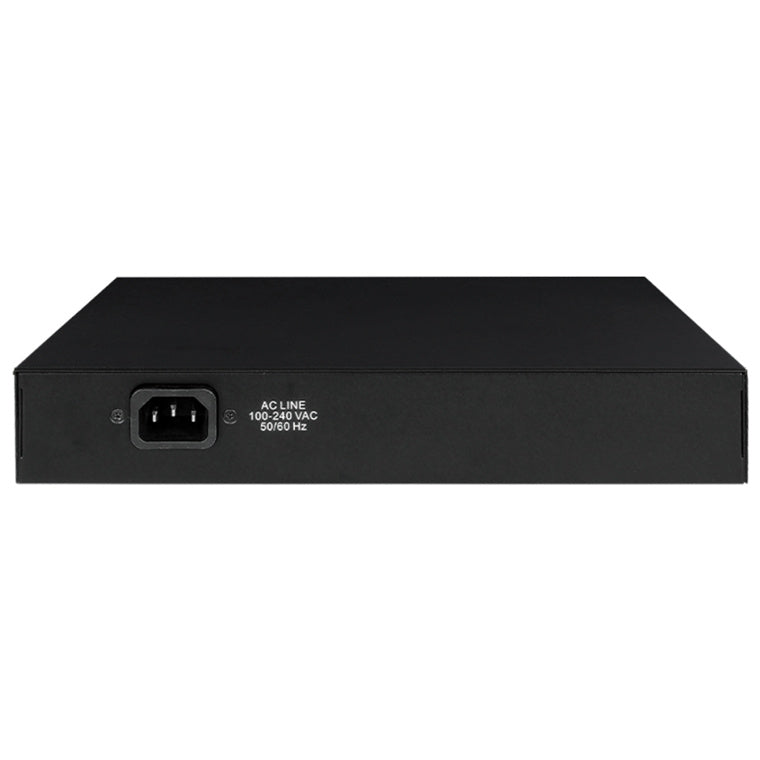

| Power Input | 100-240V AC, 50-60 Hz, internal power supply |
| Total Power Budget | 100W |
| Mounting | Desktop / Rack-mount (Rack-mount kit included) |
| Housing | Metal |
| Fan | Fanless |
| Dimensions (L x W x H) | 265 (W) x 184 (D) x 44 (H) mm10.43 (W) x 7.24 (D) x 1.73 (H) in |
| Weight | 1.62kg (3.57lb) |
| Switching Capacity | 20Gbps |
| MAC Address | 4K |
| Jumbo Frames | 9.2K Bytes |
| Buffery Memory | 1.5Mb |
| Transmission Method | Store and forward |
| Filtering / Forwarding Rates | Max. 14.88Mpps1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| Management | PoE status, PoE on/off |
| PoE Long Range | Guaranteed PoE Long Range to 200 Meters (656 ft.) at 10Mbps |
| Power Backfeed Protection | Built-in |
| Quality of Service (QoS) | Port-based QoSIEEE802.1p QoS4 Priority QueuesScheduling algorithm |
| VLAN | Up to 10 VLANs802.1Q tag-based VLAN |
| Port Trunking | IEEE 802.3ad LACP |
| Mirror | Port mirroring both on ingress and egress traffic |
| IGMP Snooping | IGMP v1/v2/v3 snoopingBlock unknown multicast trafficMulticast groups: 128 |
| Management | User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBLoop Detection/Prevention |
| Standards | IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.3x Full-duplex and Flow ControlIEEE 802.3ad LACPIEEE 802.3az Energy Efficient EthernetIEEE 802.1Q VLANIEEE 802.1p Quality of Service (QoS)IEEE 802.3af Power Over Ethernet (PoE)IEEE 802.3at Power Over Ethernet Plus (PoE+) |
| Environmental Condition | Operating Temperature: 0~40°C (32~104°F)Storage Temperature: -40~70°C (-40~158°F)Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 10~90% (NonCondensing |
| Certifications | FCC, CE, BSMI |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 5.442 kg |
| Warranty |
|---|
