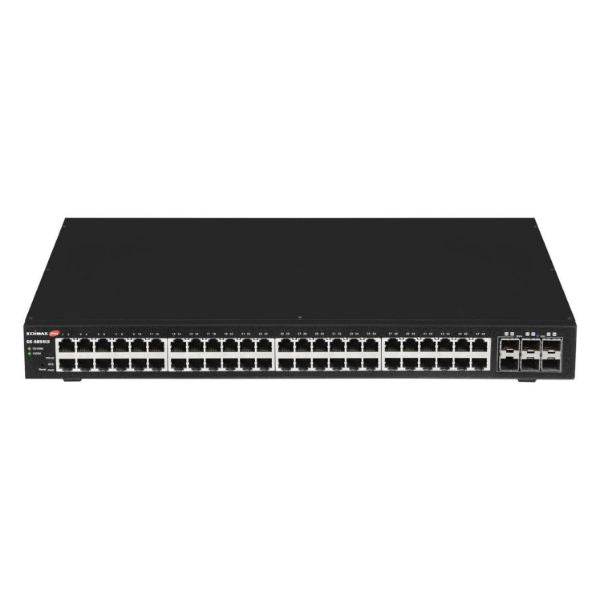

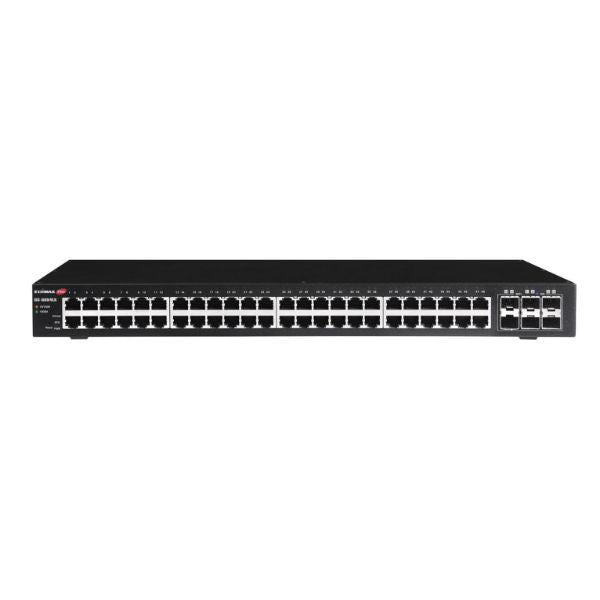

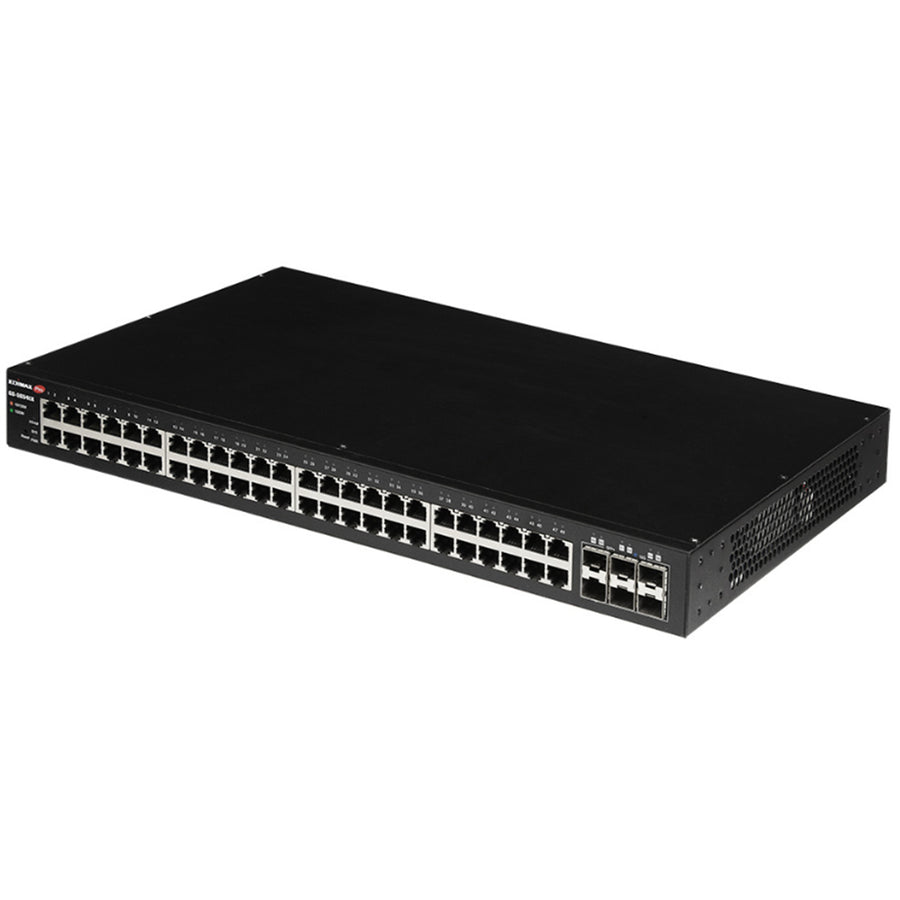

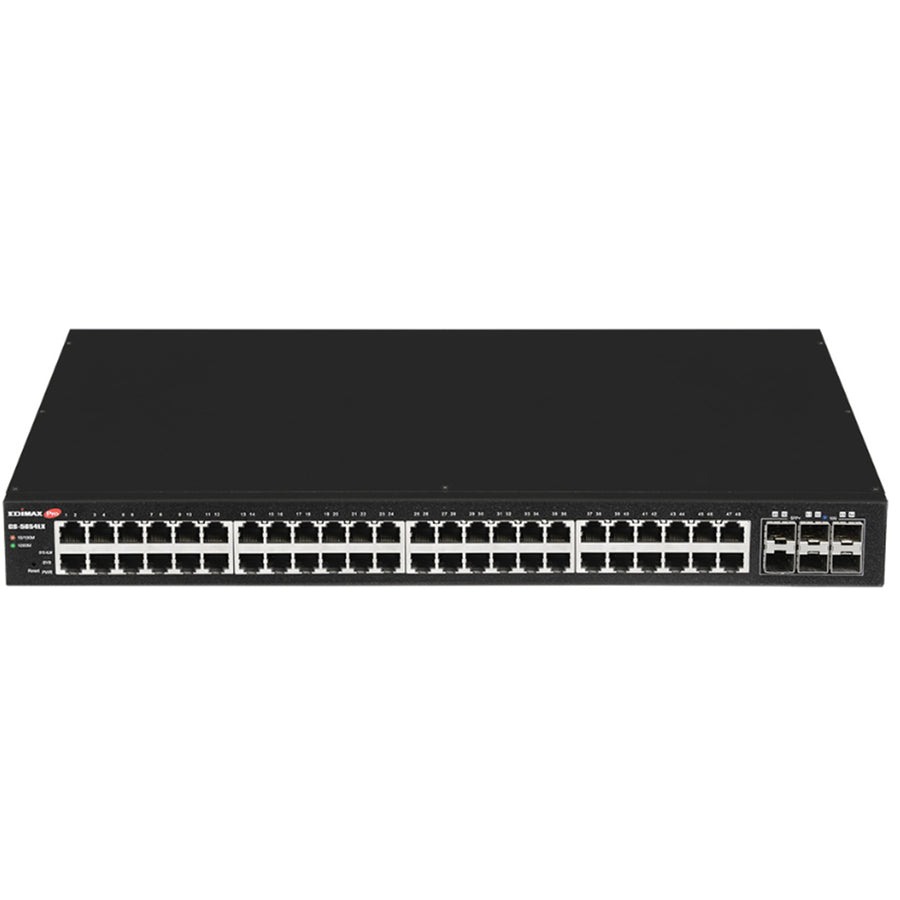

EDIMAX GS-5654LX - 54 Port Gigabit Web Smart Switch
Features
Empower your Enterprise with EDIMAX Intelligent Network Switches

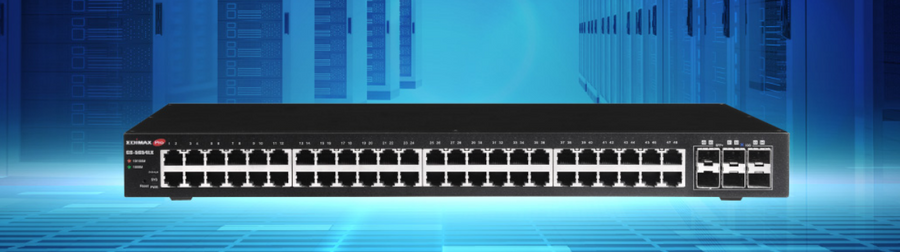

The EDIMAX Pro GS-5654LX web-smart switch comes with a web-based user interface, 48 Gigabit ports, and 6 SFP+ ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
Powerful 10GbE | 6 x 10GbE SFP+ Uplink
48 GbE ports for high-speed connections and up to 60 Gbps of fiber-optic uplinking capability allowing the GS-5654LX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Intuitive and Powerful
The switch features smart and simple network monitoring tools that allow for improved network efficiency and security.
Strong Ability to Proceed Data
With 216Gbps backplane bandwidth and a forwarding rate of 160.7Mpps, the GS-5654LX provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5654LX has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
Intelligent Thermal Control | Power Saving Implementation

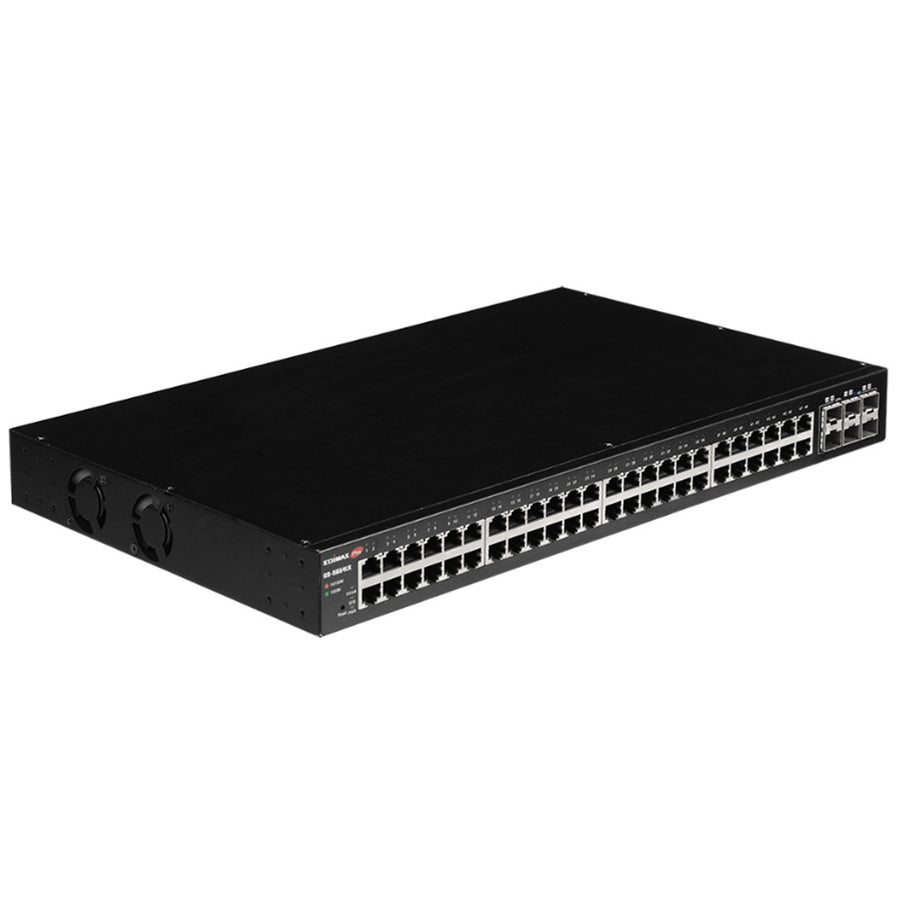

With a dedicated and intelligent microchip for system cooling control, the GS-5654LX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction.
Specifications
Technical Specifications

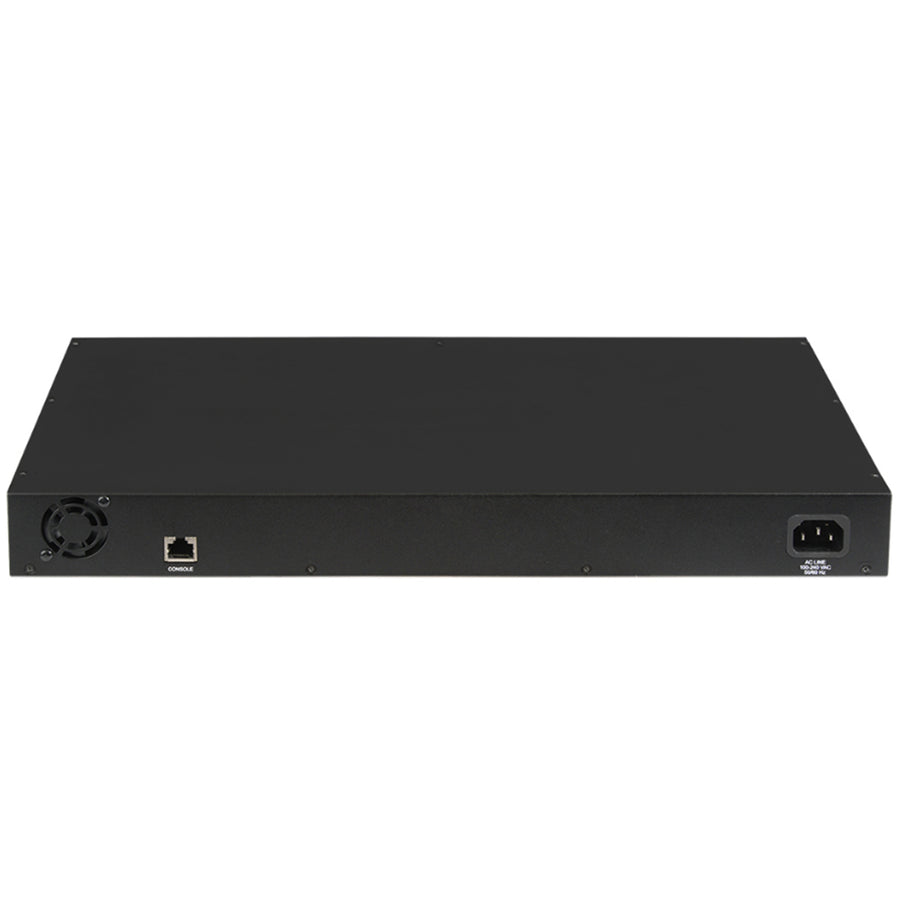

| Ports | 48 x RJ45 10/100/1000Base-T Gigabit ports6 x SFP+ 10GBase-X 10 Gigabit uplinks ports1 x RJ45 Console port |
|---|---|
| Buttons | Reset button |
| LED Indicators | Per Port: Link/ActPer Unit: SYS (System), PWR (Power) |
| Power Input | 100-240V AC, 50-60 Hz, internal power supply |
| Mounting | Desktop / Rack-mount (Rack-mount kit included) |
| Housing | Metal |
| Fan | 3 x Fan with Intelligent Thermal Controller |
| Dimensions (L x W x H) | 441(W) x 270(D) x 45(H) mm |
| Weight | 4.05kg |
| Switching Capacity | 216Gbps |
| MAC Address | 32K |
| Jumbo Frames | 12K Bytes |
| Filtering / Forwarding Rates | Max. 160.7Mpps (64-byte package size)10000Mbps port - 14,880,000pps1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Quality of Service (QoS) | Rate limiting on packets sent and received by an interfaceEight queues on each portWRR, SP, WRR+SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityRate limiting in each queue and traffic shaping on ports |
| Class of Service (CoS) | IEEE 802.1p class of service (SPQ, WRR)Port-based CoSIP TOS precedence802.1p VLAN Information based CoSDSCP based CoSTCP/UDP Based CoS |
| Spanning Tree | IEEE 802.1d Spanning Tree Protocol (STP)IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| VLAN | Up to 256 VLANs and 4096 VLAN IDs802.1Q tag-based VLANPort-based VLANSurveillance VLANVoice VLANMAC VLANGVRP |
| IPV6 | IPv6 over Ethernet (RFC 2464)Dual-stack (RFC 4213)ICMPv6 (RFC 4884)Neighbor discovery (RFC 4861)Auto configurationStatic IPv6 address and prefix lengthStatic IPv6 default gatewayIPv6 duplicate address detection |
| Port Trunking | IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups |
| IGMP Snooping | IGMP v1/v2/v3 snoopingBlock unknown multicast traffic |
| Port Mirroring | Port mirroring both on ingress and egress traffic |
| Security | RADIUSAAAManagement AccessAuthentication ManagerPort SecurityProtected PortStorm ControlDoSDynamic ARP InspectionDHCP SnoopingIP Source Guard |
| Management | User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBSyslog: Support event log, alarm log and security logDual-firmware image for robust failover mechanisms. |
| Temperature | Operating Temperature: 0~50°C (32~122°F)Storage Temperature: -40~70°C (-40~158°F) |
| Humidity (Non-condensing) | Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 10~90% (NonCondensing) |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 4.807 kg |
| Warranty |
|---|
