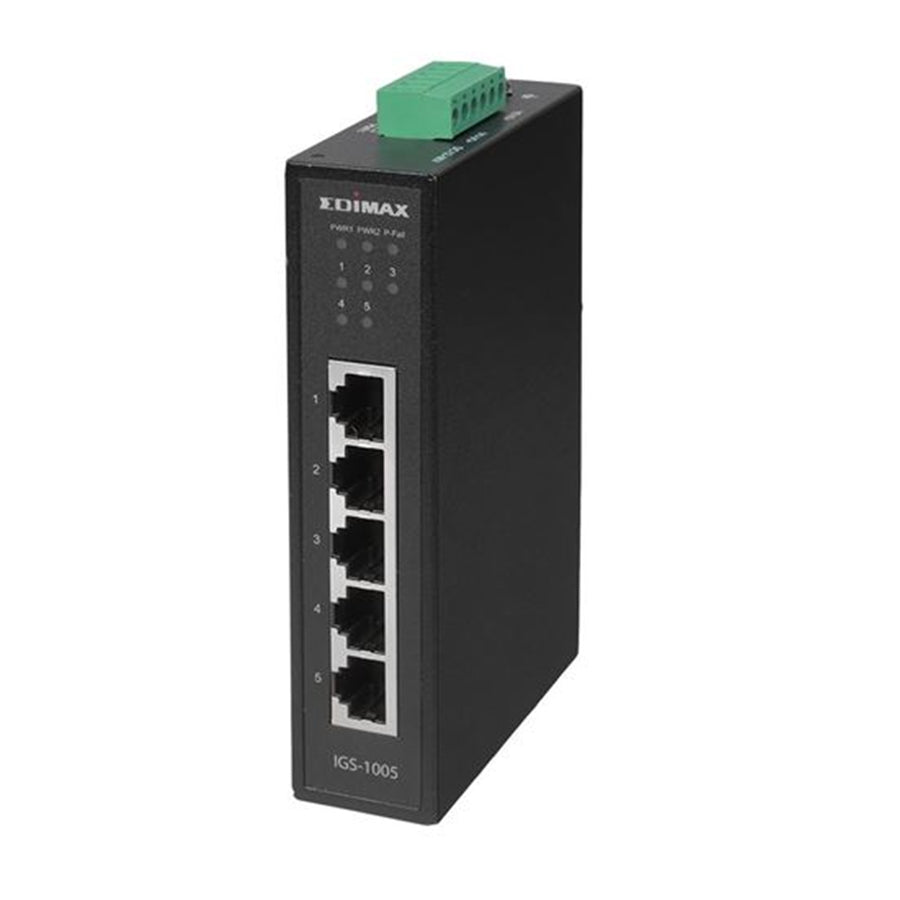

EDIMAX IGS-1005 - Industrial 5-Port Gigabit DIN Rail Switch
Features
EDIMAX Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m @10Mbps Full-Duplex. Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.
- 5 Gigabit Ethernet ports
- 6KV Surge protection to avoid damage to the switch and connected devices
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- P-fail relay with alarm and notification when an event of power failure occurs
- Supports QoS 802.1p for video & voice traffic priority
- Wide operating temperature range of -20°C ~+70°C
- Guaranteed long distance to 200 meters
- Flexible deployment with DIN-Rail mounting kit and wall-mount feature
- IP30-rated, fanless rugged industrial design for harsh environments
6KV Surge & Power BackFeed Protection
Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power sources. Further avoiding damage done to the switch and connected devices.
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C ~ 70°C for industrial network deployment in extreme hot and freezing environments.
PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with a guarantee of 200 meters ideal for surveillance and parking lot applications.

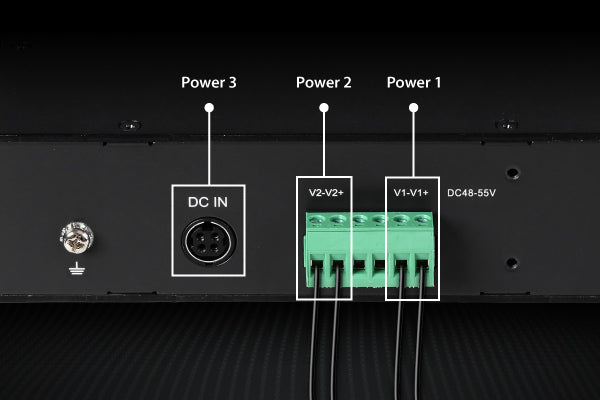

Reliable Power Redundancy
Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.

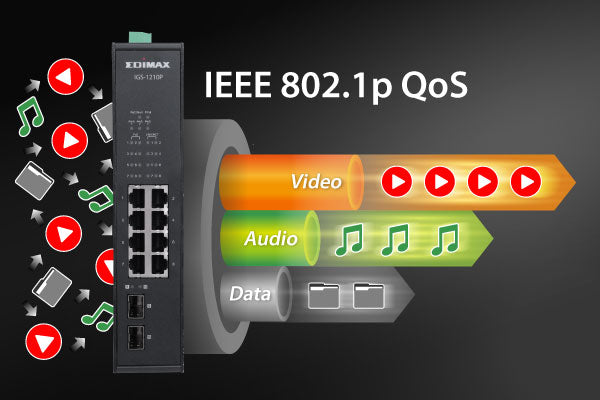

QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.

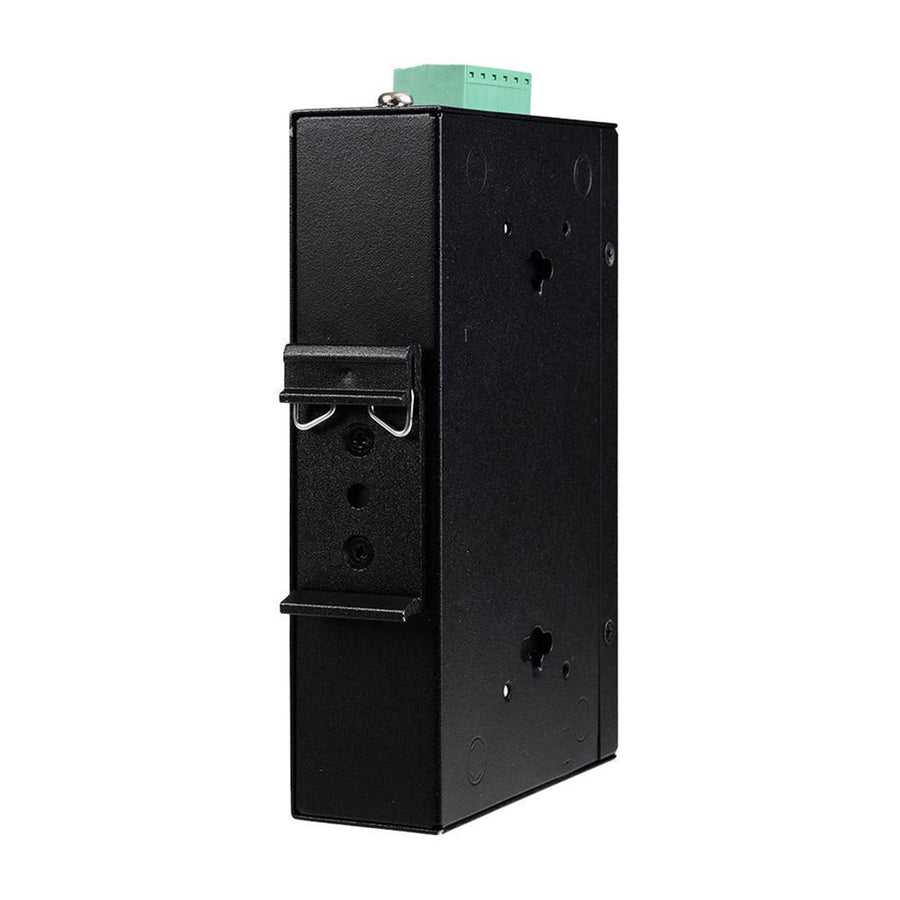

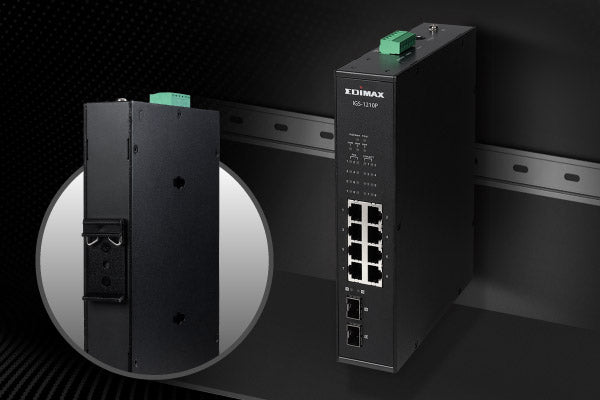

Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for DIN-rail mounts or wall-mount deployment.
Specifications
Technical Specifications
| Ports | 5x RJ-45 10/100/1000Base-T Gigabit Ports |
|---|---|

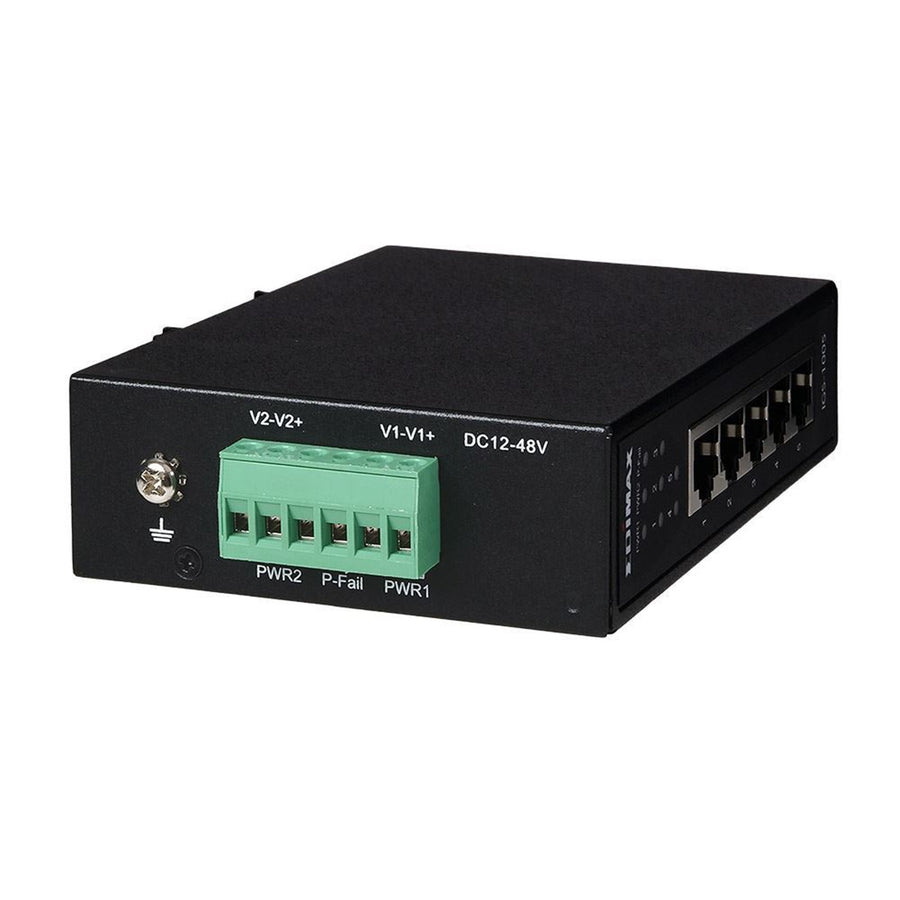

| Connector | Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power failure Alarm Relay), Pin 5/6 for Power 2)Grounding Point with Screw |
| LED Indicators | Per Port: Link/ActPer Unit: PWR1, PWR2, P-Fail |
| Power Input | External Power Supply- Power Input: 12V~48V DC, 2.5A (Terminal Block)- Redundant Power Input: 12V~48V DC, 2.5A (Terminal Block) |
| Mounting | DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount |
| Housing | Metal, IP30-rated |
| Fan | Fanless |
| Dimensions | 127.5(H) x 30(D) x 83.6(W) mm |
| Weight | 387g |
| Switching Capacity | 10Gbps |
| MAC Address | 2K |
| Buffer Memory | 2Mb |
| Jumbo Frame | 9KB |
| Transmission Method | Store and Forward |
| Filtering / Forwarding Rates | Max. 7.44Mpps?1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Advanced Feature | IEEE 802.1p Quality of Service (QoS)Long Range Guaranteed 200 Meters at 10Mbps |
| Protection | Reverse PolarityOverload Current6KV Surge per RJ45 Port |
| MTBF | >1,000,000 hours @25°C (Mean Time Between Failure) |
| Standards | IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.1p QoS (Quality of Service)IEEE 802.3x Full-duplex and flow controlIEEE 802.3az Energy-efficient Ethernet |
| Environmental Condition | Operating Temperature: -20°C~70°CStorage Temperature: -40°C~85°COperating Humidity: 10%~95% (NonCondensing)Storage Humidity: 10%~95% (NonCondensing) |
| Certification | CE, FCC, BSMI |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 5.215 kg |
