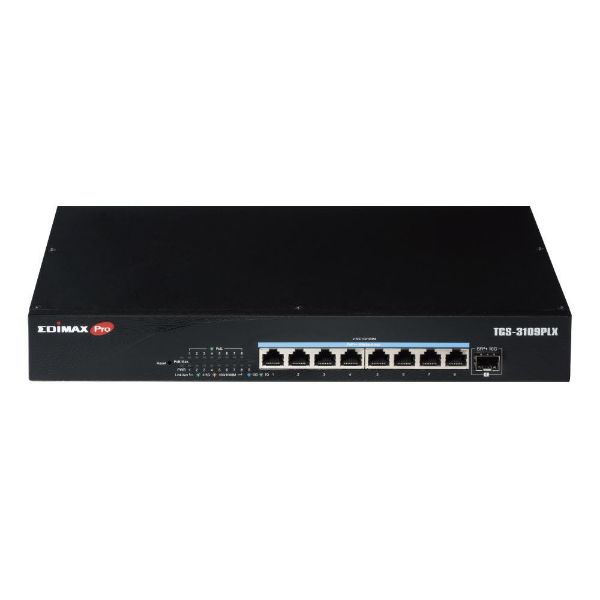

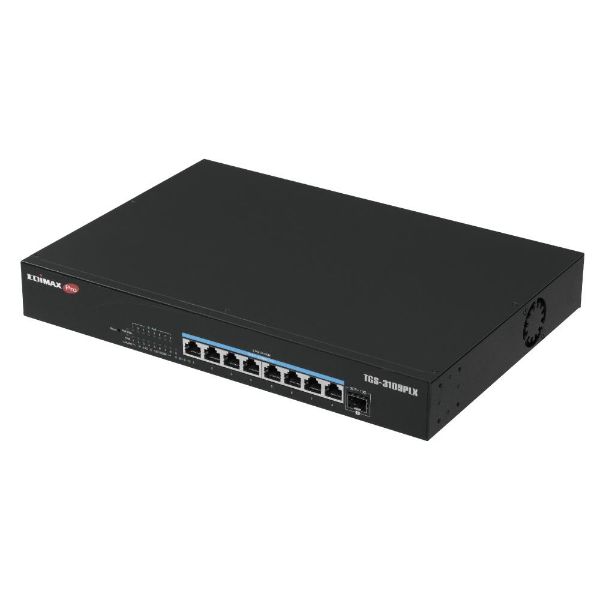

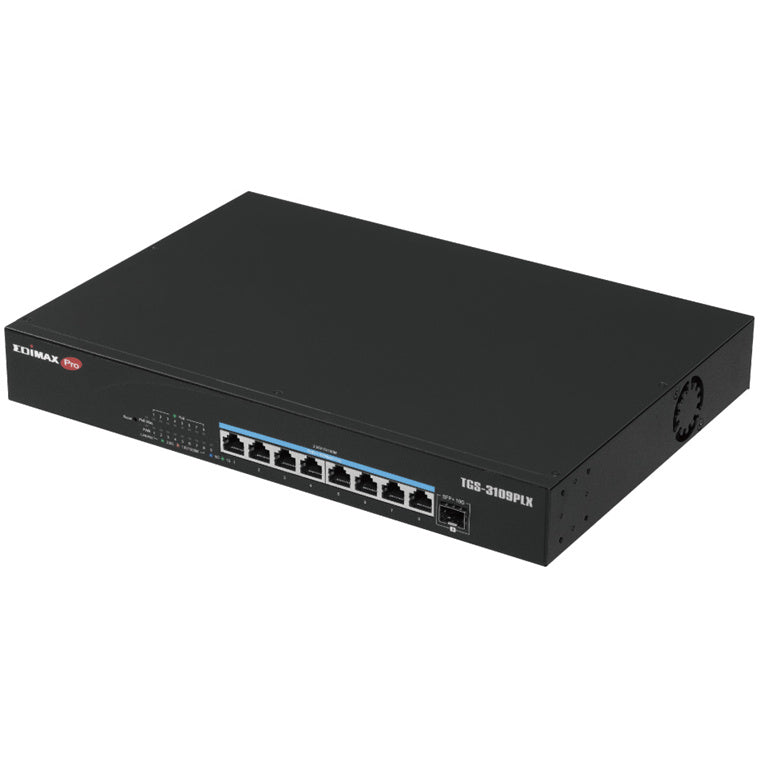

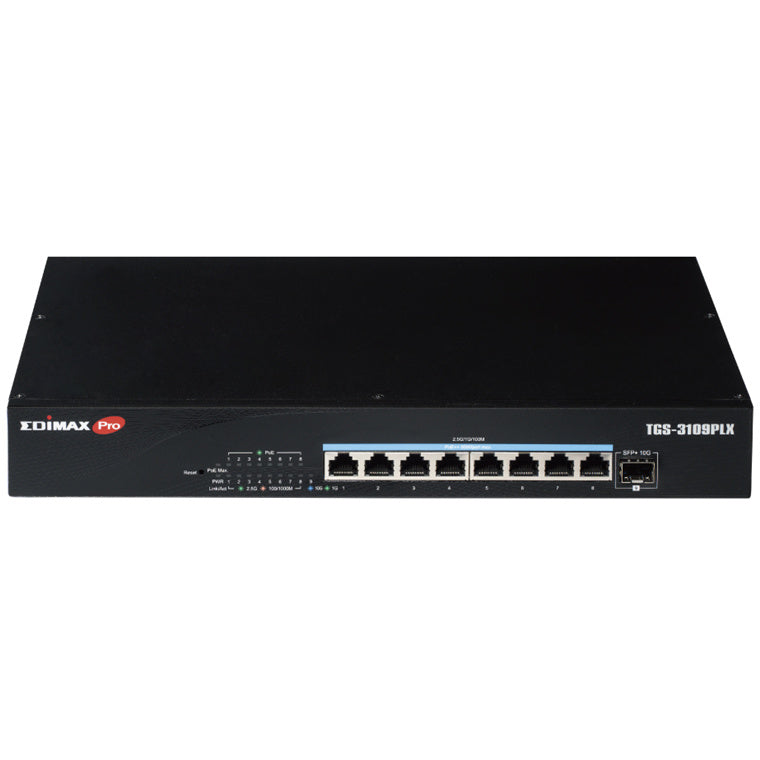

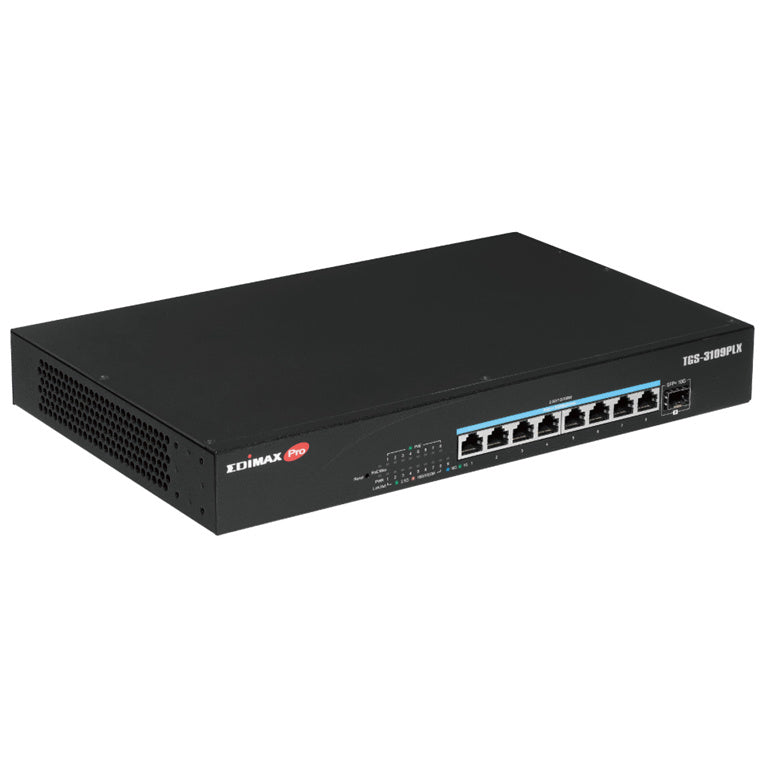

EDIMAX TGS-3109PLX - 8 Port 2.5GbE PoE++ Web Smart Switch w/ 1x 10GbE SFP+ Port
Features
The TGS-3109PLX is a web-smart switch with 8 2.5GbE PoE++ RJ45 and 1 10GbE SFP+ uplink port. Each PoE++ port can supply up to 90W power to PoE-enabled devices with up to a total 240W power budget per switch. It offers powerful and reliable network connectivity providing sufficient bandwidth and speed-demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs.
Tailored for IP cameras and far away network device applications, the EDIMAX-specific long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices.
The PoE also features auto-detection and power backfeed protection to efficiently provide power and avoid damaging PoE ports at the same time. With smart features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention, the TGS-3109PLX provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.
- 8 x 2.5GbE 90W PoE++ Multi-Gigabit RJ45 ports and 1 10GbE SFP+ port
- IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 240W) for powering PoE-enabled devices
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- Guaranteed PoE long distance to 200 meters
- Auto-detection of powered devices (PD) and power consumption levels
- No need to upgrade on the cabling infrastructure, double the network bandwidth by leveraging existing CAT5E cabling infrastructure
- Power backfeed protection to avoid damaging the PoE ports
- Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
- Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
- Rack-mount design, rack-mount kit included
Specifications
Technical Specifications
| Ports | 8 x RJ45 2.5Base-T 2.5 Gigabit PoE++ Ports1 x SFP+ 10GBase-X 10 Gigabit Uplink Port |
|---|---|
| Buttons | Reset Button |
| LED Indicators | PoE Max.: PoE Power Budget AlertPWR: System Power StatusLink/Act: Connection and Transmission Status (Port 1-8 RJ45, Port 9 SFP+)PoE: PoE Status |

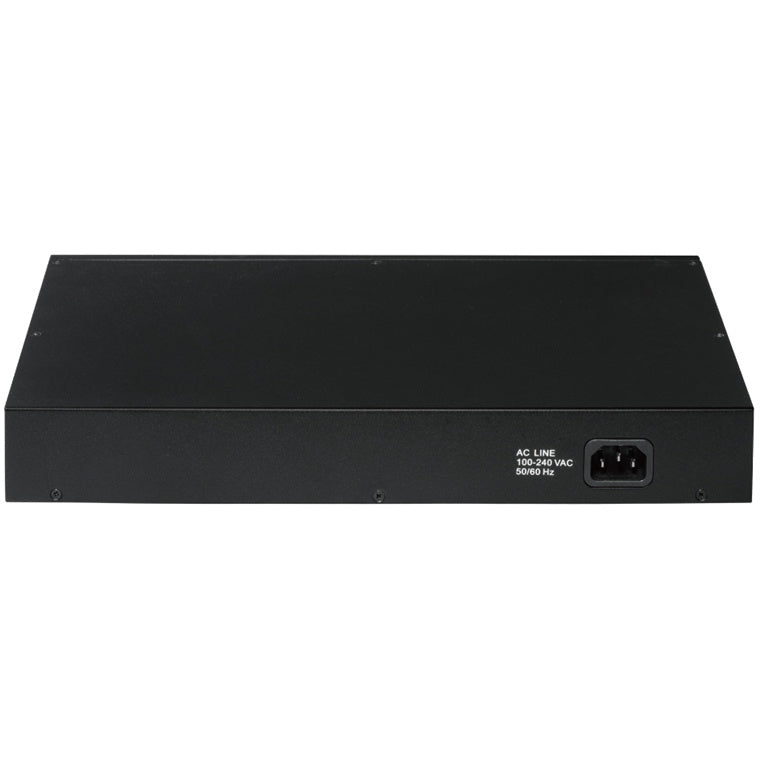

| Power Input | 100-240V AC, 50-60 Hz, Internal Power Supply |
| Total Power Budget | 240W |
| Mounting | Desktop / Rack-mount (Rack-mount kit included) |
| Housing | Metal |
| Fan | 1 x Fan with Intelligent Thermal Controller |
| Dimensions | 330 (W) x 230 (D) x 44 (H) mm(12.99 (W) x 9.06 (D) x 1.73 (H) inches) |
| Weight | 2.39kg (5.27lb) |
| Switching Capacity / Backplane | 60Gbps |
| Forwarding Rates | Max. 44.64Mpps (64-byte package size) |
| MAC Address Table | 4K |
| Jumbo Frames | 12KB |
| Packet Buffer | 8.1Mb |
| Standard | IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+), IEEE 802.3af (PoE) |
| Power Output | Up to 90W per Port |
| Pin Assignment | IEEE 802.3at/af: Alternative A (Pin 1,2/3,6)IEEE 802.3bt: Alternative A & B (Pin 1,2/3,6 & Pin 4,5/7,8) |
| Management | PoE Status, PoE On/Off |
| Long Range | Guaranteed PoE long distance to 200 meters (656 feet) at 10Mbps |
| Backfeed Protection | Built-in |
| Quality of Service (QoS) | Port-based QoSIEEE802.1p QoS4 Priority QueuesScheduling Algorithms |
| VLAN | Up to 10 VLANs802.1Q Tag-based VLAN |
| Port Trunking | IEEE 802.3ad LACP Trunk-Static Trunk |
| IGMP Snooping | IGMP v1/v2/v3 SnoopingBlock unknown multicast trafficMulticast Groups: 128 |
| Port Mirroring | Port Mirroring Traffic Direction:Both (Ingress and Egress)IngressEgress |
| Security | Broadcast Storm Control |
| Management | User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBLoop Detection/Prevention |
| Standard | IEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3bz 2.5GBase-T 2.5G EthernetIEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over FiberIEEE 802.3ae 10GBase-X Gigabit Ethernet over FiberIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet (PoE+)IEEE 802.3bt Power over Ethernet (PoE++)IEEE 802.3x Full-duplex and Flow ControlIEEE 802.1p Quality of Service (QoS)IEEE 802.1Q Virtual LANs VLANsIEEE 802.3ad Link Aggregation Control Protocol (LACP)IEEE 802.3az Energy Efficient Ethernet |
| Environmental Condition | Tempertatue:Operating: 0 ~ 40? (32~104°F)Storage: -40 ~ 70? (-40~158°F)Humidity:Operating: 10 ~ 90% (Non-condensing)Storage: 10 ~ 90% (Non-condensing) |
| Certifications | FCC, CE |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 7.456 kg |
| Warranty |
|---|
