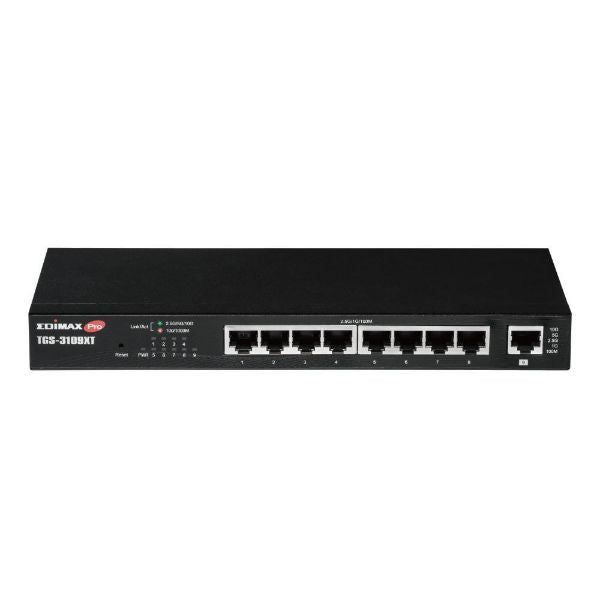

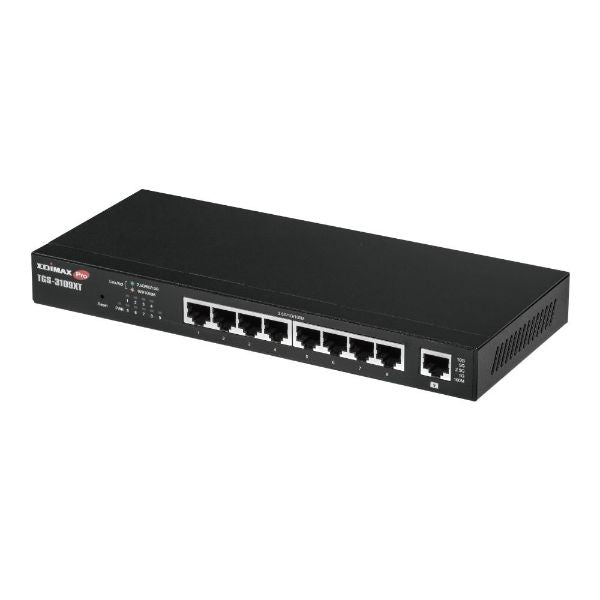

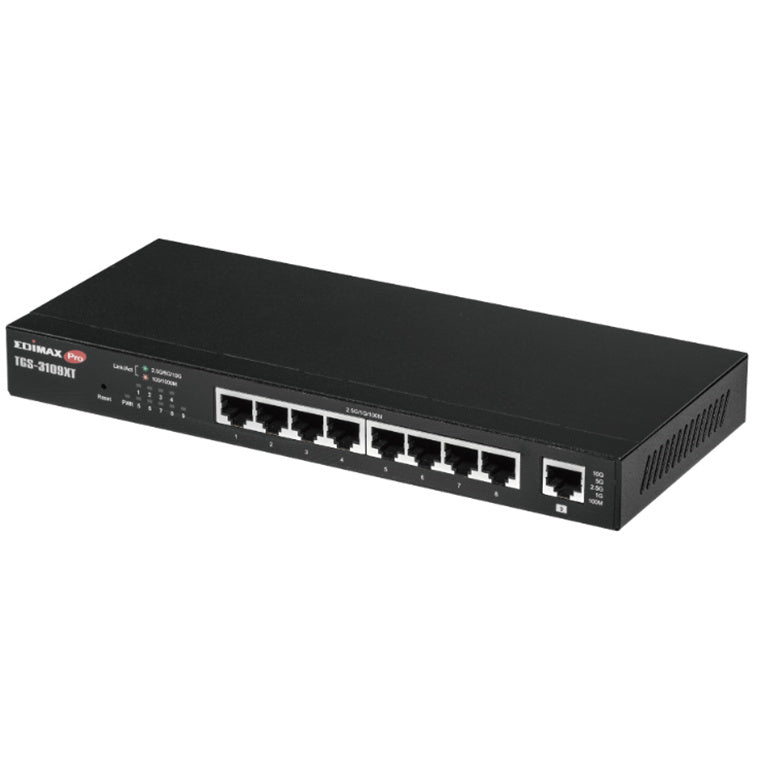

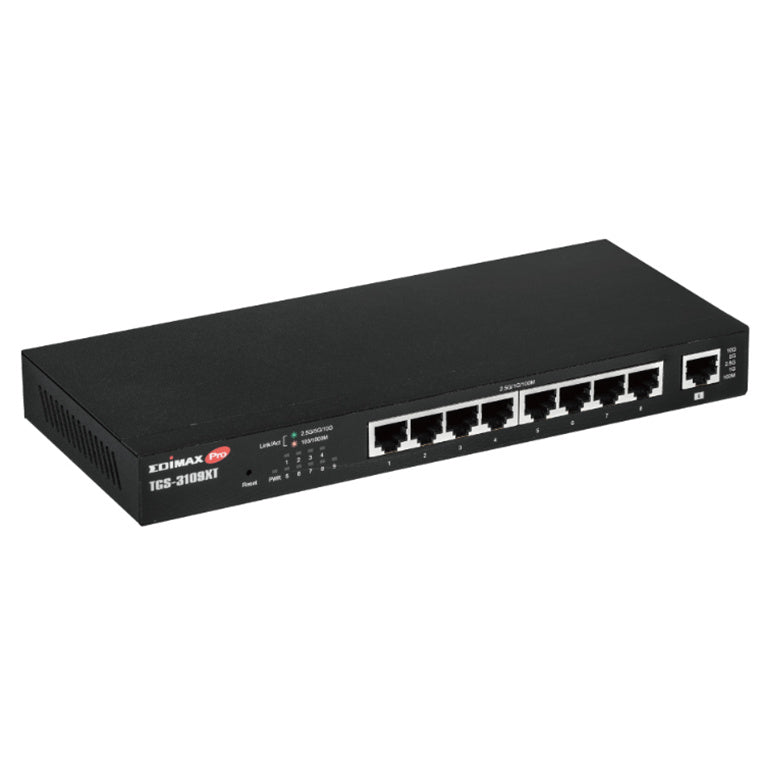

EDIMAX TGS-3109XT - 8 Port 2.5GbE Web Smart Switch w/ 1x 10GbE Multi Gigabit 5-Speed RJ45 Port
Features
The EDIMAX Pro TGS-3109XT is a web-smart switch with 8x2.5GbE and 1x10GbE ports. The 10GbE port is a Multi-Gigabit 5-Speed that provides either 100Mbps, 1Gbps, 2.5Gbps, 5Gbps or 10Gbps. The switch offers powerful and reliable network connectivity, providing sufficient bandwidth and fast speed demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs.
With user-friendly smart web-based management utility features, showing outstanding performance and high efficiency that offers essential features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention. The TGS3109XT is a compact yet useful switch, ideal for network connectivity in the home, small office, small-and-medium business and enterprise environments.
- 8 x 2.5GbE and 1 x 10GbE Multi-Gigabit 5-Speed (100M/1G/2.5G/5G/10G) RJ45 port
- No need to upgrade cabling infrastructure doubles network bandwidth up to 2.5GbE by leveraging existing CAT5E cabling infrastructure
- Web-based setup interface enables easy configuration and management
- Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
- Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
- Fanless, quiet, compact and durable wall-mountable metal chassis design
Specifications
Technical Specifications
| Ports | 8 x RJ45 2.5Base-T 2.5 Gigabit Ports1 x RJ45 10GBase-X 10 Gigabit Uplink Port |
|---|---|
| Buttons | Reset Button |

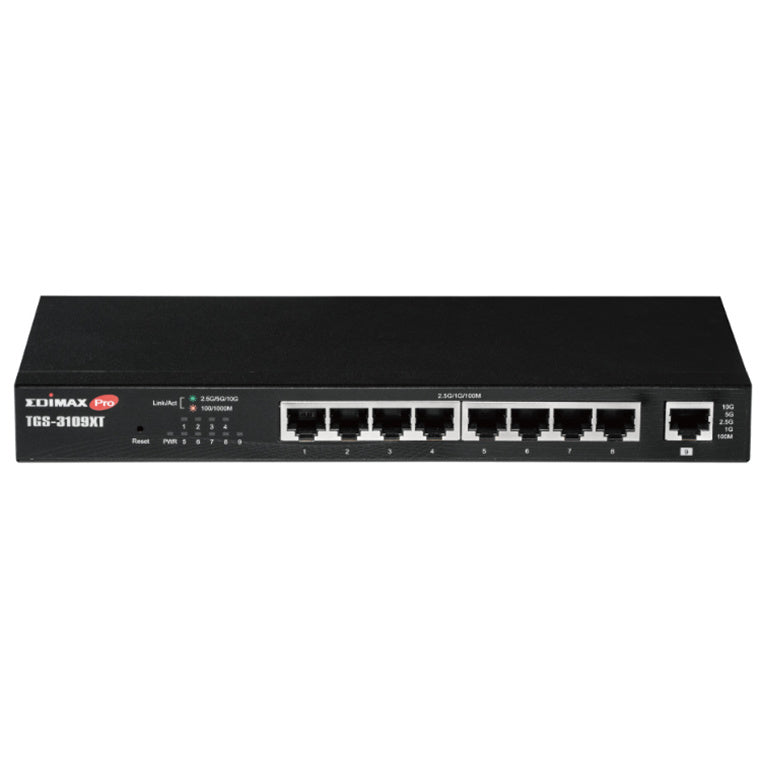

| LED Indicators | PWR: System Power StatusLink/Act: Connection and Transmission Status |

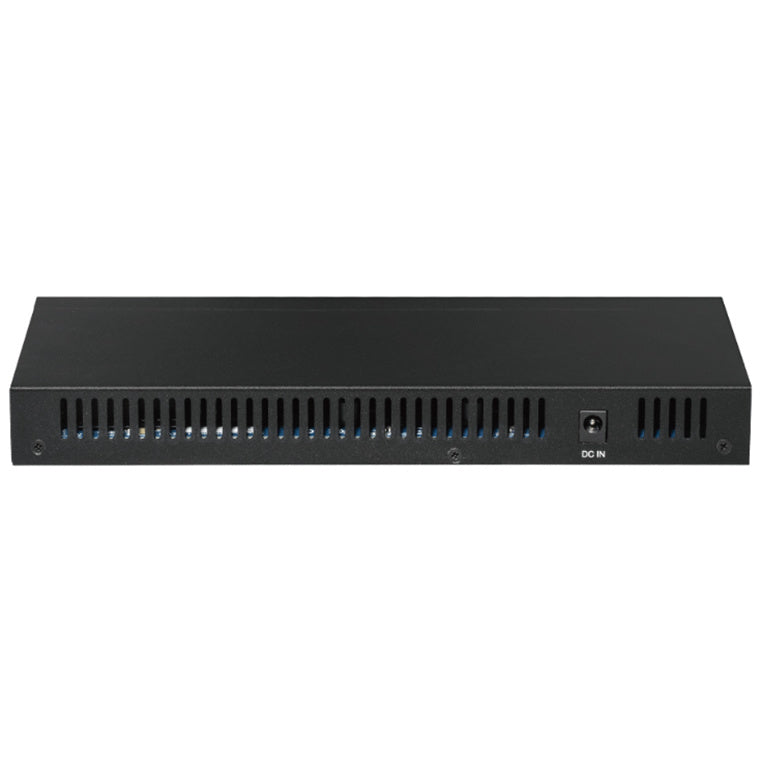

| Power Input | External Power Supply (DC12V/1A) |

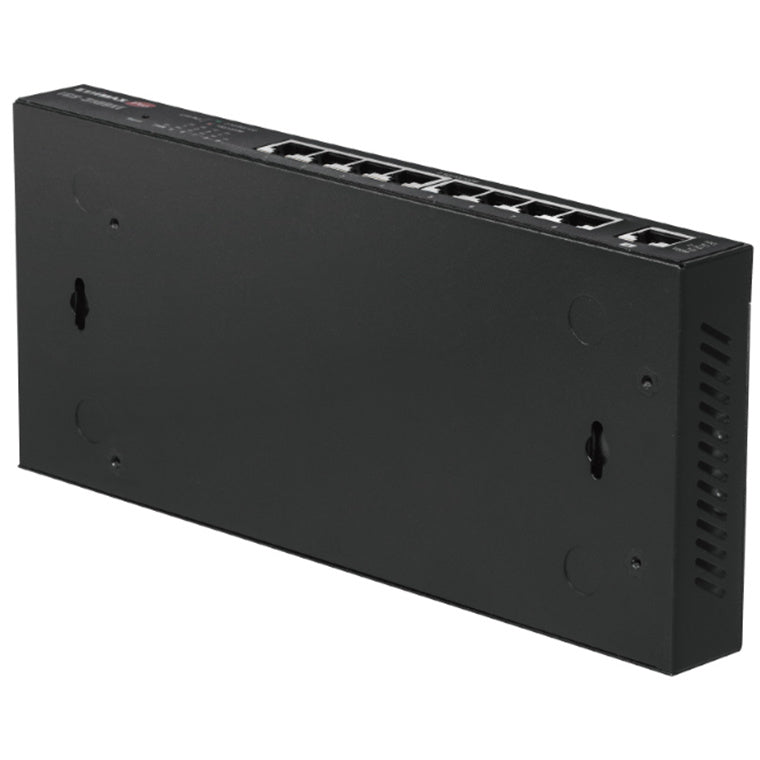

| Mounting | Desktop / Wall-mount |
| Housing | Metal |
| Fan | Fanless |
| Dimensions | 240 (W) x 105 (D) x 27 (H) mm(9.45 (W) x 4.13 (D) x 1.06 (H) inches) |
| Weight | 713g (1.58lb) |
| Switching Capacity / Backplane | 60Gbps |
| Forwarding Rates | Max. 44.64Mpps (64-byte Package Size) |
| MAC Address Table | 4K |
| Jumbo Frames | 12KB |
| Packet Buffer | 8.1Mb |
| Quality of Service (QoS) | Port-based QoSIEEE802.1p QoS4 Priority QueuesScheduling Algorithms |
| VLAN | Up to 10 VLANs802.1Q Tag-based VLAN |
| Port Trunking | IEEE 802.3ad LACP Trunk-Static Trunk |
| IGMP Snooping | IGMP v1/v2/v3 SnoopingBlock unknown multicast trafficMulticast Groups: 128 |
| Port Mirroring | Port Mirroring Traffic Direction:Both (Ingress and Egress)IngressEgress |
| Security | Broadcast Storm Control |
| Management | User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBLoop Detection/Prevention |
| Standard | IEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3bz 2.5GBase-T 2.5G EthernetIEEE 802.3an 10GBase-T 10 Gigabit EthernetIEEE 802.3x Full-duplex and Flow ControlIEEE 802.1p Quality of Service (QoS)IEEE 802.1Q Virtual LANs VLANsIEEE 802.3ad Link Aggregation Control Protocol (LACP)IEEE 802.3az Energy Efficient Ethernet |
| Environmental Condition | Tempertatue:Operating: 0 ~ 40? (32~104°F)Storage: -40 ~ 70? (-40~158°F)Humidity:Operating: 10 ~ 90% (Non-condensing)Storage: 10 ~ 90% (Non-condensing) |
| Certifications | FCC, CE |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 5.261 kg |
| Warranty |
|---|
