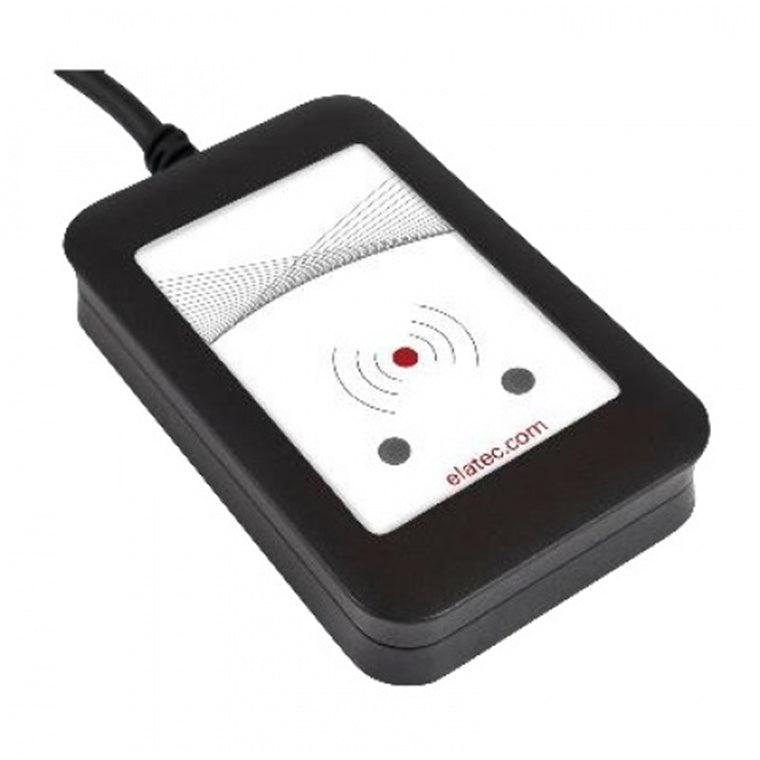

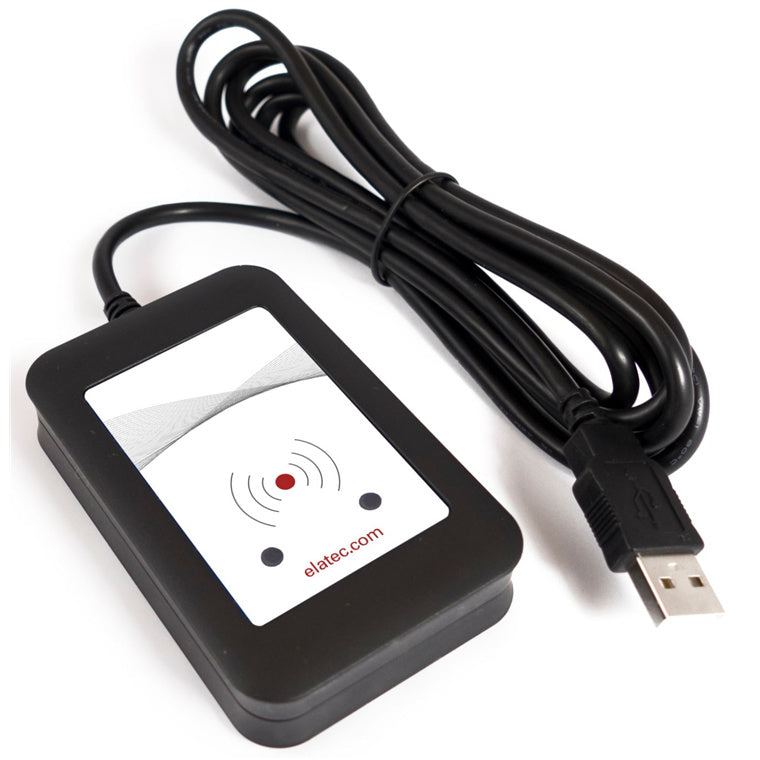

ELATEC GMBH ELATEC TWN4 DESKTOP 13.56/NFC MULTI READER USB BLK
Features
Elatec's TWN4 family of transponder readers and writers allows users to read and write to almost any 125 kHz, 134.2 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC). The TWN4 MultiTech 2 reader has integrated RFID (LF & HF) and NFC, which is supported by mobile phones with Android version 4.3 or greater. The app on the reader communicates with the NFC module with easy commands.
-powerful SDK for writing apps which are executed directly on the reader
-firmware update in the field possible
-onboard 18 kB flash storage, e.g. for storing user accessible non-volatile data
-direct chip-commands support
-two onboard SAM sockets (Secure Access Module)
-CCID and PC/SC 2.01
-4 GPIOs
-supports quick centralized (re)configuration over network and over wireless interface with TWN4 CONFIG Card
-3D construction data (STEP) available on request
Specifications
Technical Specifications
| FREQUENCY | 125 kHz/134.2 kHz (LF) / 13.56 MHz (HF) |
|---|---|
| ANTENNA | Integrated |
| HOUSING | Material: ABS UL94-V0 |
| DIMENSIONS (L X W X H) | Desktop Reader: 88 mm x 56 mm x 18 mm / 3.5 inch x 2.2 inch x 0.7 inchOEM Board: 76 mm x 49 mm x 9 mm / 3.0 inch x 1.9 inch x 0.4 inch |
| POWER SUPPLY | 4.3 V - 5.5 V via USB or RS-232; RS232 requires 5 V external power supply; via connector CNB 3.3 V +/- 5% |
| RELATIVE HUMIDITY | 5% to 95% non-condensing |
| READ- / WRITE DISTANCE | LF and HF: Up to 100 mm / 4 inch, depending on environment and transponder |
| TRANSMISSION SPEED | Host: USB Full speed (12 Mbit/s), RS-232: up to 115.200 baud; HF Air: up to 848 kbit/s |
| OPERATING MODES (USB) | USB keyboard emulation - USB virtual COM port - CCID / PC/SC 2.01 |
| MTBF | 500,000 hours |
| WEIGHT | Approx. 20 g (without housing) |
| Brand | ELATEC GMBH |
|---|---|
| Product Type | Printers & Office > POS & Barcode Scanners |
| Weight | 1.01 kg |
| Warranty |
|---|
