ELO E649473
ELO E649473
ELO

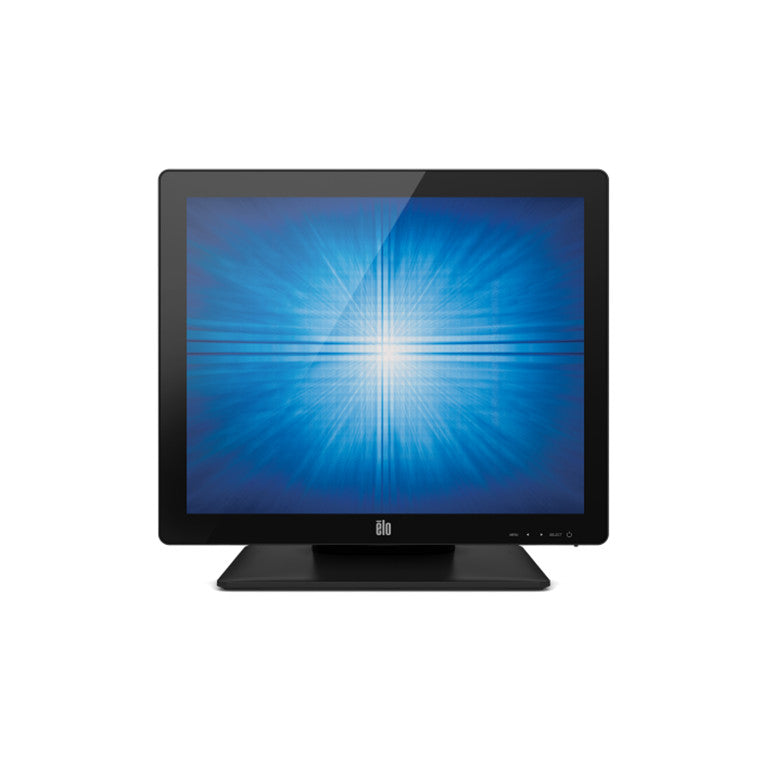

ELO D/TOP 1717L LED RESIST VGA SER/USB BLK

SKU: E649473 ● In Stock
$1,708.70
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

ELO D/TOP 1717L LED RESIST VGA SER/USB BLK

Specifications

Technical Specifications

Manufacturer part number E649473
Touch Technology & Capacity 5-Wire Resistive (AccuTouch®) - Single-Touch SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch PCAP (Projected Ca
Diagonal Size 17'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness 1.7" / 43mm panel depth
Aspect Ratio 5:4
Active Area (mm) 13.3" x 10.64" / 337.92mm x 270.34mm
Resolution 1280 x 1024
Other Supported Resolutions 640 x 480 @ 60Hz, 75Hz 720 x 400 @ 70Hz 800 x 600 @ 56Hz, 60Hz, 75Hz 1024 x 768 @ 60Hz, 75Hz 1280 x 1024 @ 60Hz, 75Hz
Viewing Angle Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors 16.7 million
Brightness (typical) LCD panel: 250 nits AccuTouch: 200 nits IntelliTouch: 225 nits IntelliTouch ZB: 225 nits PCAP: 225 nits
Response Time-total (typical) 5 msec
Contrast Ratio 1000:1
Input Video Format Analog VGA on Female DB-15 connector
Input Video Frequency Horizontal: 31.5-80 kHz Vertical: 56-75 Hz
Touch Interface Serial (RS232) and USB
Input Voltage AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Input Connector AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
Adapter Input Connector IEC 60320 C14
Adapter Input Voltage Range 100-240VAC, 50/60Hz
Power Consumption (Typical) Monitor Only ON: 16W SLEEP: 0.7W OFF: 0.5W
On Screen Display Accessible through switches along the bottom
Controls: Menu, Up, Down, Select Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, Ger Lockouts: OSD, Power
Monitor Dimensions (with Stand) 15.43" x 8.38" x 14.24" / 391.9mm x 215.4mm x 361.6mm
Shipping Box Dimensions 20.12" x 9.17" x 20.08" / 511mm x 233mm x 510mm
Weight (Unpackaged) 11.9 lbs / 5.4 Kg
Weight (Packaged) 18.3 lbs / 8.3 Kg
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature 20°C to 60°C / -4°F to 140°F
Humidity Operating: 20% to 80%; Storage: 10% to 90%
Sealability Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF 50,000 hours demonstrated
Mounting Options 75 mm VESA mount Capped through-mount holes
Other Features Security lock receptacle
Extended Warranty Options 1 Year Extended Warranty - Elo P/N: 758588-000 2 Year Extended Warranty - Elo P/N: 930057-000 Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000
Regulatory approvals and declarations UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE, IMERC
What's in the Box QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Sta
Product type Network Accessories
Weight 1.01 kg
Warranty 12 months
