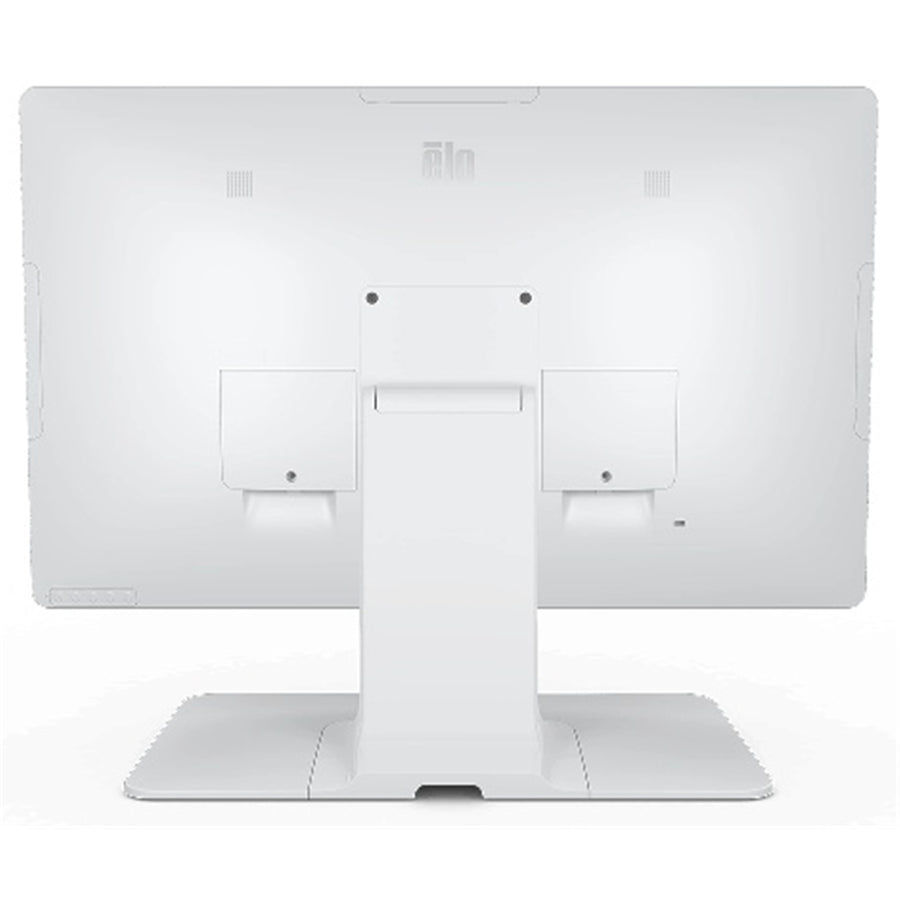

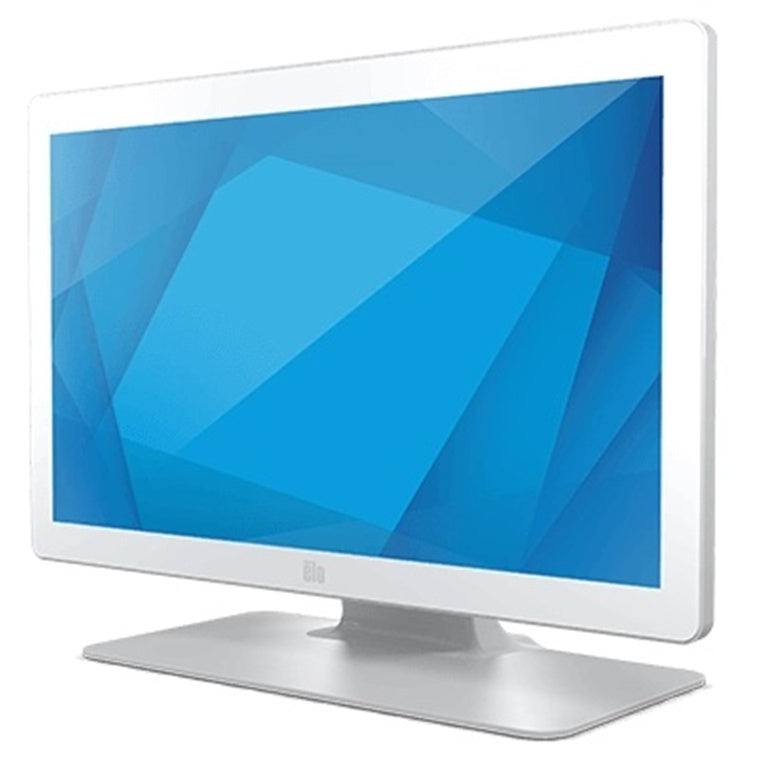

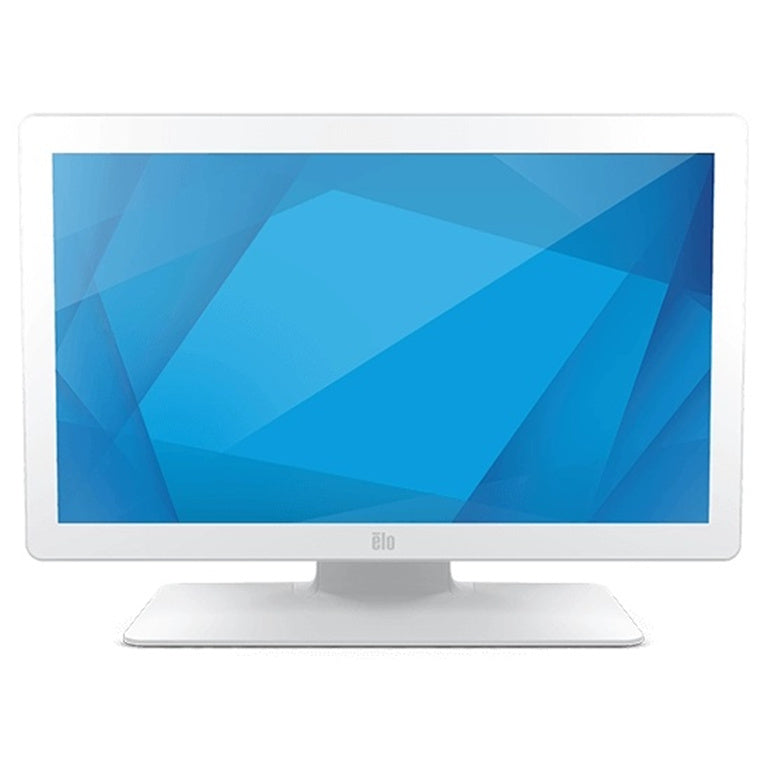

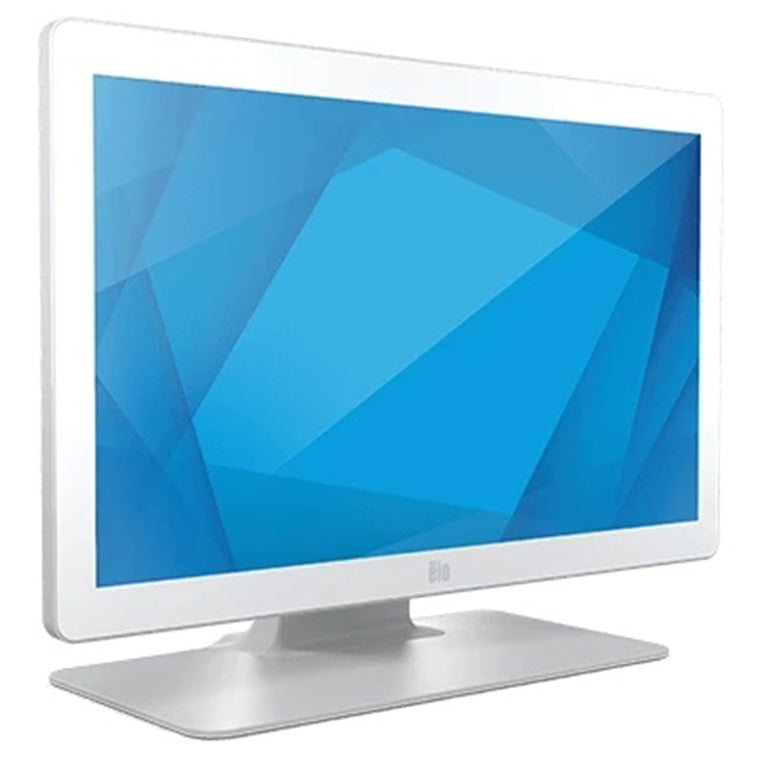

ELO DESKTOP 2203LM PCAP VGA/HDMI SER/USB WHI
Features
Elo 2203LM 22-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, VGA and HDMI Video Interface, White
DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
*Device shown - Rosa with Elo Medical-grade monitor
Specifications
Technical Specifications
| MPN | TouchPro PCAP White with stand - E658992 |
|---|---|
| Enclosure Color | White |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Diagonal Size | 21.5" diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 18.74" x 10.54" / 476.06 mm x 267.79 mm |
| Resolution | 1920 x 1080 @ 50, 60Hz |
| Other Supported Resolutions | 640 x 480 60Hz640 x 400 70Hz720 x 400 70Hz800 x 500 60Hz800 x 600 56Hz, 60Hz1024 x 768 60Hz1280 x 720 @ 58Hz, 60Hz1280 x 800 60Hz1280 x 1024 60Hz1366 x 768 60Hz, 60Hz RB1440 x 900 60Hz, 60Hz RB1680 x 1050 60Hz, 60Hz RB |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 250 nitsTouchPro PCAP: 225 nits |
| Response Time-total (typical) | 14 msec |
| Contrast Ratio | 1000:1 |
| Touch Interface | USB, Serial (via VGA) |
| Surface Treatment | Anti-glare |
| I/O Ports | VGA (RS232 touch supported via E810917)HDMICombo JackDC jackUSB Type BUSB 2.0 Type A4x Micro USB |
| Speakers | Two x 2W internal speakers |
| Input Video Format | VGA (VGA DE-15 (DB-15) Male connecter cable included)HDMI (HDMI cable included) |
| Input Video Frequency | Horizontal: 30 - 82KHzVertical: 50 - 75Hz |
| Power Consumption (Typical) | Monitor + AC/DC adapterON (Default - 80% Brightness): 14.8 WON (Typical - 100% Brightness): 16.78 WSLEEP: 0.78 WOFF: 0.36 W |
| Input Voltage | 12VDC +/- 5%100-240VAC, 50/60Hz |
| Input Connector | Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter) |
| Peripheral Mounting | 4x Micro USB side ports (Top, Bottom, Left, Right) |
| Monitor Dimensions (with Stand) | 15.11" x 20.74" x 7.61" / 383.8 mm x 526.9 mm x 193.4 mm |
| Weight (Unpackaged) | With Stand: 14.88 lbs / 6.75 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature) |
| Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit |
| Brand | Elo |
|---|---|
| Product Type | Printers & Office > POS & Barcode Scanners |
| Weight | 0.5 kg |
