ELO OPEN FRAME 1590L 15/ACCUTOUCH VGA/DP USB/RS
Features

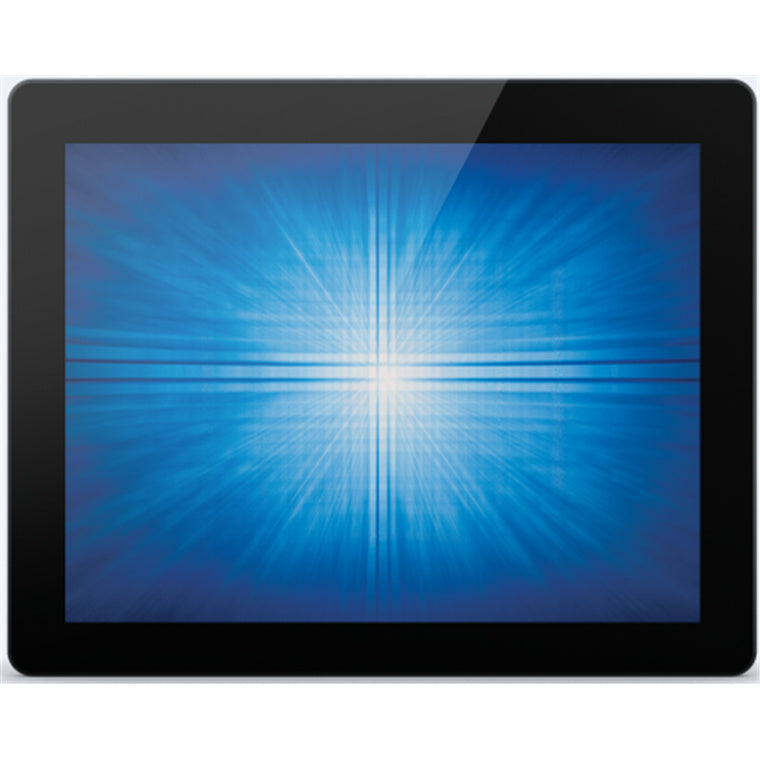

1590L Elo 1590L Open Frame Touchscreen Display
The Elo 1590L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo
Enabling Partners to Build Smarter Kiosks
With EloView and the Backpack, managing kiosks is EASY! Pair your Elo interactive open frame with the Elo Backpack and EloView to create an affordable, scalable, single-architecture deployment. The Backpack provides a low-power, solid-state, fan-less computing solution running Android 7.1 (Nougat) and when paired with EloView, you can remotely manage kiosks out-of-the-box with seamless device and content control.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings.
Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and
environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Interactive Open Frames From 10 to 55-inches
Connections
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market - We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
- Backed by our 3-year standard warranty with an optional extension to 4 or 5-years.
- Purpose built for touch at the factory level
- Compliant with UL-60950 & IK-07 impact testing
- Ready for use 24/7
- Designed and tested to ensure reliable long life in the field
-Well-suited for use in any high traffic or harsh environments.
Specifications
Technical Specifications
| Part Number(s) | IntelliTouch (Worldwide) - E326738AccuTouch (Worldwide) - E326154SecureTouch (Worldwide) - E334530TouchPro PCAP (Worldwide) - E334335 |
|---|---|
| Enclosure Color | Black |
| Touch Technology & Capacity | 5-Wire Resistive (AccuTouch®) - Single-TouchSAW (IntelliTouch® Surface Acoustic Wave) - Single TouchPCAP (TouchPro® Projected Capacitive) - 10 TouchSAW (SecureTouch® Surface Acoustic Wave) - Single Touch |
| Touch Interface | TouchPro PCAP - USB 2.0AccuTouch, IntelliTouch, SecureTouch - Dual serial/USB 2.0 |
| Diagonal Size | 15'' diagonal, Active matrix TFT LCD (LED) |
| On Screen Display | Accessible through switches on the unit's tethered OSD Control box. |
| Controls: | Menu, Up, Down, Select, Power |
| Settings: | Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru |
| Languages: | English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese |
| Lockouts: | OSD, Power |
| Aspect Ratio | 4:3 |
| Active Area (mm) | 11.97" x 8.98"/ 304.1mm x 228.1mm |
| Resolution | 1024 x 768 |
| Other Supported Resolutions | 640 x 480 60Hz720 x 400 70Hz800 x 500, 60Hz800 x 600 56, 60Hz1024 x 768 60Hz |
| Viewing Angle | Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total |
| Number of Colors | 16.2 million |
| Brightness (typical) | LCD Panel: 300 nitsAccuTouch: 240 nitsIntelliTouch: 270 nitsSecureTouch: 264 nitsTouchPro PCAP: 270 nits |
| Response Time-total (typical) | 23 msec |
| Contrast Ratio | 800:1 |
| Input Video Format | HDMI V1.3 Type A receptacle for HDMI inputAnalog VGA on Female DB-15 connectorDisplayPort V1.1a - Supports later versions of Display Port video input |
| Input Video Frequency | Horizontal: 30 - 60 KHzVertical: 50 - 75 Hz |
| Video Interface | HDMI, VGA & Display Port |
| Power Supply | External DC - Optional power brick (sold separately) |
| Input power connector (Monitor) | Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) |
| Input Voltage | 12VDC +/- 5% |
| Adapter Output Power Connector | DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) |
| Power Consumption (Typical) | Monitor + Adapter at 230V/50HzON: 12.5 WSLEEP: 1.5 WOFF: 0.5W |
| Dimensions | Bezel: 13.24" x 10.41" x 1.65" / 336.4mm x 264.4mm x 41.9mmZero-Bezel: 14.09" x 11.22" x 1.40" / 358mm x 284.9mm x 35.6mm |
| Shipping Box Dimensions | 17.09" x 14.76" x 6.89" / 434mm x 375mm x 175mm |
| Weight (Unpackaged) | 6.4 lbs / 2.9 Kg |
| Weight (Packaged) | 10.36 lbs / 4.7 Kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%Storage: 10% to 95% |
| Sealability | Touchscreen sealed to bezelTouchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Warranty | 3-year |
| Extended Warranty Options | 4 year warranty coverage - Elo P/N: E8982475 year warranty coverage - Elo P/N: E8984493 year warranty coverage + AUR - Elo P/N: E8986484 year warranty coverage + AUR - Elo P/N: E8949215 year warranty coverage + AUR - Elo P/N: E895125 |
| Regulatory approvals and declarations | Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE |
| Mounting Options | 75 mm VESA mount (TouchPro PCAP Models see Part Numbers for details)75 mm and 100mm VESA mount (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details)Rear mount (TouchPro PCAP Models see Part Numbers for details)2 Hole mounting interface on all four sides.Front mount with optional bezel kit (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)Rack mount with optional kit (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details) |
| What's in the Box | HDMI cableVGA CableRJ45 OSD RemoteTouch USB CableQuick Install Guide;For Zero-Bezel Models: Flush Mount Brackets w/ScrewsFor Bezeled: IntelliTouch/AccuTouch/SecureTouch Models: "L" (Side Mount) Brackets and w/ScrewsEEI LabelJapan Class-B TM info sheet |
| Options / Peripherals / Upgrades | Elo Remote OSD (RJ45) - Elo P/N: E483757Elo Backpack® - Elo P/N: E611864Replacement Cable Kit - Elo P/N: E546861Cable Kit DVI-D to HDMI - Elo P/N: E538507Cable Kit DP to DP - Elo P/N: E582895North America power brick - Elo P/N: E005277European & Korea power brick - Elo P/N: E571601UK power brick - Elo P/N: E180092China power brick - Elo P/N: E558862Taiwan power brick - Elo P/N: E818655Japan power brick - Elo P/N: E182546Argentina power brick - Elo P/N: E887099Australia power brick - Elo P/N: E637593IntelliTouch Stylus Pen - Elo P/N: D82064-000Elo 15-inch- Flush-mount Bracket - Elo P/N: E139556Elo 15-inch - L-Bracket - Elo P/N: E203787Elo 15-inch - Front-mount Bezel - Elo P/N: E323425 (See Mounting Options Spec for Compatibility)Elo 15-inch - Rack-mount Bracket - Elo P/N: E295006 (See Mounting Options Spec for Compatibility) |
| Optional PCAP Stylus Pen | E066148 |
| Brand | Elo |
|---|---|
| Product Type | Printers & Office > POS & Barcode Scanners |
| Weight | 0.5 kg |
