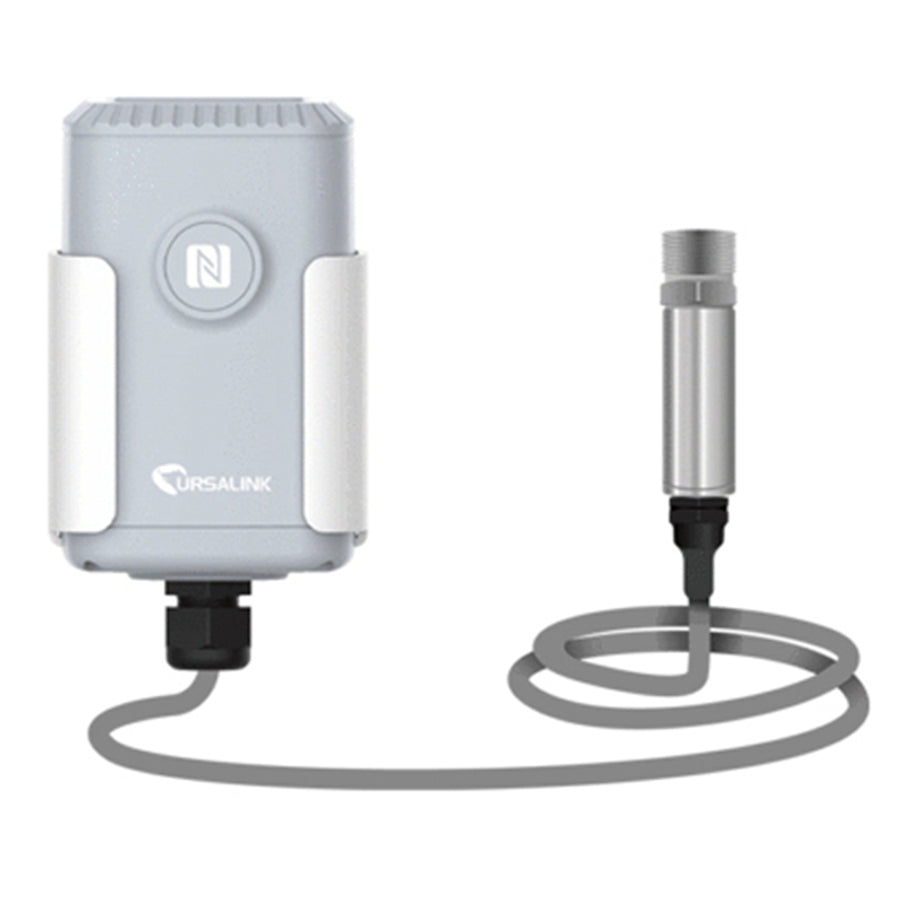

EM500-PP-915M-G12M-4842 - Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor
EM500-PP-915M-G12M-4842 - Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor
Features
Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure Sensor
The EM500-PP pipe pressure IoT sensor is a long range wireless sensor compatible with standard LoRaWAN AU915/AS923 protocol. Combined with advanced LoRa technology and 19000mAh battery make it a low-power consumption product with years-long use life. It is designed to measure the pressure of water/oil/gas from a 1/2" pipe connection and it is the fundamental component of a leak detection system.
The EM500-PP-915-G1/2M-4842 is an Outdoor IP66 rated Pipe pressure sensor, used for pressure monitoring in pipelines and tanks.
Great for many applications including smart city, Smart farming / Agriculture.
- Robust IP66 rated enclosure
- Configuration via NFC
- LoRaWAN AU915/AS923
- Ursalink Cloud compliant
- Low power consumption
- 1/2" pipe connection
Specifications
Technical Specifications
| Manufacturer's Code | EM500-PP-915M-G1/2M-4842 |
|---|---|
| Frequency | AU915/AS923 |
| Tx Power | 20dBm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP Class A |
| Antenna | Integrated Ceramic Antenna |
| Pressure Type | Gauge Pressure |
| Range | 0~1600kPa (16Bar) |
| Accuracy | ±0.5%FS |
| Resolution | 1kPa (0.01Bar) |
| Overload | 150%FS |
| Pressure Connection | 1/2" Male |
| Cable Length | 1.5m |
| Operating Temperature | -30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor) |
| Dimension | 105.4 × 71× 69.5 mm (Waterproof connector and sensor not included) |
| Power Input | 19000 mAh Li-SOCL2 battery |
| Mounting | Pole, DIN rail, wall |
| IP Rating | IP67(Transceiver)/IP65(Pipe Pressure Sensor) |
| Configuration | Mobile APP or PC software via NFC or USB Type-C |
| Package Contents | Pipe Pressure sensor, Pole/Wall Mounting kit included |
