Epson

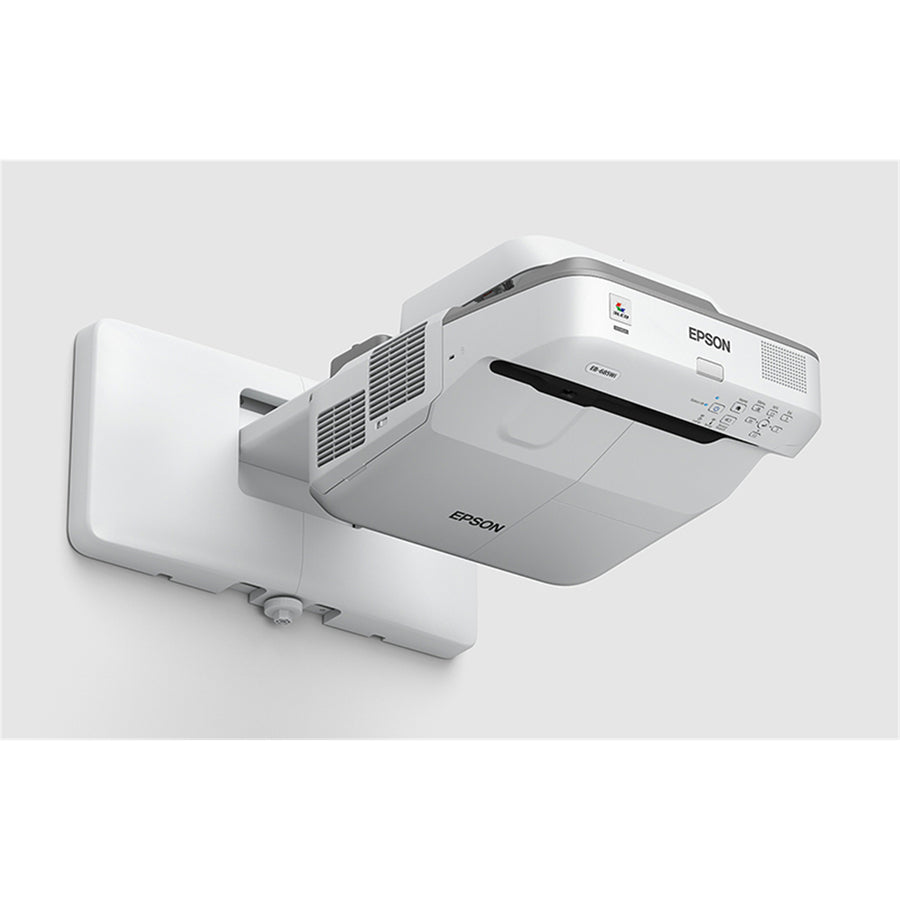

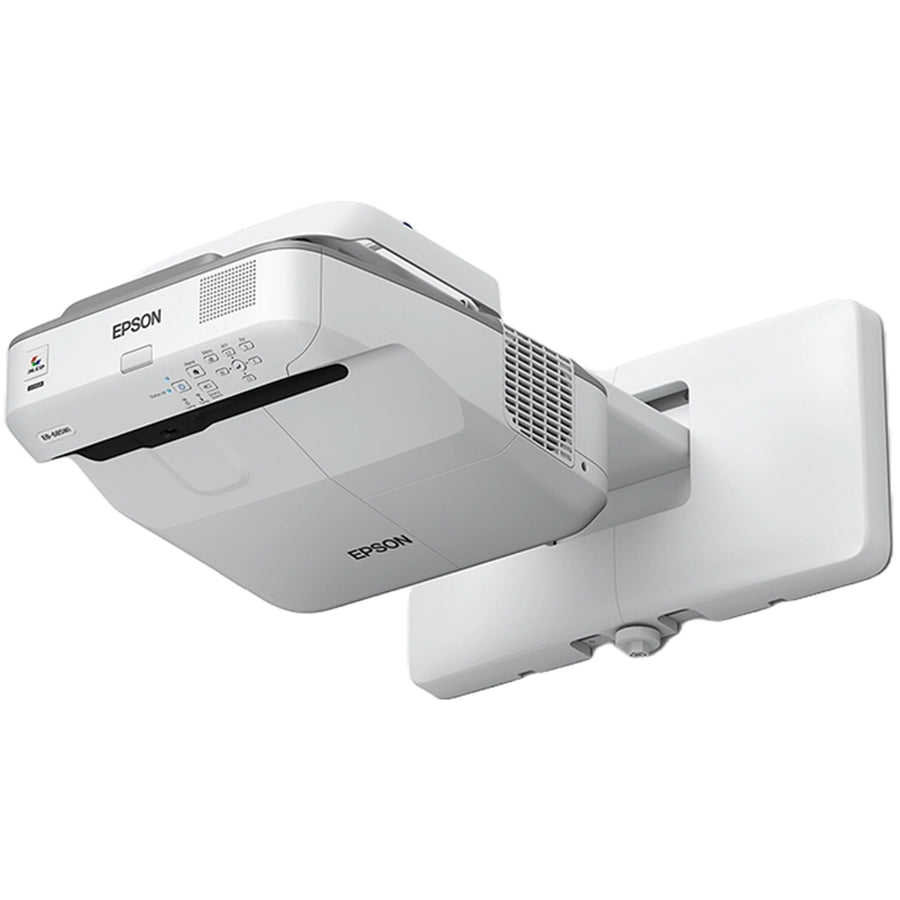

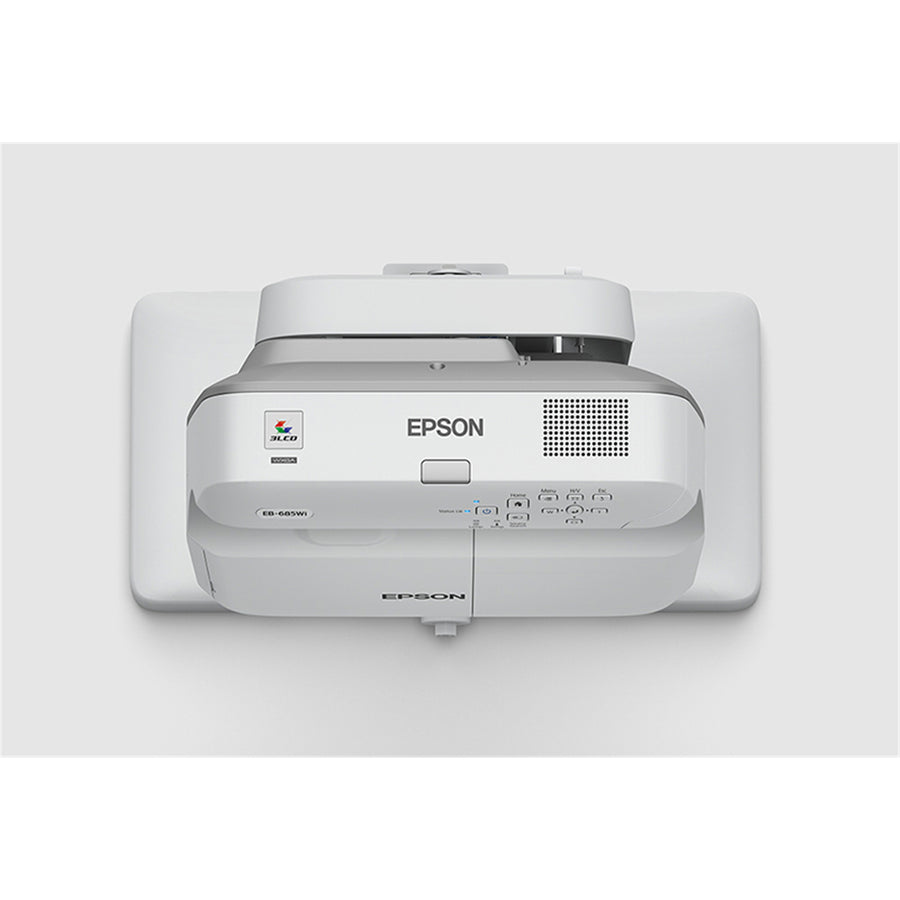

Epson EB-685W - EB-685W + ELPMB53 WALL MOUNT
$2,634.50
Free shipping over $299
Genuine product
7-day returns
Epson EB-685W - EB-685W + ELPMB53 WALL MOUNT
Features
Epson V11H744553
Take classroom collaboration to another level with the Epson EB-600 series ultra-short throw projectors. Designed for today's BYOD classroom, these projectors display 100" images from just 29cm away for optimal visibility. Offering 3x Higher Colour Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images.
It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks - up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
Specifications
Technical Specifications
| Projection Technology | Epson 3LCD, 3-chip technology |
|---|---|
| Projection System | RGB liquid crystal shutter projection system |
| LCD Panel | 0.59-inch with (D9, C2 Fine) |
| Zoom Ratio | 1.0 - 1.35 (Digital Zoom) |
| Screen Size (Projection Distance) | 60.0" to 100.0" [35.4 to 60.1cm]74.3" screen 44.3 cm |
| Throw Ratio | 0.28 (Zoom:Wide)0.37 (Zoom:Tele) |
| Projection Lens Type | No Optical Zoom / Focus (Manual) |
| Projection Lens F Number | 2.6 |
| Projection Lens Focal Length | 3.7 mm |
| Focus Method | Manual Focus |
| Offset | 5.8:-2 |
| White Light Output | 3,500 lumens |
| Colour Light Output | 3,500 lumens |
| Resolution | WXGA |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio | 14,000:1 |
| Keystone Correction Vertical | -3 to +3 degrees |
| Horizontal | -3 to +3 degrees |
| Colour Reproduction | Up to 1.07 billion colours |
| Colour Processing | 10 bit |

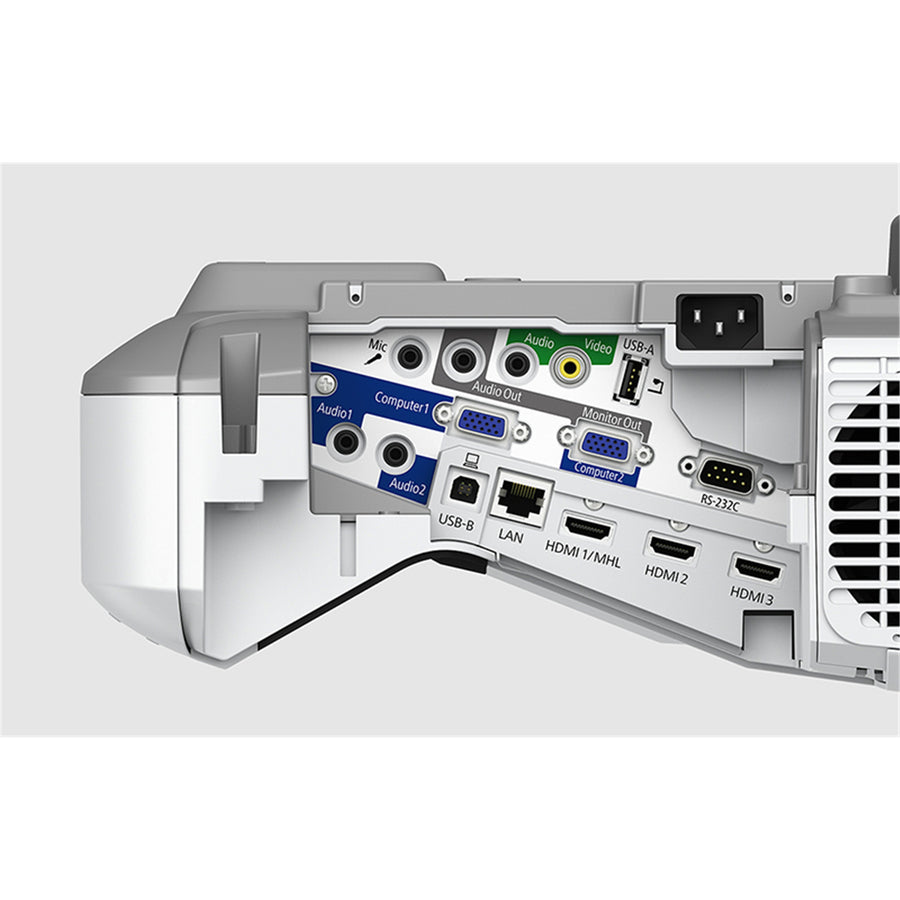

| Video I/O - Input | 2x RGB D-sub 15pin*Computer 2 in common with Monitor Out1x RCA Composite |
| Video I/O - Output | 1x RGB D-sub 15pin*Computer 2 in common with Monitor Out (Output signal : Computer 1 only) |
| Digital Input | 3x HDMI (1 supports MHL) |
| Audio I/O - Input | 3x Stereo mini |
| Audio I/O - Output | 1x Stereo mini |
| Mic I/O - Input | 1x Stereo mini |
| Control I/O | 1x RS-232C D-sub 9pin |
| USB I/O | 1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
| Network I/O | 1x RJ45 (100Mbps) Wired LAN1x USB Type A (for Optional ELPAP10 LAN unit) |
| Wireless Connectivity | Optional ELPAP10 Wireless LAN unit |
| Speaker Output | Monaural: 16 W x 1 |
| EasyMP Network Projector control and projector management via network | Yes |
| AMX Device Discovery | Yes |
| Crestron Integrated Partner | Yes |
| Crestron RoomView | Yes |
| Extron IP Link | Yes |
| Control | Yes |
| EasyMP Network Multi PC Projection | Yes |
| Message Broadcasting | Yes |
| Firmware update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection | Yes |
| Wireless LAN Security | WPA/WPA2-Personal (with optional Wireless LAN Unit) |
| Instant Off | Yes |
| Direct Power On | Yes |
| Auto Power On | Yes (Computer1,USB-B) |
| Security | - Kensington® - lock provision- Padlock & Security cable hole- Wireless LAN unit lock- Password protect function (Power On, Network, Protection of User logo) |
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, BlackBoard |
| Integrated Mount | Optional (ELPMB46) |
| Dimensions (excl feet) WxDxH | 367 x 400 x 149mm |
| Weight | 5.7kg |
| Lamp Warranty | 1 Year (or 750 hours)* |
| Projector Warranty | 3 Years |
| Lamp Hours | 5,000 hours (Normal)10,000 hours (ECO) |
| Lamp Type | 250W UHE |
| Power Consumption | Lamp On354W (Normal)309W (ECO) |
| Power Consumption | Networked Standby2.3W |
| Power Consumption | Energy Saving0.37W |
| Air Filter maintenance cycle | up to 10,000 hours |
| Fan Noise Level | 35dB (Normal)30dB (ECO) |
