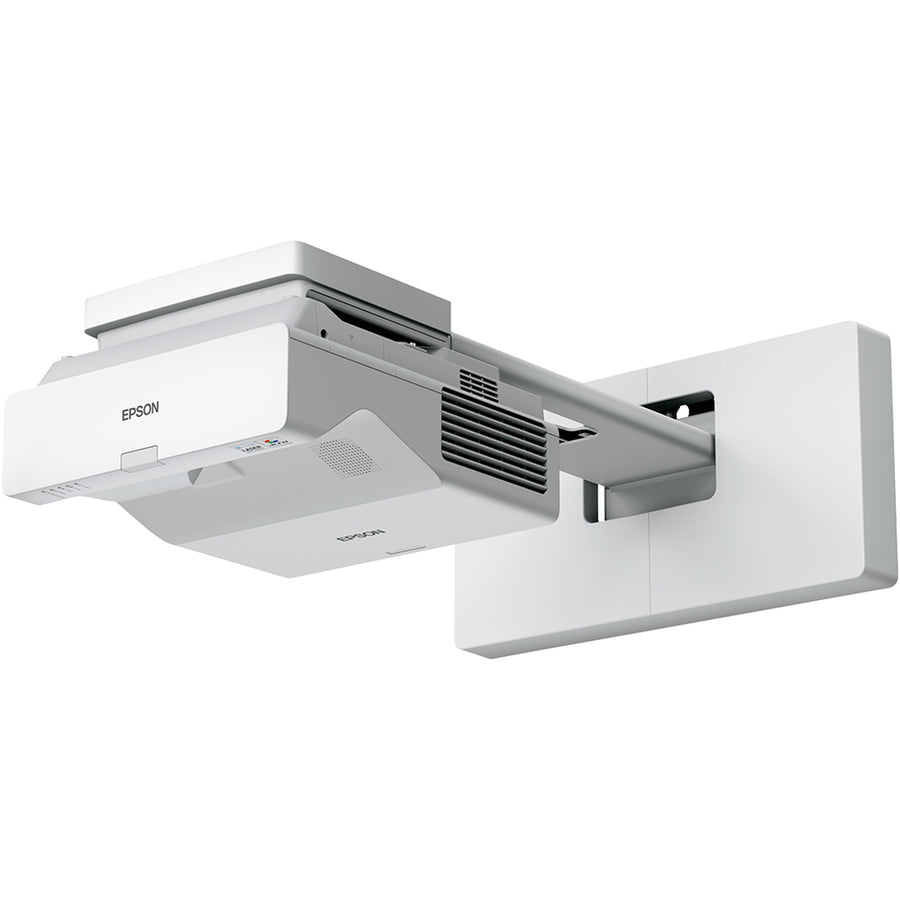

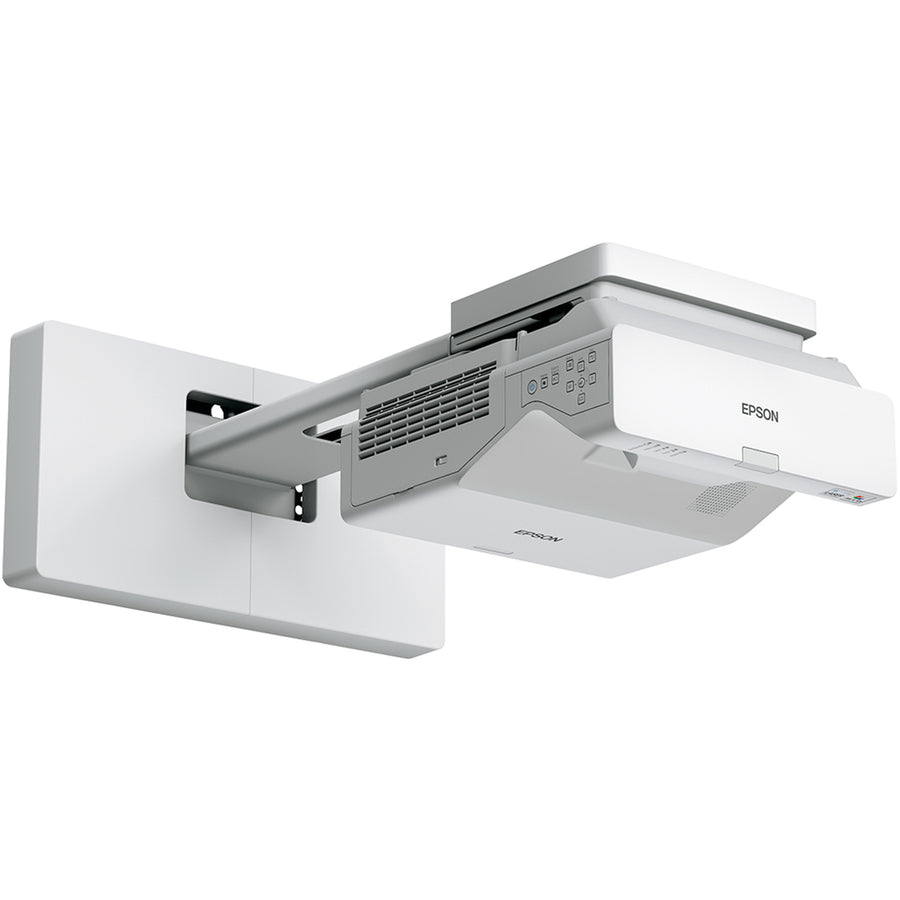

Epson EB-770F + ELPMB62 WALL MOUNT
Features
- Up to 3x brighter colours and reliable performance1 - 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness
- Lamp-free laser light source - provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
- 1080p resolution - for Full HD presentations, videos, images, digital signage and more
- Amazing colour brightness - up to 4,100 lumens colour brightness and 4,100 lumens white brightness
- Miracast support - project your smartphone or tablet screens without a cable connection
- Large image size - displays large true-to-life images up to 150" in a convenient ultra short throw design
- Flexible display - 16:9 display with additional support for ultra wide 16:6 and 21:9 formats; ideal for large, multi-device, split screen images
- Captivating sound - enjoy a built-in stereo speaker up to 16 W for life-like sound
- Simple set-up - easily project wall-sized images - built-in edge blending features for easy, scalable projection
EB-770F 1080p 3LCD Ultra Short Throw Lamp-Free Laser Display
The large, easy-to-read HD display for dynamic classroom environments
True-to-life images
With 3-chip 3LCD technology and 4,100 lumens of colour and white brightness [1]
Incredible image quality
Delivers Full HD 1080p resolution for amazing clarity and readability
No lamps to replace ever
A solid-state, 20,000-hour, virtually maintenance-free laser light source [2]
Big screen for small spaces
Displays large true-to-life images up to 150" in a convenient ultra short throw design
Simple, flexible installation
In landscape or portrait, 360-degree placement capabilities allow for mounting or installing in nearly any position
Flexible display
16:9 display with additional support for ultra wide 16:6 and 21:9 format is ideal for large, multi-device, split screen images3
Easily project wall-sized images
Built-in edge blending and split screen[3] features for easy, scalable projection
Connect and cast from up to 50 devices
Free downloadable Epson iProjection software makes it easy to cast wirelessly from Chromebooks, iOS and Android devices, Mac computers or PCs. Never lose control of displayed content with the moderator feature.
[1] Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for October 2019 through September 2020.
[2] 20,000 hours is the estimated laser light source life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a standard limited warranty of 3 years.
[3] Consult your user manual for Split Screen input combinations.
Specifications
Technical Specifications
| Projection System | Epson 3LCD, 3-chip technology |
|---|---|
| LCD Panel | 0.62-inch (C2fine) |
| Resolution | 1080p |
| Zoom | 1 - 1.35 (Digital) |
| Screen Size | 60" to 150" [32.5 cm to 89.3 cm] @16:957" to 142" [39.4 cm to 85.3 cm] @21:9 |
| Projection Distance | 77" screen at 43.3 cm |
| Throw Ratio | 0.25 (Zoom:Wide)0.35 (Zoom:Tele) |
| Projection Lens F Number | 1.6 |
| Projection Lens Focal Length | 3.7 mm |
| Focus Method | Manual |
| Offset | 5.2 : -1 |
| Colour Light Output | 4,100 lumens |
| White Light Output | 4,100 lumens |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio | Over 2,500,000:1 |
| Light Source | Laser diode |
| Colour Reproduction | Up to 1.07 billion colours |
| Colour Processing | 10 bit |
| Keystone Correction | Vertical: -3 to +3 degreesHorizontal: -3 to +3 degrees |
| Quick Corner | Yes (Manual) |
| Auto Setup | Yes |
| Refresh Rate | 192 Hz / 240 Hz |

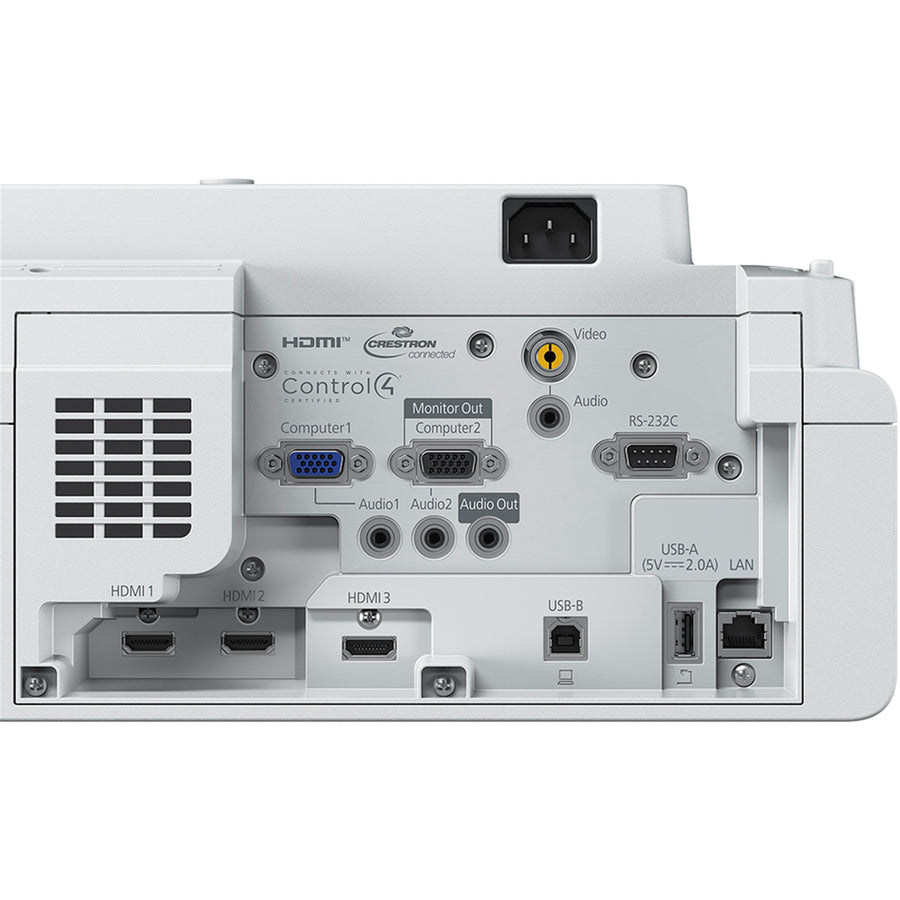

| Video I/O - Input | 2 x RGB D-sub 15-pin1x RCA Composite |
| Video I/O - Output | 1 x RGB D-sub 15-pin (shared) |
| Digital Input | 3 x HDMI |
| Audio I/O - Input | 3 x Stereo mini1 x Mic-In Stereo Mini |
| Audio I/O - Output | 1 x Stereo mini |
| Control I/O | 1 x RS232C (D-sub 9-pin) |
| USB I/O | 2 x Type A (for PC free, firmware update, Copy OSD settings, 5V/2A power supply1)1 x Type B (Firmware update, Copy OSD Settings, USB display) |
| Network I/O: | 1 x RJ45, 1 x USB Type A for optional wireless LAN2 |
| Wireless Connectivity | Included |
| Speaker Output | 1 x 16 W Stereo |
| Miracast | Yes |
| Super Resolution | Yes |
| Detail Enhancement | Yes |
| Scene Adaptive Gamma Correction | Yes |
| Edge Blending | Yes |
| Partner Standards | Crestron Integrated Partner, Crestron Connected, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Wireless LAN Security | WPA2/WPA3-PSK, WPA2/WPA3-EAP |
| Instant Off | Yes |
| Direct Power On | Yes |
| Auto Power On | Yes |
| Security | Padlock and security cable holeKensington® lock provisionWireless LAN Unit LockPassword protection |
| Colour Modes | DynamicPresentationCinemasRGBBlackBoardDICOM SIMMulti-Projection |
| Wall Mount | Optional (ELPMB62) |
| Epson Projection Management Software | YesVer 5.43 (Windows) |
| Epson iProjection Software | YesVer 3.32 (Windows)Ver 3.31 (mac OS)Ver 3.3.1 (iOS/Android)Ver 2.1.0 (Chrome) |
| Firmware Update | Network via LAN cable,Network via Wireless LAN,USB A via USB thumb drive,USB B via USB cable |
| Copy OSD settings | Network via LAN cable,USB A via USB thumb drive,USB B via USB cable |
| Epson Projector Content Manager | Ver 1.201 (Windows)Ver 1.21 (mac OS) |
| Epson Creative Projection | Ver 1.0.4 (iOS) |
| Dimensions D x W x H (including feet) | 395 x 357 x 165 mm |
| Weight | 5.9 kg |
| Power Consumption: Projector on | 263 W |
| Power Consumption: Standby | 2 W |
| Noise Level (Normal / Eco) | 37 / 27 dB |
| Main Unit | EB-770F Projector |
| Power Cable | 1.8 m |
| Remote Control | Yes |
| Battery for Remote Control | 2 x AA |
| Projector Feet | Yes |
| Quick Start Guide | Yes |
| Brand | Epson |
|---|---|
| Product Type | More |
| Weight | 0.5 kg |
