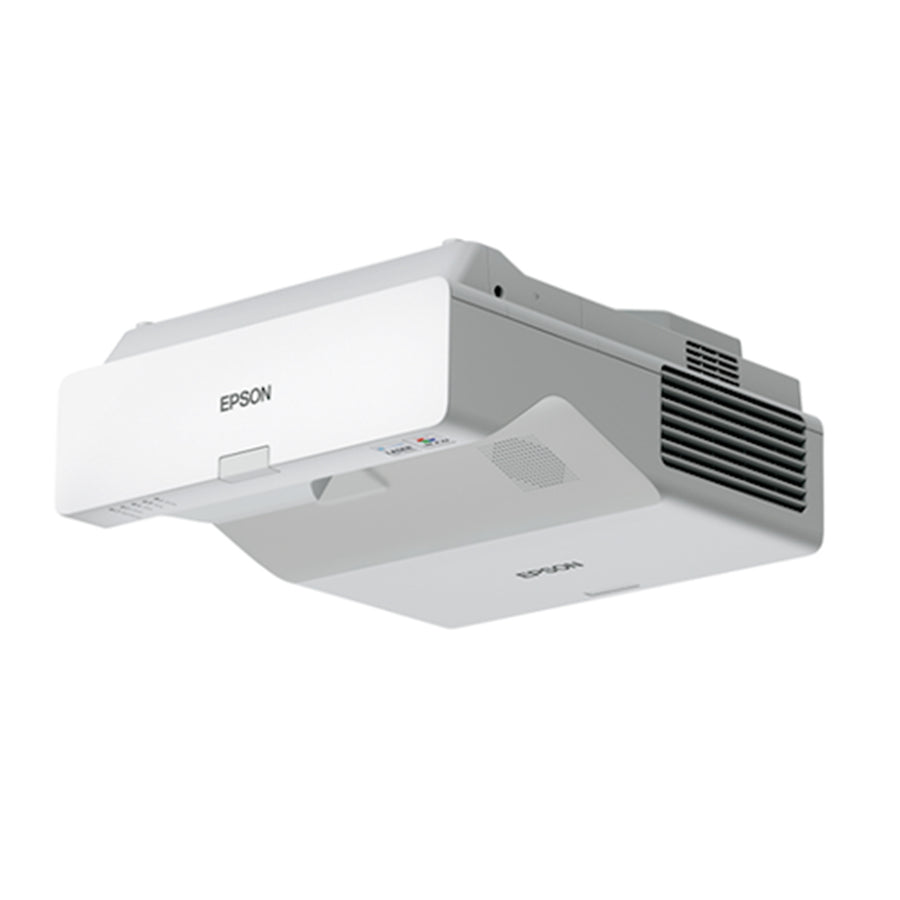

Epson EB-770Fi + ELPMB62 WALL MOUNT
Features
Epson EB-770Fi Ultra Short Throw Interactive Laser Projector
Project your vision, with a Full HD interactive large screen display up to 100" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
- Interactive FHD display for any room 49-100" UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
- Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
- Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
- Document camera compatibility Create and record a live, totally immersive lesson or presentation
Specifications
Technical Specifications
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
|---|---|
| LCD Panel | 0,62 inch with C2 Fine |
| Color Light Output | 4.100 Lumen- 2.800 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | 1080p |
| High Definition | Full HD |
| Aspect Ratio | 16:9 |
| Contrast Ratio | Over 2.500.000 : 1 |
| Light Source | Laser |
| Laser Light Source | 20.000 hours Durability High, 30.000 hours Durability Eco |
| Keystone Correction | Manual vertical: ± 3 °, Manual horizontal ± 3 ° |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 192 Hz - 240 Hz |
| Colour Reproduction | Upto 1.07 billion colours |
| Throw Ratio | 0,25 - 0,35:1 |
| Zoom | Digital, Factor: 1 - 1,35 |
| Lens | Optical |
| Screen Size | 60 inches - 150 inches |
| Projection Lens F Number | 1,6 |
| Projection Lens Focal Length | 3,7 mm |
| Projection Lens Focus | Manual |
| Offset | 5 : 1 |
| Interfaces | USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input |
| Epson IProjection App | Ad-Hoc / Infrastructure |
| Network Protocol | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Interactivity | Yes - pen and finger-touch |
| Security | Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Other Features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Video Color Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection |
| Projector Control | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Power Consumption | 197 Watt - On mode power consumption (Normal) |
| Heat Dissipation | 895 BTU/hour (max) |
| Product Dimensions | 356? x 395 x 133 mm (Width x Depth x Height) |
| Product Weight | 5,9 kg |
| Noise Level | Normal: 37 dB (A) - Economy: 27 dB (A) |
| Supported Temperature | Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| Included Software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
| Options | Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Loudspeaker | 16 Watt |
| Room Type / Application | Boardroom, Home Office, Meeting room / Classroom, Signage / Retail, Visitor Attraction |
| Positioning | Ceiling Mounted, Desktop, Table Mounted, Wall Mounted |
| Colour | White |
| Brand | Epson |
|---|---|
| Product Type | More |
| Weight | 0.5 kg |
