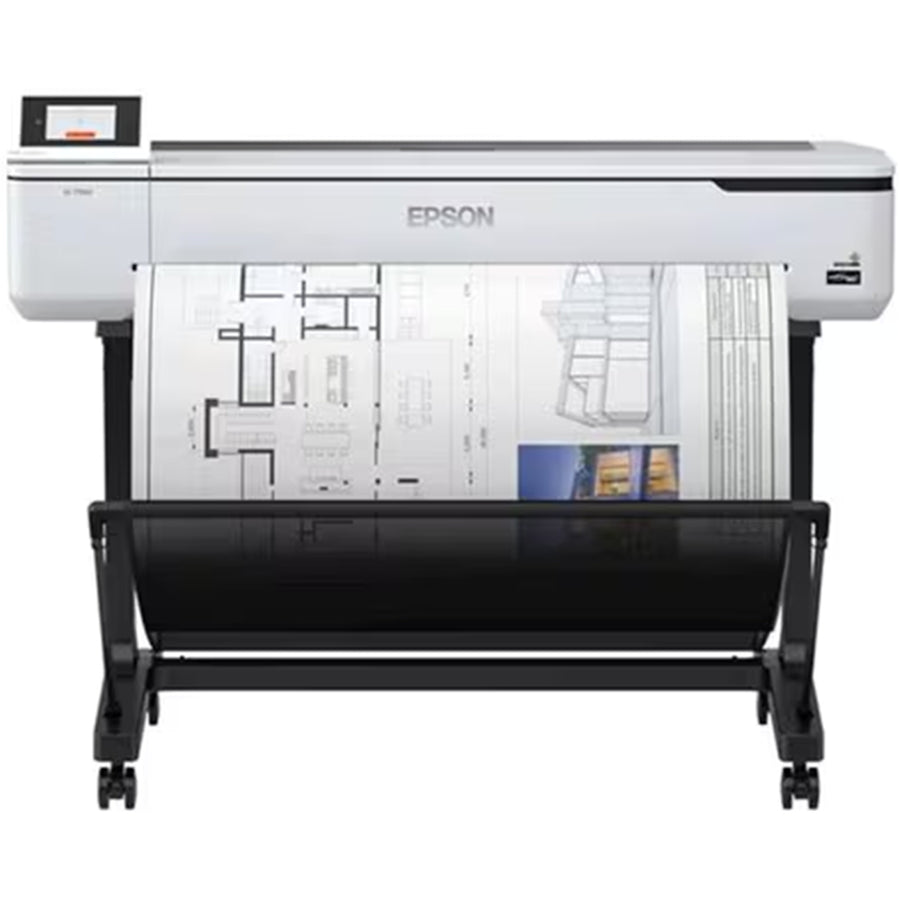

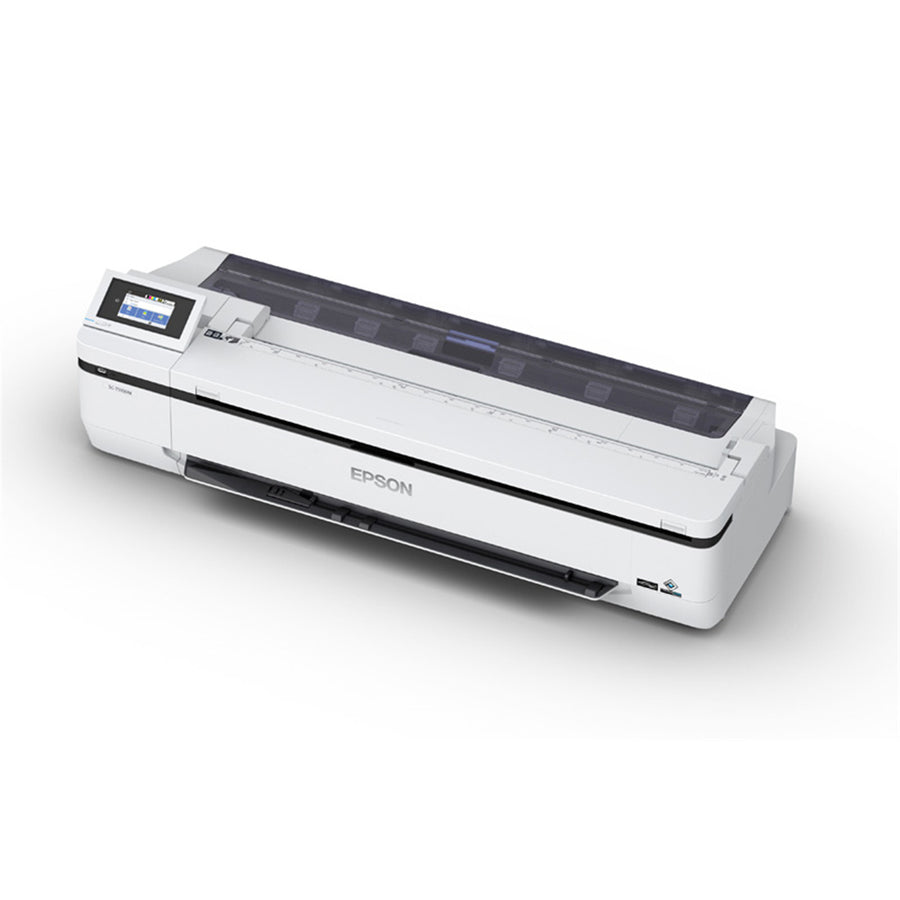

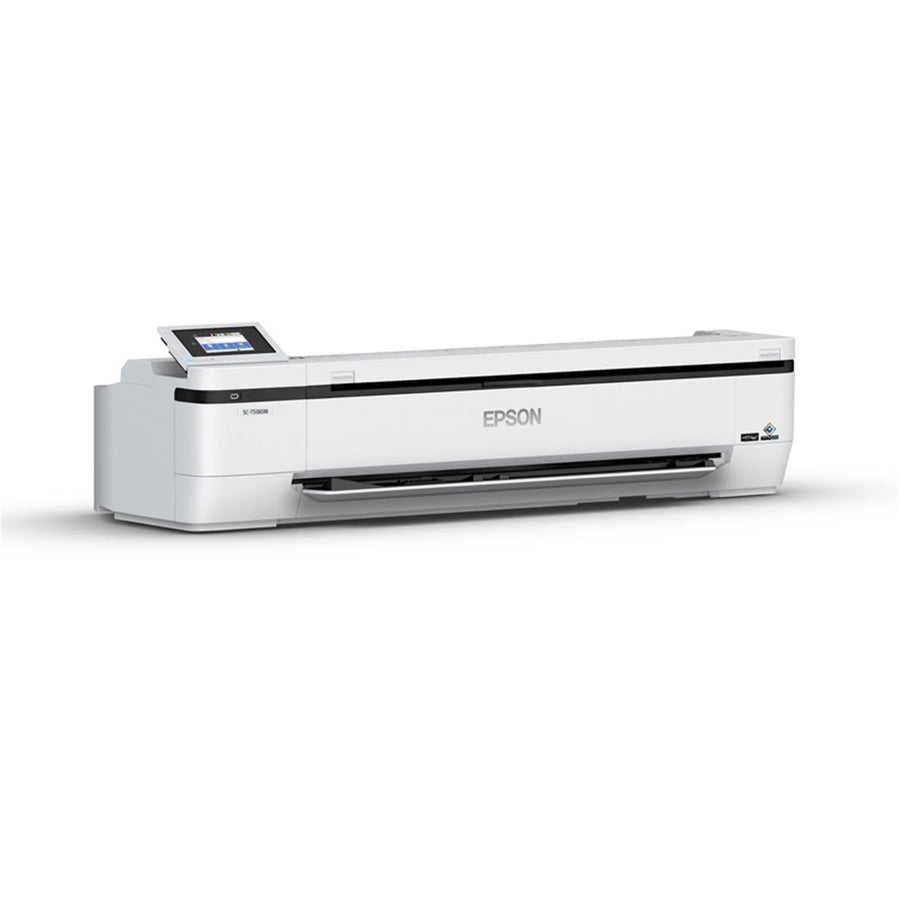

Epson T5160M LARGE FORMAT PRINTER (36in MFP)
Features
- High Productivity - prints an A1 image in as little as 34s, scans one in as little as 3.81cm/s or copy one in 60s1. Also includes an integrated auto-cutter
- High Precision - 2400 x 1200 dpi resolution Epson PrecisionCore™ print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
- High Durability - all-pigment Epson UltraChrome™ XD2 ink dries almost instantly to be moisture & scratch resistant
- High Reliability - solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 3 years2
- High Flexibility - supports roll paper up to 36" (914mm) wide, sheet paper up to A0/B1 and has integrated scanner support for optional MFP functionality1
- High Convenience - large 4.3" touchscreen panel with easy to use interface, top loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, auto sheet/roll switching, single page prints are held by the printer for easy removal while the floor standing model ships with a basket
- Low Running Cost - ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 80 ml
- Easy Integration - compact design, high speed Gigabit Ethernet, convenient WiFi/ WiFi Direct & AirPrint support, HP-GL/2 & RTL emulation3
- Greater Connectivity - Connect a USB thumb drive to the printer and print from/copy to PDF4, JPEG or TIFF images directly from/to the USB
- High Flexibility - supports a variety of roll paper up to 36" (914mm) wide and sheet paper up to A0/B1
The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays.

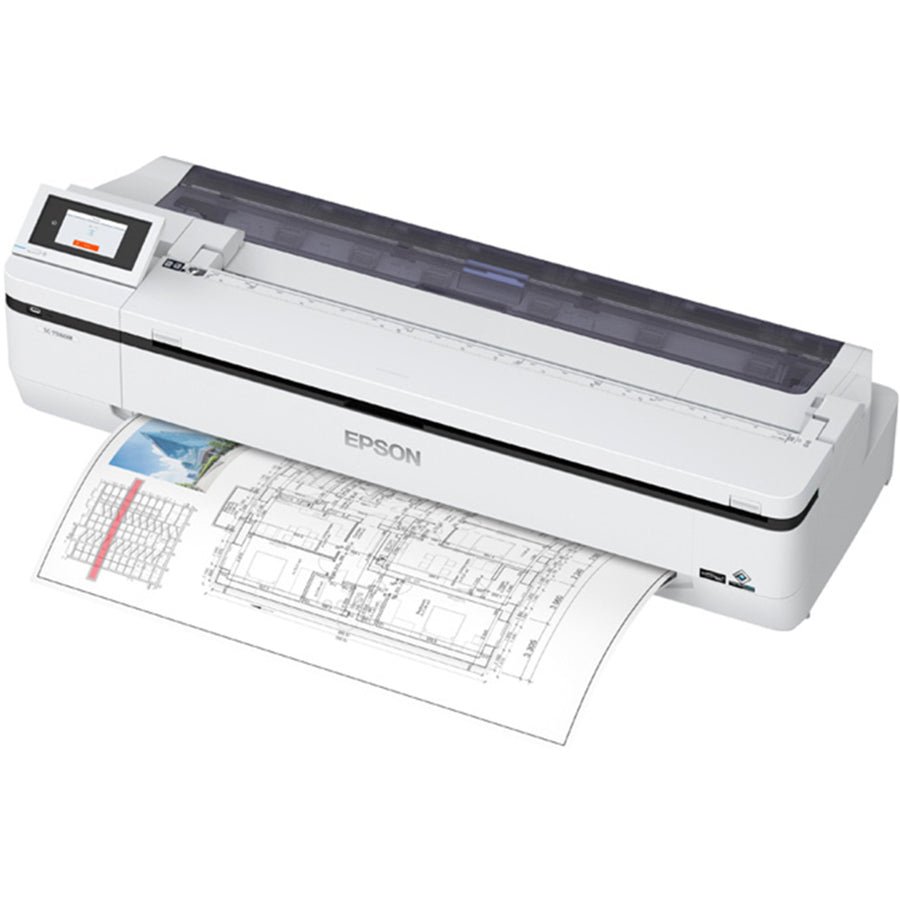

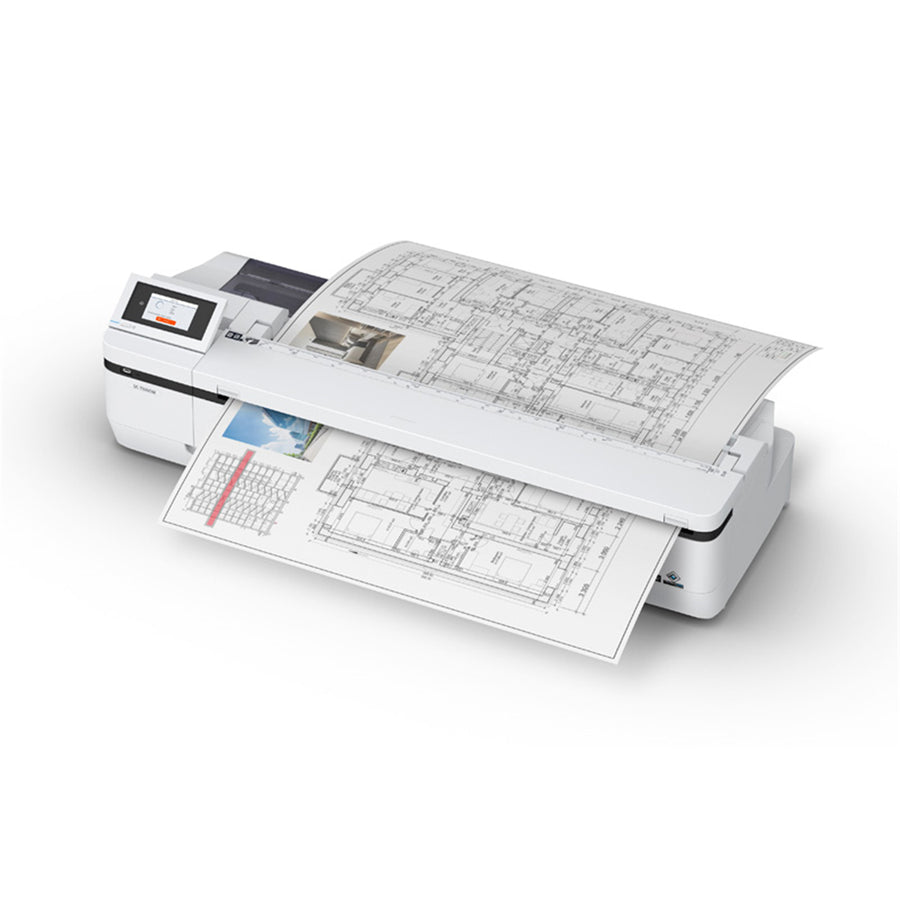

The SC-T5160M is Epson's first wide format compact printer to include an integrated scanner. We have incorporated technology developed and perfected in our professional document imaging division which provides a compact and integrated solution that is driven from a simple and easy to operate touch control screen. Developed for engineers, architects and the construction industry, it also provides the perfect solution for corporate, government, retail and education users. The scanner supports scan and copy functionality with network and direct USB file storage in a variety of formats.

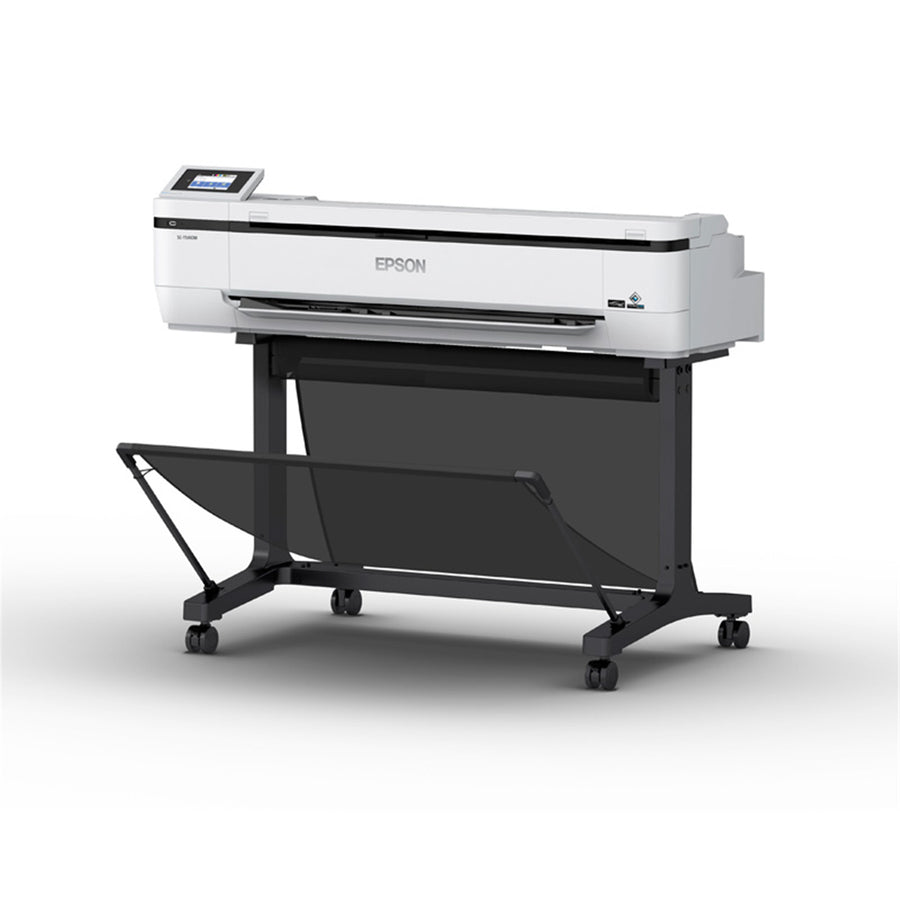

The SC-T5160M features Epson's latest PrecisionCore™ print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 31s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for small and medium sized businesses that want to produce wide format prints, the printer is shipped with a stand, has a very small footprint, and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
Note on Toner Yields:
Toner cartridge yields are provided as approximate values based on ISO/IEC standard testing methods.
Actual yield may vary depending on usage, print content, and other environmental factors.
In-box toner is typically a starter cartridge and may yield fewer pages than replacement cartridges.
Specifications
Technical Specifications
| Max Print Width | 36 inch wide (914mm) |
|---|---|
| Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
| Print Modes | Uni & Bi-directional |
| Nozzle Configuration | 800 per colour |
| Maximum Resolution | 2400dpi x 1200dpi |
| Minimum Ink Droplet Size | 4.0pl |
| Technology | Contact Image Sensor (CIS) |
| Light Source | Single |
| Feed System | Sheet pass-through |
| Maximum Resolution | 600dpi |
| Family | Epson Ultrachrome® XD2 |
| Type | All-Pigment Aqueous |
| Colours | C+M+Y+K |
| Cartridges | CMY 26/50mlK 50/80ml |
| CAD A1 | 31sec |
| Max Scan Speed | 3.81 cm/s or 1.5 ips (Colour)11.43 cm/s or 4.5 ips (Mono) |
| Max Copy Speed | 77s per A1 sheet Colour60s per A1 sheet Mono |
| Roll Format | Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-914mm wide, 119mm max diameter, 5.9Kg max weight |
| Sheet Format | Top loaded A4-A0/B1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick |
| Auto Cutter | Inbuilt rotary type |
| Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| Output | Single sheet hold featureSupplied with an A4/A3 output trayPrinter stand incorporates a media basket |
| Media Handling | Single Sheet Front Loading |
| Media Types | Plain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8mm or 0.55mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148mm-914mm wide, 148-2720mm long |
| Document Types | Line & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster |
| Scan To Formats | JPEG, PDF & TIFF |
| Copy Function | 1-99 Sheets25-400% scaling, Auto Fit |
| Control Panel | 4.3" Colour LCD touch screen |
| Control Code | ESC/P Raster, HP/GL/2 & HP RTL* 1 |
| Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print |
| Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later |
| Memory | 1GB RAM |
| Scanner Support | USB interface with integrated control & auto enlargementSupports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizesSupports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizesSupports Epson DS-530, DS-6500 & DS6000 scanner models |
| Physical (WxDxH) | Desktop: 1268 x 505 x 292 mm, 43kg (no consumables, media or options, no output tray, ASF closed)Floor Standing: 1,268 x 696 x 975 mm, 54.8 kg (no consumables, media or options, no output tray, ASF closed) |
| Operational Temp | 10° to 35° C |
| Operational Humidity | 20 to 80% (no condensation) |
| Power Supply | 100 - 240 V AC, 50/60 Hz |
| Power Consumption | 28W Operating, 8W Standby, 1.6W Sleep |
| Operating Noise | 49dB |
| Brand | Epson |
|---|---|
| Product Type | More |
| Weight | 100.0 kg |
