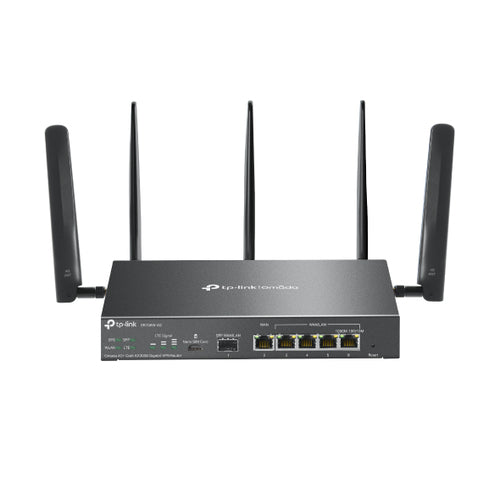

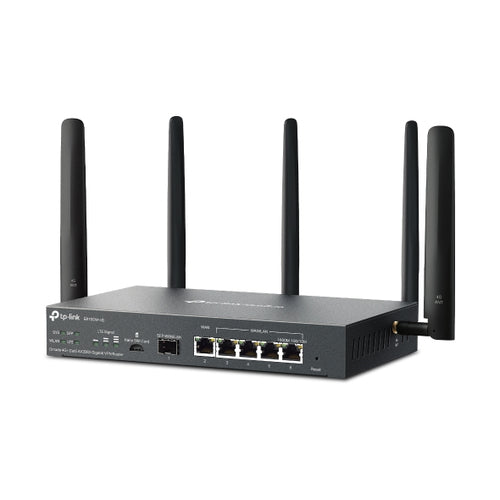

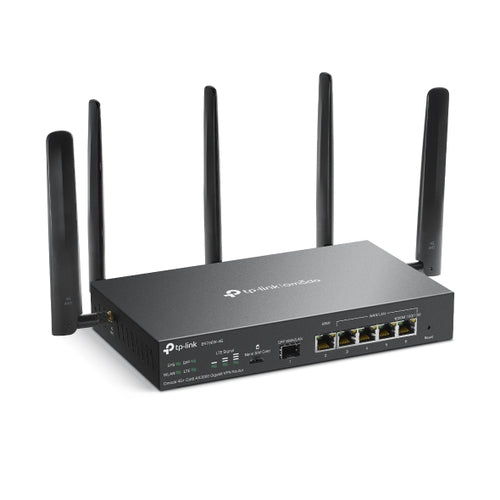

ER706W-4G - Omada ER706W-4G + CAT6 AX3000 Gigabit VPN Router
Features
- 4G+ Cat6 up to 300 Mbps
- 2402 Mbps + 574 Mbps*
- 6× Gigabit Ethernet Ports
- 1× Nano SIM Card Slot
- IPSec/SSL/ WireGuard /OpenVPN/L2TP VPN
- Centralized Management
- Load Balancing
- Omada App
Get Instant 4G+ LTE Internet up to 300 Mbps
Always-Online with AX3000 WiFi 6
Seamless Integration into Omada SDN
Easy Management with the Omada App
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
**Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.
*?Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W-4G also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions or countries due to regulatory restrictions.
?For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.
†These functions are supported only in Standalone Mode.
§These functions are supported only in Controller Mode.
Specifications
Technical Specifications
| Network Type | LTE Band of EU:4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz)Carrier Aggregation:B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41 |
|---|---|
| SIM Type | 1× Nano SIM Card |
| Frequency | Downlink: 300 Mbps;Uplink: 50 Mbps |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering†URL FilteringWeb Security† |
| ARP Inspection | Sending GARP PacketsARP Scanning†IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN |
| Interface | 1 Gigabit SFP WAN/LAN Port1 Gigabit WAN Port4 Gigabit LAN/WAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennasLTE: Two 4.0dBi omnidirectional detachable antennas |
| Mounting | Desktop/Wall-Mounting |
| Max Power Consumption | EU: 17.3W |
| GRE | Unencrypted: 545.3MbpsEncrypted: 282.6Mbps |
| WireGuard VPN | 387.7Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 947.1Mbps / 940.1Mbps |
| NAT(DHCP) | 949.2Mbps / 941.1Mbps |
| NAT(PPPoE) | 942.6Mbps / 941.1Mbps |
| NAT (L2TP) | 875.4Mbps / 892.0Mbps |
| NAT (PPTP) | 881.2Mbps / 895.8Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 652.2MbpsESP-SHA256-AES256: 654.4MbpsESP-SHA384-AES256: 646.5MbpsESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | Unencrypted: 990.0MbpsEncrypted: 475.0Mbps |
| PPTP VPN Throughput | Unencrypted: 1177.9MbpsEncrypted: 177.4Mbps |
| SSL VPN Throughput | 122.5Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
| Advanced Functions | Seamless RoamingMesh (with EAP that supports Mesh)OFDMABeamformingMU-MIMORate Limit: Based on SSID/ClientAirtime FairnessWireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 EnterpriseMultiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
| WAN Connection Type | Static IPDynamic IPPPPoE (supports MRU Configuration)PPTPL2TP |
| MAC Clone | Modify WAN Address |
| DHCP | DHCP ServerDHCPv6 PD Server (only in Standalone Mode)DHCP Options CustomizationDHCP Address ReservationMulti-IP InterfacesMulti-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static RoutingPolicy RoutingRIP†OSPF† |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | Intelligent Load BalanceApplication Optimized RoutingLink Backup(Timing, Failover)Online Detection |
| NAT | One-to-One NATMulti-Net NATVirtual ServerPort Triggering†NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUPnP |
| Session Limit | IP-Based Session Limit |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 IPSec VPN TunnelsLAN-to-LAN, Client-to-LANMain, Aggressive Negotiation ModeDES, 3DES, AES128, AES192, AES256 Encryption AlgorithmIPsec FailoverIKE v1/v2MD5, SHA1, SHA2-384 and SHA2-512 Authentication AlgorithmNAT Traversal (NAT-T)Dead Peer Detection (DPD)Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN ServerPPTP VPN Client (10)?50 TunnelsPPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN ServerL2TP VPN Client (10)?50 TunnelsL2TP over IPSec |
| OpenVPN | OpenVPN ServerOpenVPN Client (5)?55 OpenVPN Tunnels"Certificate + Account" ModeFull Mode |
| Web Authentication | No AuthenticationSimple Password§Hotspot (Local User / Voucher§ / SMS§ / Radius§)External Radius SeverExternal Portal Sever§LDAP |
| Omada App | Yes. |
| Centralized Management | Omada Cloud-Based ControllerOmada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management InterfaceRemote ManagementExport & Import ConfigurationSNMP v1/v2c/v3Diagnostics (Ping & Traceroute)†NTP Synchronize†Port MirroringCLI (only in Standalone Mode)Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features | Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration |
| Certification | CE, FCC, RoHS |
| Package Contents | ER706W-4GPower AdapterQuick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing |
| Brand | Omada |
|---|---|
| Product Type | Networking > Network Cables |
| Weight | 1.55 kg |
| Warranty |
|---|
