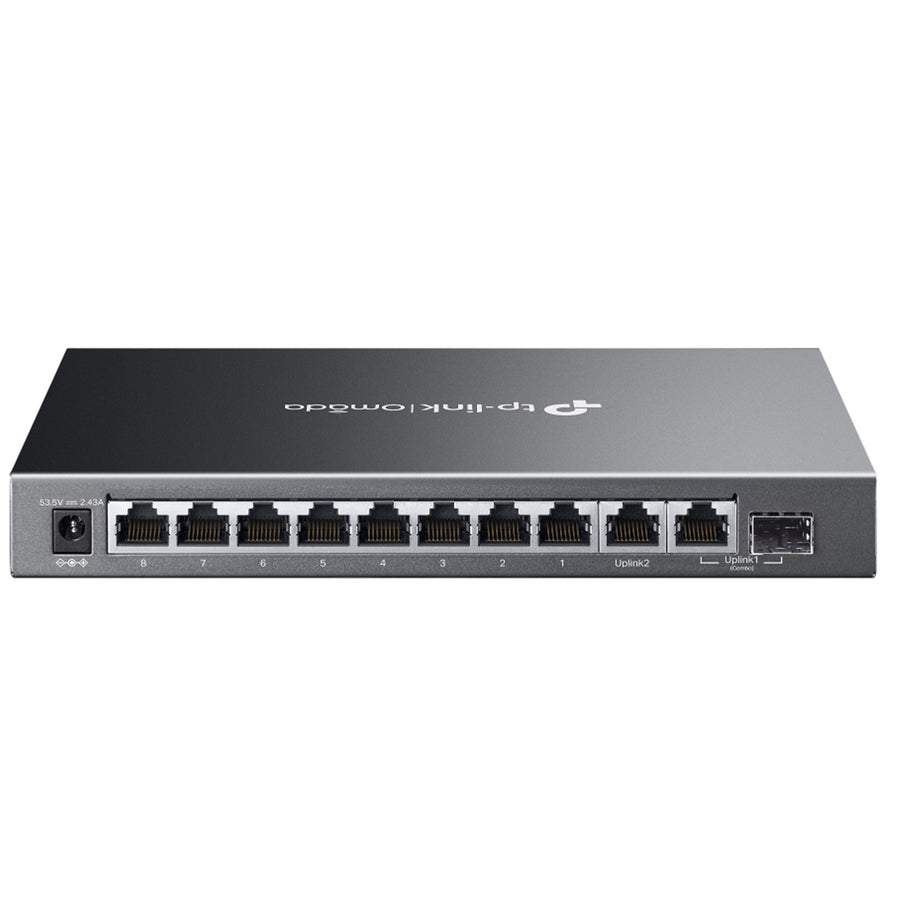

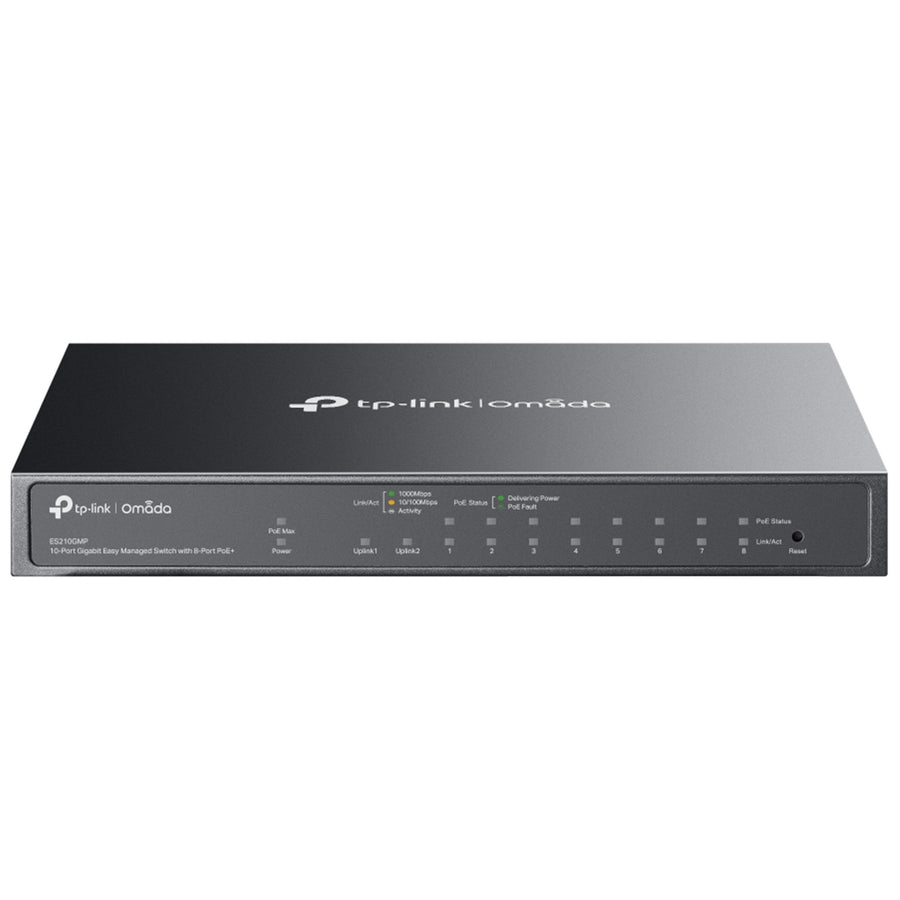

TP-Link Omada ES210GMP 10-Port Gigabit Easy Managed PoE Switch (123W) - SFP/GbE Combo x1, 1GbE PoE+ x8
Features
Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
- 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
- 123W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Specifications
Technical Specifications
| Interface | - 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)- 1× 10/100/1000 Mbps RJ45 Port- 1× Gigabit SFP/RJ45 Combo Port- Auto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | Fanless |
| Installation | - Desktop- Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | DC Power Adapter (Output: 53.5 VDC/ 2.43 A) |
| PoE Ports (RJ45) | - Standard: 802.3af PoE and 802.3at PoE+ compliant- PoE Ports: 8 ports- PoE Budget: 123W available for all PoE+ ports, 30W max per port- PoE Auto Recovery‡- Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service | - Port-based/802.1p/DSCP QoS- 8 Priority Queues- Priority Schedule Mode- WRR (Weighted Round Robin)- Queue Weight Config- Bandwidth Control- Port-Based Rating Limit- Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | - Static Link Aggregation- Loop Prevention / Loopback Detection- Flow Control- 802.3x Flow Control- Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both- Port Statistics- Port Mirror Status- Traffic Statistics- 802.1ab LLDP |
| L2 Multicast | - IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | - MTU VLAN- Port-Based VLAN- 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | - Web-based GUI- DHCP Client- Cable Diagnostics- Automatic Device Discovery†- Batch Configuration†- Batch Firmware Upgrading†- Unified Configuration† |
| Certification | FCC, CE, RoHS |
| Package Contents | - ES210GMP- Power Adapter- Installation Guide- Rubber Feet |
| Environment | - Operating Temperature: 0?~40? (32?~104?)- Storage Temperature: -40?~70? (-40?~158?)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 1.6 kg |
| Warranty |
|---|
