ESWXRDM1BLM7E - Samson Digital Wireless Presentation Microphone System
ESWXRDM1BLM7E - Samson Digital Wireless Presentation Microphone System
Features
Highlights
-
Digital Wireless Technology
The XPDm Lavalier System delivers high-quality audio using 2.4GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver and offers a greater signal-to-noise when compared to traditional wireless systems.
-
Clip-On, Clip-Off

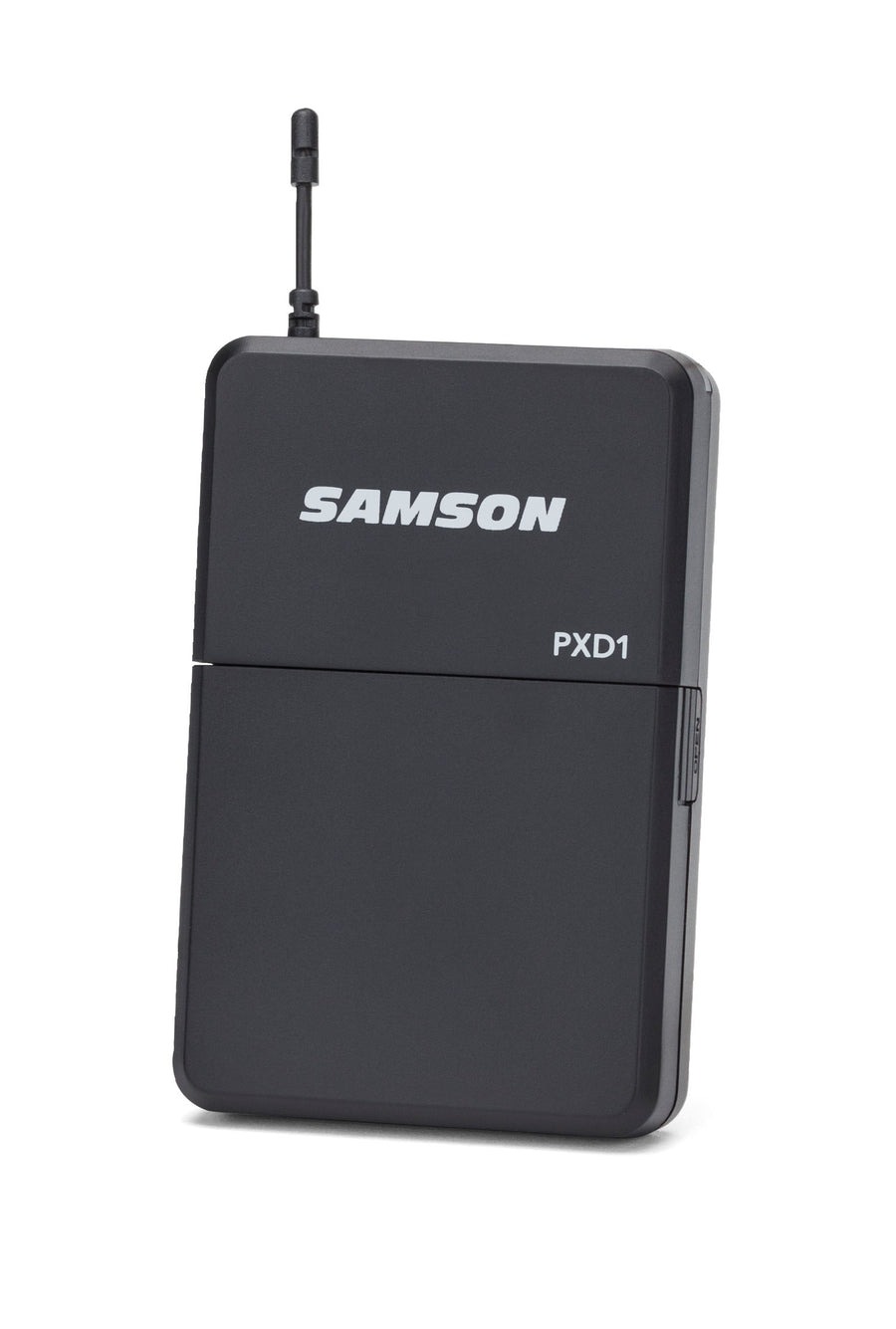

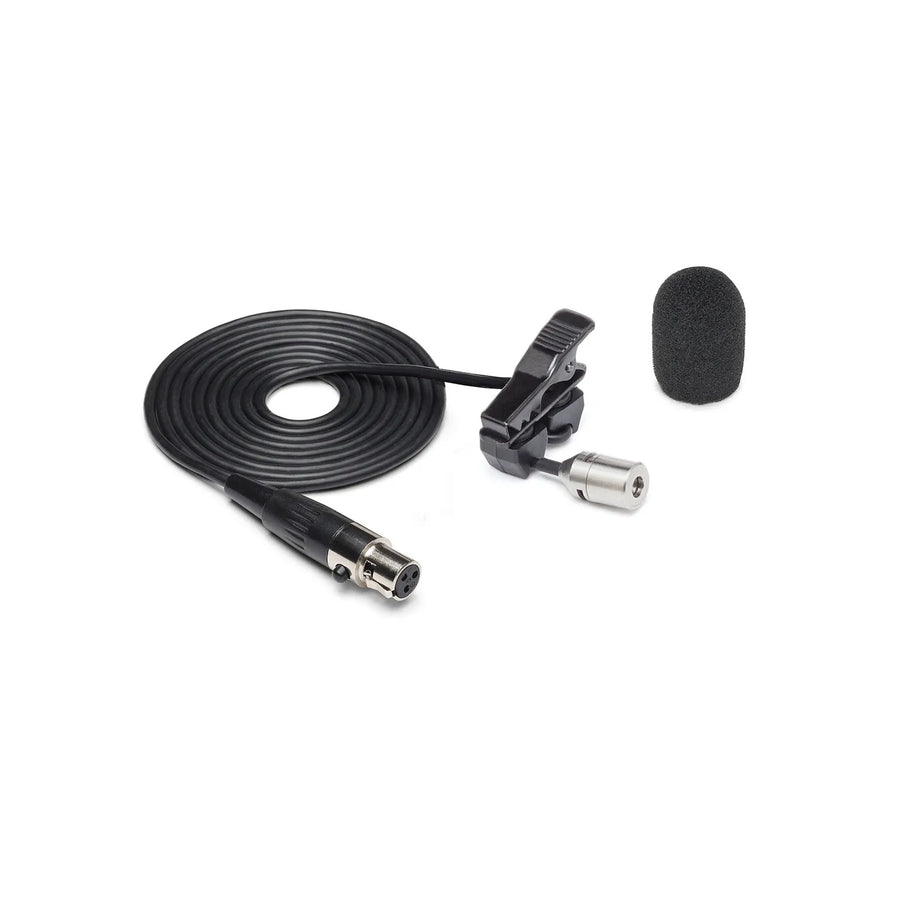

The PXD1 beltpack transmitter allows for 100' of wireless range and provides up to 20 hours of use on two AA batteries. The LM7 Unidirectional Lavalier Microphone connects with the beltpack transmitter and captures vocals with absolute clarity. A lightweight mic clip is included for low-profile microphone placements on ties, lapels and other articles of clothing as well as a windscreen to reduce P-pops and other unwanted noise.
-
Simple Addition

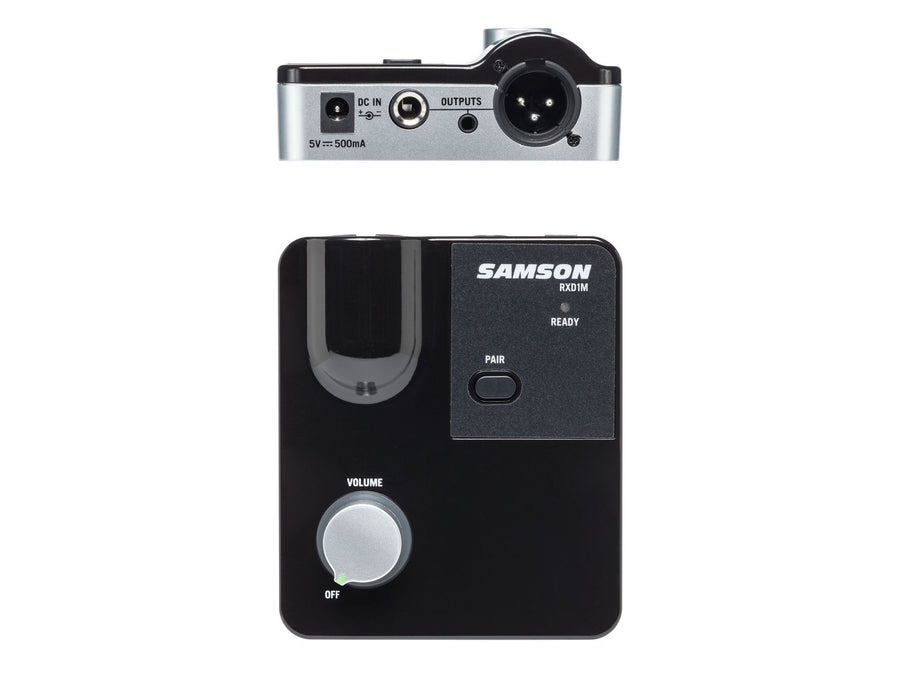

Easily integrate the XPDm Lavalier System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4" and 1/8" outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching.
Features / Specs

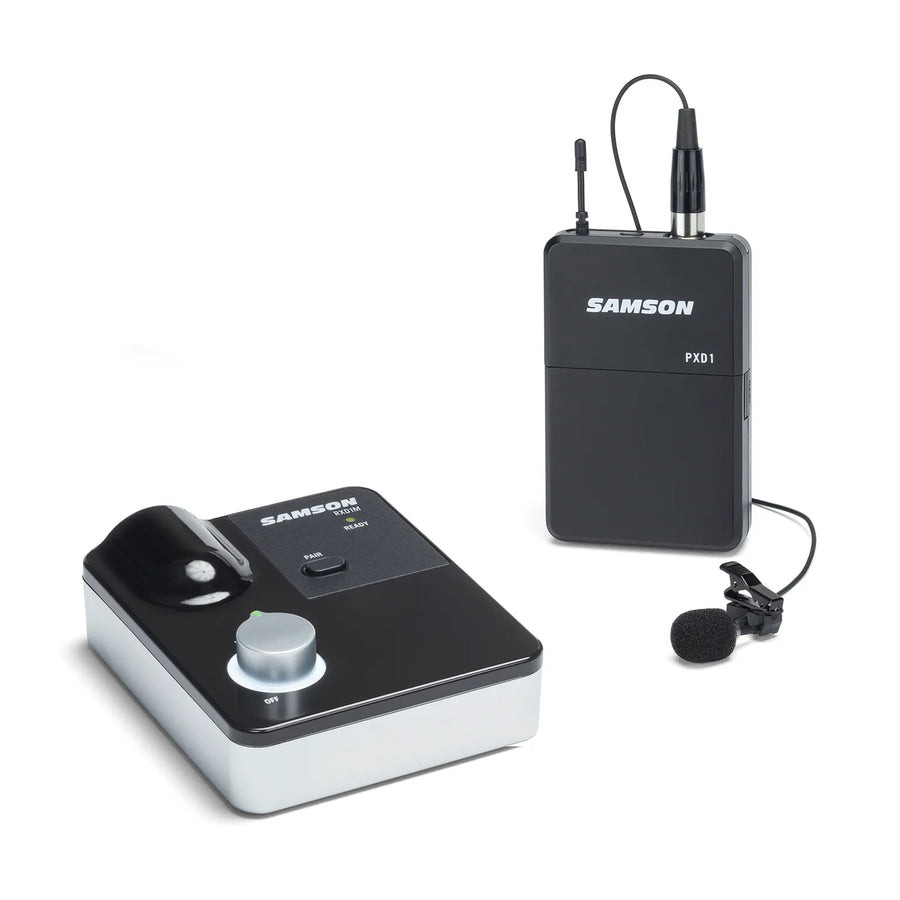

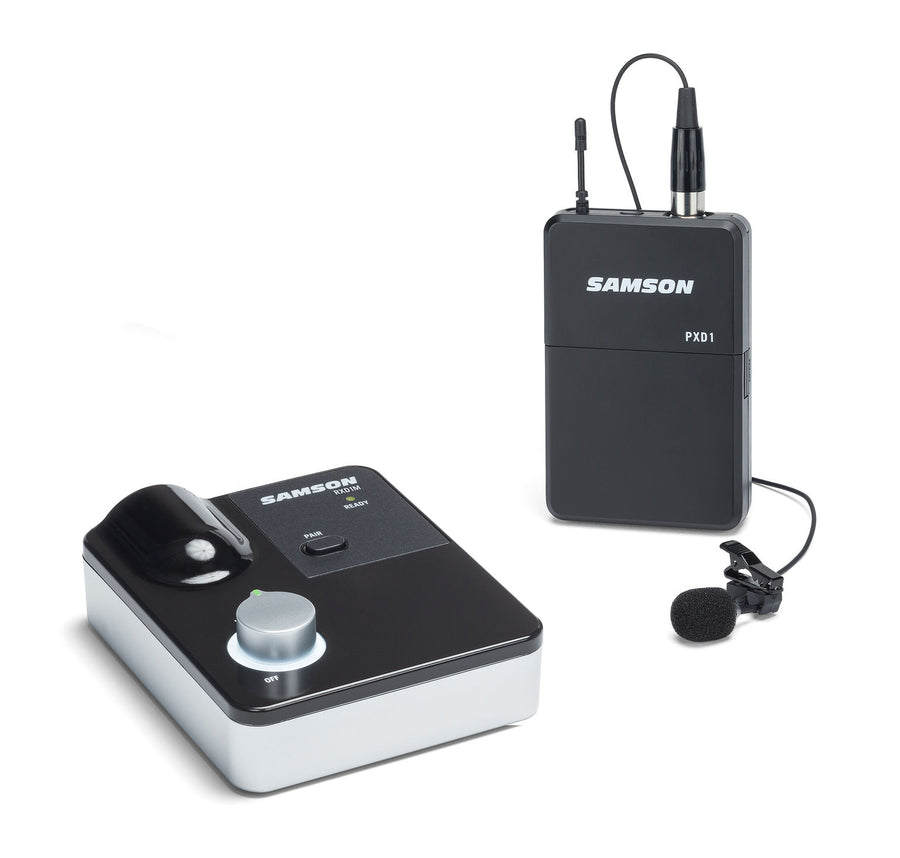

XPDm Lavalier Digital Wireless System
- High performance digital wireless system
- Operates on 2.4GHz License-free frequency

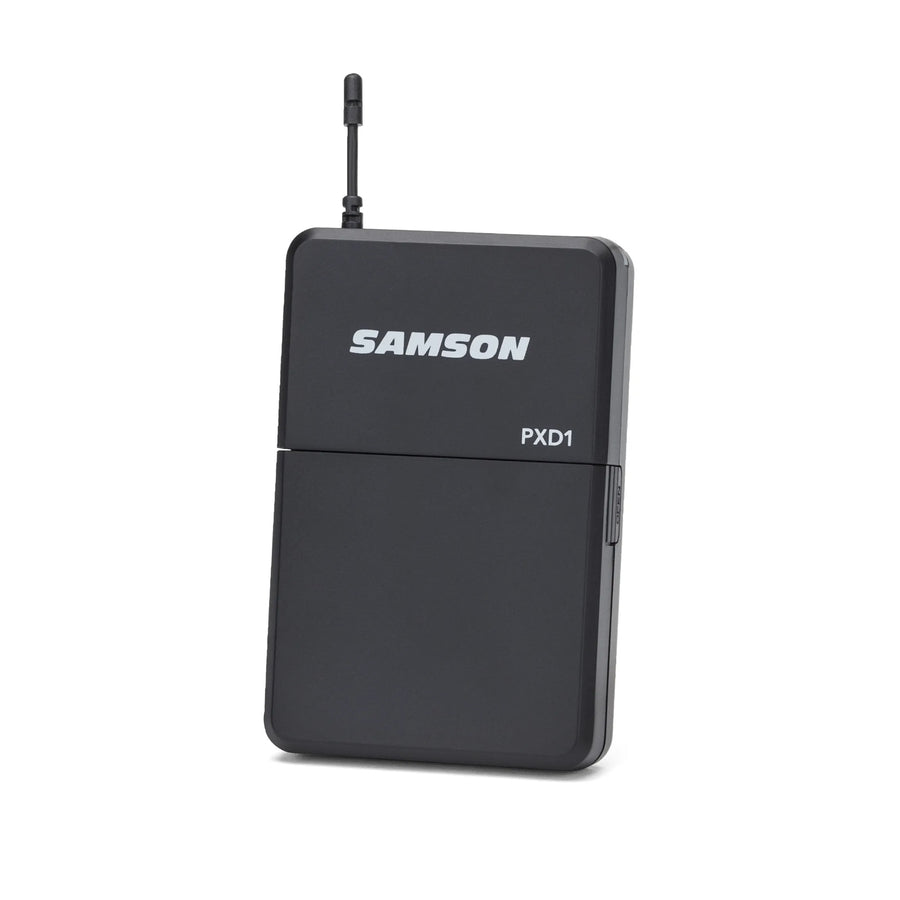

PXD1 Beltpack Transmitter
- Includes LM7 Unidirectional Lavalier Microphone
- Offers up to 20 hours of battery life using two AA batteries

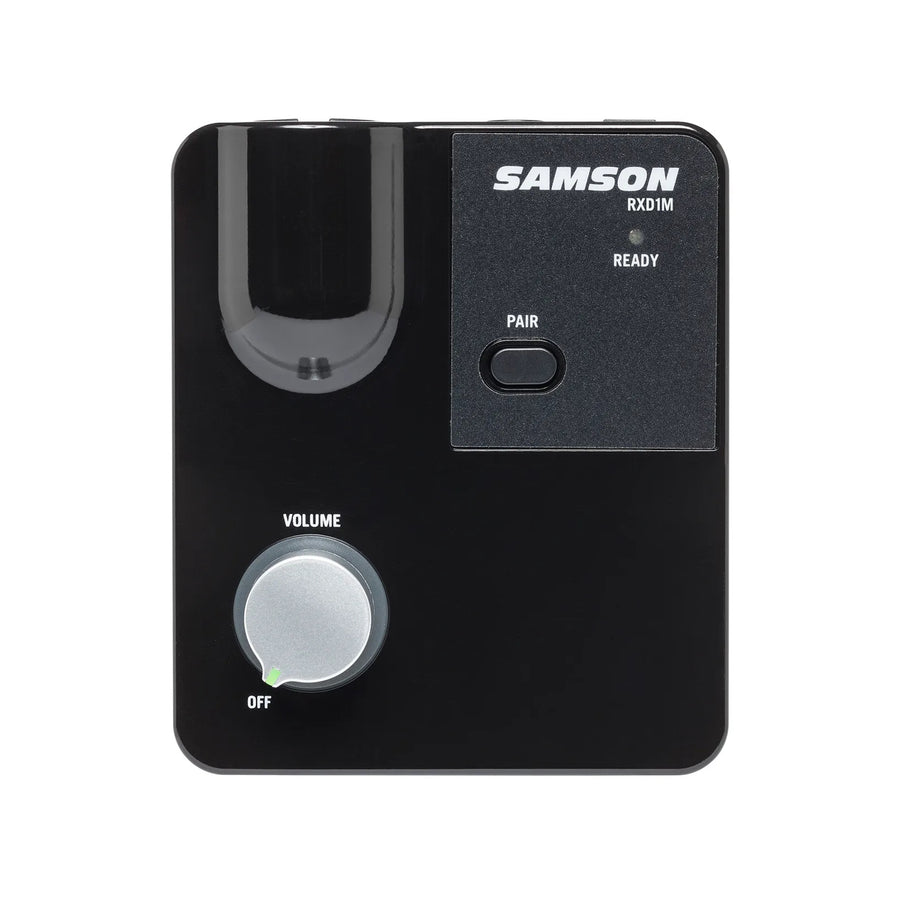

RXD1M Tabletop Receiver
- Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs
- One-touch pairing button
- Rotary volume knob with integral power switch
Specifications
| Simultaneous Systems | 2 |
|---|---|
| Working Range | 100' (30m) line of sight |
| Working Frequency | 2.404~2.476 GHz |
| Modulation type | GFSK |
| Audio Frequency Response | 20Hz-16KHz |
| T.H.D | <0.1% (@ 1KHz, -10dBu) |
| Signal to Noise | >85 dB |
| Microphone | Samson LM7 lavalier mic |
|---|---|
| Input Connector | Mini-XLR (P3) |
| RF Power | <10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions | 3.75" x 2.44" x 0.75" / 96mm x 62mm x 18.5mm |
| Weight | 0.2lb / 93g |
| Audio Output Level 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced) | +4 dBu, 1 kHz, <0.6% THD+N |
|---|---|
| Audio Output Level XLR jack (balanced) | +4 dBu, 1 kHz, <0.6% THD+N |
| Audio Output Impedance 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced) | 110 ohms @ 1kHz |
| Audio Output Impedance XLR output jack (balanced) | 2.4Kohms @ 1kHz |
| RF Sensitivity | -78dBm/20dB SINAD |
| Image Rejection | >50dB |
| Operating Voltage | 5VDC 500mA |
| Dimensions | 4.3" x 3.7" x 1.5" / 110mm x 95mm x 39mm |
| Weight | 0.33lb / 152g |
Specifications
Technical Specifications
| Working Range | 100' (30m) line of sight |
|---|---|
| Working Frequency | 2.404~2.476GHz |
| Modulation type | GFSK |
| Audio Frequency Response | 20Hz-16KHz |
| T.H.D. | <0.1% (@ 1KHz, -10dBu) |
| Signal to Noise | >85dB |
| Audio Output Level | 1/8" (3.5mm) & 1/4" Jack (unbalanced): 5dBuXLR Jack (balanced): 5dBu |
| Audio Output Impedance | 1/8" (3.5mm) & 1/4" Jack (unbalanced): 2KOXLR output jack (balanced): 4.5KO |
| RF Sensitivity | -78dBm/20dB SINAD |
| Operating Voltage | 5V/500mA |
| Product Dimensions | 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm) |
| Product Weight | 0.33lb (152g) |
