EZVIZ DL05 Smart Lock with Doorbell
Features
Enjoy easy keyless entry of a safe home
The DL05 sticks to the core values of a truly smart lock - easy to unlock, smart in controls, and safe by design. Connected via Bluetooth or Wi-Fi, it boasts flexible unlocking methods, and connects you to your home wherever you are via the EZVIZ App. Under a modern and sleek appearance, its sturdy lock body and multiple safety features help guard your entrance properly.

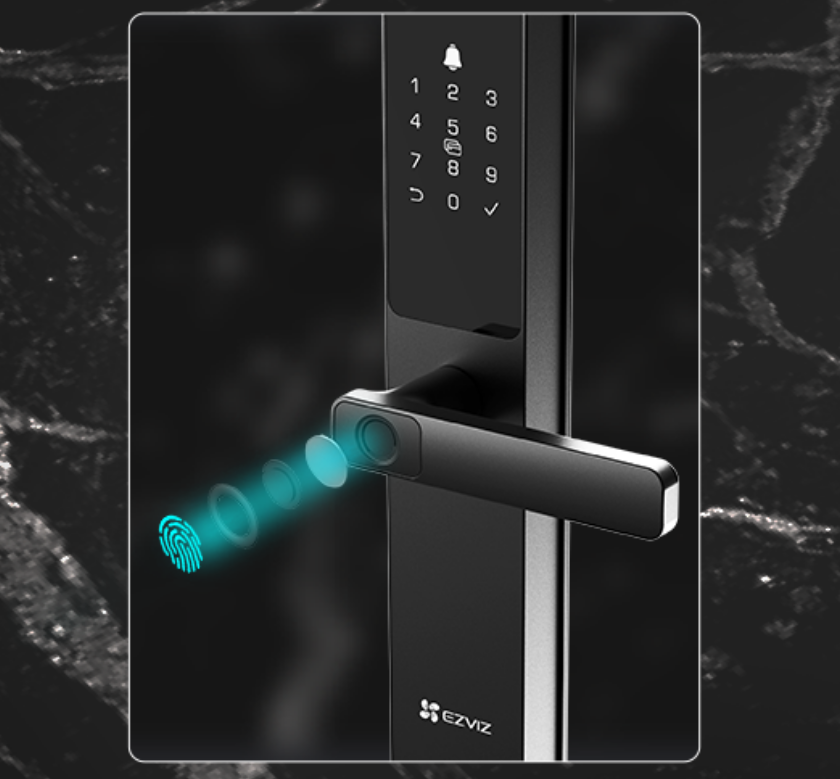

Home access at your fingertips
Now you don't have to be anxious about losing your key or forgetting long codes. Simply grab the handle to naturally place your fingertips on the scanner, then you're in.
- Processes & stores fingerprints locally
- Stores up to 50 pieces of fingerprints
- Auto-locks³ after 5 successive failed attempts in 5 minutes

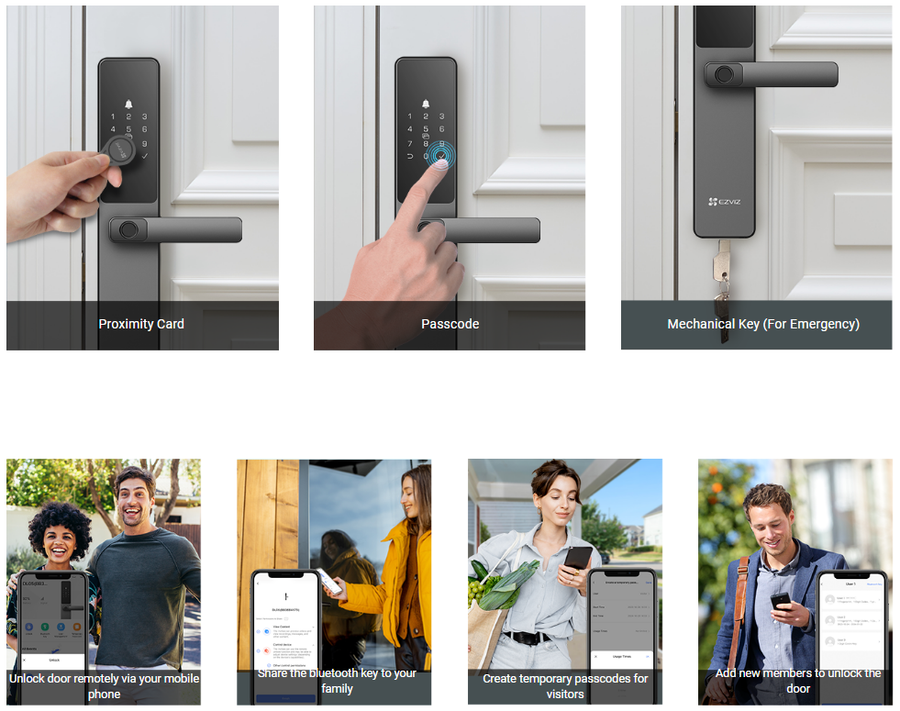

Unlock as you prefer, for ones your trust
Swipe open or tap in permanent/temporary passwords. Or, use smartphones to open or assign access remotely.

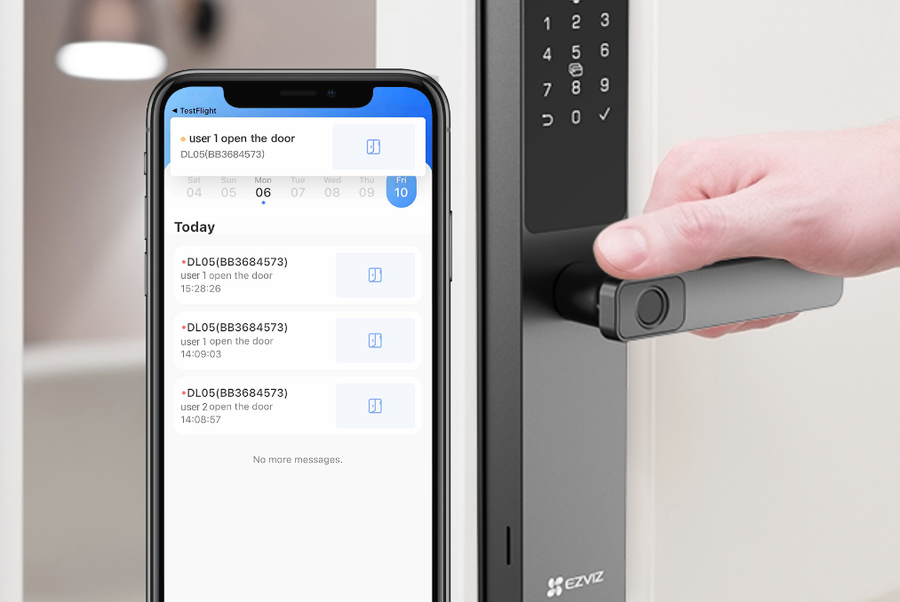

Stay notified, feel securer
Get the message notifications via the EZVIZ App, whenever and wherever. You receive push notifications when your door is opened or when the lock's battery is low. You will also be alerted when there are suspicious activities of removing your lock or forced entry.

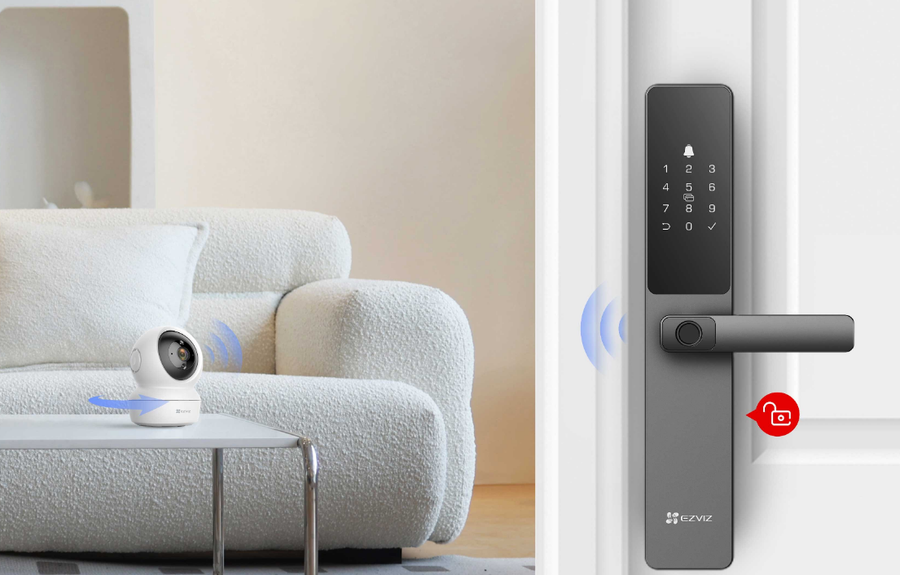

Interconnected control starts at your front door
Explore DL05's smart potentials by connecting it to a collection of EZVIZ smart home products. With the help of an interlinked EZVIZ indoor PT camera², you know not only when the door gets opened, but also who enters with an auto-recorded video.
Double-layered security, extra peace of mind

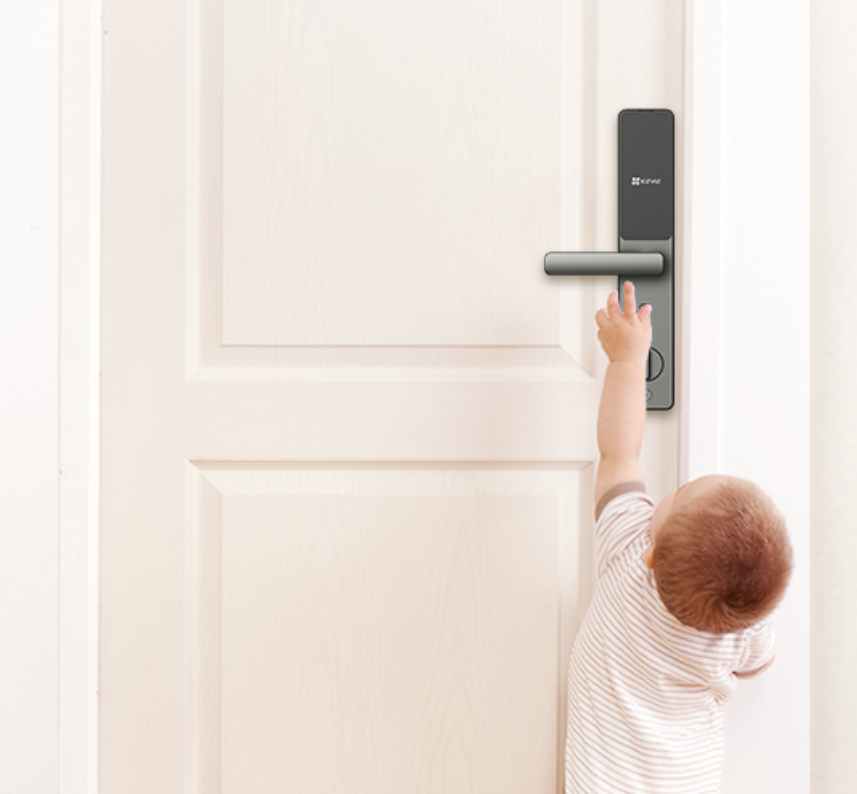

The DL05 auto-locks behind you whenever you close the door, and it allows you to activate the child lock to prevent your energetic children or pets from accidentally opening the door from the inside.
You can also enable its privacy mode if you don't want to be disturbed - then only the administrator can open the door4 from the outside, and the lock's alarm sounds will be muted.
Plenty of power for a busy household
The DL05 offers a long standby time - up to 365 days5 - and it's easy to change the batteries when needed. You can switch between the Wi-Fi mode and the Bluetooth mode via the EZVIZ App to make better use of the battery.
Specifications
Technical Specifications
| Panel Material | Aluminum alloy |
|---|---|
| Panel Size | 360 × 67 × 27 mm (14.17 × 2.64 × 1.06 inch) |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 5085 / 6068 |
| Weatherproof | IP65 (Front Panel) |

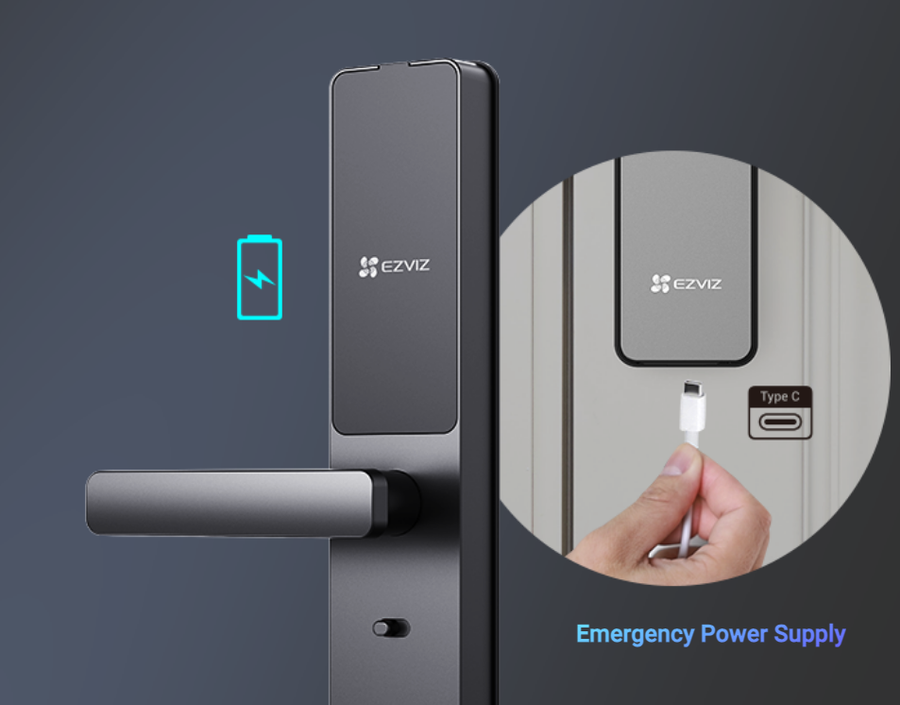

| Emergency Charging | Type-C |
| Working Power | 1.5V AA alkaline batteries x8 |
| Unlocking Method | Fingerprint, passcode, proximity card, mechanical key, bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports (Up to 20 digits) |
| Low Battery Warning | Supports |
| Privacy Mode | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports |
| Anti-Tamper Alarm | Supports, enter error 5 times within 5 min, locking 3 min. |
| Remote Control | Supports |
| Child Safety Lock | Supports |
| Voice Control | Soon Supports (Google Assistant / Amazon Alexa) |
| Supported Door Thickness | 30-110 mm |
| Working Temperature | -25°C~70°C |
| Operating Humidity | 10%~95% |
| In the box | - DL05 Smart Fingerprint Lock(Front Panel + Rear Panel + Hole Template)- Lock Body- Standard Screw Bag- Lock Body Screw Bag (2)- Locating Screw Bag- Reversing Screw (2)- AA-Sized Battery (8)- Mechanical Key (2)- Square Rod- Proximity Card (2)- Silicon Plug (For Rear Panel)- Regulatory Information- Quick Start Guide |
| Brand | EZVIZ |
|---|---|
| Product Type | Smart Home & Security |
