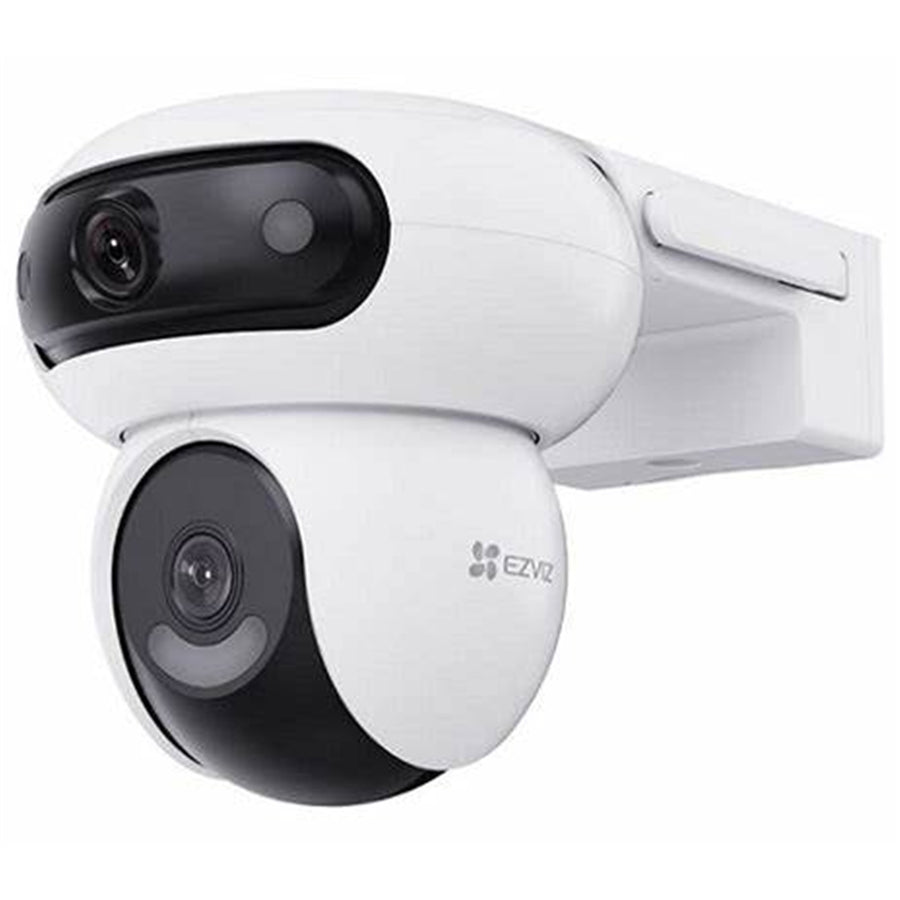

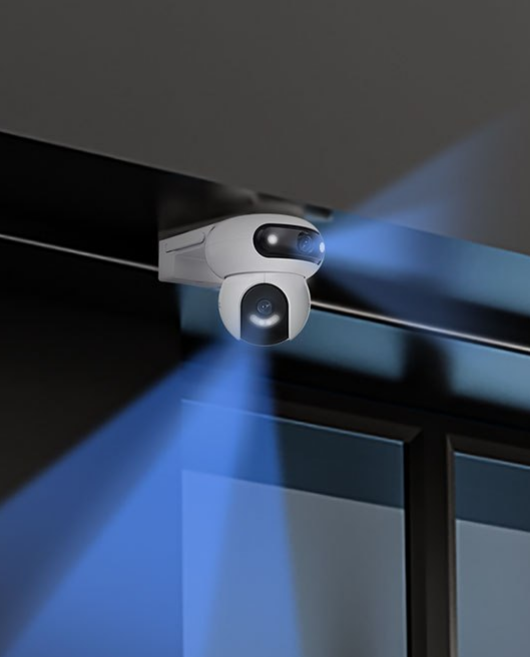

EZVIZ H90-4MP - H90 4MP (2K+) Outdoor Dual PT WiFi Wired Camera (4MP+4MP). Dual Rotations
EZVIZ H90-4MP - H90 4MP (2K+) Outdoor Dual PT WiFi Wired Camera (4MP+4MP). Dual Rotations
Features
Dual cameras, dual rotations
Another innovation in the EZVIZ star range of dual-lens cameras, the H90 Dual is taking 360-degree protection to a whole new level by combining two rotating lenses in a single housing. Its orb-shaped camera inherits the beloved features from EZVIZ' pan/tilt series, and its UFO-shaped top camera adds another sweeping, ultra-wide field of view to leave no corner unwatched. The two boast additional smartness by responding to each other to complete interlinked detection and view change. In short, the H90 Dual provides unparalleled vision and efficiency for large-area monitoring.

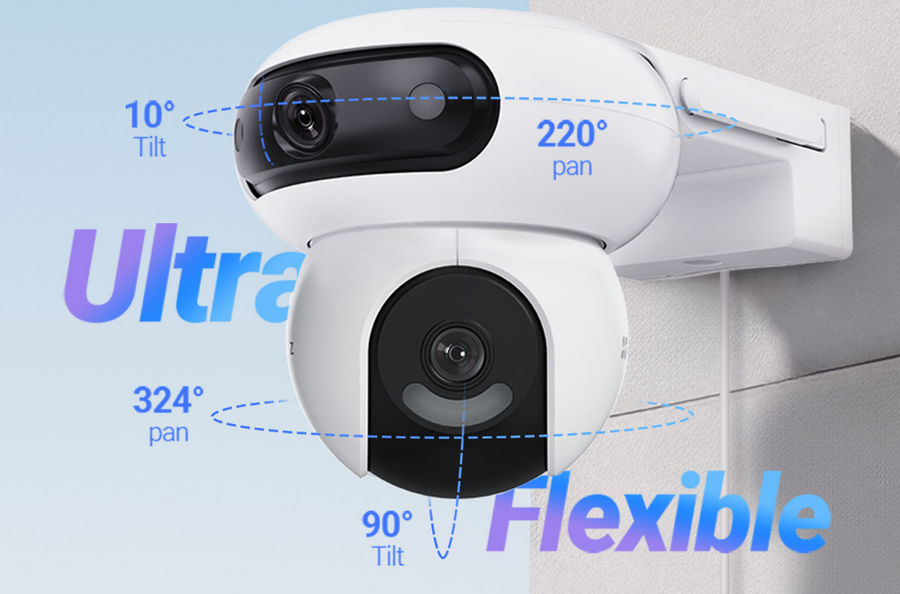

Smart robotic power doubled in one
Equipped with the EZVIZ's dual-lens technology, the H90 Dual unprecedentedly uses three motors to ensure both cameras can smoothly swirl to reduce blind spots as much as possible. This two-camera system can secure two separate, wide areas simultaneously, or record the same activity with far more details.

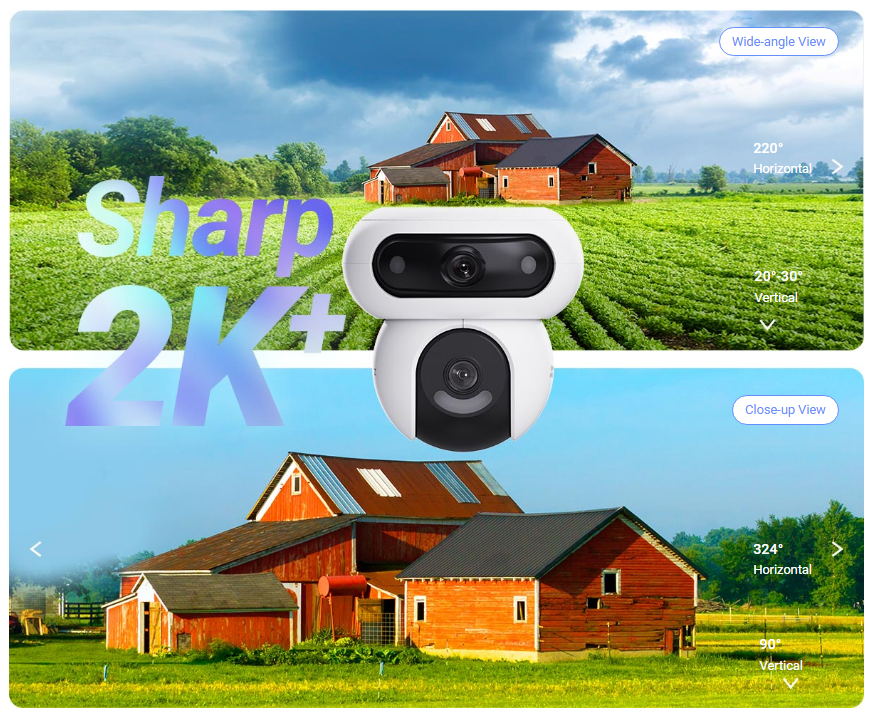

Big and small, all truthfully captured in 2K+ resolution
Let the H90 Dual enhance your sight to see both far and nearby, so you don't skip anything important. You can adjust the upper lens to keep a continuous watch on the big picture of a key area, and use the lower lens to secure what matters to you most.

Click to check, with both wide and close-up views
Understand the whole, big picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view will be shown on the side at the same time.

Co-action technology ready for a complex activity
Unlike most dual-lens cameras in the market that only stitch the views of two lenses, the H90 Dual is smart enough to complete a complicated detection activity by involving two lenses at the same time.

Fully-automated rotation for extended peace of mind
On set time intervals, the lower lens can complete rotational check-ups to eliminate blind spots. You can customize patrol routes for tailored focuses, or simply ask it to complete a full-circle spin.

Smarter alerts on the comes and goes
In addition to capturing human activities with a wealth of information, the H90 Dual recognizes the shape of a car from other moving objects. If your family member pulls up in front of your driveway or someone parks in your detected area, you will be notified immediately.

Communications can be this easy
Enjoy two-way audio by simply using your smartphone. Or, pre-record a 10-second voice message that automatically plays upon human motion detection.

A vigilant guard who works around the clock
The H90 Dual integrates EZVIZ's beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights to warn them away.

Far-reaching color night vision
With its F1.6 large-aperture lens and four built-in spotlights, the H90 Dual provides full-color night vision within an impressive range of up to 40 meters.³ Nothing will easily escape your sight despite the cover of darkness.

Three night vision modes at your choice
Full-color mode
Enable the spotlights to illuminate a completely dark environment for vivid details throughout the night.
Black-and-white mode
Use the infrared night vision if you don't want the strong lighting to disturb your neighbors.
Smart mode
Or, let the camera decide. A detected motion will trigger it to switch on the lights automatically.

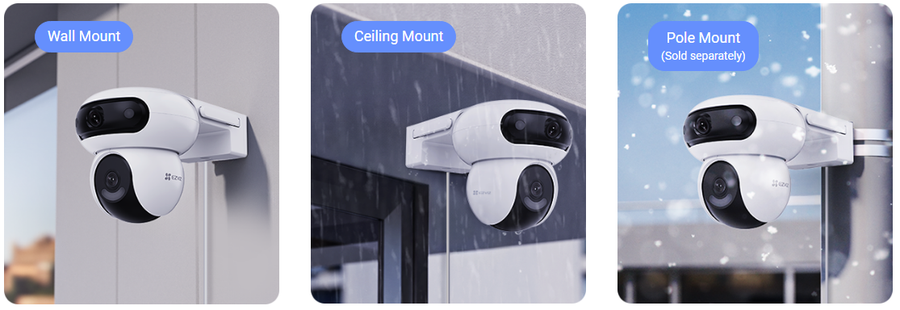

A durable design with versatile setups
Designed to satisfy security demands under various scenarios, the H90 Dual can easily find its best location to deliver steady, reliable performance even in rain or snow.

Dual storage options for important moments
The camera automatically saves detection-triggered history videos. You can choose to secure them on a large local storage card, or simply by subscribing to the EZVIZ CloudPlay.

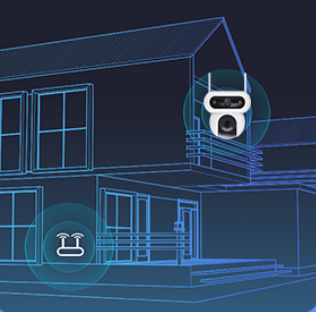

Powerful antennas, stable connection
It boosts up to 220 m Wi-Fi coverage thanks to its high-performance dual antennas4. It also offers wired options for further convenience.

Smart integration for hands-free control
The camera supports easy integration to your existing voice assistants. You can pull up the video feed by simply saying "Alexa" or "Hey Google".¹

H.265 for enhanced video experience
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.

Specifications
Technical Specifications
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm @ F1.6, Field of view :Diagonal 110°, Horizontal 96°, Vertical 54°Bottom Lens: 6mm @ F1.6, Field of view :Diagonal 60°, Horizontal 52°, Vertical 28° |
| PT Angle | Pan: 324°, Tilt: 90° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30 m (98 ft) |
| Max Resolution | 2K+ (2880 × 1620) |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Smart Alarm | AI-powered human shape detectionAI-powered vehicle shape detectionMotion detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F )Humidity 95% or less (non-condensing) |
| IP Grade | IP65 + 2h rainstorm |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | MAX. 18W |
| Dimensions | 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) |
| Packaging Dimensions | 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch) |
| Weight | Net weight: 723 g (25.51 oz)With Package: 1203 g (42.43 oz) |
| In the box | - H90 Dual 2K+ Camera- Power Adapter- Drill Template- Waterproof Kit- Screw Kit- Regulatory Information × 2- Quick Start Guide |
