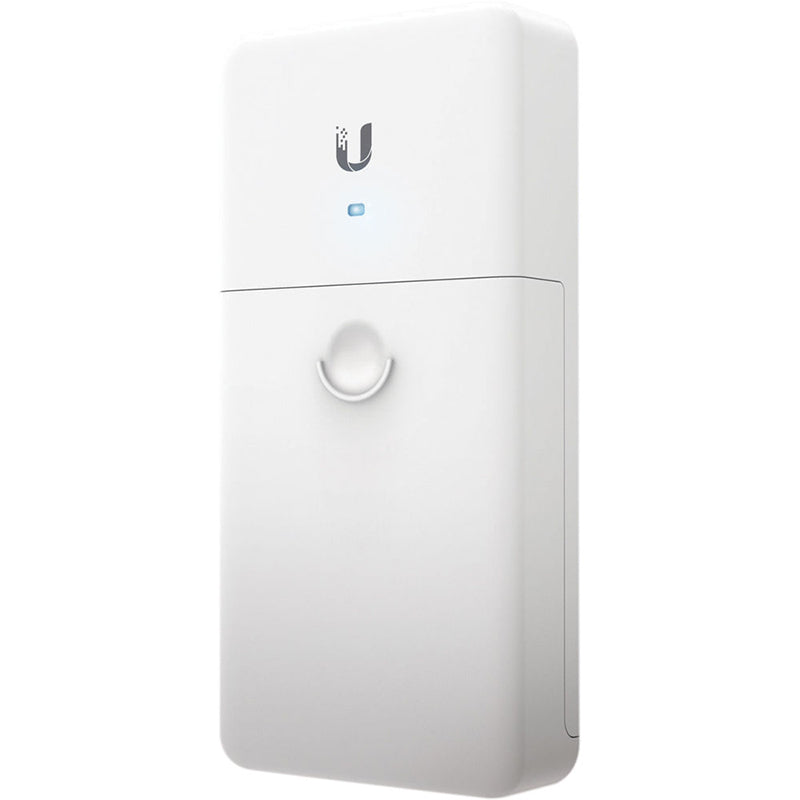

F-POE-G2 - Ubiquiti FiberPoE Optical Data Transport for Outdoor PoE Devices
Features
- 2x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing
*POE380S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.
Specifications
Technical Specifications
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)EIA/TIA-568 100O STP (maximum 100 m)100BASE-TX: UTP category 5, 5e cable (maximum 100 m)EIA/TIA-568 100O STP (maximum 100 m)1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Ports | 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W)1× AC socket |
| Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6AOutput: Auto-determine the necessary power requirements (max. 90 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PDAuto-determine the necessary power requirementsWall-mounting and desktop installationPlug-and-Play |
| LED | Power / PoE |
| Dimensions ( W x D x H ) | 6.1*2.8*1.7 in (155*70*42 mm) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90%RH non-condensing |
| Storage Humidity | 5% to 90%RH non-condensing |
| Certification | FCC, CE, RoHS |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Fiber Connectivity > Fiber Patch Leads |
| Weight | 0.5 kg |
| Warranty |
|---|
