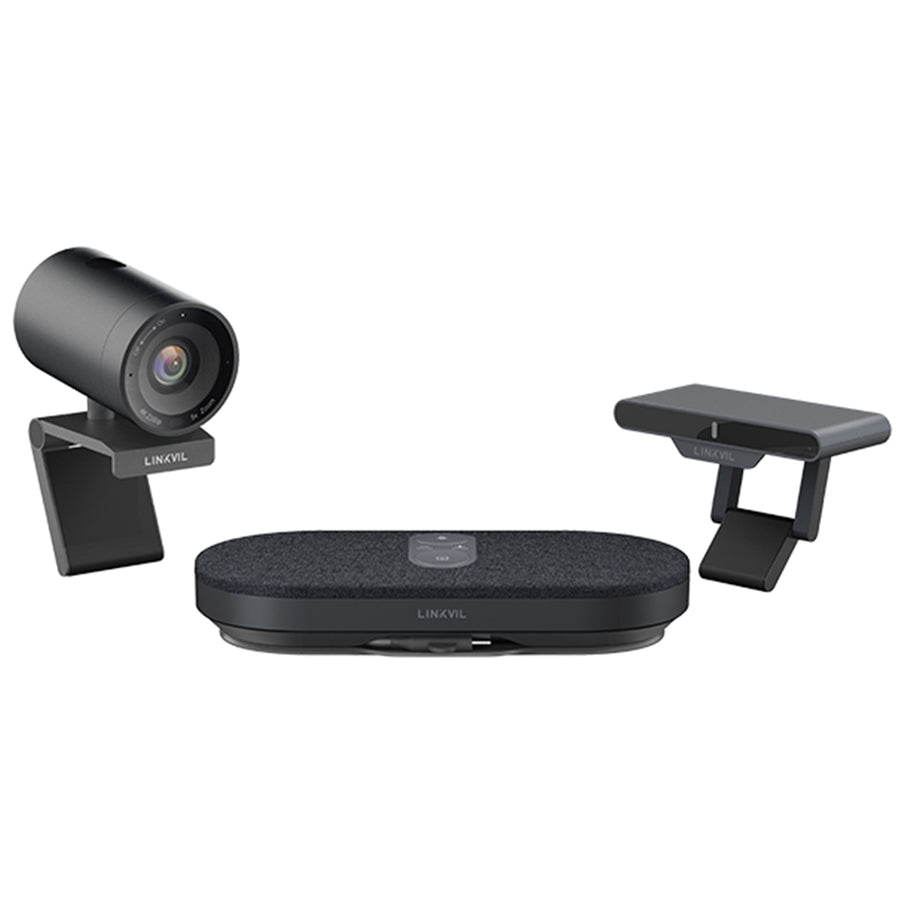

Fanvil CA400 All-in-One Screen Share Video Conference Solution MS10 speakerphone & receiver RC10 & USB camera CM70
$1,108.09
$1,166.41
Free shipping over $299
Genuine product
7-day returns
Features
CA400 All-in-one Wireless Conference Solution
Designed for small and medium meeting rooms up to 32m², the CA400 system consists of a unique speakerphone MS10, that supports wireless screen sharing, a receiver RC10, and a USB camera CM70.
The CA400 achieves far-field voice pickup, delivering HD crystal-clear sound. Participants can also wirelessly cast at 4K and access FHD video streaming.
Specifications
Technical Specifications
| Max. Screen Share Resolution | 3840*2160 @ 30fps |
|---|---|
| Microphone | 8 MEMS microphones for 360° pickupPick-up Range: 4-meterSignal to Noise Ratio (SNR): 64.5dB(A)Sensitivity: -26dBFS @ 1kHz (0dB=1V/Pa)Acoustic Overload Point: 119dB SPL <10% @ 1kHzFrequency: 20Hz-10KHzFull-duplexBeamformingAcoustic Echo Cancellation (AEC)Adjustive Noise Suppression (ANS)Automatic Gain control (AGC)Reverberation Reduction |

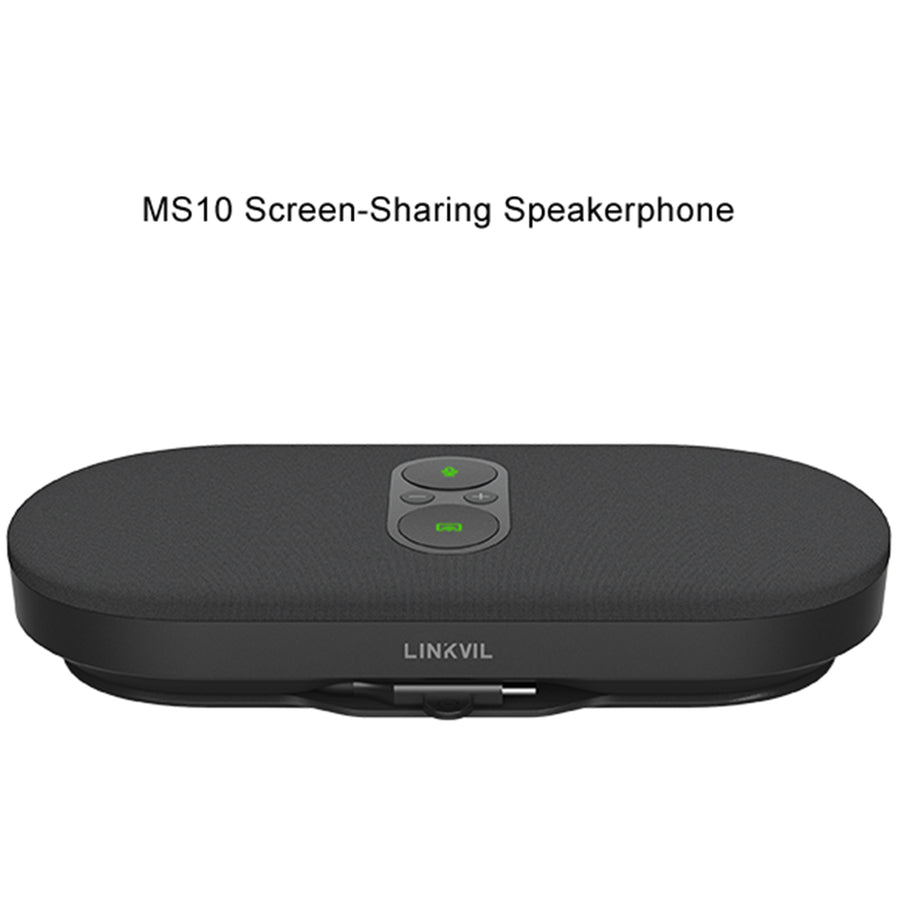

| Speakerphone | Speaker/Rated power: 4?/3WSpeaker Size: 50mmSensitivity: 1KHz 85 dB ± 3dB @ 1mSignal to Noise Ratio (SNR): 50dBFrequency Range: 200Hz- 10KHz MAX 5%Max. Sound Pressure Level: 85dB SPL @ 1m @ 3WBackground Noise: <30dBTotal harmonic Distortion: 200Hz-10KHz MAX 5% |
| Camera Streaming | Max. Output Resolution: 1920x1080 @30fpsSupport Camera Type: UVC cameraFormat Supported: H.264 |
| Physical Character | magnetic attraction |

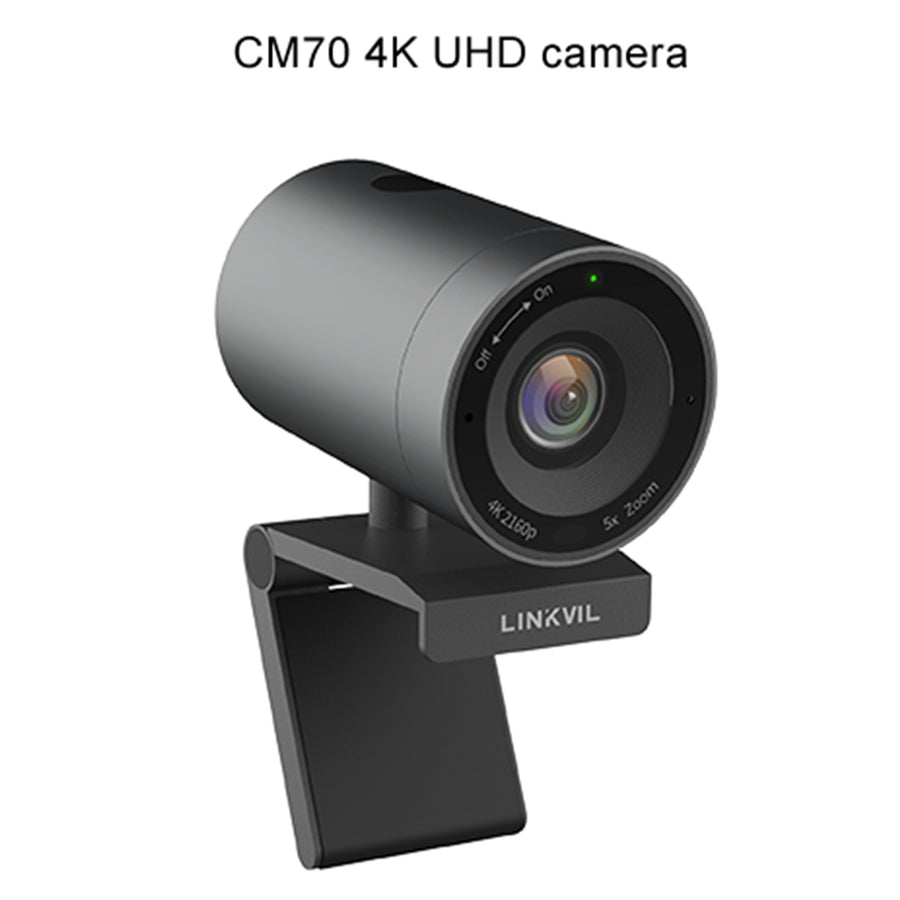

| USB Camera | Sensor Type: IMX 415 (1/2.8") 3840*2160Output: MJPEG/ H264/ H265 /YUV / NV12 30P (YUV and NV12 don 't support 4K and 2K) 3840*2160/2560*1440/1920*1080/1280*720/1024*576/960*540/800*448/640*360/320*180/960*720/800*600/640*480/480*270/352*288/320*240FOV: DFOV 118.5°/HFOV 109.9°/VFOV 74.6°Auto-Framing: AutoF/No: F2.5Zooming: 5x digital zoomMaximum Resolution: USB3.0: 3840*2160 30fps/USB2.0: 1920*1080 30fpsSecurity Protection: manual privacy cover |
| USB Microphone | Type: 2 electret microphonesPick-up Range: 4-meterSignal to Noise Ratio: 94dB SPL@ 1KHz 65dB(A)Sensitivity: 94dB SPL@ 1KHz - 30±2dB FSFull-duplexAdjustive Noise Suppression (ANS)Automatic Gain Control (AGC) |
| Physical Character | magnetic attraction |
| Protocol | 802.11 a/n/ac |
| Wireless Transmission Protocol | Quick UDP |
| Transmission Distance | up to 10-meter |
| Frequency bands & max. transmitted power | Wi-Fi 5GHz, Max 20dBm (Support for selecting corresponding 5G channels based on the country.) |
| USB Camera | Type C x1 |
| Speakerphone | Type C PD + DP ALT |

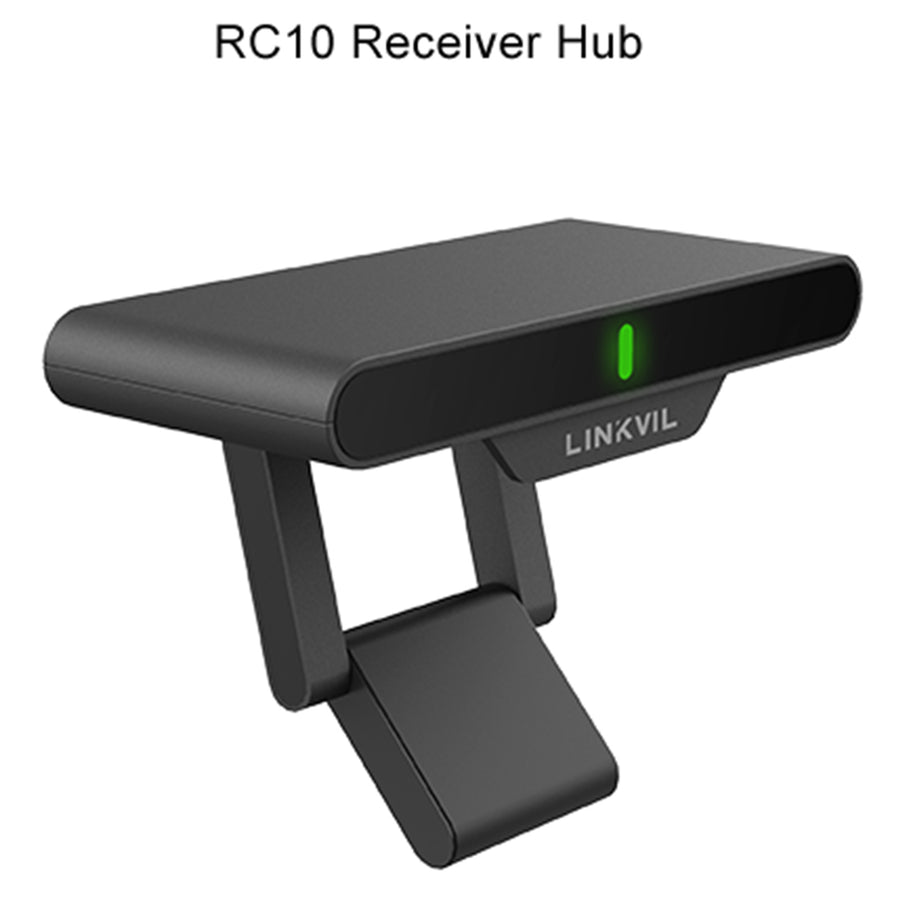

| Receiver Hub | HDMI x1, Type C PD, USB A 3.0 x1 |
| Dimensions | USB Camera: 80*75*53mm/3.15*2.95*2.09"Speakerphone: 180*81*32mm/7.09*3.19*1.26"Receiver Hub: 102*45*20mm/4.02*1.77*0.79"Gift Box Dimension: 233*188*110mmOuter CTN Dimension: 498*408*258mm (8PCS) |
| Weight | USB Camera: 210g/7.4ozSpeakerphone: 385g/13.58ozReceiver Hub: 70g/247ozCarton Net Weight: 12.56 kgCarton Gross Weight: 13.78 kg |
| Temperature and humidity | Working temperature: 0°C-40°CWorking humidity: 10%-90%RH |
| Package Contents | USB Camera: CM70Speakerphone: MS10Receiver Hub: RC10Remote Control20cm USB-C to HDMI & USB-A/C Adapter: H2C, 1.5m HDMI Cable, 40cm USB Extension Cable, 1.8m Type C-A USB CablePower Adapter: 5V/2AQuick Installation Guide |
| Brand | Fanvil |
|---|---|
| Product Type | UC & Video Conferencing |
