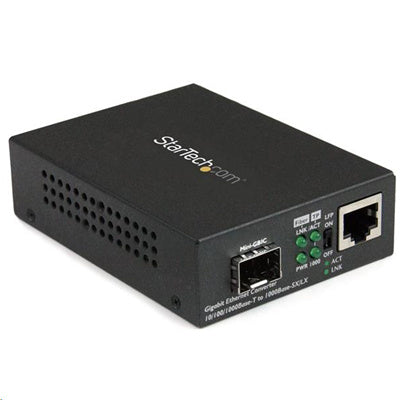

StarTech.com MCM1110SFP - Fiber Media Converter with Open SFP Slot
Features
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice
- ETHERNET OVER FIBER EXTENSION: Use this full duplex RJ45 copper to fiber media converter to cost-effectively convert and extend a Gigabit Ethernet connection; Link Fault Pass (LFP) supported
- FLEXIBLE CONFIGURATION: Fiber media converter with open SFP slot which allows you to customize the network extension distance to your requirements with any MSA-compliant multi or single mode transceiver
- AUTO NEGOTIATION: Media converter features a 10/100/1000 Mbps compatible RJ45 port that supports auto negotiation to bridge different network devices/speeds to a Gigabit fiber network; Supports IEEE 802.1q Tag VLAN pass-through and 9K Jumbo Frames
- COMPACT AND DURABLE: Media converter has a compact, lightweight design and can be mounted or placed into any location with little to no configuration; Ideal for mission-critical applications; TAA Compliant
This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
A cost-effective extension and flexible performance
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the that best suits your fiber connection mode (single / multimode) and distance requirements.
A versatile way to connect different networks
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Installation is fast and easy
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Ideal for secure connections required by government or corporations where EMI is not acceptable
- Extend or bridge networks cost-effectively using fiber cabling
- Provide connectivity to users in an isolated area of a large complex or in a separate building
- Open SFP slot lets you customize your connection mode or distance using most MSA-Compliant transceivers
Specifications
Technical Specifications
| Local Unit Connectors | 1 - SFP Slot1 - RJ-45 |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 5~95% RH (Non-condensing) |
| PoE | No |
| WDM | No |
| Industry Standards | IEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TXIEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-SXIEEE 802.3z 1000BASE-LX |
| LED Indicators | 1 - Power1 - Fiber Port Link/Act1 - Copper Port Link/Act1 - 1000 Mbps |
| Package Height | 6.9 cm [2.7 in] |
| Package Length | 13.9 cm [5.5 in] |
| Shipping (Package) Weight | 0.5 kg [1.1 lb] |
| Package Width | 28.5 cm [11.2 in] |
| Package Quantity | 1 |
| Maximum Data Transfer Rate | 1 Gbps |
| Type | Single Mode / Multi Mode |
| Fiber Operating Mode | Full-Duplex |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| MTBF | > 50,000 hours at 25°C |
| Weight of Product | 178.0 g [6.3 oz] |
| Color | Brown |
| Material | Steel |
| Product Length | 9.5 cm [3.7 in] |
| Product Width | 7.0 cm [2.8 in] |
| Product Height | 2.6 cm [1.0 in] |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.4 A |
| Output Voltage | 5 DC |
| Output Current | 2 A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| Power Consumption (In Watts) | 10 |
| Note | Fiber data transfer speeds and distances are dependent on the SFP transceiver used (sold separately) |
| Included in Package | 1 - Gigabit Ethernet fiber media converter w/ open SFP slot1 - universal power adapter (NA/EU/UK/AU) |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.218 kg |
