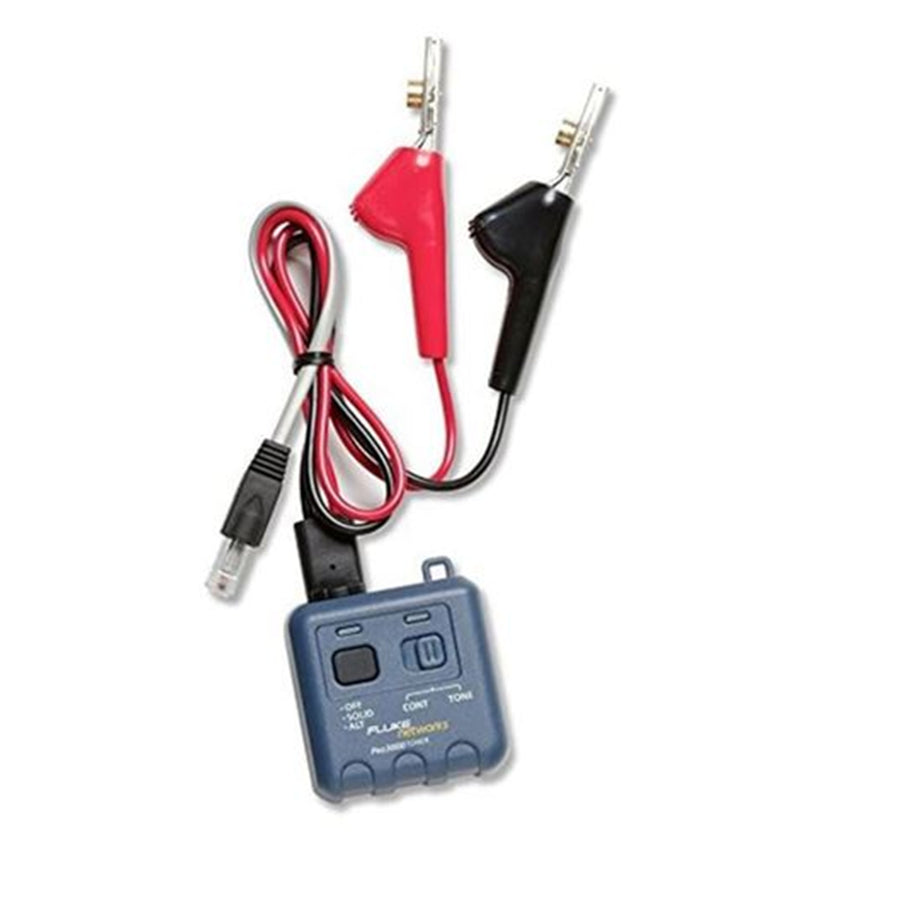

FLUKE Pro3000 Analog Tone Generator Only Compatible w/ Pro3000 Probe (26000900).
Features
Use the SmartTone capability of the Pro3000 Tone Generator to identify the right pair. When touching the wires together and momentarily shorting the far end of a cable pair, the SmartTone technology will change the cadence of the tone generated.
This tone change you hear through the probe positively verifies the correct wire pair. SmartTone provides five distinct tones for exact pair identification.
- SmartTone technology
- Send tone signal up to 16km on most cables
- Line cord features angled bed-of-nails clips and ruggedized RJ-11 plug for direct access to phone and data jacks without adapters
- An external switch allows the selection of solid or alternating tone options, indicated with solid or flashing LEDs
- Continuity testing
- Line polarity confirmation
Specifications
Technical Specifications
| User interface | Slide switch selects Continuity or Tone ModePush button switch selects SOLID, ALT or OFFTone mode LEDContinuity/Polarity LED |
|---|---|
| Solid Frequency | 1000 Hz nominal |
| Alternating Frequency | 1000/1500 Hz nominal |
| Over Voltage Protection | 60 Vdc in Toner/Polarity Mode |
| Output Power in Tone Mode | 8 dbm into 600 ohms |
| Output Voltage Level in Continuity Mode | 8 Vdc with fresh battery |
| Battery | 9V alkaline |
| Temperature | Operating: -20° C to 60° C, Storage: -40° C to 70° C |
| Case dimensions | 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm) |
| Brand | FLUKE |
|---|---|
| Product Type | More > Tools |
| Weight | 0.365 kg |
