Features
FMC225 4G - Reliable 4G (LTE Cat 1) connection with fallback to 2G (GSM) network

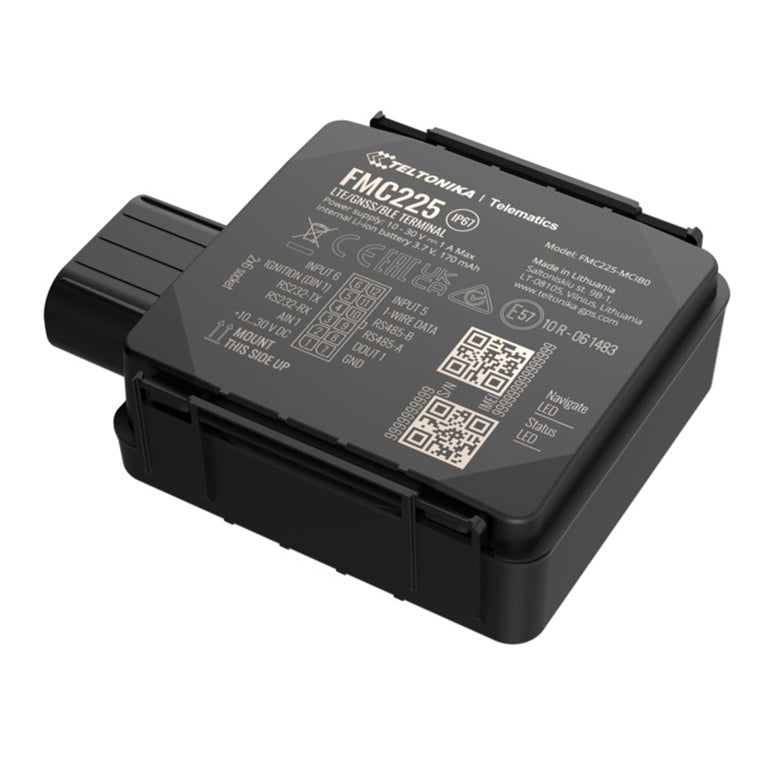

Teltonika FMC225 Waterproof 4G LTE Cat 1 GPS Tracker with RS485, RS232 Interfaces. The Teltonika FMC225 is WATER and DUST resistant real-time tracking terminal with GNSS and LTE/GSM connectivity and backup battery. FMC225 features RS485/RS232 data interface, which gives ability to connect various third-party external devices. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. Because of IP67 casing, device is totally protected from dust and remains safe during the short periods of immersion in water up to 1m depth. As a result, FMC225 can be used in agriculture, construction and mining or any other fleet where harsh tracking conditions exists.
FMC225 developed on the existing Teltonika FMC platform, therefore it keeps all of the functionalities from FMC125 and builds on top of them with its industry-leading connectivity coverage.
For starters, FMC225 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.
Additionally, the device has an integrated possibility to enable impulse input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC225 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.
Features a user Selectable RS485 or RS232 depending on user requirements.
Protection against dust and water
Robust IP67-rated casing provides trusted protection against dust and resistance to water.
Significantly lower roaming costs
Dual SIM considerably reduces roaming costs.

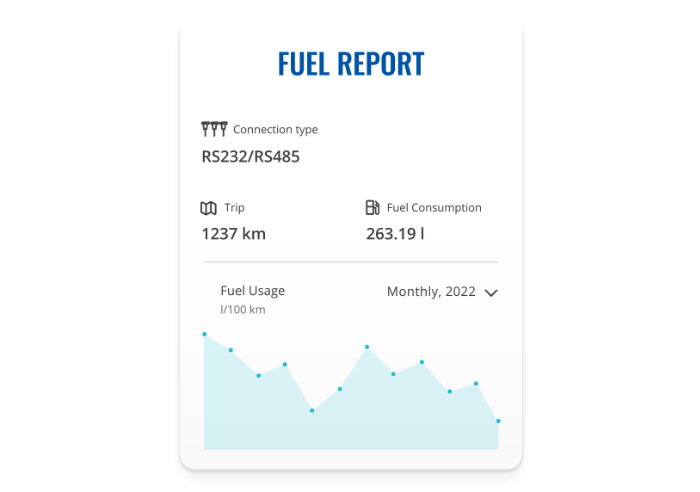

Fuel monitoring and more
RS232/RS485 serial interfaces for fuel monitoring and other external data reading.

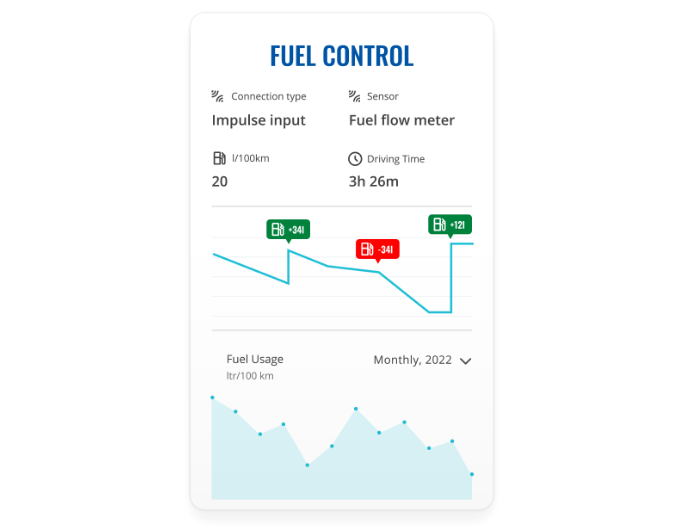

Accurate fuel usage control
Impulse input for fuel flow meters data reading and accurate fuel usage control.
Specifications
Technical Specifications
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE |
|---|---|
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 tracking channels, 99 acquisition channels |
| Tracking Sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot Start | < 1 s |
| Warm Start | < 25 s |
| Cold Start | < 35 s |
| 4G LTE Bands | FMC225-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE-TDD:B40 |
| Data Transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL), LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL), GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data Support | SMS (text/data) |
| Input Voltage Range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up Battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Power Consumption | At 12V < 4 mA (Ultra Deep Sleep), At 12V < 6 mA (Deep Sleep), At 12V < 12 mA (Online Deep Sleep), At 12V < 19 mA (GPS Sleep), At 12V < 36 mA (nominal with no load), At 12V < 2A Max. (with full Load / Peak) |
| Bluetooth | 4.0 + LE |
| Supported Peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support support |
| Dimensions | 71 x 67 x 26 mm (L x W x H), 85 x 67 x 26 mm (L x W x H)(length with connector socket) |
| Weight | 79 g |
| Operating Temperature (without battery) | -20 °C to +85 °C |
| Operating Temperature (with battery) | 0 °C to +40 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery Charge Temperature | 0 °C to +45 °C |
| Digital Inputs | 2 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| CAN Adapter Inputs | 1 |
| 1-Wire | 1 |
| RS232 | 1 |
| RS485 | 1 |
| GNSS Antenna | Internal High Gain |
| Cellular Antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED Indication | 2 status LED lights |
| SIM | Dual SIM |
| Memory | 128MB internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming |
| Sleep Modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and Firmware Update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS Commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel Monitoring | LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition Detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
| RS232 Modes | Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, Satellite Backup (Iridium Edge) |
| RS485 Modes | Log Mode, NMEA, LLS, TCP ASCII/Binary |
| Regulatory | CE / RED, UKCA, E-Mark, RoHS, REACH, CITC, RCM, EAC, Anatel, ICASA |
