FMC800 - Teltonika FMC800 OBDII Plug and Play 4G LTE CAT1 Tracker
FMC800 - Teltonika FMC800 OBDII Plug and Play 4G LTE CAT1 Tracker
Features

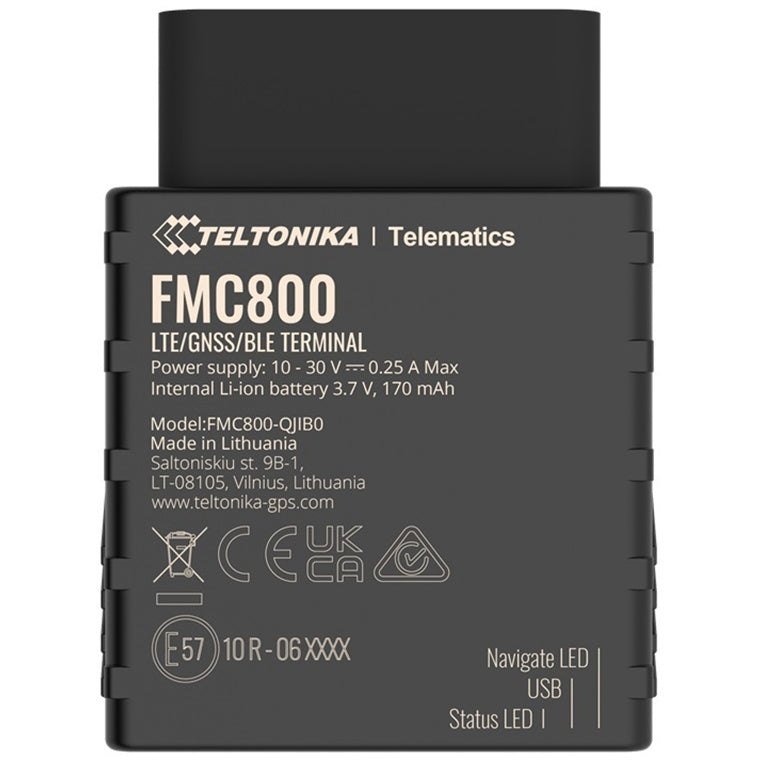

Teltonika FMC800 OBDII Plug and Play 4G LTE CAT1 GNSS Tracker
FMx8 series devices are EASY to use and FAST to install. The number "8" brings everything together in one place and stands out with its simplicity of basic tracking. Teltonika FMC800 tracker is a small OBDII Plug and Play device with 4G LTE Cat 1 and BLUETOOTH® connectivity. An extremely fast and easy installation allows connecting device in a few seconds! No tools or engineers are required for installation.
Thanks to that, FMC800 tracker perfectly suits for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and other industries, where simple integration is a must. It is a perfect solution for real time monitoring, specially for beginners and those, who are looking for new opportunities to expand their businesses.
FMC800 device has a built-in accelerometer, which provides accurate crash trace data. This tracker also supports various BLUETOOTH® Low Energy sensors, beacons, firmware and configuration update via BLUETOOTH®. All of that increase the number of possible use scenarios in any market. It is quick to install, easy to use and ready to start tracking in minutes!

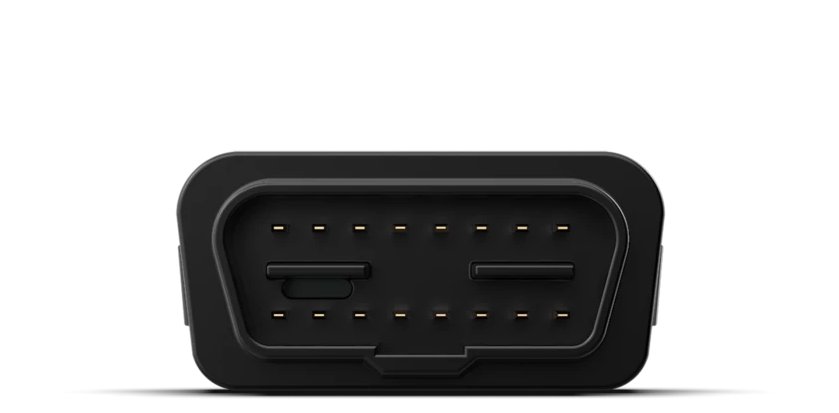

Effortless Plug & Play installation
Simply plug the device in OBD-II port and start tracking.
Eco driving scenario for all-round better driving
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario.
Accurate and detailed crash trace data
Crash detection functionality based on 3-axis built-in accelerometer with fully configurable parameters through our software to ensure accurate crash trace data.
Specifications
Technical Specifications
| Brand | Teltonika |
|---|---|
| MPN | FMC800 |
| Module | FMC800-QJIB0: Quectel EG915U-EU with Teltonika TM2500 |
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH LE |
| 4G LTE bands | FMC800-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT) |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| GNSS Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Connection | OBDII socket |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB 2.0 | Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Internal fuse | 3 A, 125 V |
| Regulatory | FMC800-QJIB0: CE RED, E-Mark, RCM*in progress |
