FMC880 - Teltonika FMC880 4G LTE CATM1 Water-resistant High GNSS Precision Battery-mounted Tracker
FMC880 - Teltonika FMC880 4G LTE CATM1 Water-resistant High GNSS Precision Battery-mounted Tracker
Features

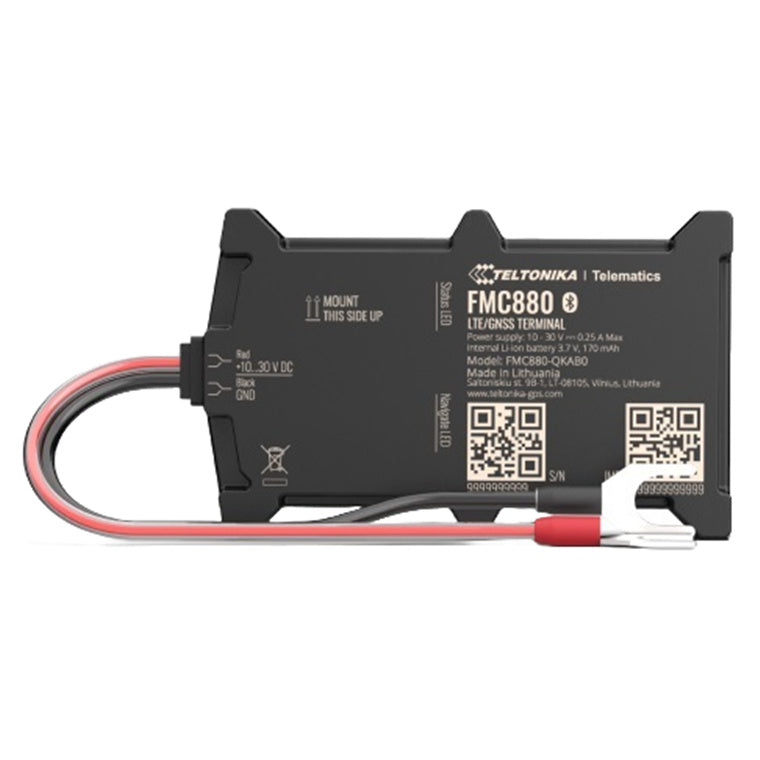

Teltonika FMC880 4G LTE CATM1 Water-resistant High GNSS Precision Battery-mounted Tracker
FMx8 series devices are EASY to use and FAST to install. The number "8" brings everything together in one place and stands out with its simplicity of basic tracking. Teltonika FMC880 tracker is waterproof device with 4G LTE Cat M1 and BLUETOOTH® connectivity. An extremely fast and easy installation allows connecting device in a few minutes! No specific knowledge or engineers are required for installation. This vehicle GPS trackers has a higher IP65 rating and a slim design which is essential for under-bonnet installation.
Thanks to that, FMC880 tracker perfectly suits for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other industries, where simple integration is a must. It is a perfect solution for real time monitoring, specially for beginners and those, who are looking for new opportunities to expand their businesses. FMC880 device has a built-in accelerometer, which provides accurate crash trace data. This tracker also supports various BLUETOOTH® Low Energy sensors, beacons, firmware and configuration update via BLUETOOTH®. All of that increase the number of possible use scenarios in any market. It is quick to install, easy to use and ready to start tracking in minutes!
Improved GNSS tracking accuracy
Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix.

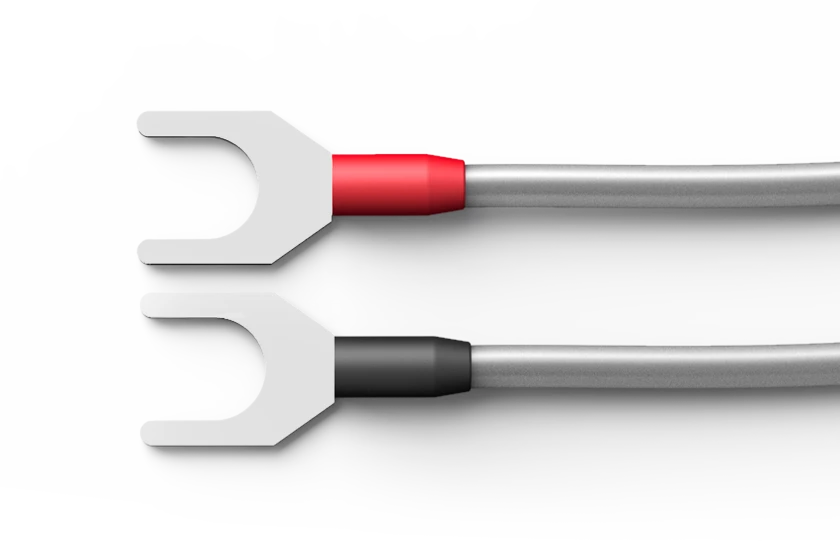

Fast installation
With U-type cable, virtually anyone can mount the device in 5 minutes or less directly on a car battery.

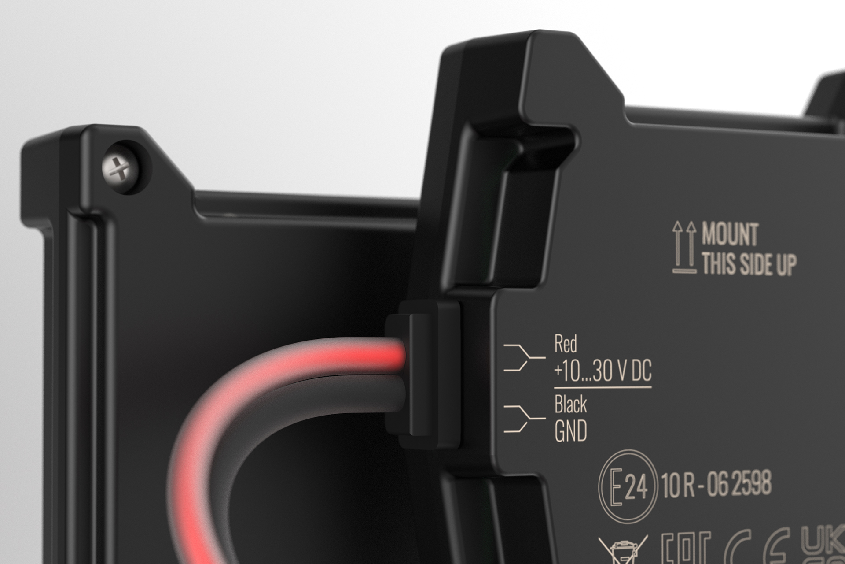

Robust casing
IP65-rated casing is designed to withstand poor weather conditions.
Specifications
Technical Specifications
| Brand | Teltonika |
|---|---|
| MPN | FMC880 |
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE |
| Bands | 4G (LTE-FDD): B1/B3/B7/B8/B20/B28 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Transmit power | Class 5 for GSM850/900: 30±5dBMClass 3 for GSM1800/1900: 29±5dBMClass 3 for LTE-FDD: 26±5dBMBluetooth: 5.54±2dBMBluetooth LE: -4.26±2dBM |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT) |
| GNSS | L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS* , QZSS*L5: GPS, GALILEO, BEIDOU*Optional modes available with custom firmware applications |
| Receiver | L1: 75 acquisition/tracking channelL5: 60 tracking channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 1.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery 3.7 V |
| Internal fuse | 3A, 125V |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 USB Micro B |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Operating temperature (without battery) | -40°C to +85°C |
| Storage temperature (without battery) | -40°C to +85°C |
| Operating temperature (with battery) | 0°C to +40°C |
| Storage temperature (with battery) | -20°C to +45°C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP65 |
| Dimensions | 92.5 x 57.6 x 14 mm (L x W x H) |
| Weight | 63 g |
| Regulatory | E-Mark, RoHS, REACH, RCM, Declaration of IMEI assignment, ICASA, CITC, IMDA |
