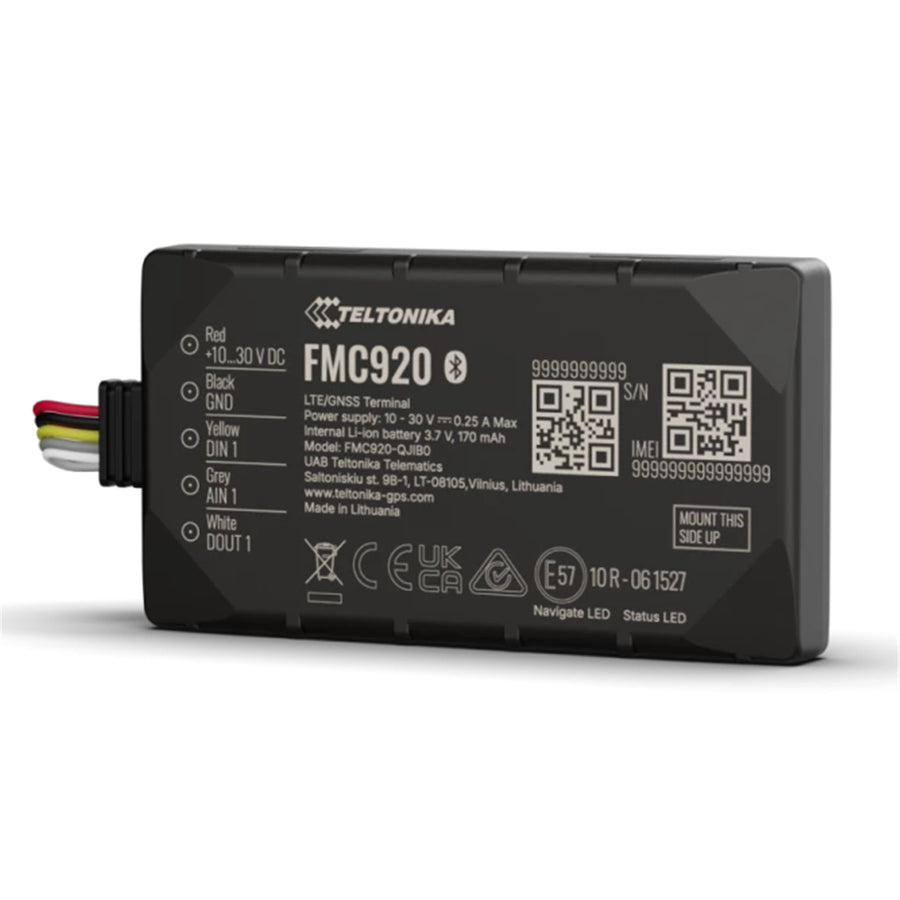

FMC920 - Teltonika FMC920 Compact 4G LTE Cat 1 GPS Tracker

Teltonika

FMC920 - Teltonika FMC920 Compact 4G LTE Cat 1 GPS Tracker

SKU: FMC920 ● In Stock

$135.16

Free shipping over $299 Genuine product 7-day returns

FMC920 - Teltonika FMC920 Compact 4G LTE Cat 1 GPS Tracker

Features

Eco driving scenario for all-round better driving

Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

Slim design to fit the tightest spaces

12 mm-height device can be easily fitted in the tightest spaces

Extensive remote monitoring possibilities

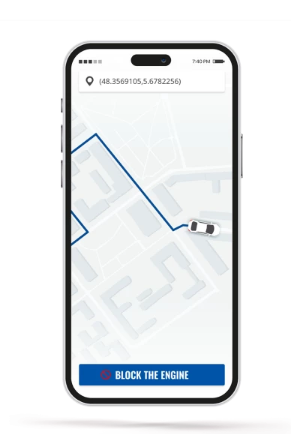

Blocking engine remotely among the numerous available fleet control measures

Extended product usage scenarios

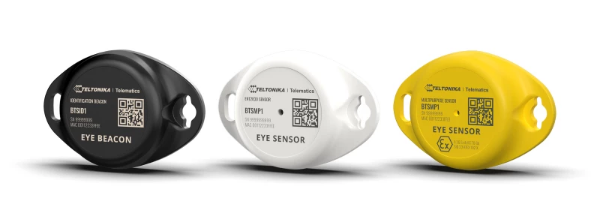

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

Specifications

Technical Specifications

GNSS	GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver	33 tracking channel99 acquisition channel
Tracking sensitivity	-165 dBM
Position Accuracy	< 2.5 m CEP
Velocity Accuracy	< 0.1 m/s (within +/- 15% error)
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s
Technology	LTE Cat 1, GSM
2G bands	FMC920-QJIB0: GSM: B2/B3/B5/B8FMC920-QKIB0: GSM: B2/B3/B5/B8
4G LTE bands	FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66
Data transfer	LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)
Data support	SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
Input voltage range	10 - 30 V DC with overvoltage protection
Internal Back-up battery	170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse	3A, 125V
Power consumption	At 12V < 2 mA (Ultra Deep Sleep)At 12V < 3 mA (Deep Sleep)At 12V < 8mA (Online Deep Sleep)At 12V < 12 mA (GPS Sleep)At 12V < 28 mA (nominal with no load)At 12V < 2 A Max. (with full Load / Peak)
Specification	4.0 + LE
Supported peripherals	EYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner,Unversal Bluetooth® LE beacons and sensors support
Dimensions	79 x 43 x 12 mm (L x W x H)
Weight	54 g
Operating temperature (without battery)	-40 °C to +85 °C
Storage temperature (without battery)	-40 °C to +85 °C
Operating temperature (with battery)	-20 °C to +40 °C
Storage temperature (with battery)	-20 °C to +60 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP54
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	-20 °C to +60 °C
Battery storage temperature	-20 °C to +45 °C for 1 month-20 °C to +35 °C for 6 months
Digital Inputs	1
Digital Outputs	1
Analog Inputs	1
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 Micro-USB
LED indication	2 status LED lights
SIM	Micro-SIM
Memory	128MB internal flash memory
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update	FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS	Configuration, Events, DOUT control, Debug
GPRS commands	Configuration, DOUT control, Debug
Time Synchronization	GNSS, NITZ, NTP
Fuel monitoring	LLS (Analog), OBDII dongle
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
