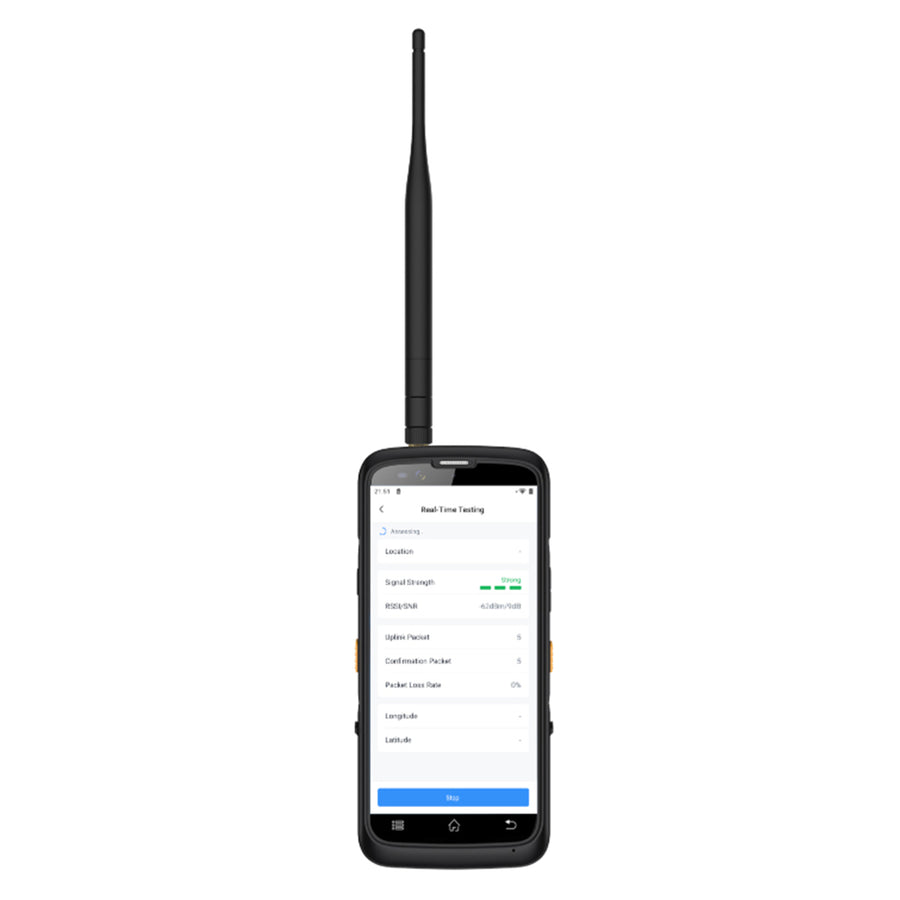

FT101-915M - Milesight FT101 LoRaWAN AU915/AS923 IoT Field Tester
FT101-915M - Milesight FT101 LoRaWAN AU915/AS923 IoT Field Tester
Features
Milesight Field Tester FT101 is a portable LoRaWAN® network testing device. With different kinds of antennas, it can support global LoRaWAN® frequencies to record the signal status and packet loss rate to monitor the network status from field and verify the coverage of different LoRaWAN® gateways, to optimize the best places to deploy LoRaWAN® network devices. Equipped with a 5.72-inch touchscreen display, users are able to operate the signal test procedure and monitor the real-time network status friendly. With a built-in battery and type-C port, it can work for 8 hours and support type-C power bank charge to bring the device everywhere easily.
- Real-Time Network Signal Testing and Analysis
- 5.72 Inch HD Touch Screen
- Full Frequency Band Testing Capability
- Records Signal Test Results with GPS Location
- Seamless Report Export and Data Analysis
- Long-lasting Battery Life
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy device management with Milesight IoT Cloud or the Scopious Network
Specifications
Technical Specifications
| Model | FT101-915M |
|---|---|
| Frequency | AU915 or AS923 switchable |
| Tx Power | 22dBm |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA Class A |
| Screen | 5.72-inch TP LCD Touch Screen |
| Resolution | 1440 x 720 Pixels |
| CPU | Octa-core MTK6762, 2 GHz |
| Memory | 4GB RAM + 64GB ROM |
| Operating System | Android 12 |
| Wi-Fi Standard | 802.11b/g/n 2.4GHz |
| NFC | Support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm |
| Cellular Bands | B1/B3/B5/B7/B8/B20 |
| GNSS | GPS/Glonass/Beidou/Galileo |
| Rear Camera | 13MP, Autofocus with Flashlight |
| Battery Life | Around 8 Hours (Standby Mode: >300h) |
| Battery Size | 4300mAh Lithium-iron Chargeable Battery |
| Operating Temperature | -10°C ~ +50°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Dimension | 178 × 83 × 17 mm |
| Weight | 242g (Without Antenna) |
