FTC921 - Teltonika FTC921 High voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy
FTC921 - Teltonika FTC921 High voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy
Features

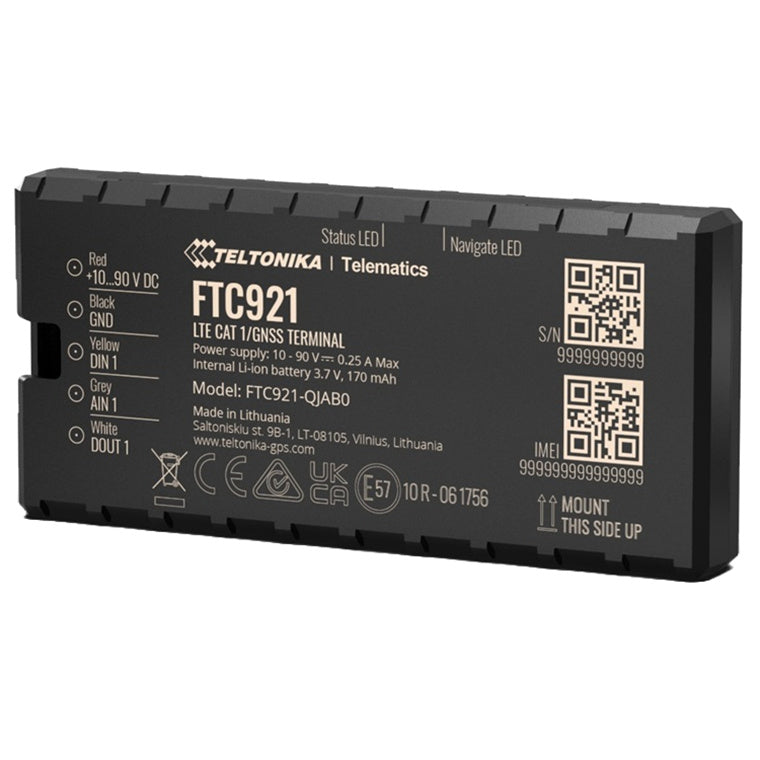

Teltonika FTC921 High voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy
The Fleet Telematics (FT) platform includes both new firmware development standards and a new hardware, providing enhanced tracking accuracy with high GNSS precision, taking the tracking experience to the next level with up to 40 visible satellites, enabling considerably higher tracking quality for location-based services.
The optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage, while high power supply making FTC921 a perfect solution for monitoring andtracking various types of vehicles, including e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles.
FTC921 belongs to the BASIC products family, keeps its compatibility, reliability and endurance. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
All of that brings unquestionable value to numerous market segments and societies, countries' budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation and any location from now!
FT PLATFORM
Fleet Telematics (FT) platform offers advanced firmware and hardware, taking your tracking experience to the next level.
HIGHER GNSS ACCURACY
More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services.
LONGER PERFORMANCE, SLOWER DRAINAGE
Optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage.
HIGH VOLTAGE POWER SUPPLY
Extended integration versatility for seamless use in e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles.
Specifications
Technical Specifications
| Brand | Teltonika |
|---|---|
| MPN | FTC921 |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU |
| Receive type | 135 tracking/acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 1.8 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| 4G LTE bands | LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Transmit power | Class 5 for GSM850/900: 30±5dBMClass 3 for GSM1800/1900: 29±5dBMClass 3 for LTE-FDD: 26±5dBM |
| Data support | SMS (TEXT, PDU), Network protocols (TCP) |
| Codec support | Codec 8 Extended |
| Input voltage range | 10-90 V |
| Internal Back-up battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Internal fuse | 3A, 125V |
| Power consumption | TBAAt 12V < 25 mA (nominal with no load)At 12V < 0.25A Max (with full Load/Peak) |
| Dimensions | 93 x 43 x 12.5 mm (L x W x H) |
| Weight | 65 g |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating temperature (with battery) | 0 °C to +40 °C |
| Storage temperature (with battery) | -20 °C to +60 °C |
| Operating humidity | 65 ± 20% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage conditions | 65 ± 20%RH-10 °C to +50 °C for 1 month-10 °C to +35 °C for 3 months0 °C to +30 °C for 1 year |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 USB Type-C |
| LED indication | 2 status LED lights |
| SIM | Nano-SIM |
| Memory | 128MB internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, Excessive idling detection, Unplug detection, Crash Detection, Auto Geofence, Trip |
| Sleep modes | Deep Sleep, Online Sleep, Power Off Sleep |
| Configuration and firmware update | FOTA WEB, Teltonika Configuration Tool (TCT) |
| SMS | Configuration, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage |
| Regulatory | FTC921-QJAB0: CE/RED, E-Mark, RCM (Planned, not started.), RoHS, REACH, Pulse 5b |
