FTC961 - Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
FTC961 - Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
Features

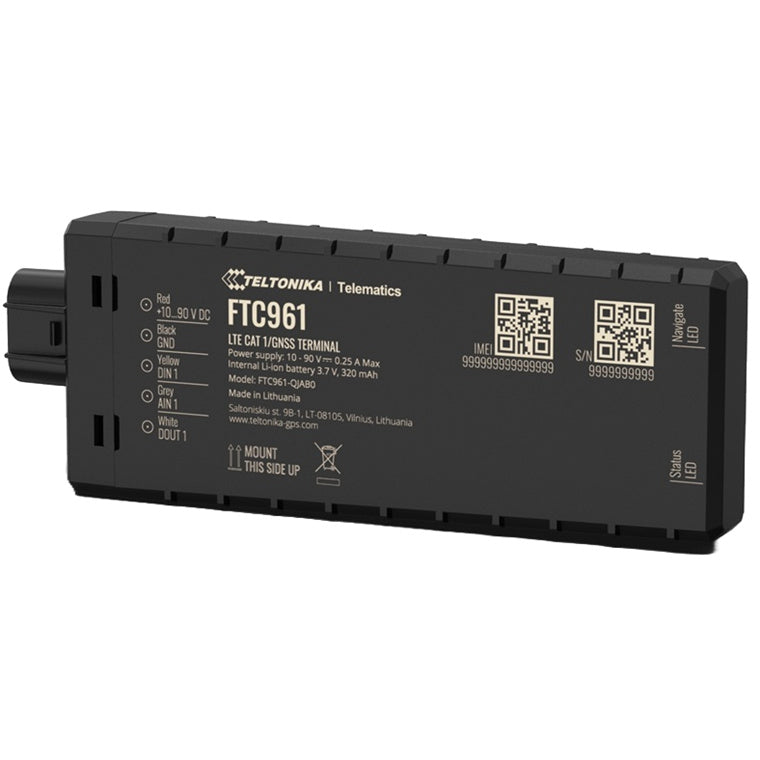

Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
The Fleet Telematics (FT) platform includes both new firmware development standards and a new hardware, providing enhanced tracking accuracy with high GNSS precision, taking the tracking experience to the next level with up to 40 visible satellites, enabling considerably higher tracking quality for location-based services.
The 320mAh battery and optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage, while high power supply making FTC961 a perfect solution for monitoring and tracking various types of vehicles, including e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles.
FTC961 belongs to the BASIC products family, keeps its compatibility, reliability and endurance. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
In addition, IP69K casing ensures ultimate protection against dust, high pressure water, and steam, which brings unquestionable value to numerous market segments and societies, countries' budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation and any location from now!
FT PLATFORM
Fleet Telematics (FT) platform offers advanced firmware and hardware, taking your tracking experience to the next level.
HIGHER GNSS ACCURACY
More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services.
IP69K WATERPROOF CASING
The ultimate protection against dust, high pressure water, and steam.
LONGER PERFORMANCE, SLOWER DRAINAGE
Optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage.
Specifications
Technical Specifications
| Brand | Teltonika |
|---|---|
| MPN | FTC961 |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU |
| Receive type | 135 tracking/acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 1.8 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Cold start | < 35 s |
| Warm start | < 25 s |
| Hot start | < 1 s |
| 4G LTE bands | LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Transmit power | Class 5 for GSM850/900: 30±5dBMClass 3 for GSM1800/1900: 29±5dBMClass 3 for LTE-FDD: 26±5dBM |
| Data support | SMS (TEXT, PDU), Network protocols (TCP) |
| Codec support | Codec 8 Extended |
| Input voltage range | 10-90 V |
| Internal Back-up battery | 320 mAh Li-Ion battery, 3.7 V (1.18 Wh) |
| Internal fuse | 3A, 125V |
| Power consumption | TBA |
| Dimensions | 118 x 48 x 18.5 mm (L x W x H) |
| Weight | 118 g |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Storage temperature (with battery) | -20 °C to +60 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP69K |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage conditions | 65 ± 20%RH-20 °C to +25 °C for less than 1 month0 °C to +30 °C for less than 3 months+21 °C to +25 °C for less than 6 months |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 USB Type-C |
| LED indication | 2 status LED lights |
| SIM | Nano-SIM |
| Memory | 128MB internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, Excessive idling detection, Unplug detection, Crash Detection, Auto Geofence, Trip |
| Sleep modes | Deep Sleep, Online Sleep, Power Off Sleep |
| Configuration and firmware update | FOTA WEB, Teltonika Configuration Tool (TCT) |
| SMS | Configuration, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage |
