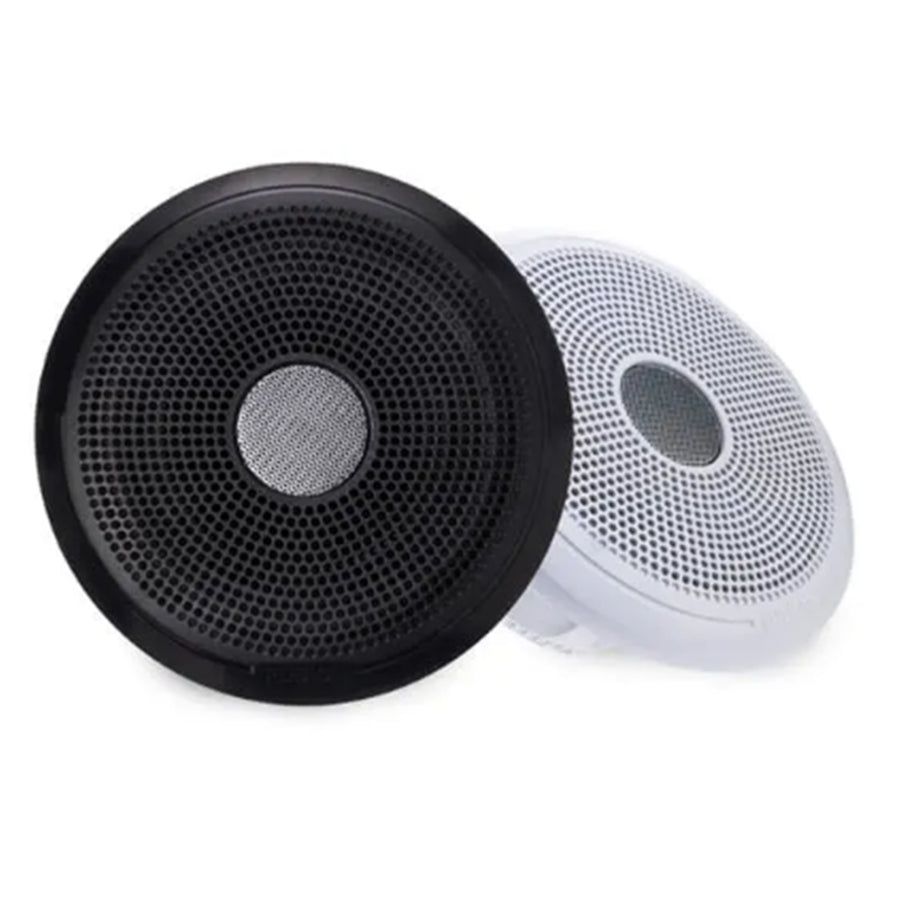

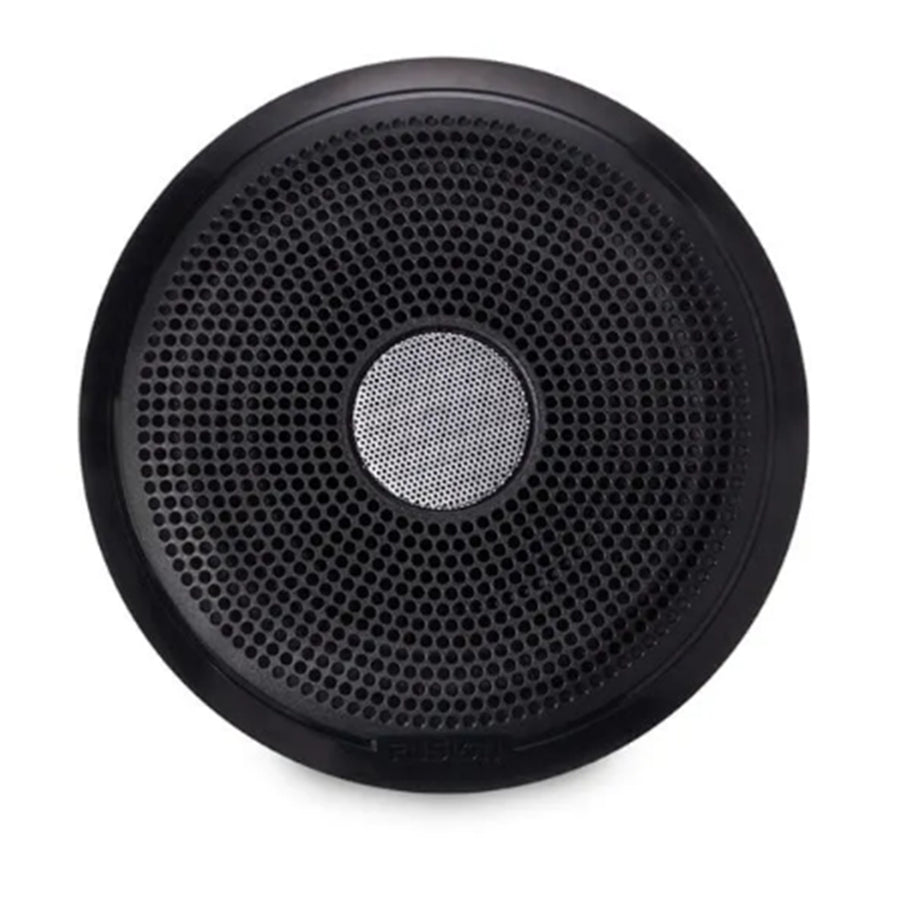

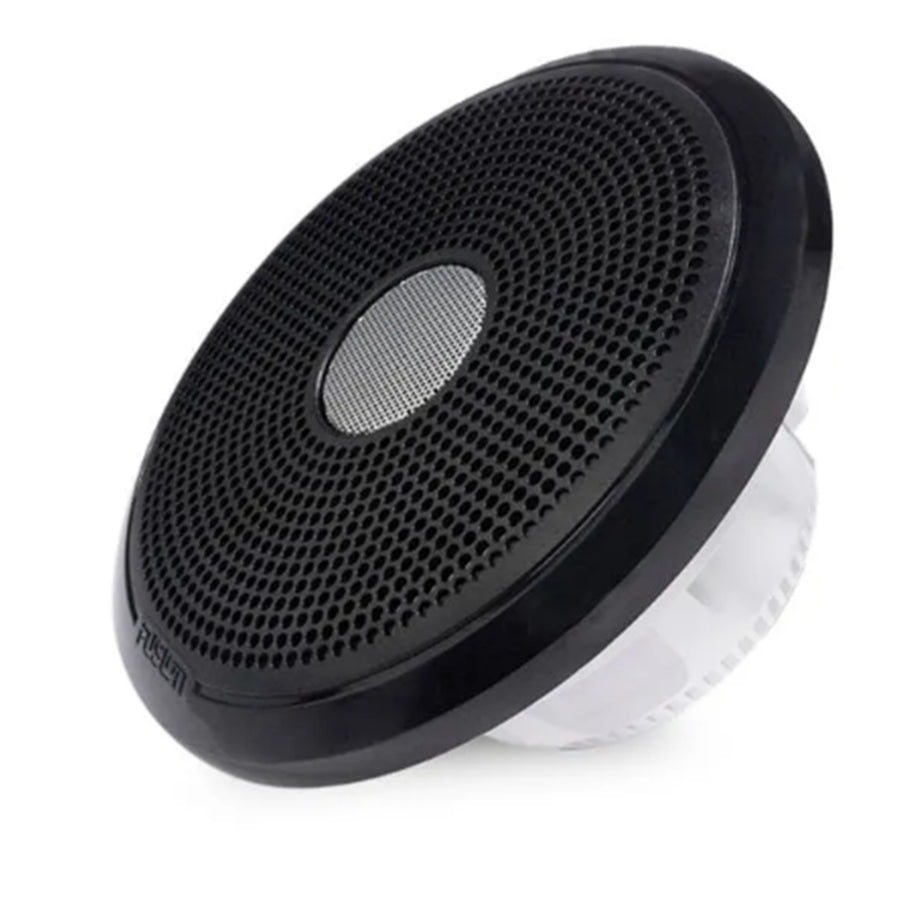

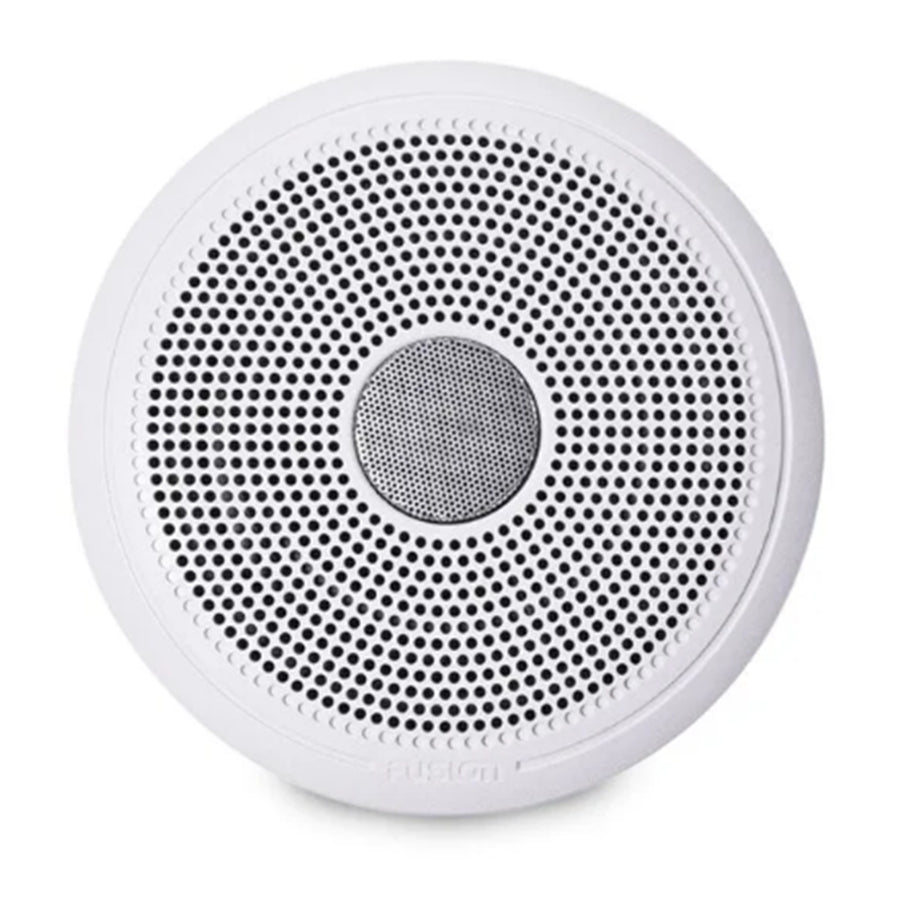

010-02196-00 - FUSION 6.5" MARINE SPEAKERS 200W PAIR XS SERIES CLASSIC WHITE/BLACK
Features
EXPERIENCE SOUND AND COLOUR
Enjoy high-performance acoustics, enhanced protection from the environment and multi-colour RGB LED lighting1 all at a mid-range price point with the XS Series speakers from Fusion.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built to the highest industry standards for quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.
Specifications
Technical Specifications
| Physical dimensions (Diameter x Depth) | 7.7" Classic: 7.72" x 3.70" (196 x 94 mm)7.7" Sports: 7.72" x 3.82" (196 x 97 mm)6.5" Classic: 6.97" x 3.19" (177 x 81 mm)6.5" Sports: 6.97" x 3.27" (177 x 83 mm)4" Classic: 5.31" x 2.68" (135 x 68 mm) |
|---|---|
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | XS-F77CWB / XS-FL77SPGW: 7.7"XS-F65CWB / XS-FL65SPGW: 6.5"XS-F40CWB: 4" |
| Peak power (Watts) | 7.7" Speaker: 240 W6.5" Speaker: 200 W4" Speaker: 120 W |
| RMS power (Watts) | 7.7" Speaker: 60 W6.5" Speaker: 50 W4" Speaker: 30 W |
| Sensitivity (1 W / 1 m) | 7.7" Speaker: 92 dB6.5" Speaker: 91 dB4" Speaker: 87 dB |
| Frequency response | 7.7" Speaker: 70 Hz-18 kHz6.5" Speaker: 80 Hz-18 kHz4" Speaker: 100 Hz-18 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 7.7" Speaker: 25-200 W/Ch6.5" Speaker: 20-150 W/Ch4" Speaker: 15-80 W/Ch |
| LED lighting | Yes (RGB; sports-style only) |
| LED supply voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 14.4 VDC | 150 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 7.7": 1.18"6.5": 1.18"4": 1" |
| Operating temperature range | 7.7" / 6.5": Polypropylene cone with cloth surround4": Polypropylene cone with rubber surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 7.7": 157.5" (400 cm)6.5": 122" (310 cm)4": 100.5" (255 cm) |
| Mounting diameter clearance | 7.7": 6.38" (162 mm)6.5": 5.31" (135 mm)4": 3.90" (99 mm) |
| Mounting depth clearance | 7.7": 3.03" (77 mm)6.5": 2.64" (67 mm)4": 2.13" (54 mm) |
| Brand | FUSION |
|---|---|
| Product Type | Mobile & Wearables > Car Electronics |
| Weight | 1.01 kg |
