FUSION

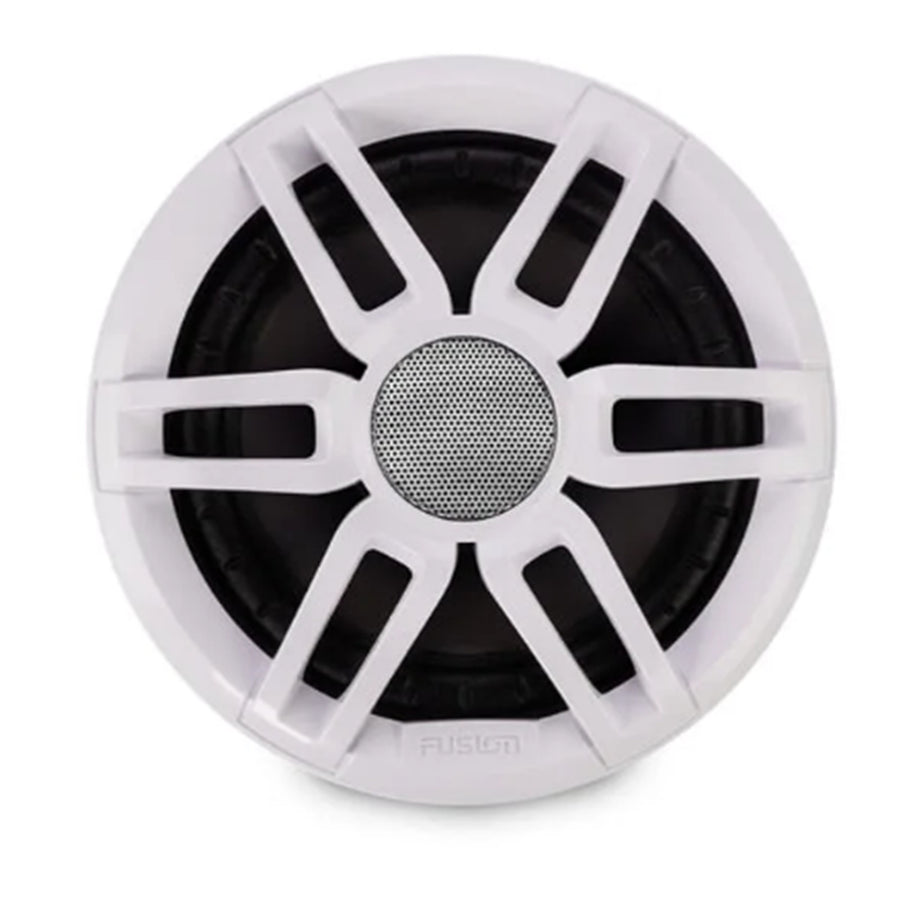

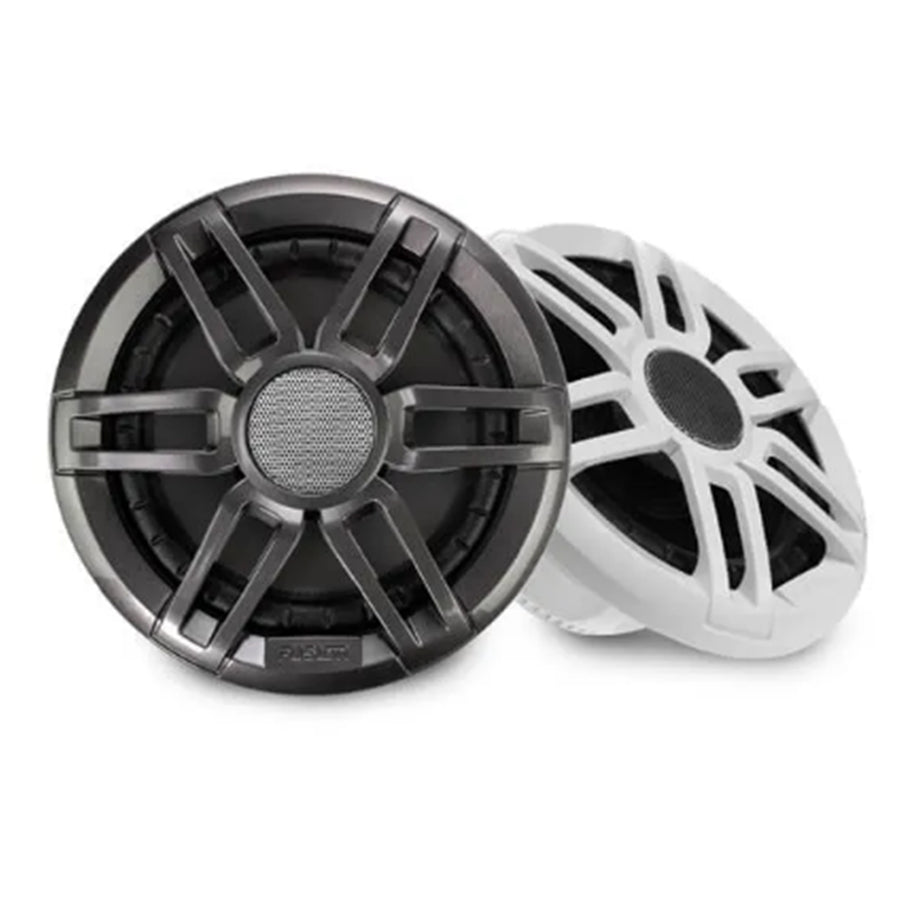

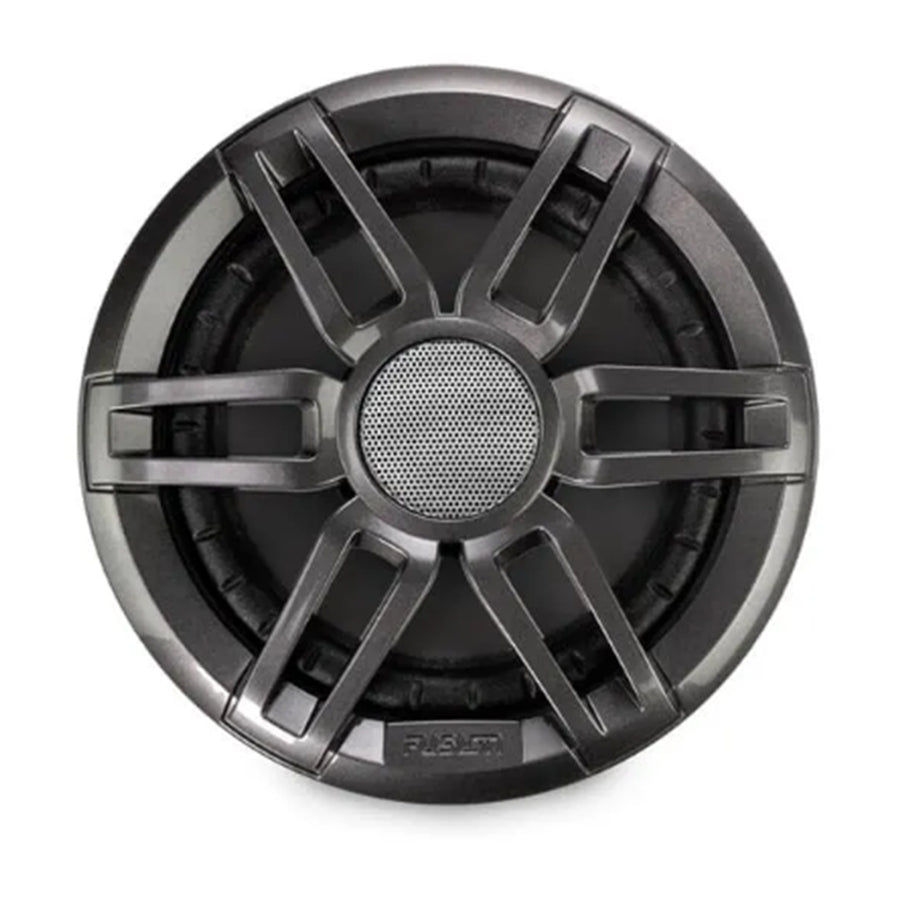

FUSION 6.5" MARINE SPEAPERS 200W PAIR XS SERIES INCLUDES SPORTS GRILL XS-F65SPGW

SKU: 010-02196-01 ● In Stock
$255.14
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

FUSION 6.5" MARINE SPEAPERS 200W PAIR XS SERIES INCLUDES SPORTS GRILL XS-F65SPGW

Specifications

Technical Specifications

Physical dimensions (Diameter x Depth) 7.7" Classic: 7.72" x 3.70" (196 x 94 mm) 7.7" Sports: 7.72" x 3.82" (196 x 97 mm) 6.5" Classic: 6.97" x 3.19" (177 x 81 mm) 6.5" Sports: 6.97" x 3.27" (177 x 83 mm) 4" Classic: 5.
Water and dust rating IP65
Configuration Coaxial
Speaker size XS-F77CWB / XS-FL77SPGW: 7.7" XS-F65CWB / XS-FL65SPGW: 6.5" XS-F40CWB: 4"
Peak power (Watts) 7.7" Speaker: 240 W 6.5" Speaker: 200 W 4" Speaker: 120 W
RMS power (Watts) 7.7" Speaker: 60 W 6.5" Speaker: 50 W 4" Speaker: 30 W
Sensitivity (1 W / 1 m) 7.7" Speaker: 92 dB 6.5" Speaker: 91 dB 4" Speaker: 87 dB
Frequency response 7.7" Speaker: 70 Hz-18 kHz 6.5" Speaker: 80 Hz-18 kHz 4" Speaker: 100 Hz-18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 7.7" Speaker: 25-200 W/Ch 6.5" Speaker: 20-150 W/Ch 4" Speaker: 15-80 W/Ch
LED lighting Yes (RGB; sports-style only)
LED supply voltage 10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC 150 mA (sports-style only)
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 7.7": 1.18" 6.5": 1.18" 4": 1"
Operating temperature range 7.7" / 6.5": Polypropylene cone with cloth surround 4": Polypropylene cone with rubber surround
Tweeter type Aluminum dome
Compass-safe distance 7.7": 157.5" (400 cm) 6.5": 122" (310 cm) 4": 100.5" (255 cm)
Mounting diameter clearance 7.7": 6.38" (162 mm) 6.5": 5.31" (135 mm) 4": 3.90" (99 mm)
Mounting depth clearance 7.7": 3.03" (77 mm) 6.5": 2.64" (67 mm) 4": 2.13" (54 mm)
Sealed enclosure volume 7.7": 0.35 cubic ft (10 L) 6.5": 0.28 cubic ft (8 L) 4": 0.14 cubic ft (4 L)
Warranty 12 months
