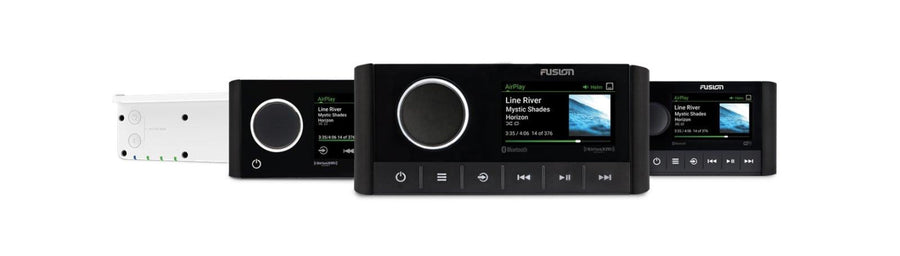

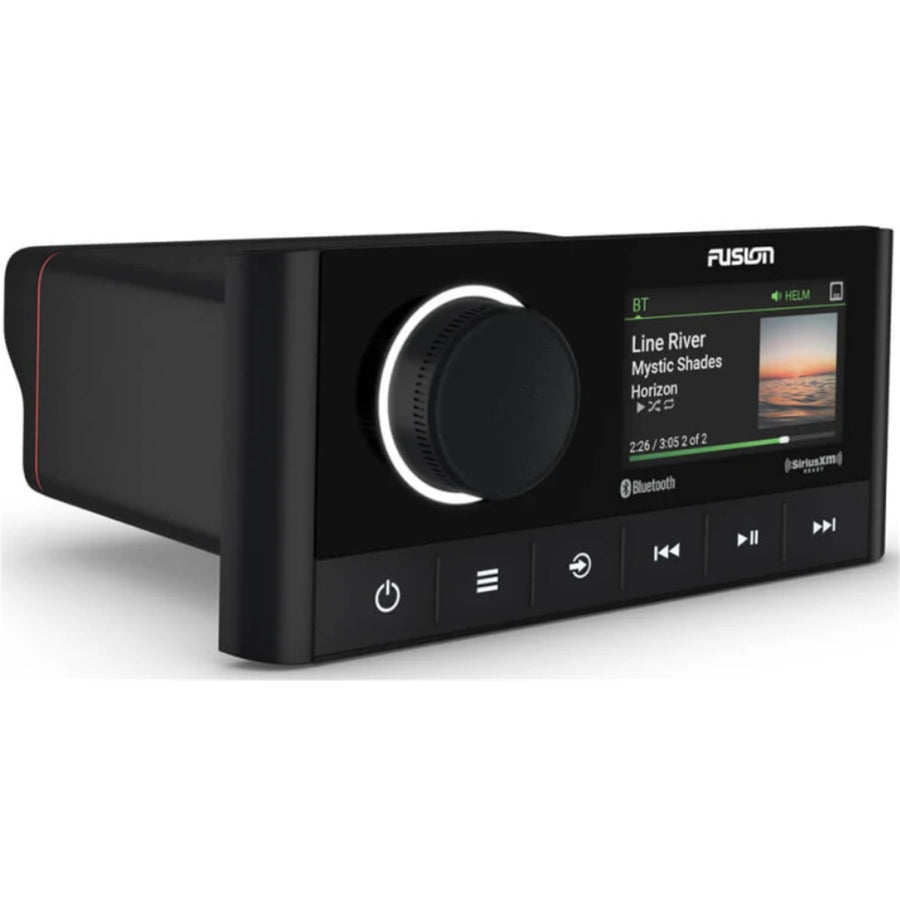

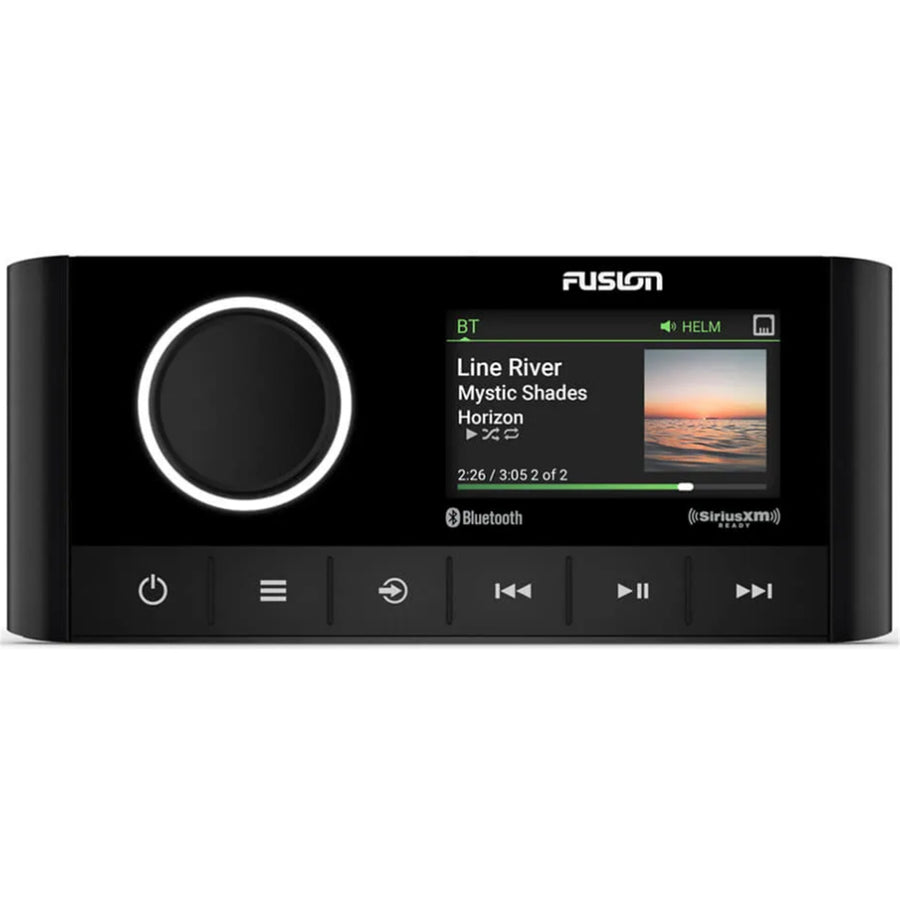

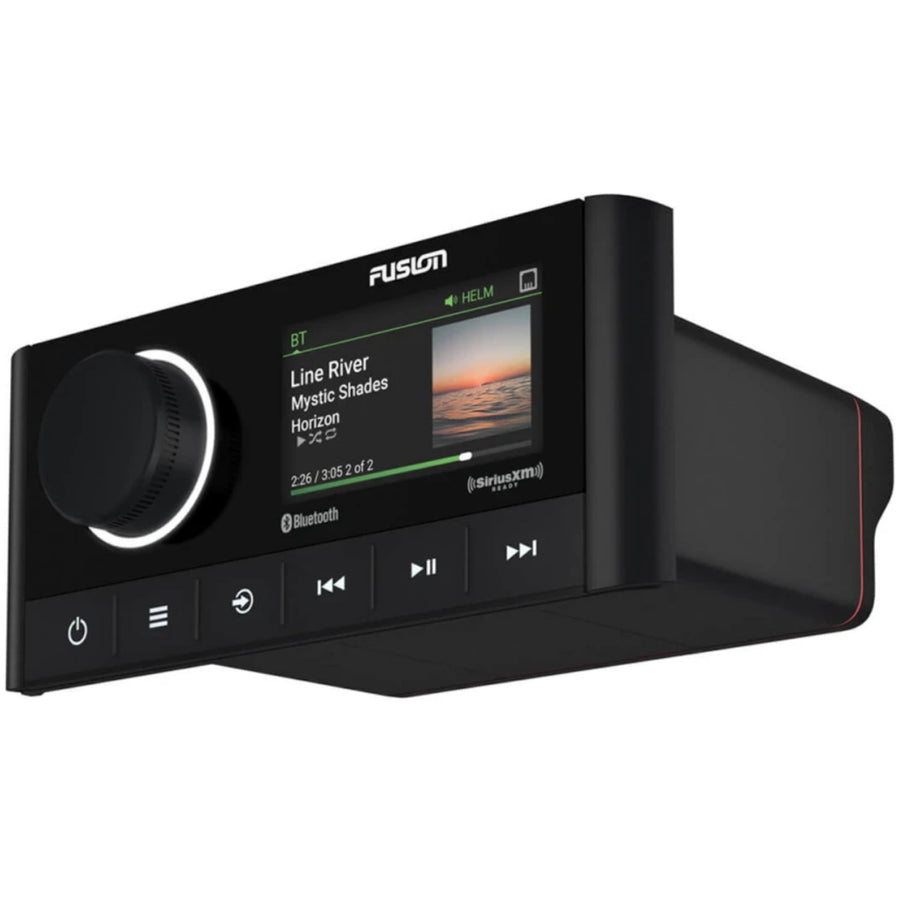

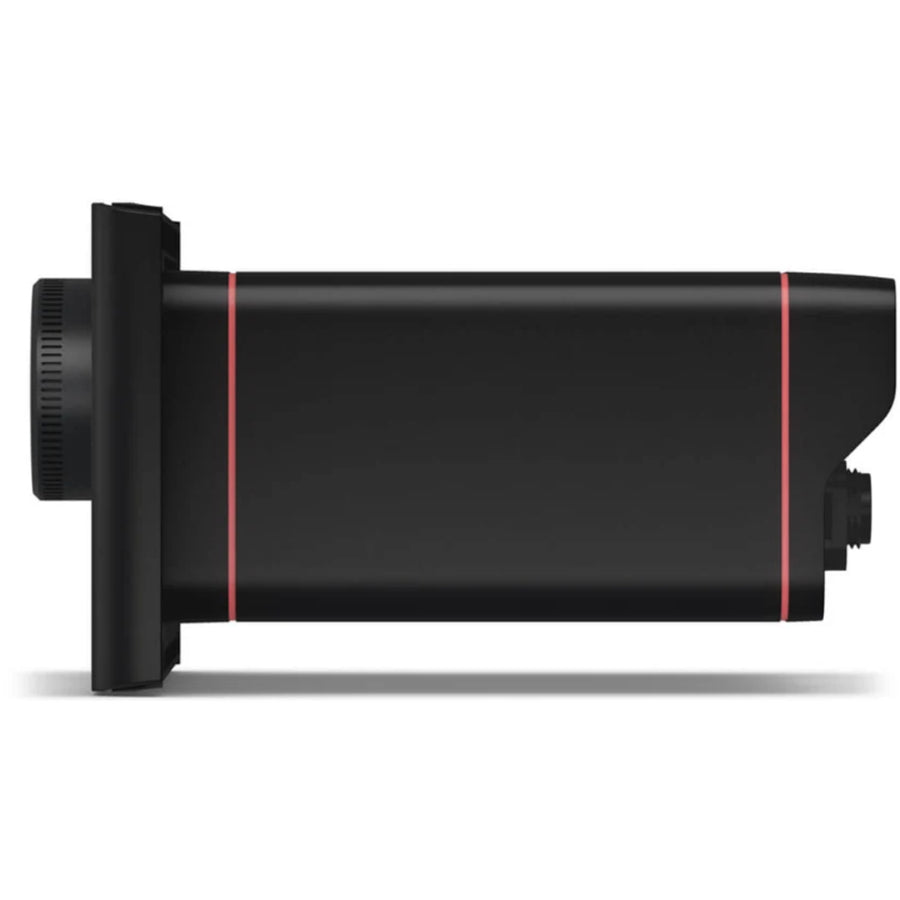

010-02138-00 - FUSION APOLLO RA670 MARINE ENTERTAINMENT SYSTEM WITH DSP
Features
AWARD-WINNING INNOVATION REEMBODIED
The Apollo RA670 marine stereo inherits key audio innovations and revolutionary technology from the award-winning Apollo RA770, reimagined in a compact form factor.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Apollo RA670 stereo has an IPX6 and IPX7 rated water-resistant front panel and has been tested to a high level of protection against salt, fog, temperature, vibration and UV.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
STEREO GROUPING

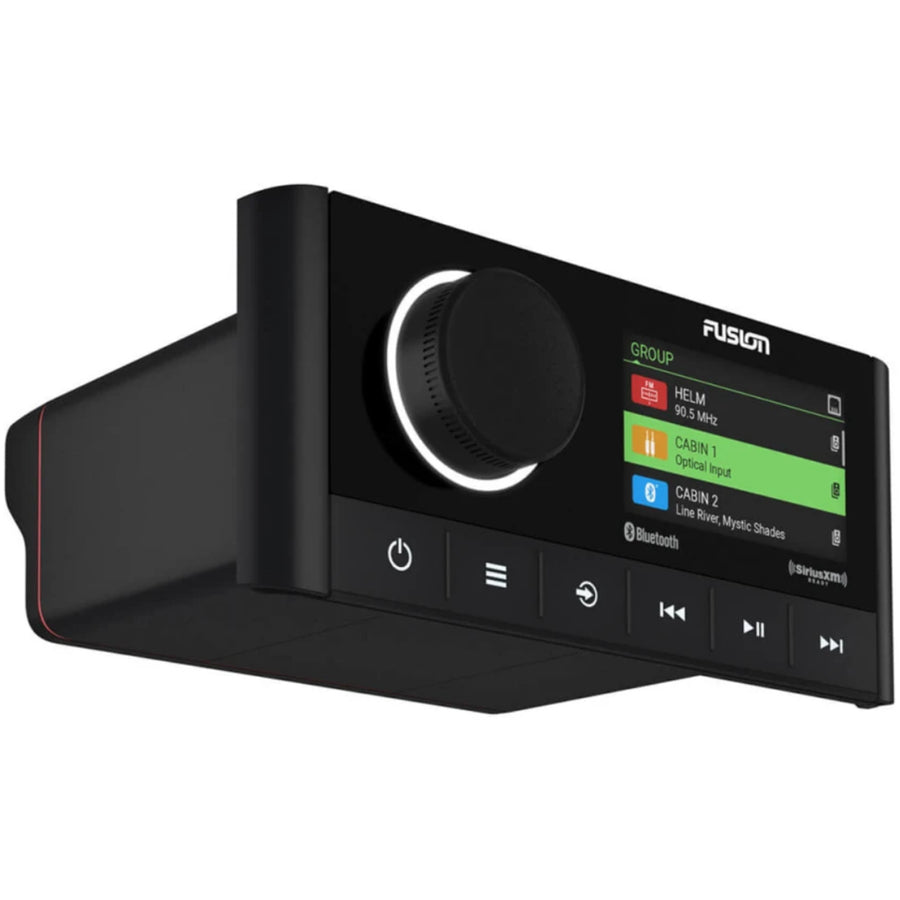

Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronised across all stereos.
VOLUME CONTROL
Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.
POWER OPTIONS
Power options allow you to turn on any connected Apollo Series stereo in standby mode on the Fusion PartyBus-Network remotely from another Apollo Series stereo.
HOME ZONE
Home Zone is the physical zone onboard your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.
Specifications
Technical Specifications
| Physical dimensions Stereo dimensions (H x W x D) | 68 x 157 x 123 mm |
|---|---|
| Weight | 750 g |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 0° to 50° C |
| Current (max.) | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | 10 metres |
| ANT wireless range | 3 metres |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +13.29 dBm nominalANT 2.4 GHz @ +6.92 dBm nominal |
| Compass-safe distance | 200 mm |
| Display | 2.7-inch optically bonded colour LCD |
| Built-in amplifier | Class-D (2 Ohm stereo-stable) |
| Peak power | 280 W |
| Rated power output (2 Ohm) | 43 W rms x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | Yes (with preconfigured DSP profiles) |
| PartyBus™-Network capabilities | Yes (wired) |
| Fusion-Link™ control | Yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 3 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| SiriusXM-ready | Yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | Yes (requires DAB100A antenna module) |
| Optical audio input | Yes |
| NRX remote compatibility | Yes |
| Software updates | Over-the-air software updates via the Fusion-Link app*, USB |
| Sources | AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| Optical audio input | One digital optical input (SPDIF) port |
| Ethernet | One Ethernet port |
| NMEA 2000 | One NMEA 2000 port |
| USB 2.0 | One USB 2.0 port |
| SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 3 zones (requires external amplification) |
| Line out | 3 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
| Brand | FUSION |
|---|---|
| Product Type | Mobile & Wearables > Car Electronics |
| Weight | 1.57 kg |
| Warranty |
|---|
