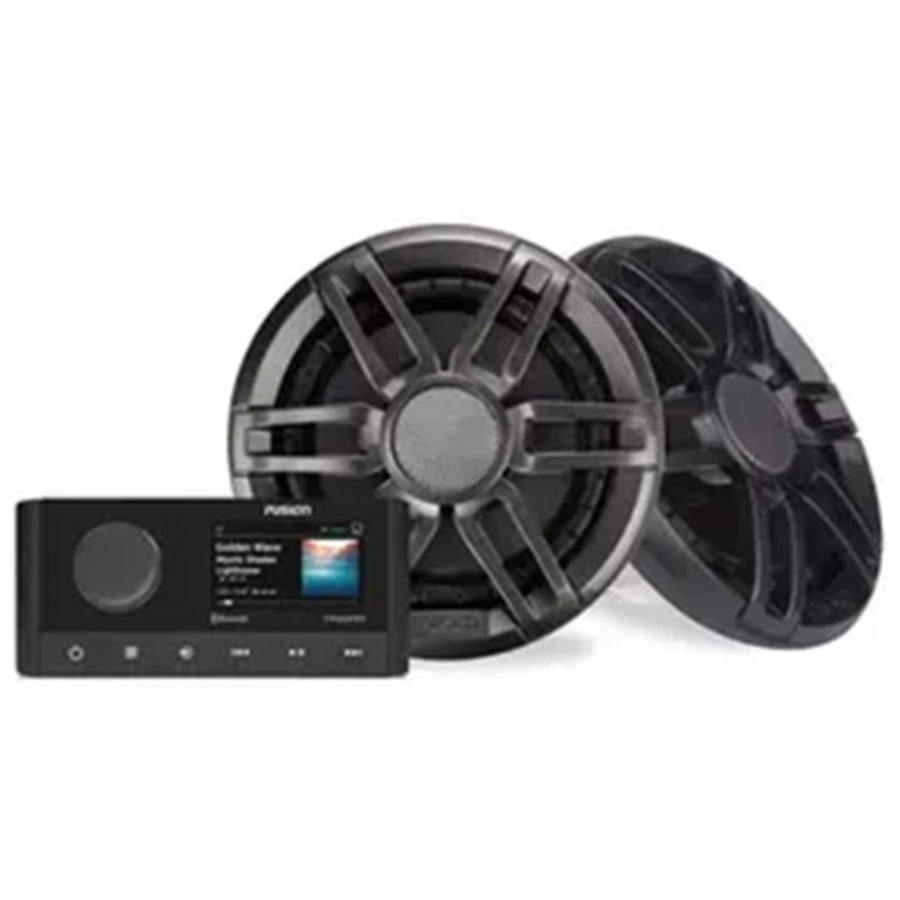

010-02250-60 - FUSION MARINE STEREO KIT MS-RA210 WITH XS SPORTS SPEAKERS
Features
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA210 marine stereo and speaker kit will put the perfect soundtrack at your fingertips.
- Enjoy your music ASAP. Your marine stereo and both speakers come ready to install
- Easily control music from your compatible Garmin MFD1, smart device or Garmin watch
- Built-in Class D amplifier brings aboard higher efficiency and greater output
- Multi-Zone™ Technology makes you the captain of two separate audio zones
- Conveniently update software via Bluetooth® technology2 from the Fusion-Link™ app on your compatible smart device
- Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers
Specifications
Technical Specifications
| Physical dimensions (HxWxD) | MS-RA60: 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)MS-RA210: 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm) |
|---|---|
| Weight | MS-RA60: 11.1 oz (316 g)MS-RA210: 12.4 oz (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Current (max.) | 15 A |
| NMEA 2000® LEN | MS-RA210: 1 (50 mA) |
| Bluetooth® wireless range | Up to 30 ft (10 metres) |
| ANT wireless range | Up to 10 ft (3 metres) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal |
| Compass-safe distance | 5.9" (150 mm) |
| Display | MS-RA60: 2.3" perimeter bonded monochrome dot matrix LCDMS-RA210: 2.7" optically bonded colour LCD |
| Built-in amplifier | Class-D (minimum 4 Ohm impedance) |
| Peak power | MS-RA210: 200 WMS-RA60: 180 W |
| Built-in Digital Signal Processing | MS-RA210: Yes (with preconfigured DSP profiles)Fusion-Link™ controlMS-RA60: Yes (with smartphone and Garmin watch)MS-RA210: Yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| SiriusXM-ready | MS-RA210: Yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | MS-RA60: Yes (DAB tuner built in)MS-RA210: Yes (requires DAB100A antenna module) |
| NRX remote compatibility | MS-RA210: Yes |
| Sources | MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | MS-RA210: 1 port |
| USB 2.0 | MS-RA210: 1 port |
| SiriusXM satellite radio | MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Physical dimensions (HxWxD) | EL Speaker: 6.93" x 2.32" (176 x 59 mm)XS Classic Speaker: 6.97" x 3.19" (177 x 81 mm)XS Sports Speaker: 6.97" x 3.27" (177 x 83 mm) |
| Peak power (Watts) | EL Speaker: 80 WXS Speaker: 200 W |
| RMS power (Watts) | EL Speaker: 20 WXS Speaker: 50 W |
| Brand | FUSION |
|---|---|
| Product Type | Mobile & Wearables > Car Electronics |
| Weight | 1.01 kg |
