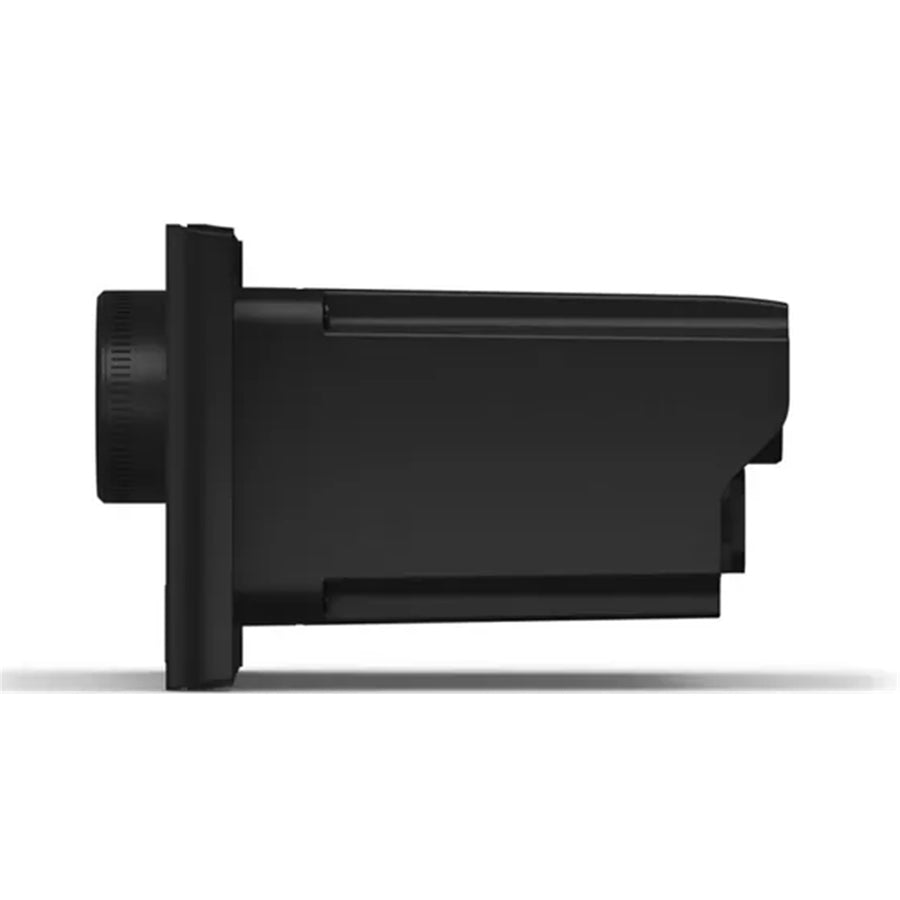

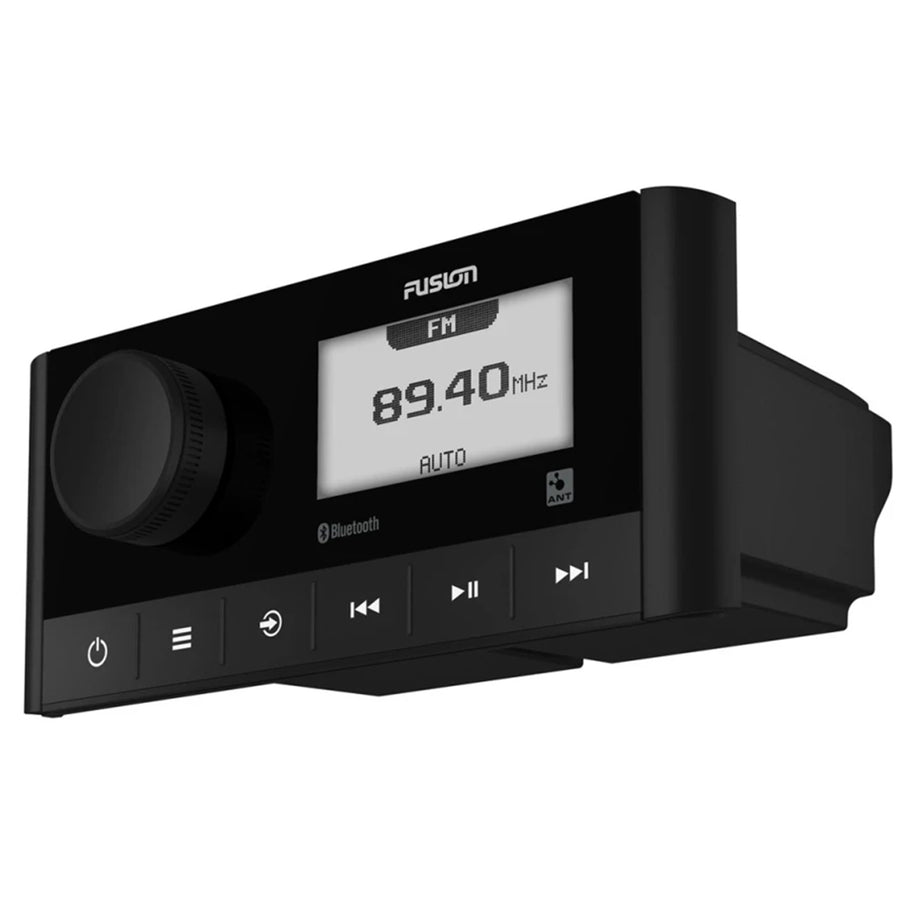

010-02405-51 - FUSION MARINE STEREO KIT MS-RA60 WITH EL CLASSIC WHITE SPEAKERS
Features
EVERYTHING YOU NEED TO AMPLIFY THE MOMENT

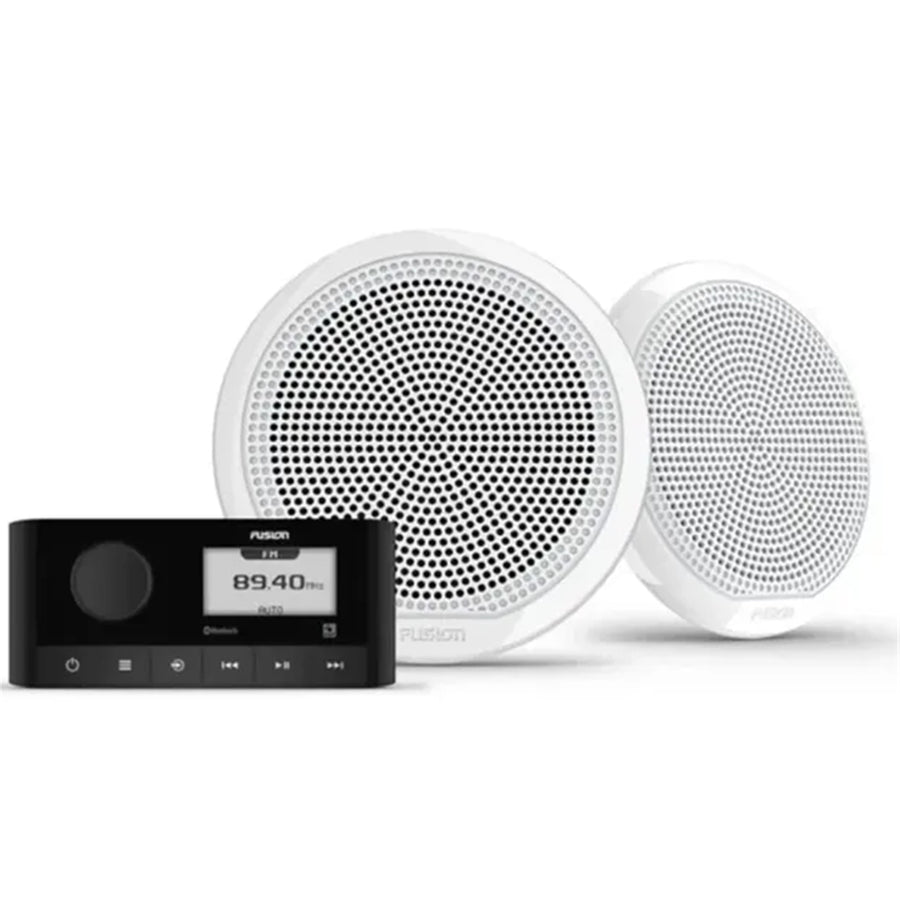

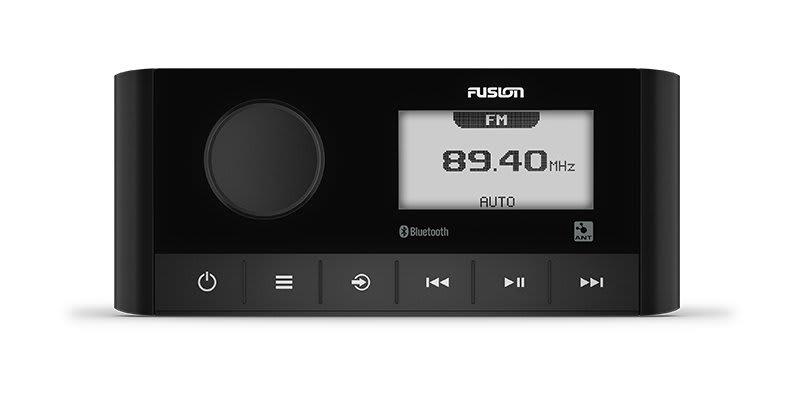

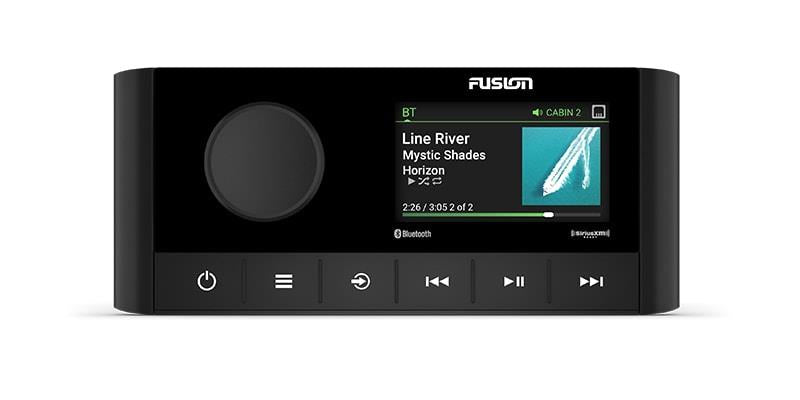

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit or MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD[1], smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology[2] from the Fusion® Audio app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
World-class stereos optimise your audio.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.

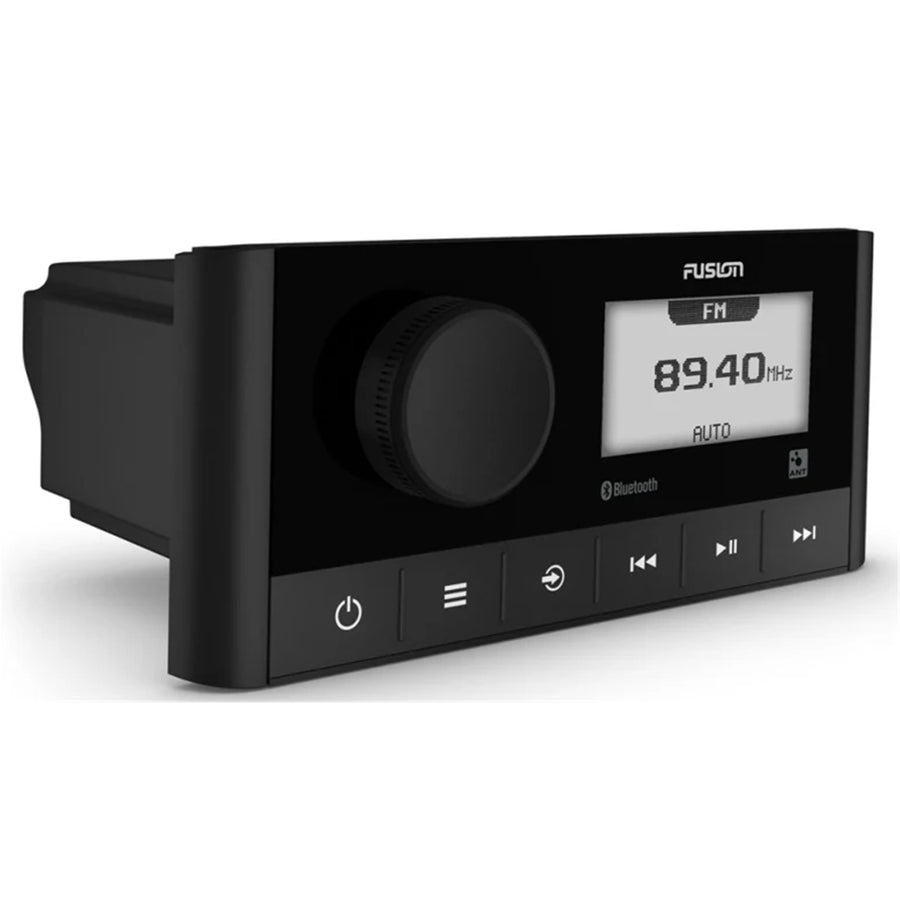

MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

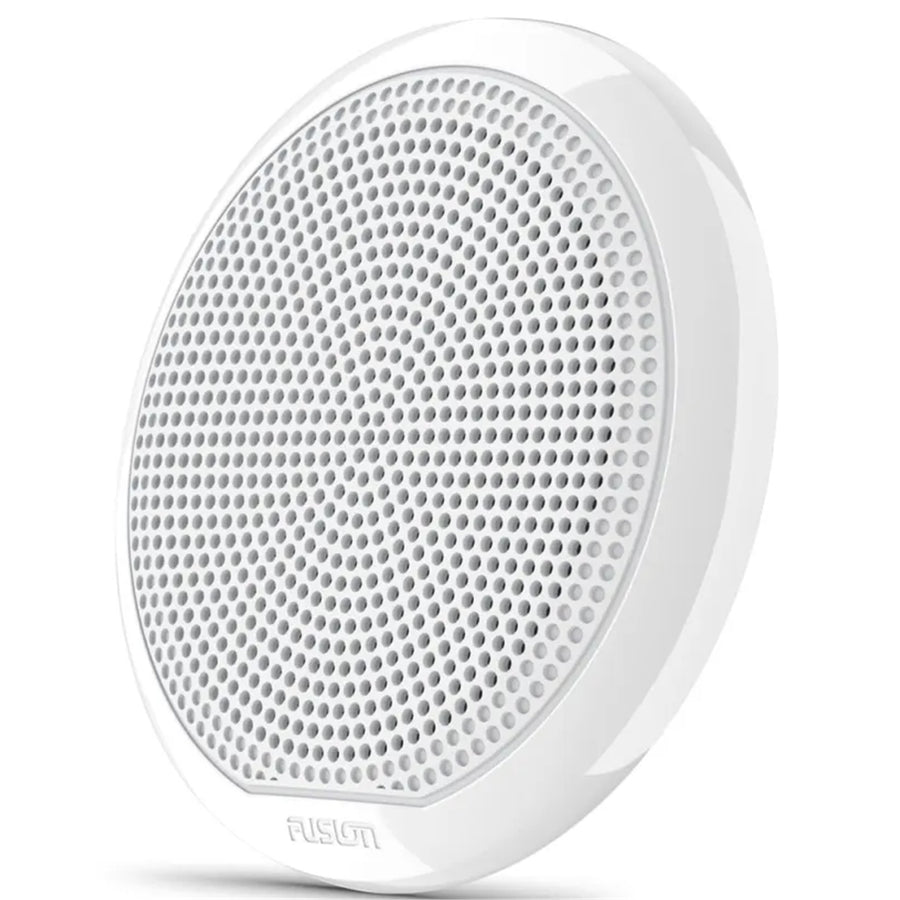

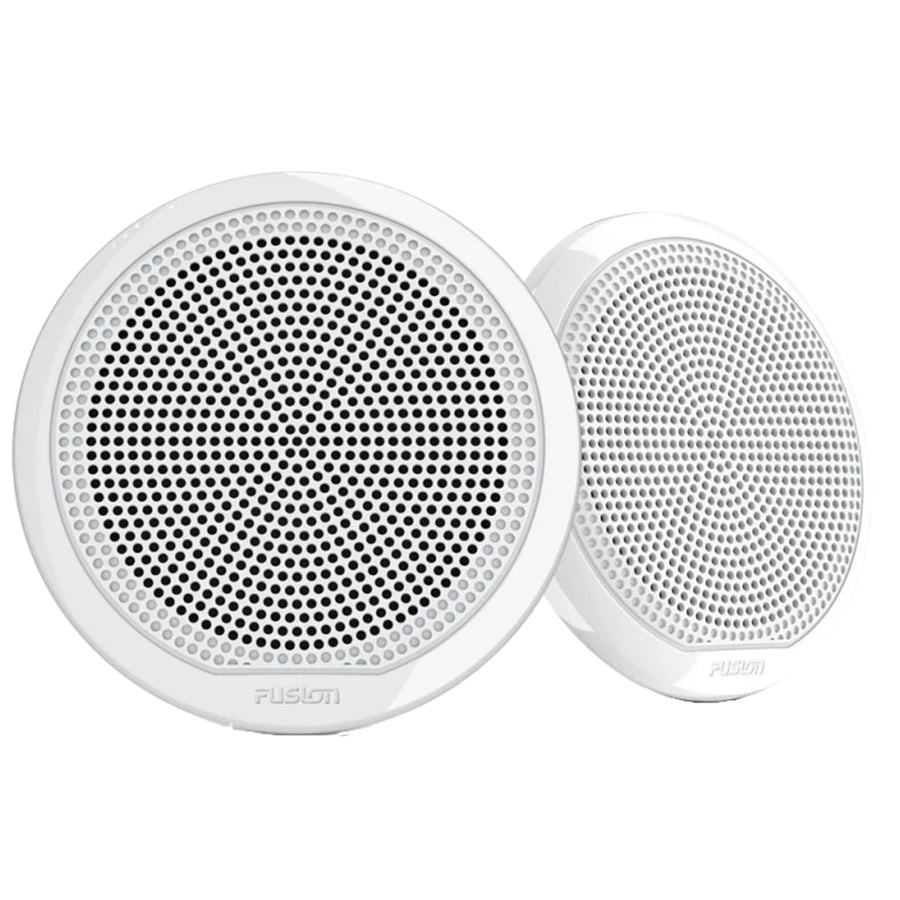

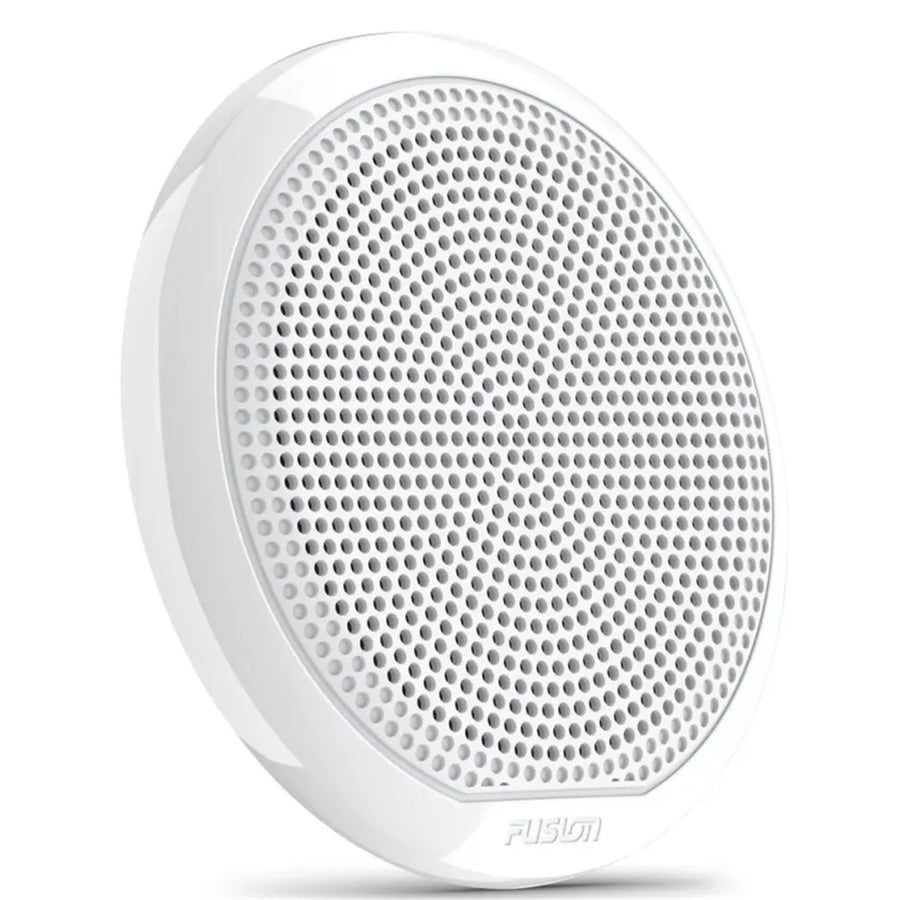

6.5" Fusion speakers produce quality sound on the water.
[1]Only compatible with MS-RA210.
[2]Only compatible with MS-RA60.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
Specifications
Technical Specifications
| Physical dimensions (HxWxD) | 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm) |
|---|---|
| Weight | 11.1 oz (316 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| BLUETOOTH® wireless range | Up to 30 ft (10 meters) |
| ANT wireless range | Up to 10 ft (3 meters) |
| Wireless frequencies/protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominalANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9" (150 mm) |
| Display | 2.3" perimeter bonded monochrome dot matrix LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | 180W |
| Rated power output (4 ohm) | 22 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | yes (with smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| DAB+ ready | yes (DAB tuner built in) |
| Multi-language interface | Dutch, English, French, German, Italian, Spanish |
| Sources | AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia |
| Auxiliary input | One RCA input (AUX) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 1 zone (requires external amplification) |
| Line out | Zone 1 (L + R, requires external amplification) |
| Subwoofer out | Zone 1 (requires external amplification) |
| Physical dimensions (Diameter x Depth) | EL Classic Speaker: 6.93" x 2.26" (176 x 57.5 mm) |
| Water rating | IP65 |
| Configuration | Full range |
| Speaker size | 6.5" |
| Peak power (watts) | 80 W |
| RMS Power (watts) | 20 W |
| Sensitivity (1 watt/1 meter) | 88 dB |
| Frequency response | 45 Hz-16 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (RMS) | 20-40 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 0.79" |
| Cone material | Polypropylene cone with cloth surround |
| Compass-safe distance | 100" (254 cm) |
| Mounting diameter clearance | 5.12" (130 mm) |
| Mounting depth clearance | 1.69" (43 mm) |
| Brand | FUSION |
|---|---|
| Product Type | Headphones & Audio > Speakers |
| Weight | 1.0 kg |
