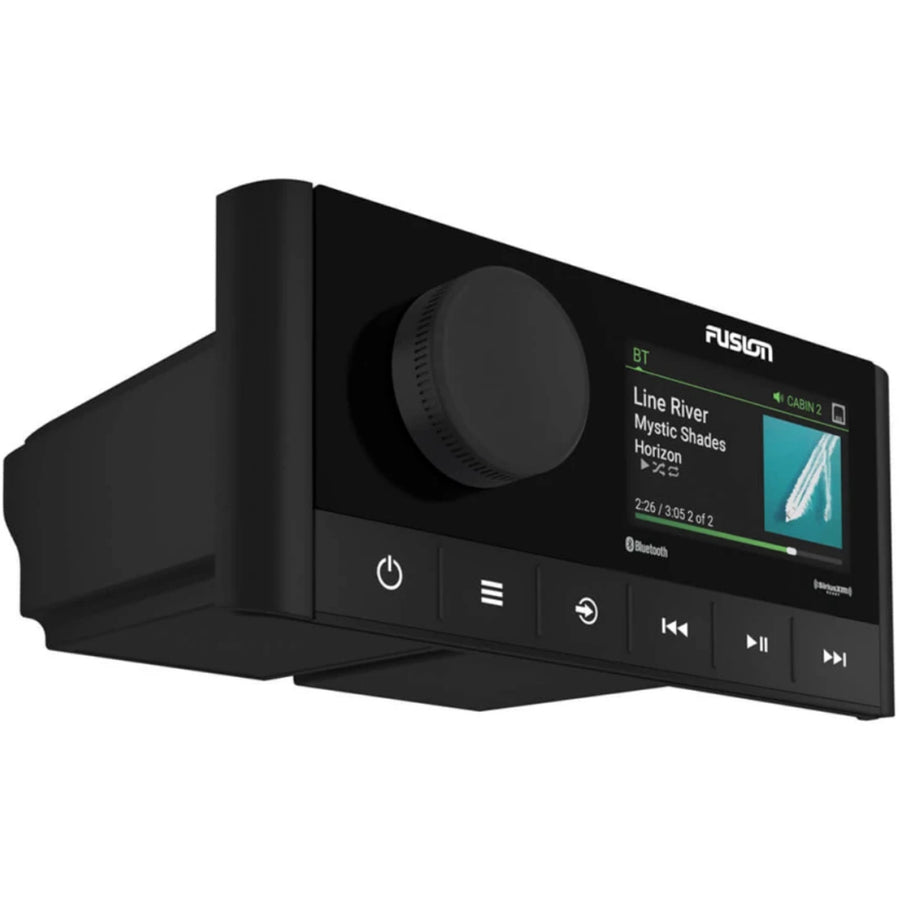

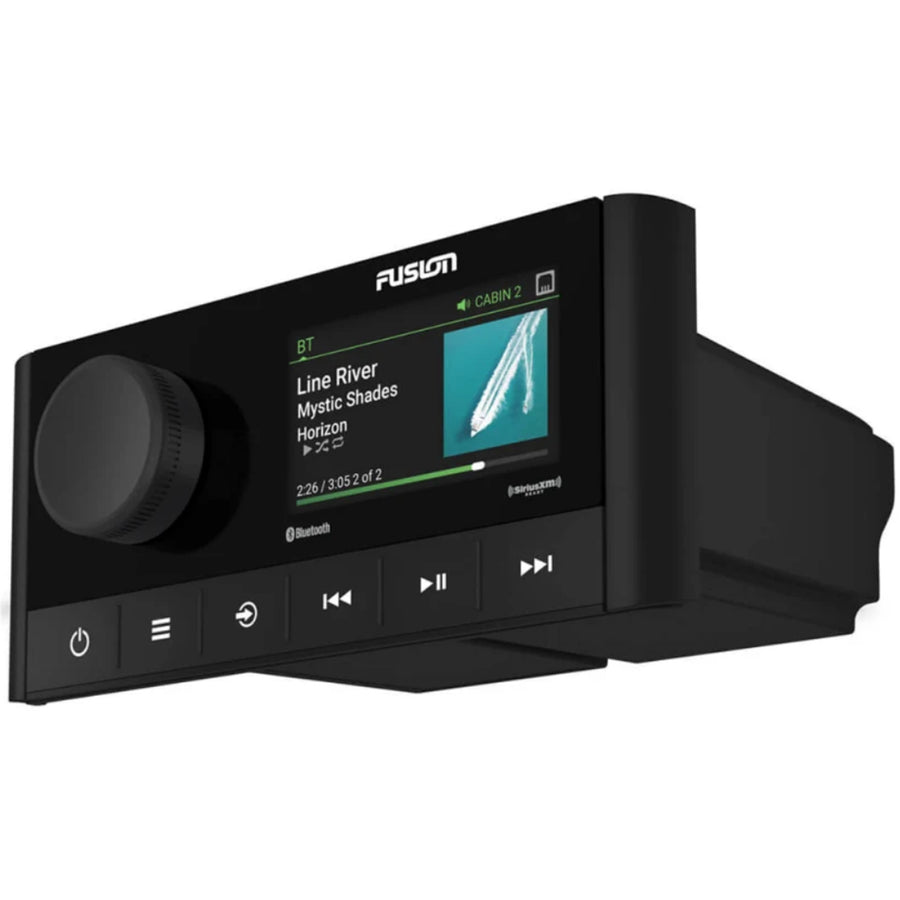

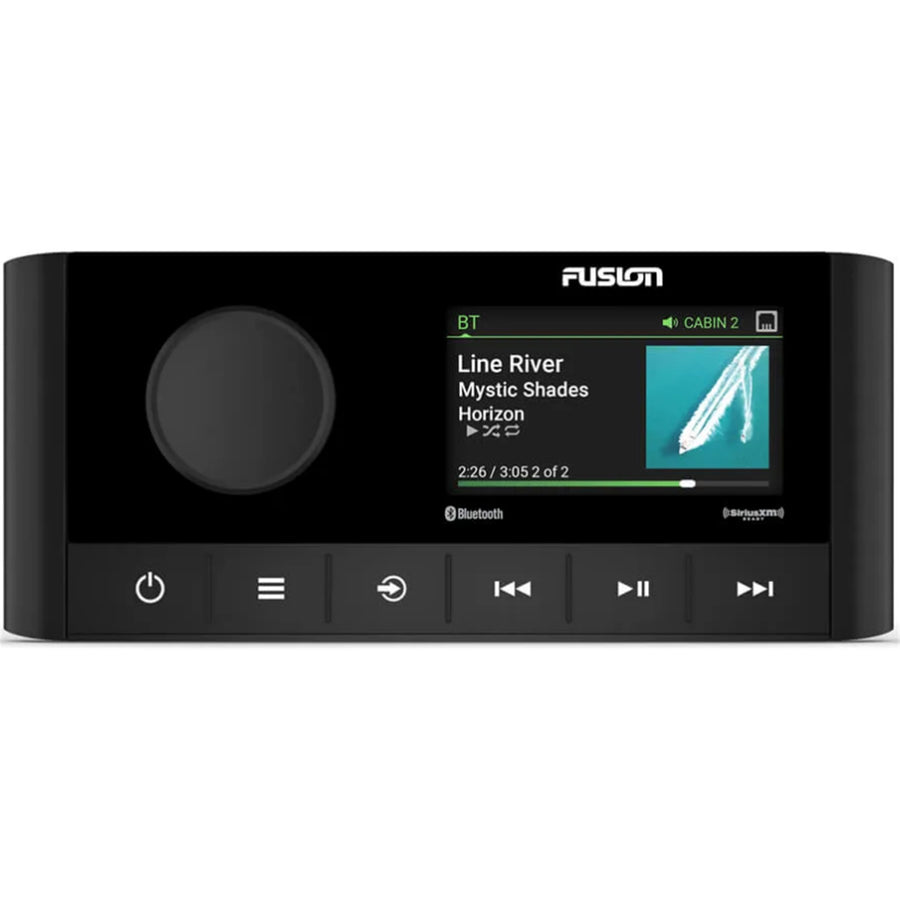

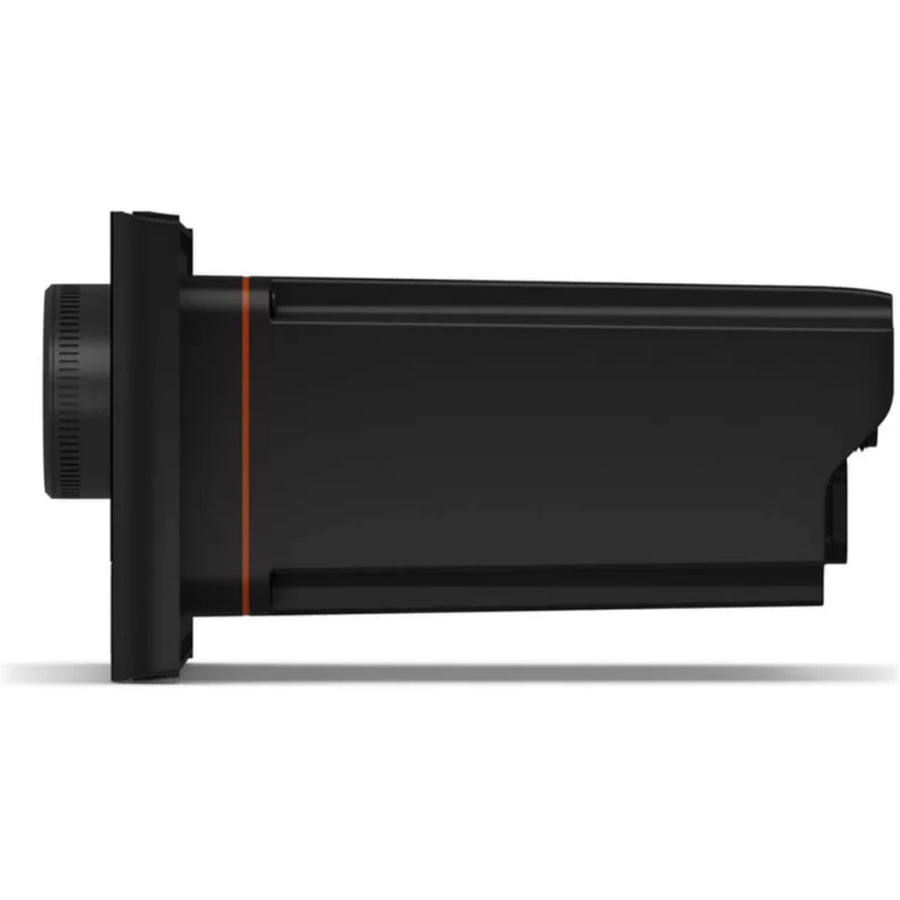

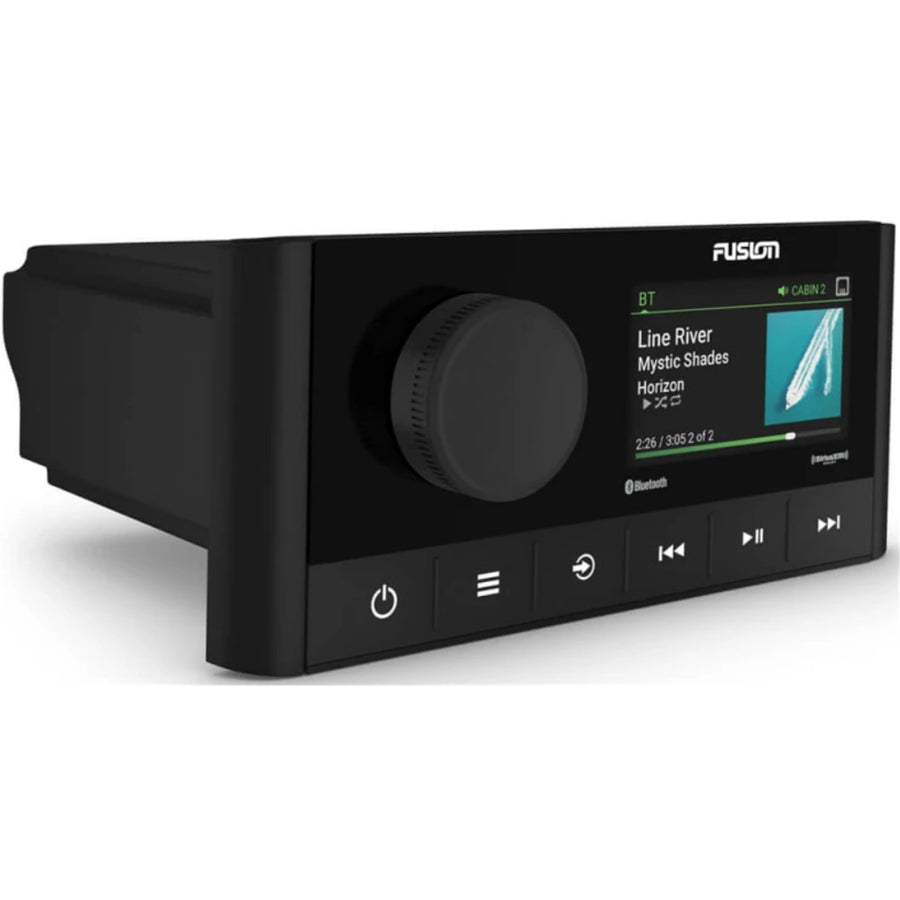

010-02250-00 - FUSION MARINE STEREO MS-RA210
Features
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
EASY-TO-INSTALL DSP PROFILES
Setting up your DSP profiles is made simple with the free Fusion-Link™ app2. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
Specifications
Technical Specifications
| Physical dimensions (H x W x D) | 68 x 157 x 126.6 mm |
|---|---|
| Weight | 350 g |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 0° to 50° C |
| Current (max.) | 15 A |
| NMEA 2000® LEN1 | (50 mA) |
| Bluetooth wireless range | Up to 30 ft. (10 m) |
| ANT wireless range | Up to 10 ft. (3 m) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominalANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 150 mm |
| Display | 2.7" optically bonded colour LCD |
| Built-in amplifier | Class-D (minimum 4 Ohm impedance) |
| Peak power | 180 W |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | Yes (with preconfigured DSP profiles) |
| Fusion-Link™ control | Yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ | Yes (DAB tuner built in) |
| Multi-language interface | Danish, Dutch, English, Finnish, French, German, GreekItalian, Japanese, Korean, Norwegian, Polish,Portuguese (BR/PT), Slovenian, Spanish, Swedish, |
| Software updates | USB |
| Sources | AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /MTP / DAB+ ready (available inEurope and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | One NMEA 2000 port |
| USB 2.0 | One USB 2.0 port |
| SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather)AM/FM radio One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 amplified zones) |
| RCA Pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | Zone 1, Zone 2 (L + R, requires external amplification) |
| Subwoofer out | Zone 1, Zone 2 (requires external amplification) |
| Brand | FUSION |
|---|---|
| Product Type | Mobile & Wearables > Car Electronics |
| Weight | 1.29 kg |
| Warranty |
|---|
