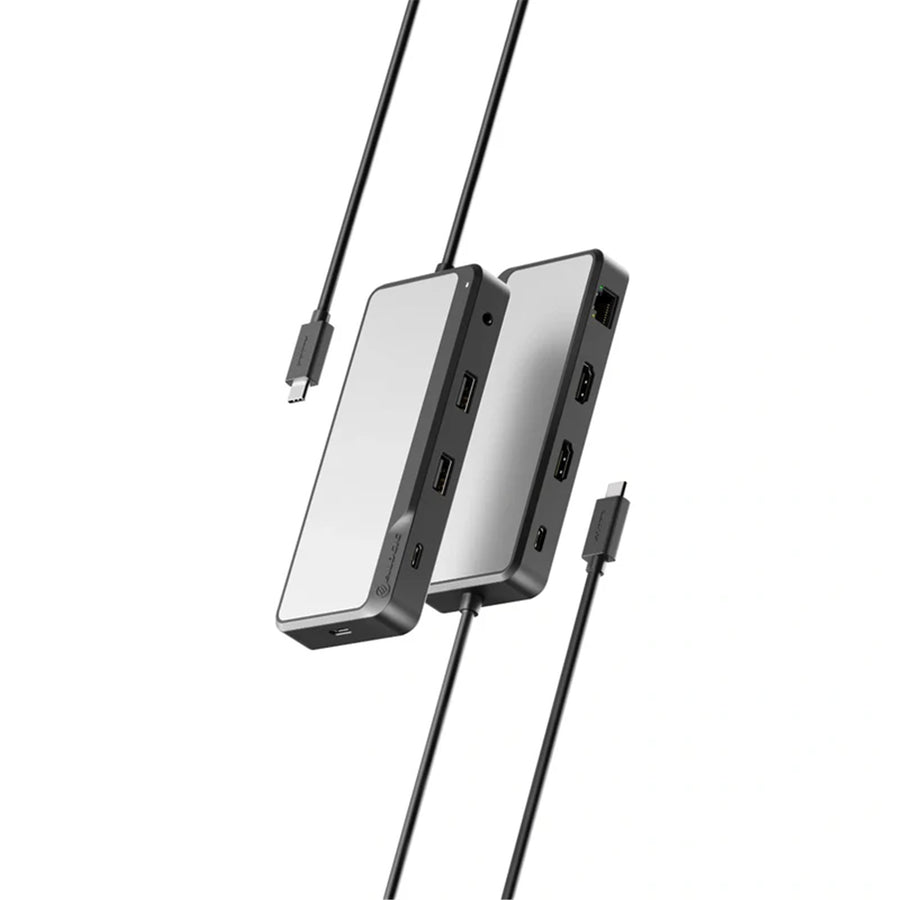

ALOGIC FUP2HD1 - Fusion Pro DUO USB-C Dual HDMI Dock
Features

The ALOGIC Fusion Pro DUO compact dock packs all of the features of a desktop docking station into a diminutive package. Engineered with everything needed to support productivity and get messy cables under control, this dock provides just what's needed for a simple and effective workspace.
Designed for compactness, the DUO dock takes up minimal space on a desk or in a laptop bag but doesn't skimp on capability, featuring dual 4K HDMI video outputs and 100W USB PD charging*. Complete with 5x USB, audio and Ethernet ports, this dock is the perfect productivity partner.
* USB PD passthrough charging requires connection of an optional USB PD power adapter - not included.

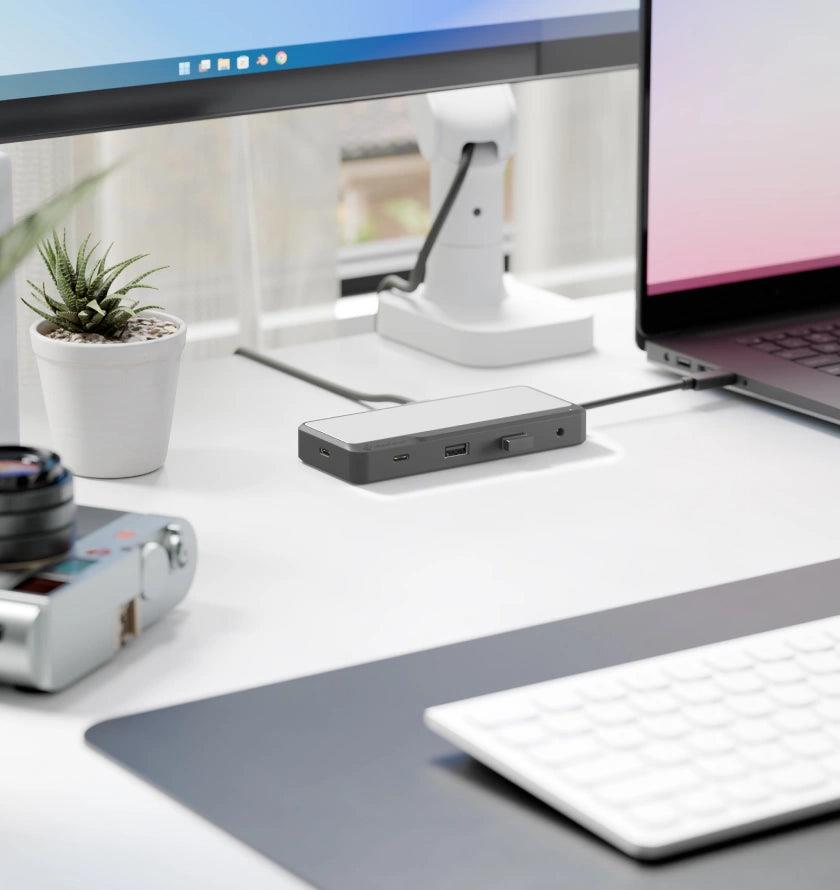

Workspaces Made Simple
This dock does the job of a large format desktop dock while doing away with the bulky box and power adapter.

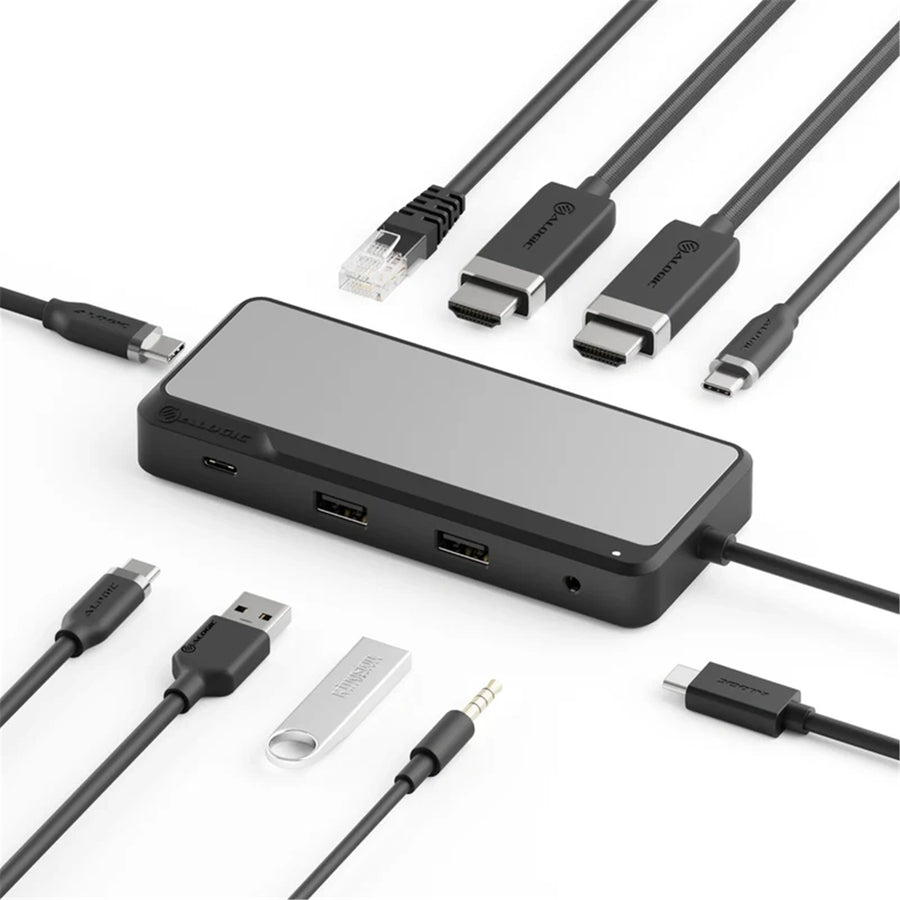

The dock has the ability to connect two monitors, up to five USB peripherals and Gigabit Ethernet. A headphone audio jack provides a convenient way to connect external speakers or a headset for making video calls.

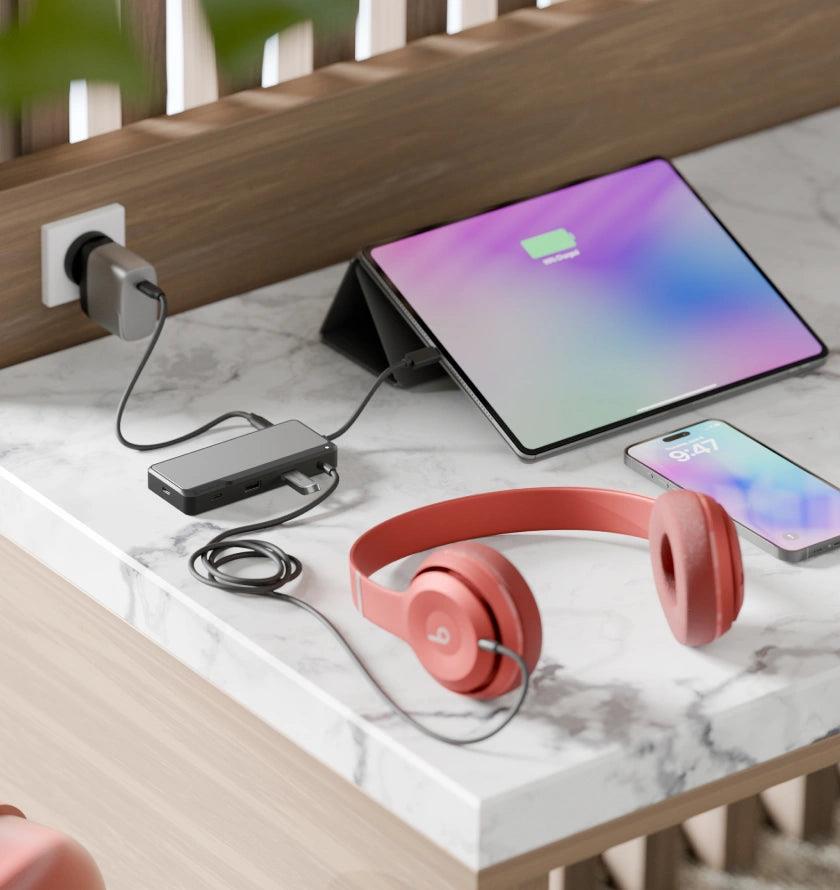

One of the three USB-C ports on the DUO dock supports USB Power Delivery (PD) passthrough as well as USB data - allowing the dock to charge the computer when a USB PD power adapter is connected to this port.
Stunning 4K Video
Small but powerful, the DUO dock can extend a lapto's display to two external monitors significantly expanding the computer's capabilities. *
Supporting resolutions up to 4K*, this dock provides vivid high resolution visualization for increased visual fidelity.
* Video resolutions and refresh rates that can be achieved are dependent on the capabilities of the connected computer and monitor. Check the FAQ's below for guidance in the resolutions you can expect to achieve with your equipment.

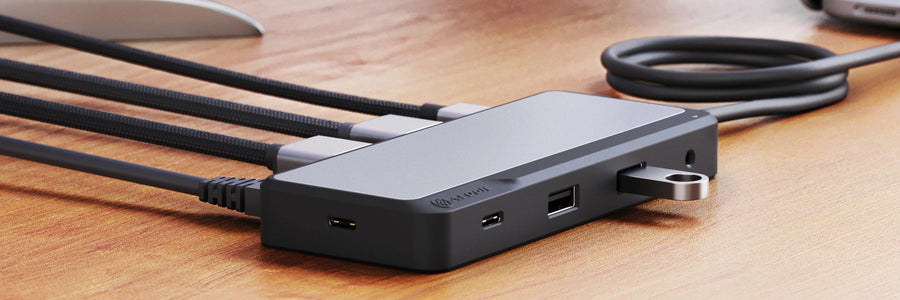

Small and Robust
ALOGIC is redefining docking stations by packing the same features of a traditional large format dock into compact devices that are at home on a desk or on the road.
This dock's compact design is perfect when space is at a premium and makes it a logical choice for mobile users - road warriors, educators, students and professionals who work between the office and home.
A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is built strong so it can live in a laptop bag while taking up minimum space and without fear of being damaged.



Specifications
Technical Specifications
| Product Dimensions | 130 x 55 x 17.5mm (L x W x H excluding cable) |
|---|---|
| Cable Length | 230mm |
| Colour | Space Grey and Black |
| Weight (product) | 133g approx |
| Materials | Aluminium and ABS |
| Input Ports | 1 x Integrated USB-C cable for connection to computer1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data) |

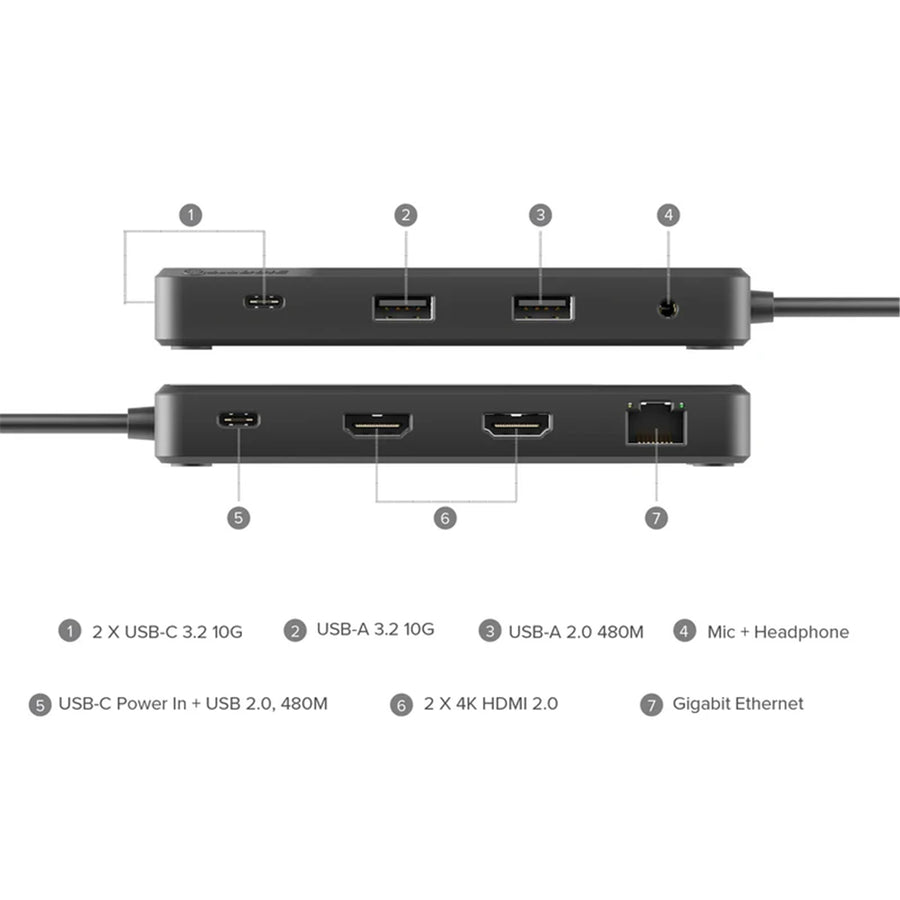

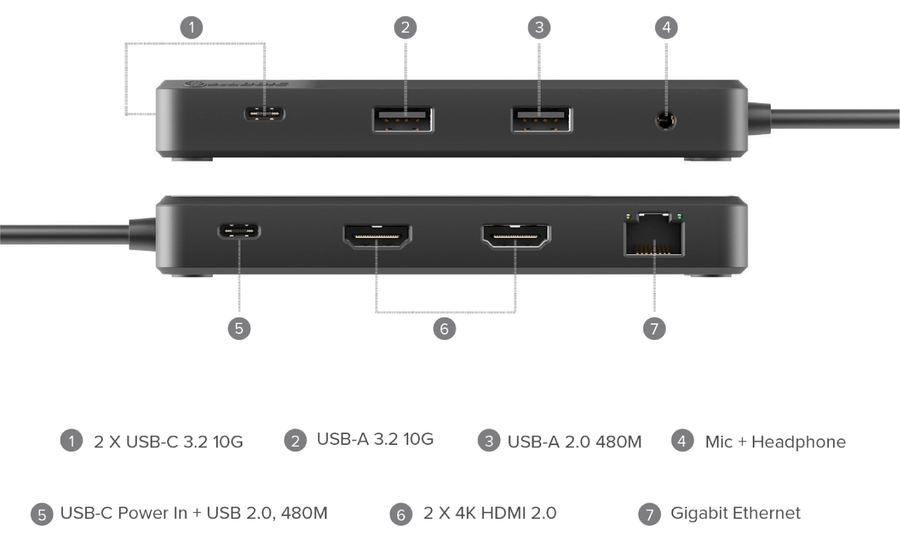

| Output Ports | 2 x HDMI 2.01 x USB-A 3.2 Gen 2 10Gbps1 x USB-A 2.0 480Mbps2 x USB-C 3.2 Gen 2 10Gbps1 x USB-C 2.0 with PD power passthrough1 x 3.5mm Headphone/Mic Audio Jack1 x RJ45 Ethernet 1Gbps |
| Power Supply | Device can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply). |
| Video Support | Maximum refresh rate is dependent on the capability of the host computer and resolution of the connected display.See resolution tables at the bottom of this document for full specifications. |
| Audio Functionality | Supports HDMI audio outputSupports stereo audio out and mic/line in via 3.5mm connector |
| Operating Temperature | 0°C to +35°C |
| Operating Humidity | 10% to 85% RH (no condensation) |
| Included Items | 1 x FUP2HD1 USB-C Dual Display Dock1 x User Manual |
| Compatibility | Compatible with Windows, MacOS, ChromeOS computers.USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.Windows and some ChromeOS computers are able to show independent video on two displays connected to this device.MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display. |
| Compliance | FCC, CE, UKCA, RoHS |
| Brand | ALOGIC |
|---|---|
| Product Type | Computers & Tablets > Docking Stations |
| Weight | 0.091 kg |
