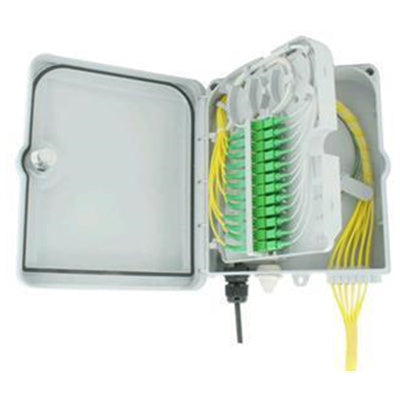

DYNAMIX FWEIP12 - Lockable Indoor/Outdoor Fibre Termination Box 12 Position 12 Splice SC Simplex/LC Duplex
Features
This lockable IP65 distribution box offers the ability to terminate 12 fibres housed in a strong robust ABS enclosure for indoor and outdoor applications. An internal detachable tray provides a neat and tidy solution for housing 12 SC simplex connections and splices. The box has 12 patch cord exit points and up to 2 cable entry points which maintain the IP65 rating. Integrated cable tie points are included to secure incoming cables. A locking feature for the door adds extra security when positioned in an unsecured area.
- IP 65 Rating for external use
- Lockable door for added security
- Integrated cable tie points for securing incoming cable
- Up to 12 splice & SC connection points
- Removable splice tray for easy installation
- Accepts loose tube, distribution and pre-terminated cables
- Integrated bend radius protection
- Sealing glands for up to 12 exiting cables + 2 x 6.5mm- 13mm incoming cable
- Removable door for ease of installation
- Supplied with 12 heatshrink splice protectors
- Supplied with transit tubing
- Supplied with wall fixings and tie wraps
Specifications
Technical Specifications
| Manufacturer | Dynamix |
|---|---|
| Product No. | FWEIP12 |
| Colour | White |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Fiber Connectivity > Fiber Patch Leads |
| Weight | 0.637 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
