DYNAMIX FWEIP24 - Lockable Indoor/Outdoor Fibre Termination Box 24x Position SC Simplex/LC Duplex IP65
Features

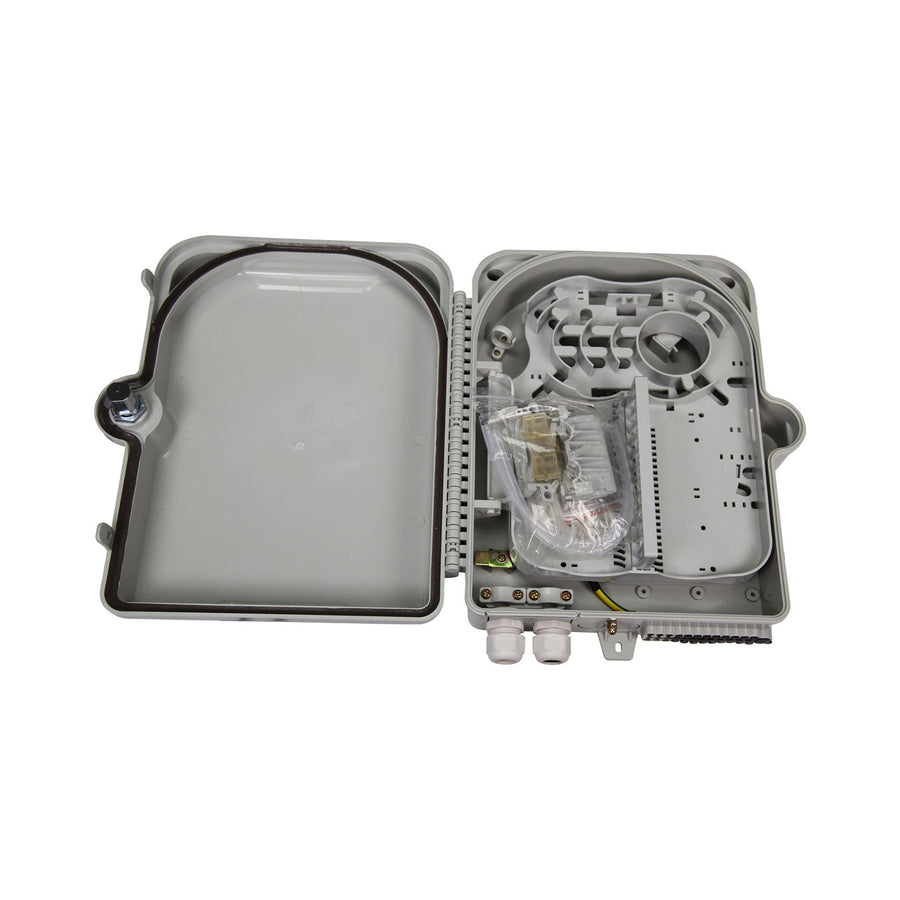

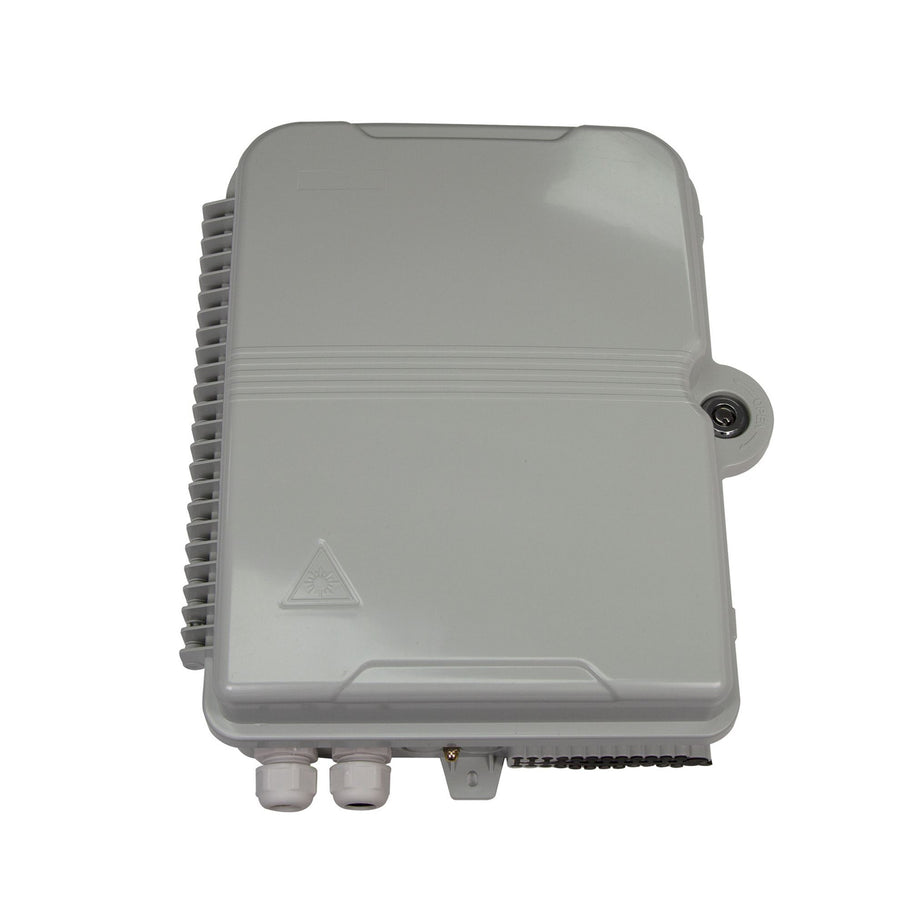

This lockable IP65 distribution box offers the ability to terminate 24 fibres housed in a strong robust ABS enclosure for indoor and outdoor applications. An internal detachable tray provides a neat and tidy solution for housing 24 SC simplex connections and splices. The box has 24 patch cord exit points and up to 2 cable entry points which maintain the IP65 rating. Integrated cable tie points are included to secure incoming cables. A locking feature for the door adds extra security when positioned in an unsecured area.
- IP 65 Rating for external use
- Lockable door for added security
- Integrated cable tie points for securing incoming cable
- Up to 24 splice & SC connection points
- Removable splice tray for easy installation
- Accepts loose tube, distribution and pre-terminated cables
- Integrated bend radius protection

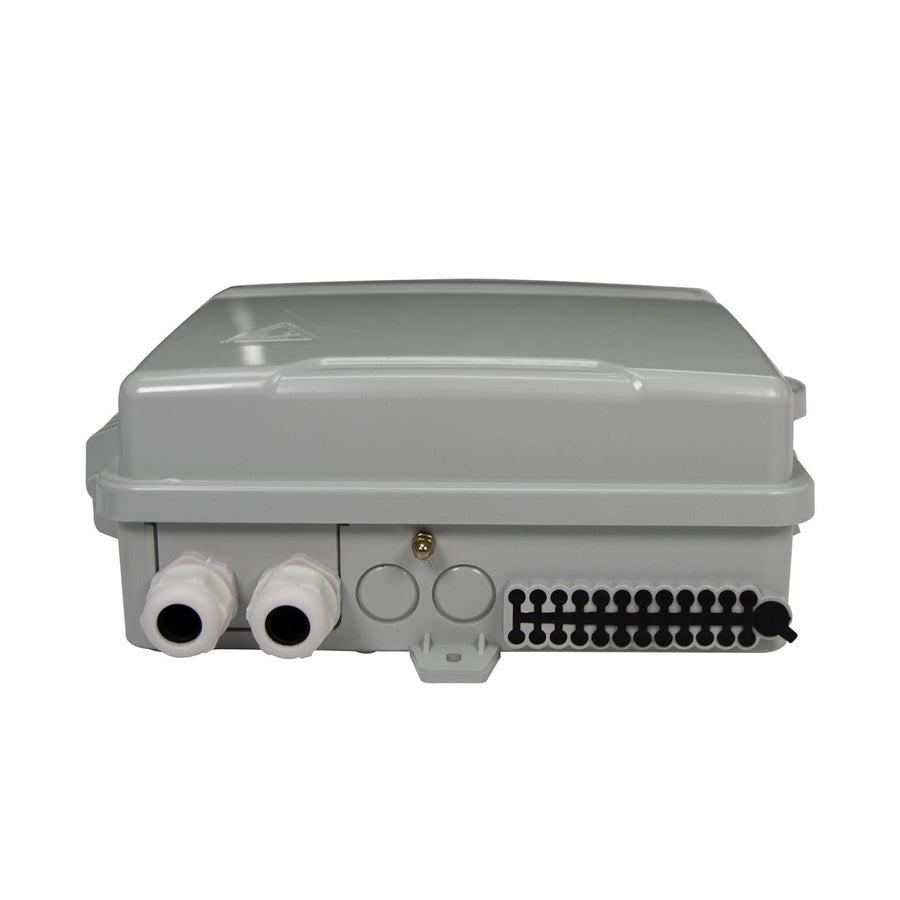

- Sealing glands for up to 24 exiting cables + 2 incoming cable
- Removable door for ease of installation
- Supplied with 24 heatshrink splice protectors
- Supplied with transit tubing
- Supplied with wall fixings and tie wraps
- ROHS, REACH & SvHC compliant
Specifications
Technical Specifications
| Height | 340 mm |
|---|---|
| Width | 270 mm |
| Depth | 110 mm |
| Net weight | 1.8 kg |
| Suitable for adaptor type | SC Simplex |
| Number of ports | 24 |
| Cable entry | 2 |
| Material | ABS |
| Colour | Grey RAL 7035 |
| Operating temperature | -40 to +60 C |
| Designed in accordance with | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 |
| Compliant to | RoHS, Reach/SVHC |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Structured Cabling |
| Weight | 1.936 kg |
| Warranty |
|---|
